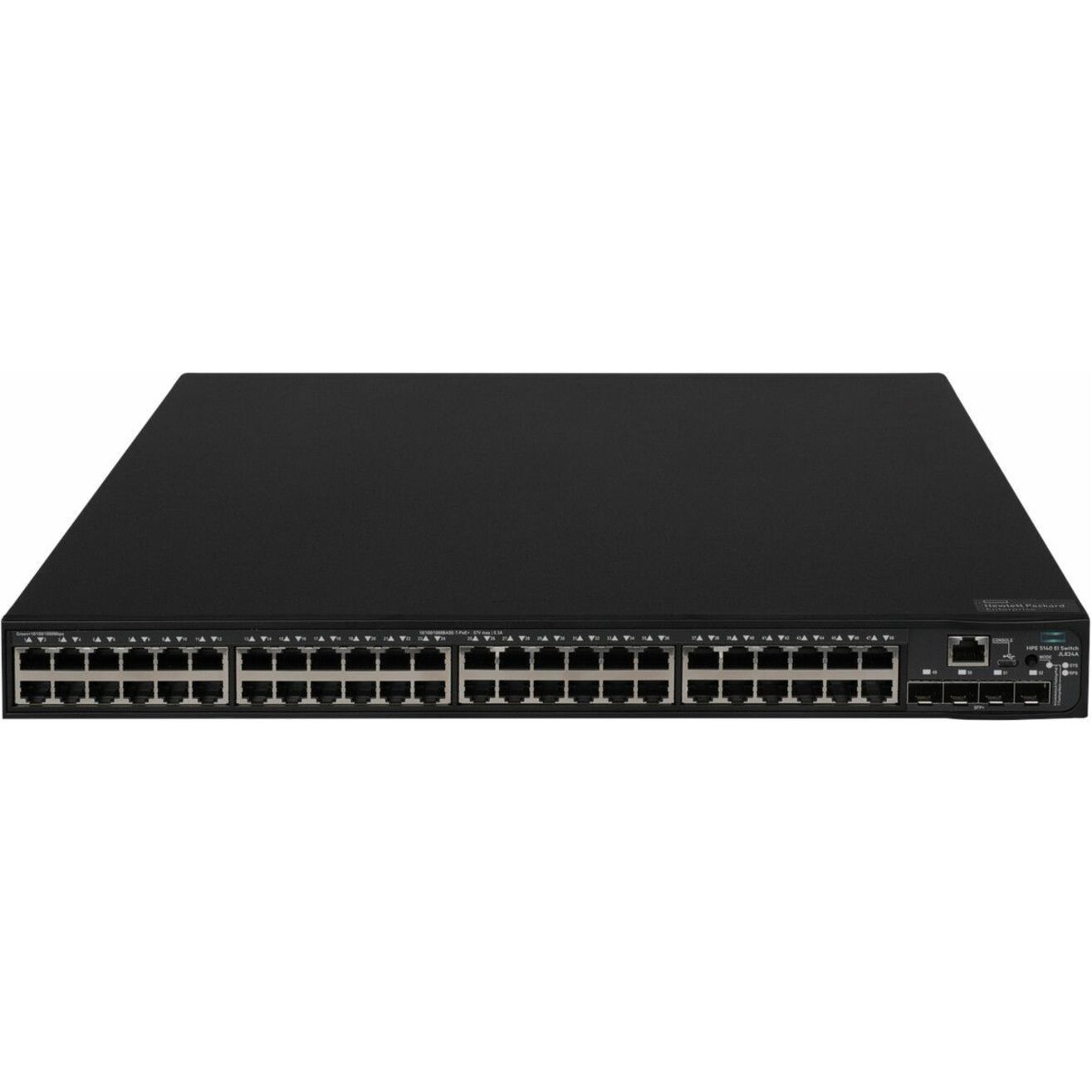

Representative imageHPE FlexNetwork 5140 EI Ethernet Switch
HPE FlexNetwork 5140 EI Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - Refurbished - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- FlexNetwork 5140 EI
- Media Type Supported
- Optical Fiber
- Media Type Supported
- Twisted Pair
- Total Number of Network Ports
- 48
Overview
HPE FlexNetwork 5140 EI Ethernet Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - Refurbished - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount (part number JL824AR#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
• Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wireless • IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices • Embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC) • Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 1.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10/100/1000Base-T, 10GBase-X · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 1.25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Optical Fiber, Twisted Pair
- Network Technology
- 10/100/1000Base-T, 10GBase-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Total Number of Network Ports
- 48
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet PoE+, 4 x 10 Gigabit Ethernet Expansion Slot
Power Description
- PoE (RJ-45) Port
- Yes
- Redundant Power Supply Supported
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 47 W W
- Input Voltage
- 120 V AC, 230 V AC, -57 V DC
- Power Source
- Power Supply, AC/DC
Network & Communication
- Networking Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z
- Layer Supported
- 3
Technical Information
- Data Link Protocols
- HTTP, HTTPS
- Features
- Access Control List, Energy Efficient, Remote Monitoring (RMON), Quality of Service (QoS)
I/O Expansions
- Number of SFP+ Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.3" mm
- Depth
- 14.2" mm
- Form Factor
- Rack-mountable, Cabinet Mount
- Weight (Approximate)
- 17.64 lb g
General Information
- Product Type
- Ethernet Switch
- Product Condition
- Refurbished
- Product Series
- 5140 EI
Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
