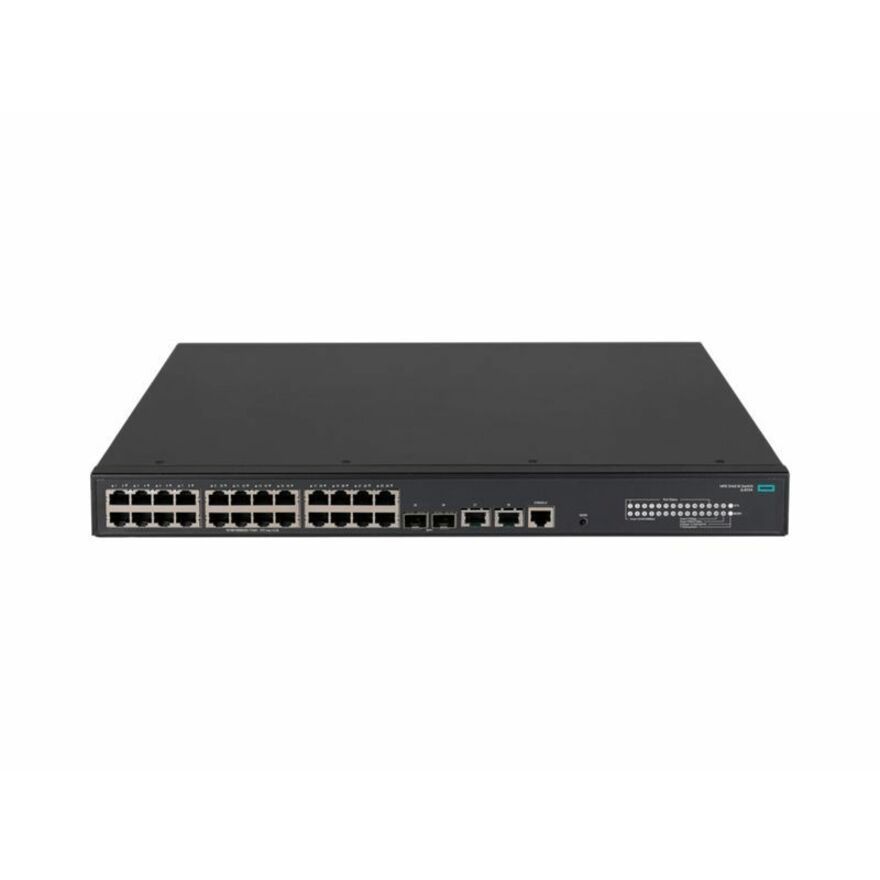

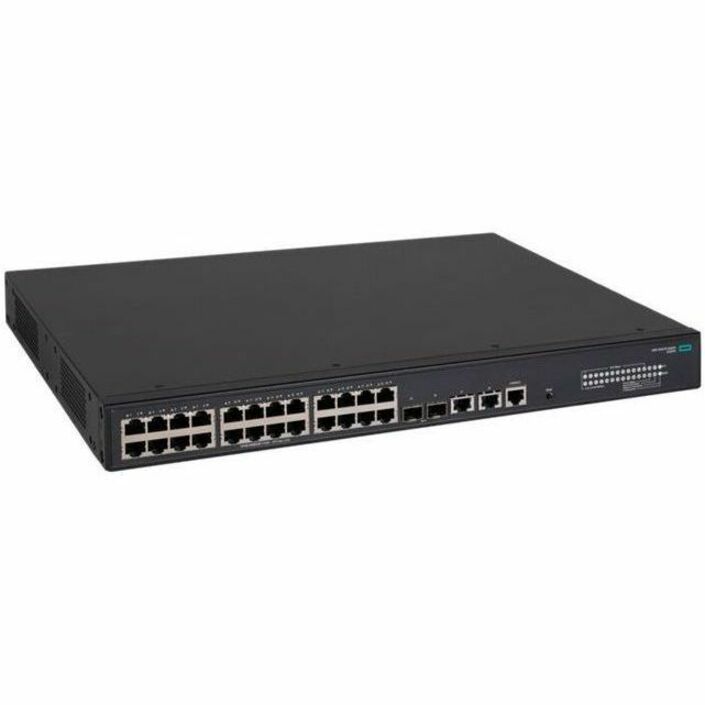

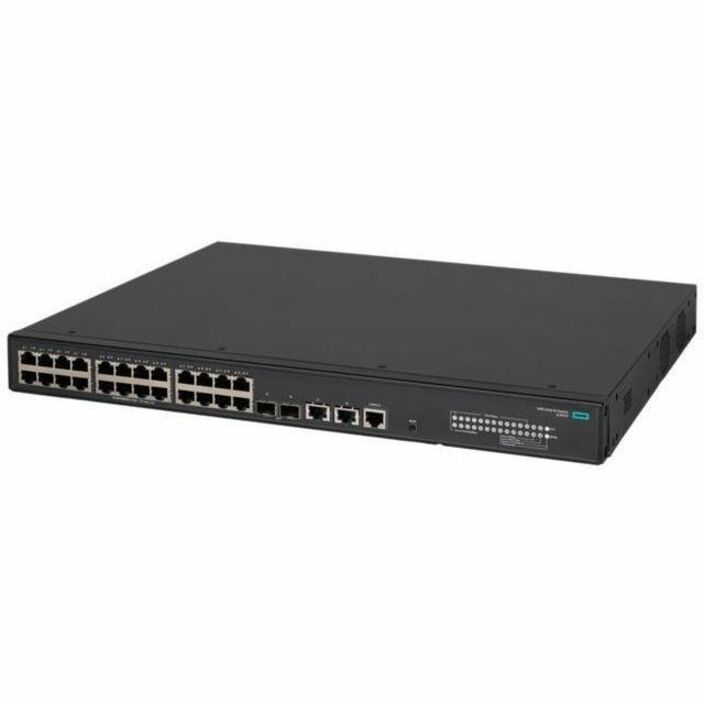

Representative imageHPE FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch
HPE FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch - 26 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X, 10GBase-T - Refurbished - 3 Layer Supported - Modular - 24.50 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Layer 3 Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- FlexNetwork 5140 EI
- Media Type Supported
- Optical Fiber
- Media Type Supported
- Twisted Pair
- Total Number of Network Ports
- 26
Overview
HPE FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch - 26 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X, 10GBase-T - Refurbished - 3 Layer Supported - Modular - 24.50 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount (part number JL823AR) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
• Layer 3 Switch provides dependable and powerful connectivity for maximum usability • Cascade to other network devices through the uplink port to expand your local area network • Features 26 networking ports to establish large network • Supports layer 3 switching for enhanced performance and usability • Rack mounting enables you to organize wires & secure cables for professional installation
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 1.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10/100/1000Base-T, 10GBase-X, 10GBase-T · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 1.25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Optical Fiber, Twisted Pair
- Network Technology
- 10/100/1000Base-T, 10GBase-X, 10GBase-T
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Total Number of Network Ports
- 26
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+, 2 x 10 Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot
Power Description
- PoE (RJ-45) Port
- Yes
- Redundant Power Supply Supported
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 24.50 W W
- Power Source
- Power Supply
Network & Communication
- Networking Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z
- Layer Supported
- 3
I/O Expansions
- Number of SFP+ Slots
- 2
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
Technical Information
- Features
- Energy Efficient, Access Control List
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.3" mm
- Depth
- 12.6" mm
- Form Factor
- Rack-mountable, Cabinet Mount
- Weight (Approximate)
- 9.92 lb g
General Information
- Product Type
- Layer 3 Switch
- Product Condition
- Refurbished
- Product Series
- 5140 EI
