Overview

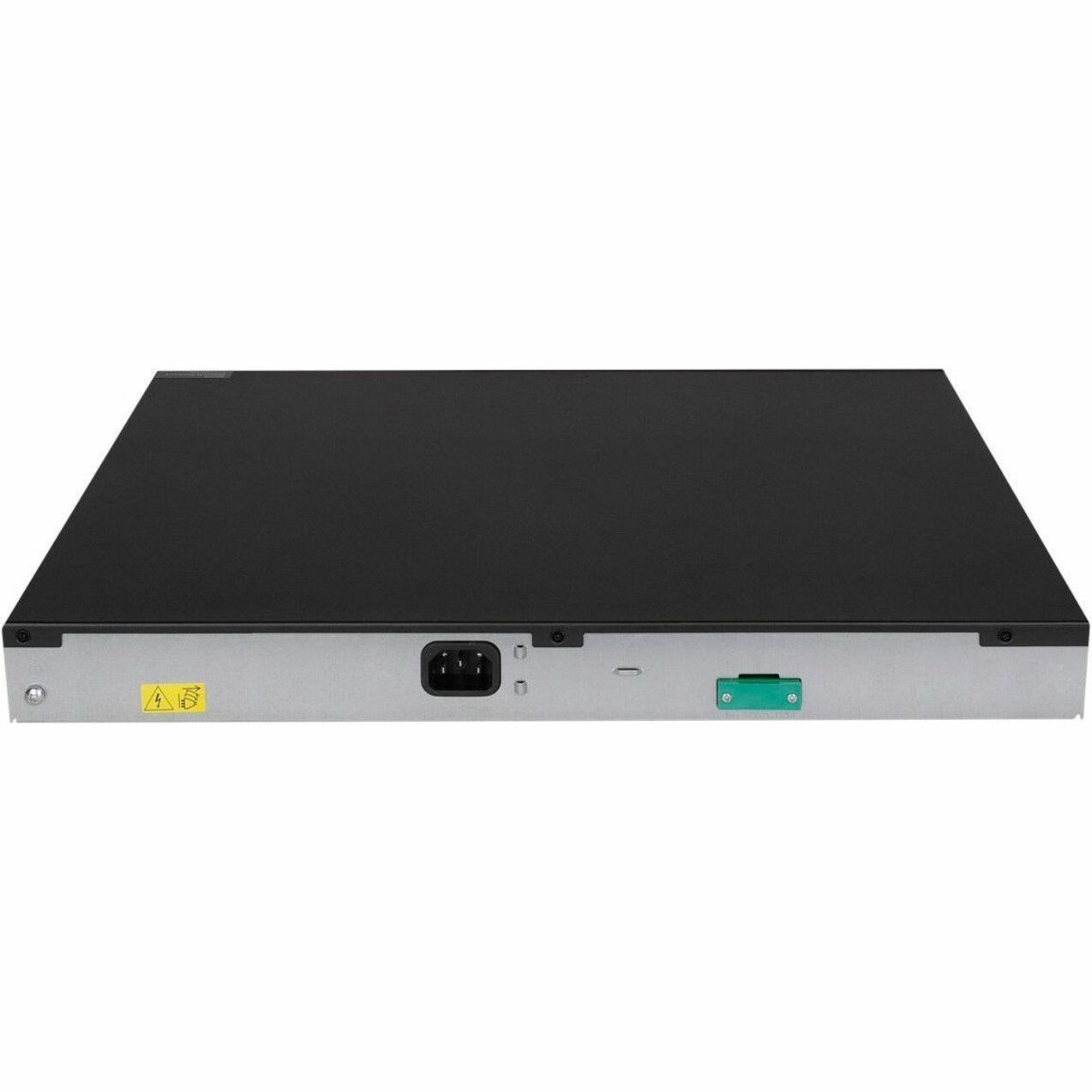

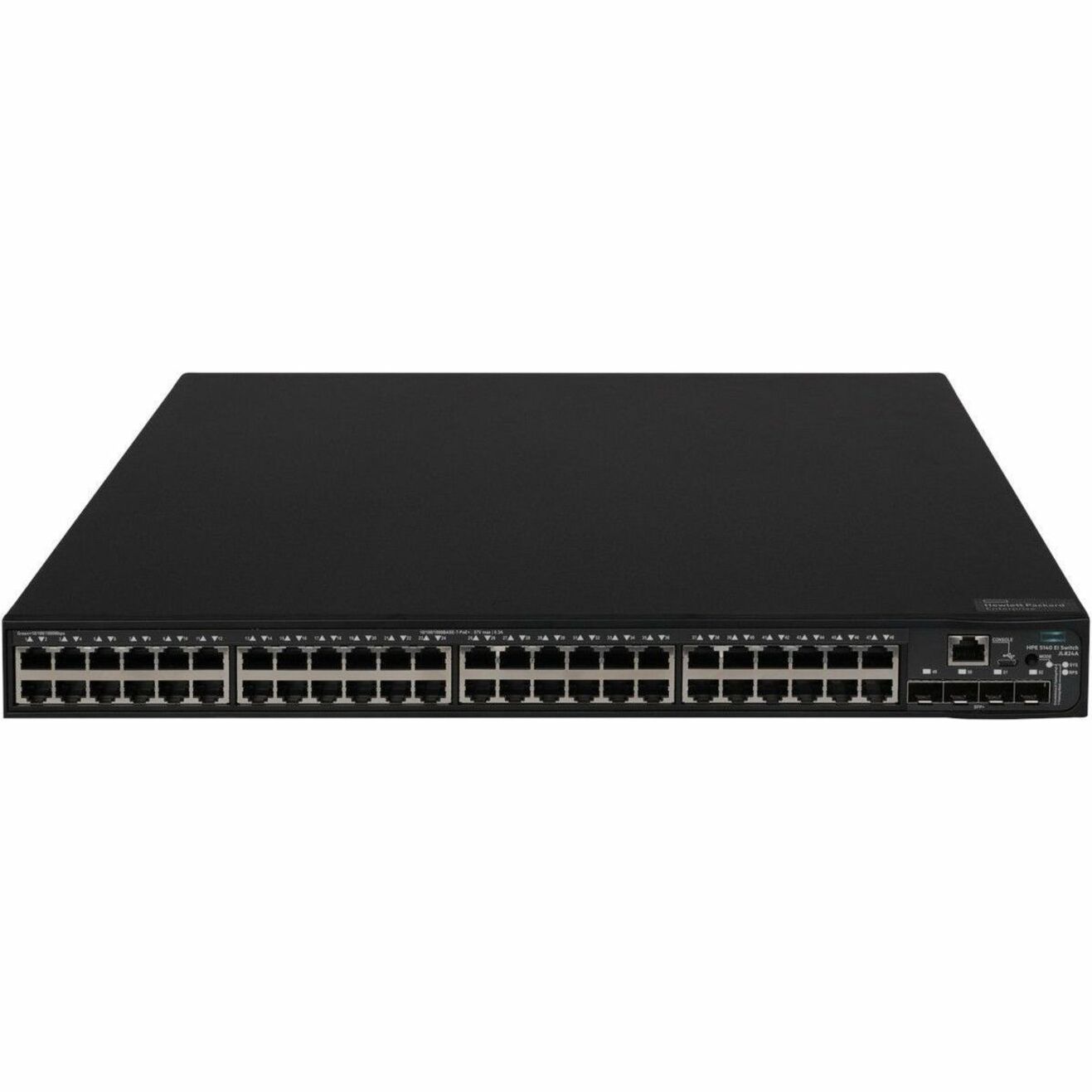

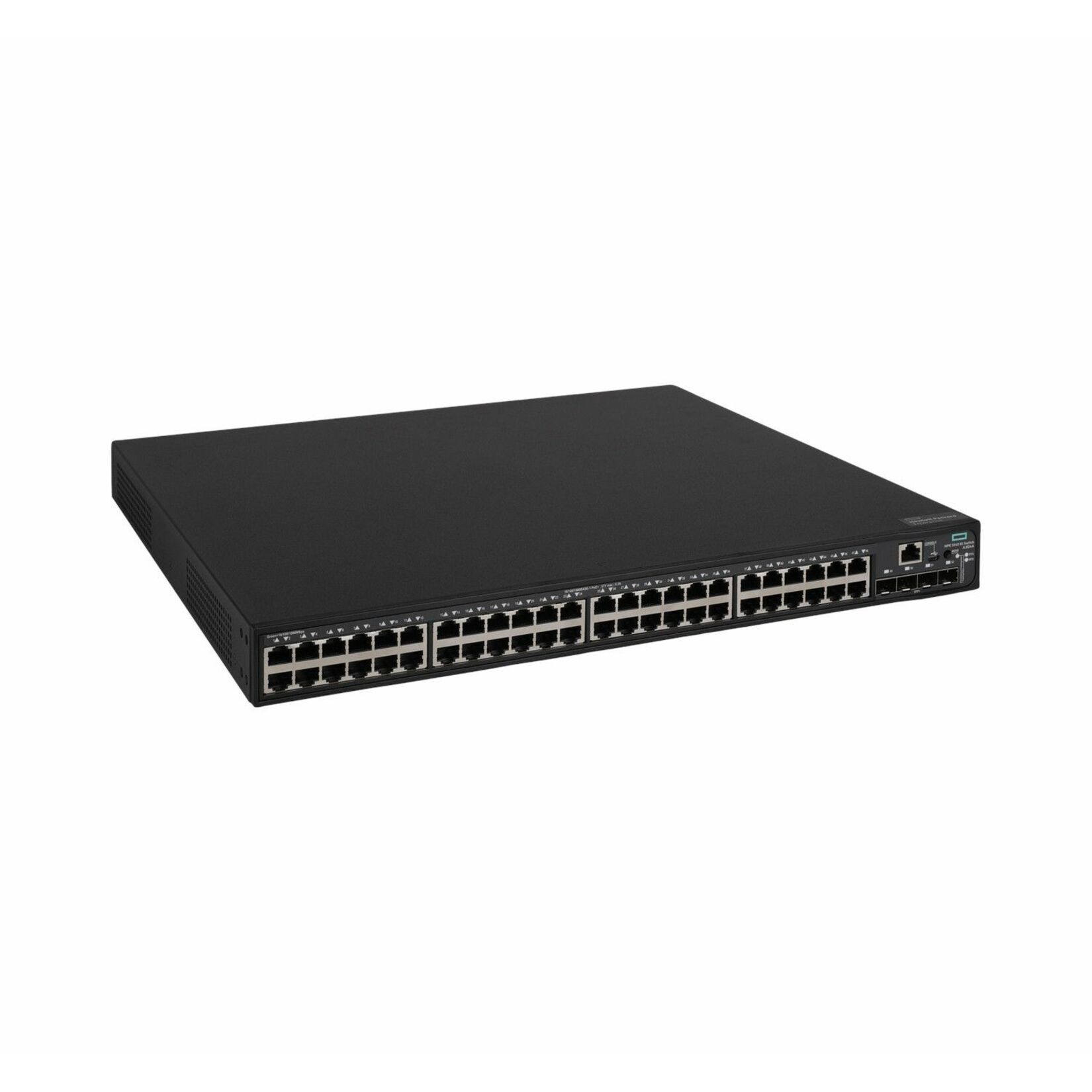

HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - Refurbished - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount (part number JL824AR) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

• Effectively increases available bandwidth on your network • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency • Features 48 networking ports to establish large network • Supports layer 3 switching for enhanced performance and usability • Rack mounting enables you to organize wires & secure cables for professional installation

Key specifications: Manageable: Yes · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10/100/1000Base-T, 10GBase-X · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes · Total Number of Network Ports: 48.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols

Manageable: Yes

Media & Performance

Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Media Type Supported: Optical Fiber, Twisted Pair
Network Technology: 10/100/1000Base-T, 10GBase-X

Interfaces/Ports

Network (RJ-45): Yes
Modular: Yes
Uplink Port: Yes
Total Number of Network Ports: 48
Port/Expansion Slot Details: 48 x Gigabit Ethernet PoE+, 4 x 10 Gigabit Ethernet Expansion Slot

Power Description

PoE (RJ-45) Port: Yes
Redundant Power Supply Supported: Yes
PoE Budget: 370 W W
Power Consumption: 47 W W
Input Voltage: 120 V AC, 230 V AC
Power Source: Power Supply

Network & Communication

Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ac, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z
Layer Supported: 3

I/O Expansions

Number of SFP+ Slots: 4
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+

Physical Characteristics

Compatible Rack Unit: 1U
Height: 1.7" mm
Width: 17.3" mm
Depth: 14.2" mm
Form Factor: Rack-mountable, Cabinet Mount
Weight (Approximate): 17.64 lb g

General Information

Product Type: Ethernet Switch
Product Condition: Refurbished
Product Series: 5140 EI
Product Model: 5140 48G PoE+ 4SFP+ EI
