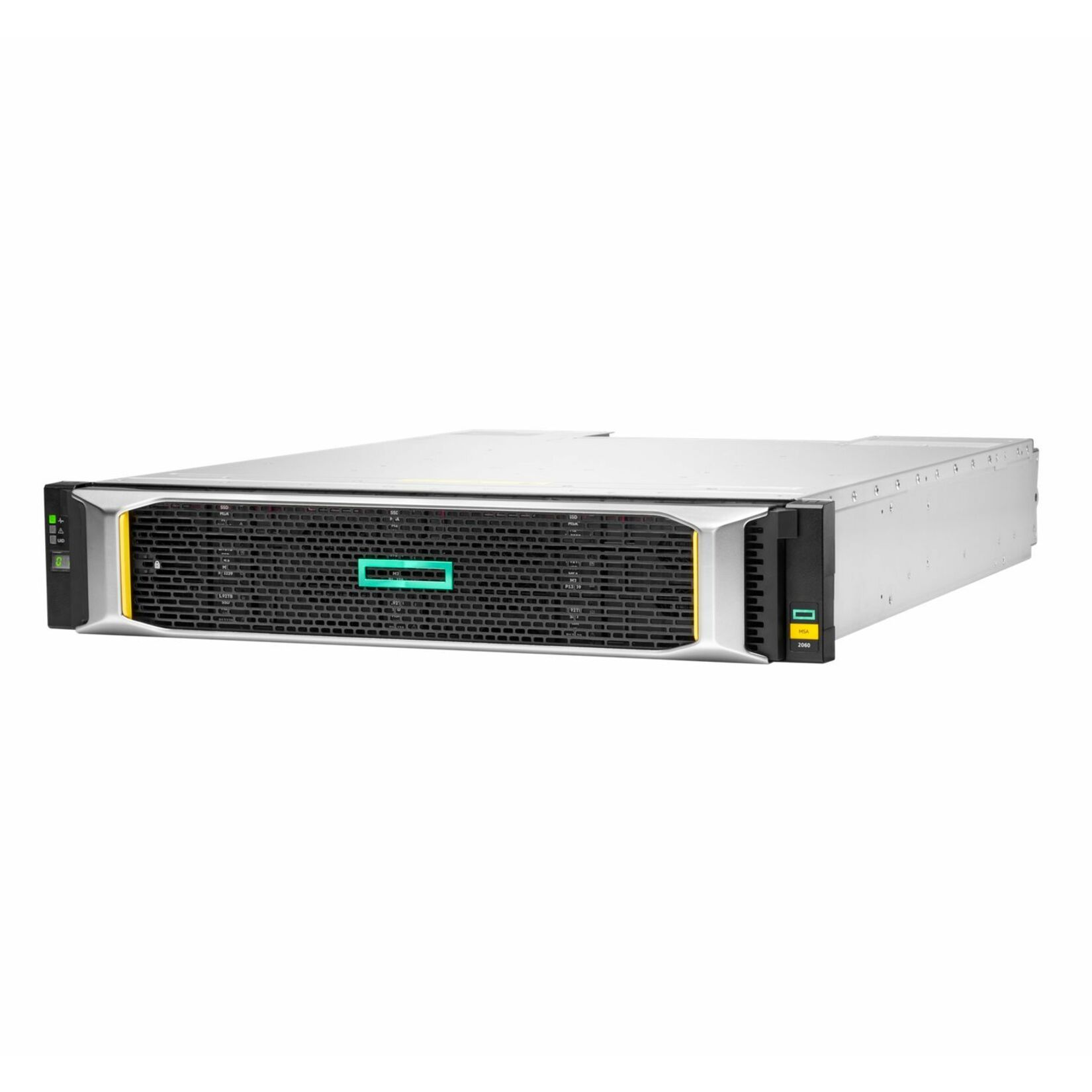

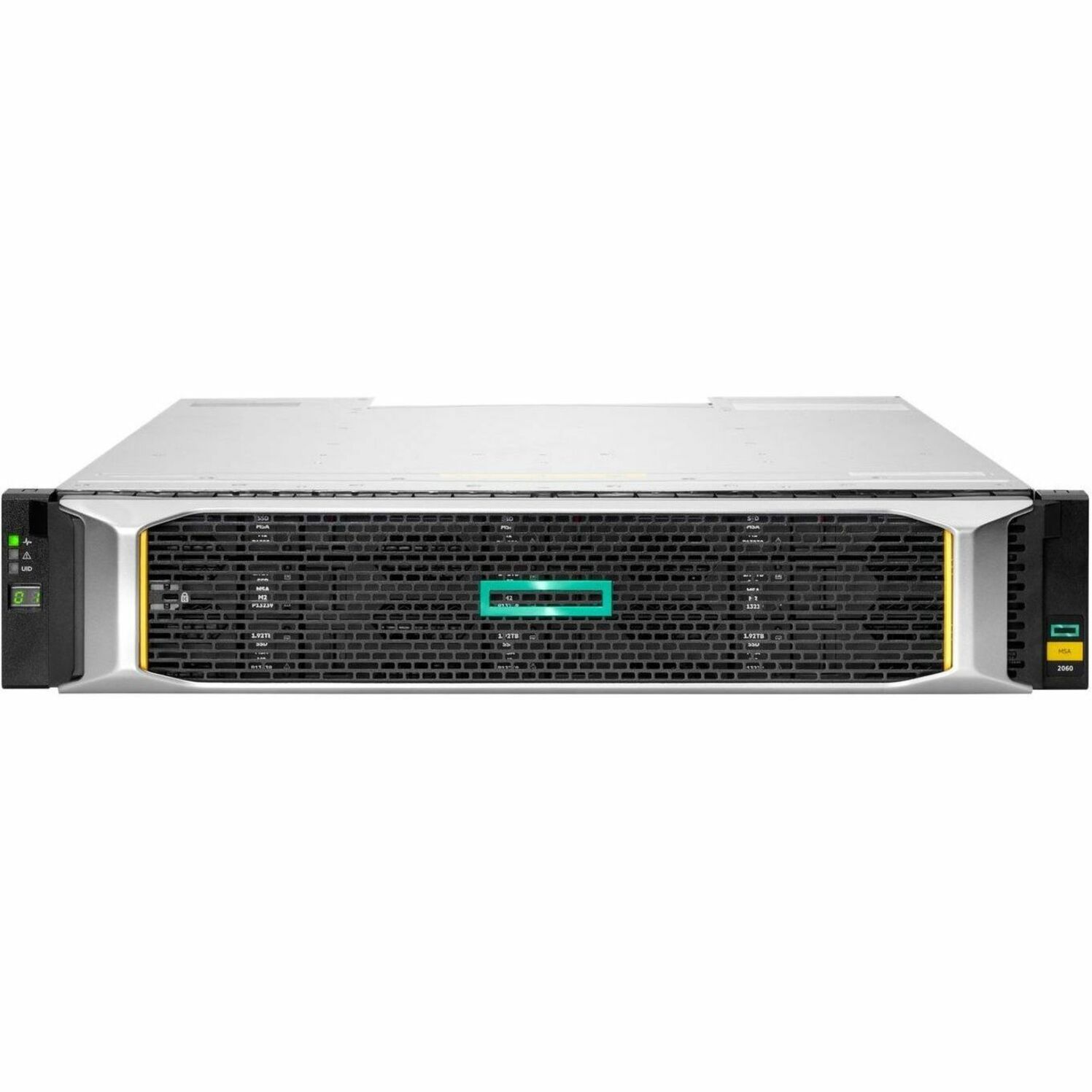

HPE MSA 2060 SAN Storage System - 12 x HDD Supported - 7 x HDD Installed - 56 TB Installed HDD Capacity - 12Gb/s SAS - 12 x SRepresentative image
Transceivers & Cables

HPE MSA 2060 SAN Storage System

HPE MSA 2060 SAN Storage System - 12 x HDD Supported - 7 x HDD Installed - 56 TB Installed HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - Clustering Supported - 2 x 10/25 GbE iSCSI Controller - RAID Supported - 0, 1, 5, 6, 10 RAID Levels - 7 x Total Bays - 7 x 3.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - FCP, SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 4 iSCSI Ports - 2U - Rack-mountable

Mfr #: P84174-B25
$15,318Save $1,715.62 (11%)
$13,602.38

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
SAN Storage System
RAID Supported
Yes
Ethernet Technology
10 Gigabit Ethernet
Number of Total Expansion Bays
7
Number of 3.5" Bays
7
Network (RJ-45)
Yes
Maximum Power Supply Wattage
580 W
Total Hard Drive Capacity Installed
56 TB

Overview

HPE MSA 2060 SAN Storage System - 12 x HDD Supported - 7 x HDD Installed - 56 TB Installed HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - Clustering Supported - 2 x 10/25 GbE iSCSI Controller - RAID Supported - 0, 1, 5, 6, 10 RAID Levels - 7 x Total Bays - 7 x 3.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - FCP, SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 4 iSCSI Ports - 2U - Rack-mountable (part number P84174-B25) is supplied by Uniqcli, an authorized HPE partner, in the HPE Storage Arrays & Servers category. Additional Warranty Information: Three-year limited warranty, parts exchange next business day delivery on all base arrays and drive enclosures. MSA drives and other options carry a separate warranty..

HPE MSA 2060 Storage Array The HPE MSA 2060 is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don't let the low-cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solidstate drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.

• SAN Storage System offers maximum storage productivity with added dependability • Holds up to 12 HDDs to let you expand limitlessly • Through RAID levels (0, 1, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance • RAID technology - data reliability, fault tolerance and improved overall performance • Rack-mountable san storage system allows maximum space utilization with easy and convenient access and retrieval of the data

Key specifications: Additional Warranty Information: Three-year limited warranty, parts exchange next business day delivery on all base arrays and drive enclosures. MSA drives and other options carry a separate warranty. · Limited Warranty: 3 Year Year · Number of Power Supplies Installed: 2 · Redundant Power Supply: Yes · Maximum Power Supply Wattage: 580 W W · Plug/Connector Type: C14 · Hard Drive Interface: 12Gb/s SAS · Hard Drive Configuration: 7 x 8TB.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Warranty
Additional Warranty Information
Three-year limited warranty, parts exchange next business day delivery on all base arrays and drive enclosures. MSA drives and other options carry a separate warranty.
Limited Warranty
3 Year Year
Power Description
Number of Power Supplies Installed
2
Redundant Power Supply
Yes
Maximum Power Supply Wattage
580 W W
Plug/Connector Type
C14
Storage
Hard Drive Interface
12Gb/s SAS
Hard Drive Configuration
7 x 8TB
Total Hard Drive Capacity Installed
56 TB Byte
Number of Hard Drives Supported
12
Number of Hard Drives Installed
7
Number of Solid State Drive Supported
12
Clustering Supported
Yes
Controllers
RAID Supported
Yes
Number of Controllers
2
RAID Levels
0, 1, 5, 6, 10
Controller Type
10/25 GbE iSCSI
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
7
Number of 3.5" Bays
7
Interfaces/Ports
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Drive Interface
12Gb/s SAS
Number of iSCSI Ports
4
Miscellaneous
Energy Star
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 6, Waste Electrical and Electronic Equipment Directive (WEEE), China Restriction of Hazardous Substances (China RoHS)
Country of Origin
Mexico
Package Contents
MSA 2060 SAN Storage System 2 x 1.5m PDU Cords (IEC C14) 1 x Rack-mount Kit MSA 2U Rail Kit HPE MSA 10 Gb Short Range iSCSI SFP+ 4-pack Transceivers
Management & Protocols
Protocols
FCP, SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet
Physical Characteristics
Height
3.5" mm
Width
19" mm
Depth
26.4" mm
Rack Height
2U
Form Factor
Rack-mountable
General Information
Product Type
SAN Storage System
Product Model
MSA 2060
