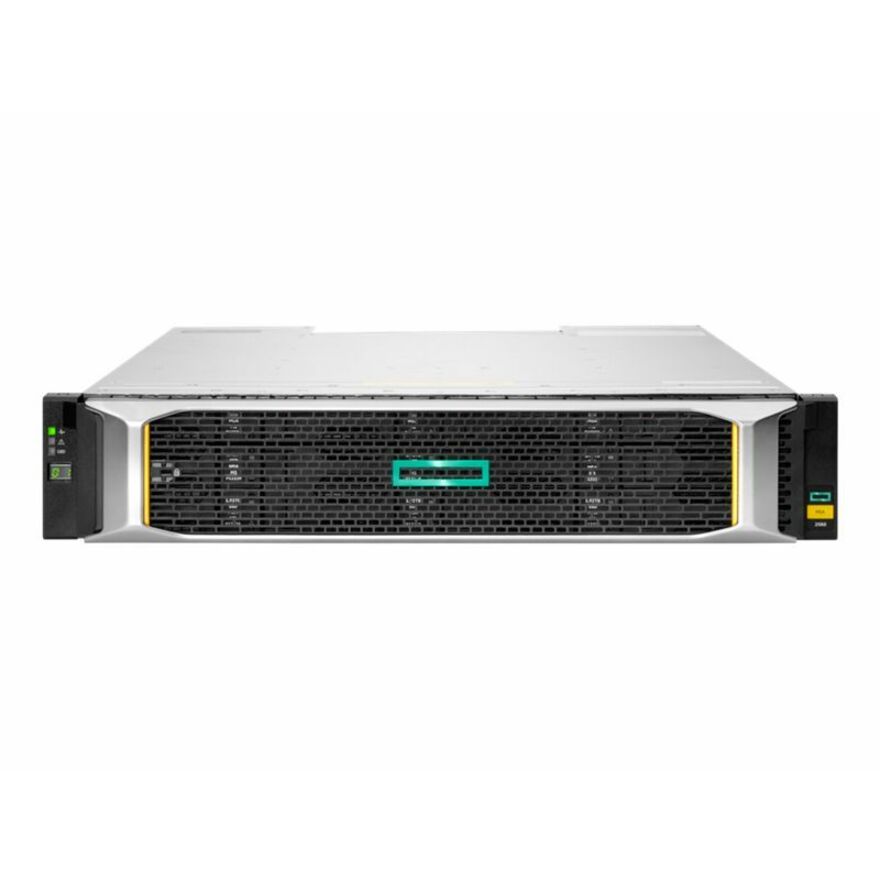

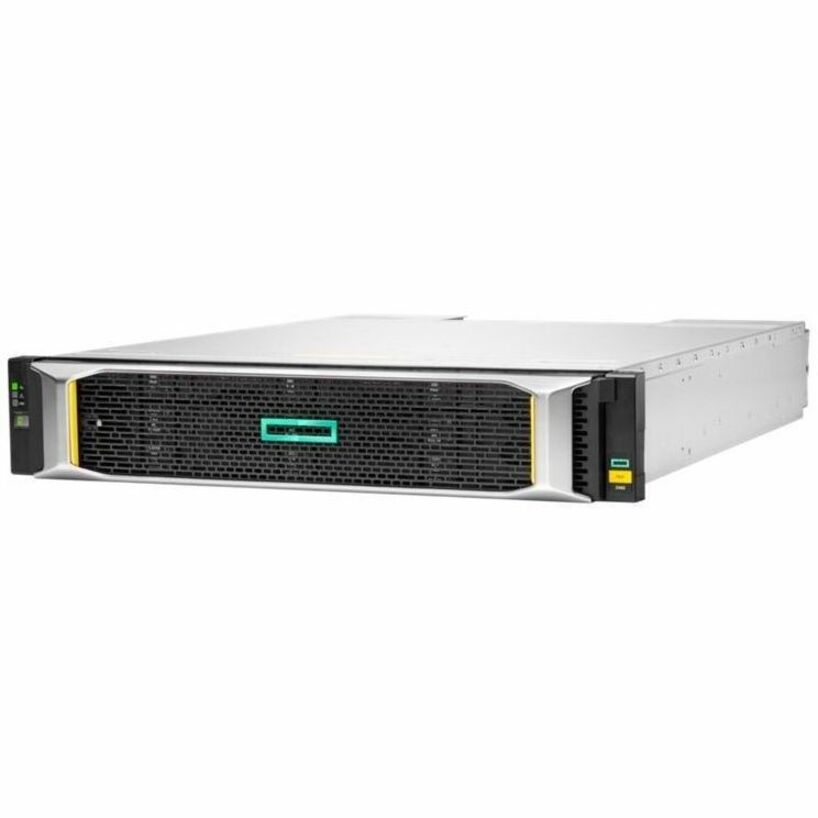

Representative imageHPE MSA 2060 SAN Storage System
HPE MSA 2060 SAN Storage System - 12 x HDD Supported - 7 x HDD Installed - 56 TB Installed HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - Clustering Supported - 2 x 12Gb/s SAS, 16Gb/s Fibre Channel Controller - RAID Supported - 0, 1, 5, 6, 10 RAID Levels - 12 x Total Bays - 12 x 3.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet, FCP - 2U - Rack-mountable
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
- Product Type
- SAN Storage System
- RAID Supported
- Yes
- Ethernet Technology
- 10 Gigabit Ethernet
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
- Network (RJ-45)
- Yes
- Maximum Power Supply Wattage
- 580 W
- Total Hard Drive Capacity Installed
- 56 TB
Overview
HPE MSA 2060 SAN Storage System - 12 x HDD Supported - 7 x HDD Installed - 56 TB Installed HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - Clustering Supported - 2 x 12Gb/s SAS, 16Gb/s Fibre Channel Controller - RAID Supported - 0, 1, 5, 6, 10 RAID Levels - 12 x Total Bays - 12 x 3.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet, FCP - 2U - Rack-mountable (part number P84173-B25) is supplied by Uniqcli, an authorized HPE partner, in the HPE Storage Arrays & Servers category. Number of Power Supplies Installed: 2.
Is your company looking for easy-to-use, affordable, high-performance shared storage? The HPE MSA 2060 Storage is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don't let the low cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solid state drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new HPE MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.
• SAN Storage System is the single answer to all your desired storage needs • Robust scalability up to 12 drives to let you expand limitlessly • Through RAID levels (0, 1, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance • RAID technology - data reliability, fault tolerance and improved overall performance • Rack-mountable san storage system allows easy and convenient usage without any trouble
Key specifications: Number of Power Supplies Installed: 2 · Redundant Power Supply: Yes · Maximum Power Supply Wattage: 580 W W · Plug/Connector Type: C14 · Hard Drive Interface: 12Gb/s SAS · Hard Drive Configuration: 7 x 8TB · Total Hard Drive Capacity Installed: 56 TB Byte · Number of Hard Drives Supported: 12.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Power Description
- Number of Power Supplies Installed
- 2
- Redundant Power Supply
- Yes
- Maximum Power Supply Wattage
- 580 W W
- Plug/Connector Type
- C14
Storage
- Hard Drive Interface
- 12Gb/s SAS
- Hard Drive Configuration
- 7 x 8TB
- Total Hard Drive Capacity Installed
- 56 TB Byte
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 7
- Number of Solid State Drive Supported
- 12
- Clustering Supported
- Yes
Controllers
- RAID Supported
- Yes
- Number of Controllers
- 2
- RAID Levels
- 0, 1, 5, 6, 10
- Controller Type
- 12Gb/s SAS, 16Gb/s Fibre Channel
Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Drive Interface
- 12Gb/s SAS
- Fibre Channel
- Yes
Management & Protocols
- Protocols
- SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet, FCP
Miscellaneous
- Energy Star
- Yes
Physical Characteristics
- Height
- 3.5" mm
- Width
- 17.5" mm
- Depth
- 20" mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 11.02 lb g
Software
- Operating System Supported
- Windows Server 2022, Windows Server 2019, Windows Server 2016, Red Hat Enterprise Linux 8, SuSE Linux Enterprise Server 15
General Information
- Product Type
- SAN Storage System
- Product Model
- MSA 2060
