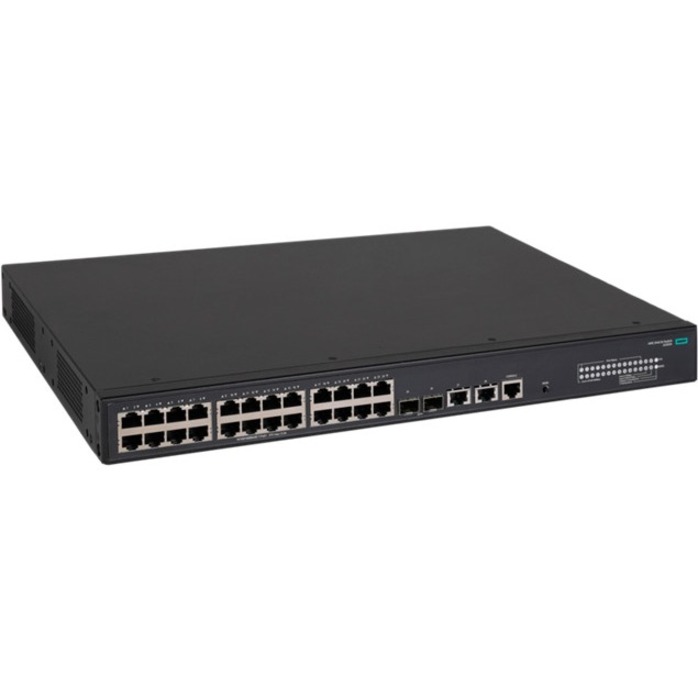

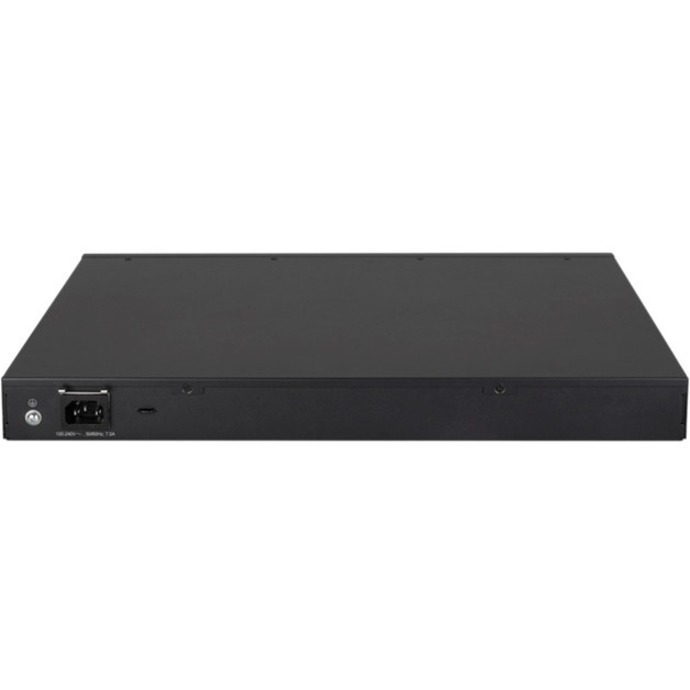

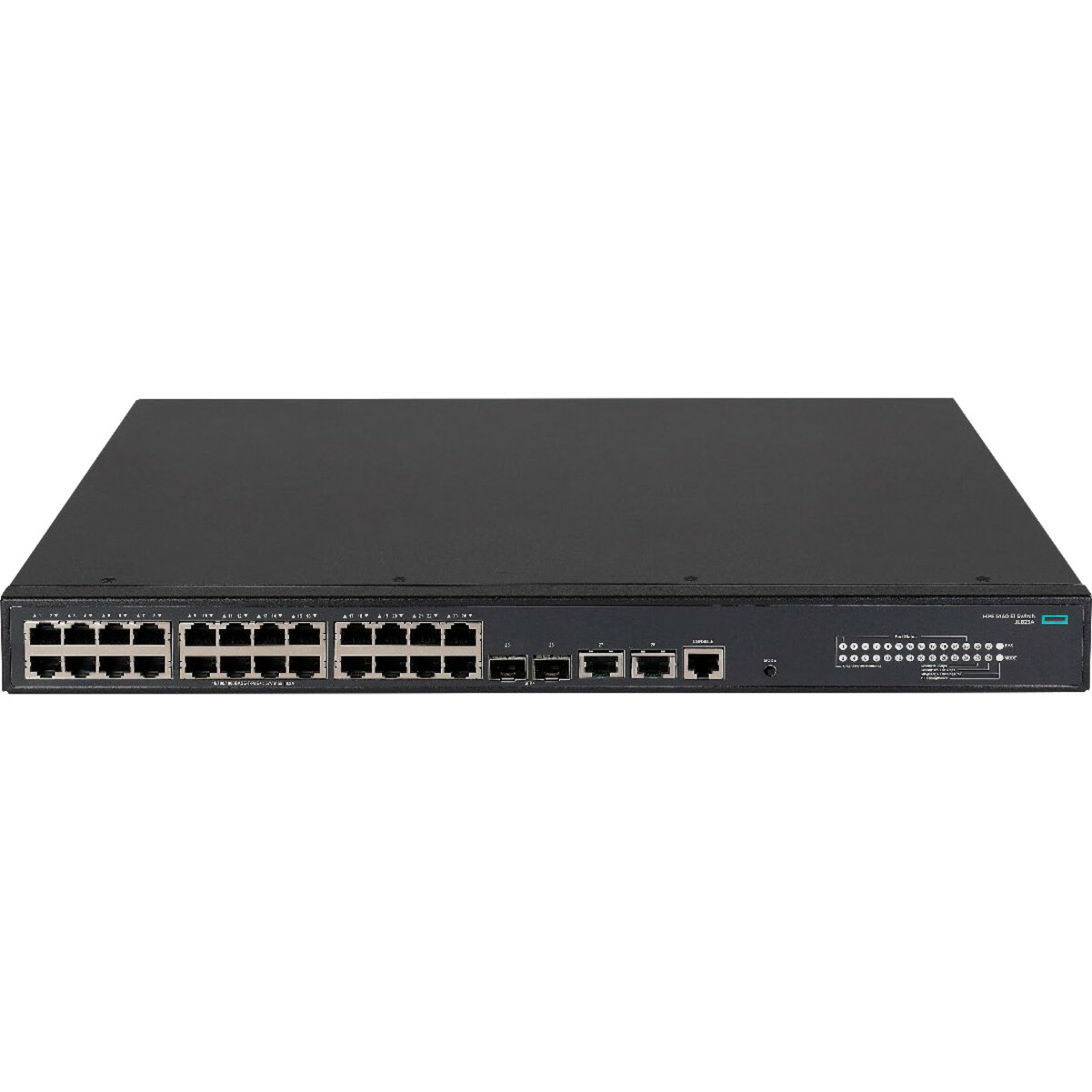

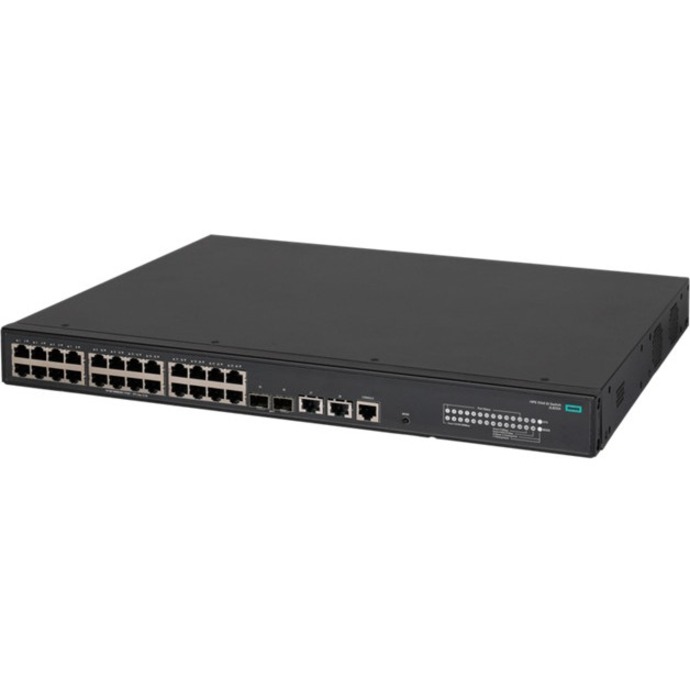

HPE FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch

HPE FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch - 26 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 24.50 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty

Mfr #: JL823A#ABA
$6,550Save $1,498.58 (23%)
$5,051.42

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Layer 3 Switch
Manageable
Yes
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Product Family
FlexNetwork 5140 EI
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Total Number of Network Ports
26

Overview

HPE FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch - 26 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X, 10GBase-T - 3 Layer Supported - Modular - 24.50 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty (part number JL823A#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

• Layer 3 Switch provides dependable and powerful connectivity for maximum usability • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 26 ports • Supports layer 3 switching for enhanced performance and usability • Rack-mountable form factor allows hassle-free and easy usage with increased efficiency

Key specifications: Manageable: Yes · Environmentally Friendly: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) · Package Contents: FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch Power Supply Mounting Hardware · Compatible Rack Unit: 1U · Product Color: Black · Height: 1.7" mm · Width: 17.3" mm.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Package Contents
FlexNetwork 5140 24G PoE+2SFP+2XGT EI Switch Power Supply Mounting Hardware
Physical Characteristics
Compatible Rack Unit
1U
Product Color
Black
Height
1.7" mm
Width
17.3" mm
Depth
12.6" mm
Form Factor
Rack-mountable, Cabinet Mount
Weight (Approximate)
9.92 lb g
Media & Performance
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Media Type Supported
Optical Fiber, Twisted Pair
Network Technology
10/100/1000Base-T, 10GBase-X, 10GBase-T
Interfaces/Ports
Network (RJ-45)
Yes
Modular
Yes
Uplink Port
Yes
Total Number of Network Ports
26
Port/Expansion Slot Details
24 x Gigabit Ethernet PoE+, 2 x 10 Gigabit Ethernet Network, 2 x 10 Gigabit Ethernet Expansion Slot
Power Description
PoE (RJ-45) Port
Yes
Redundant Power Supply Supported
Yes
PoE Budget
370 W W
Power Consumption
24.50 W W
Input Voltage
120 V AC, 230 V AC
Power Source
Power Supply
Network & Communication
Networking Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z
Layer Supported
3
Warranty
Limited Warranty
Lifetime
I/O Expansions
Number of SFP+ Slots
2
Total Number of Expansion Slots
2.0
Expansion Slot Type
SFP+
General Information
Product Type
Layer 3 Switch
Product Series
5140 EI
Product Model
5140 24G PoE+ 2SFP+ 2XGT EI
