HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch - 48.0 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Representative image
Transceivers & Cables

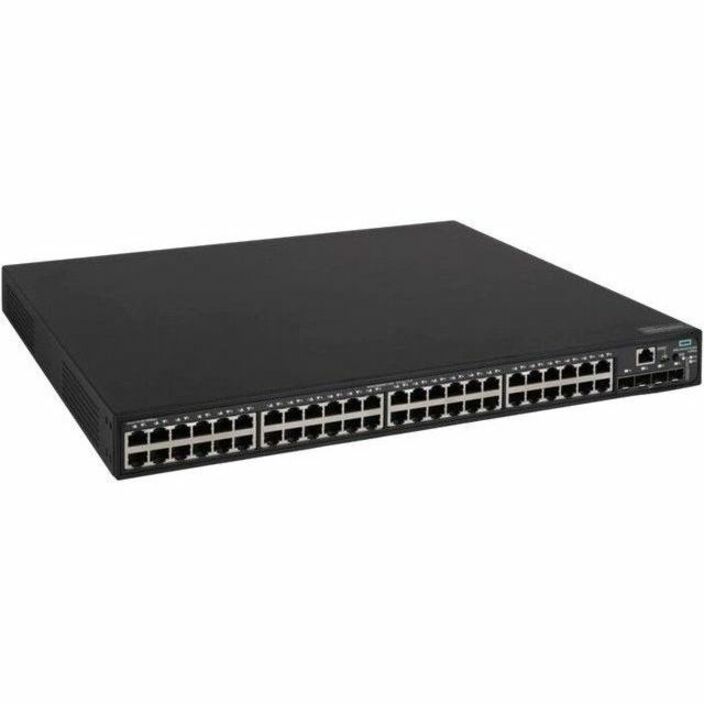

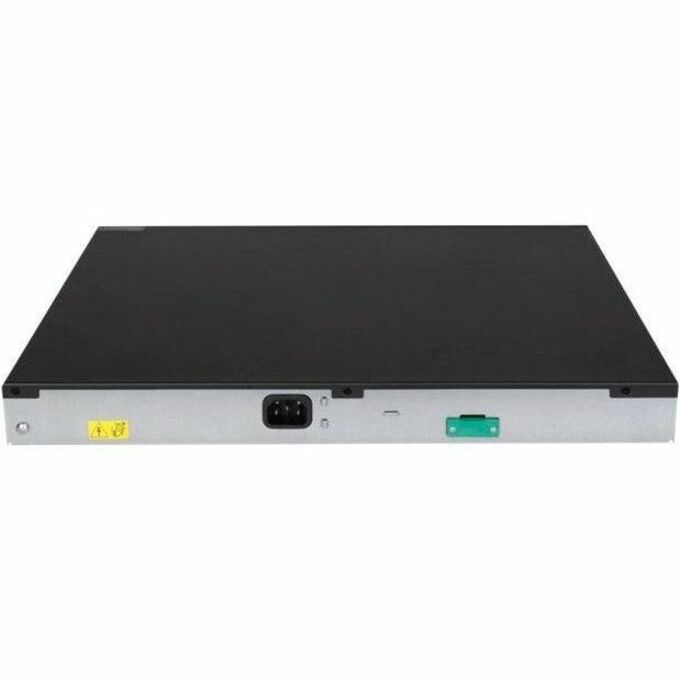

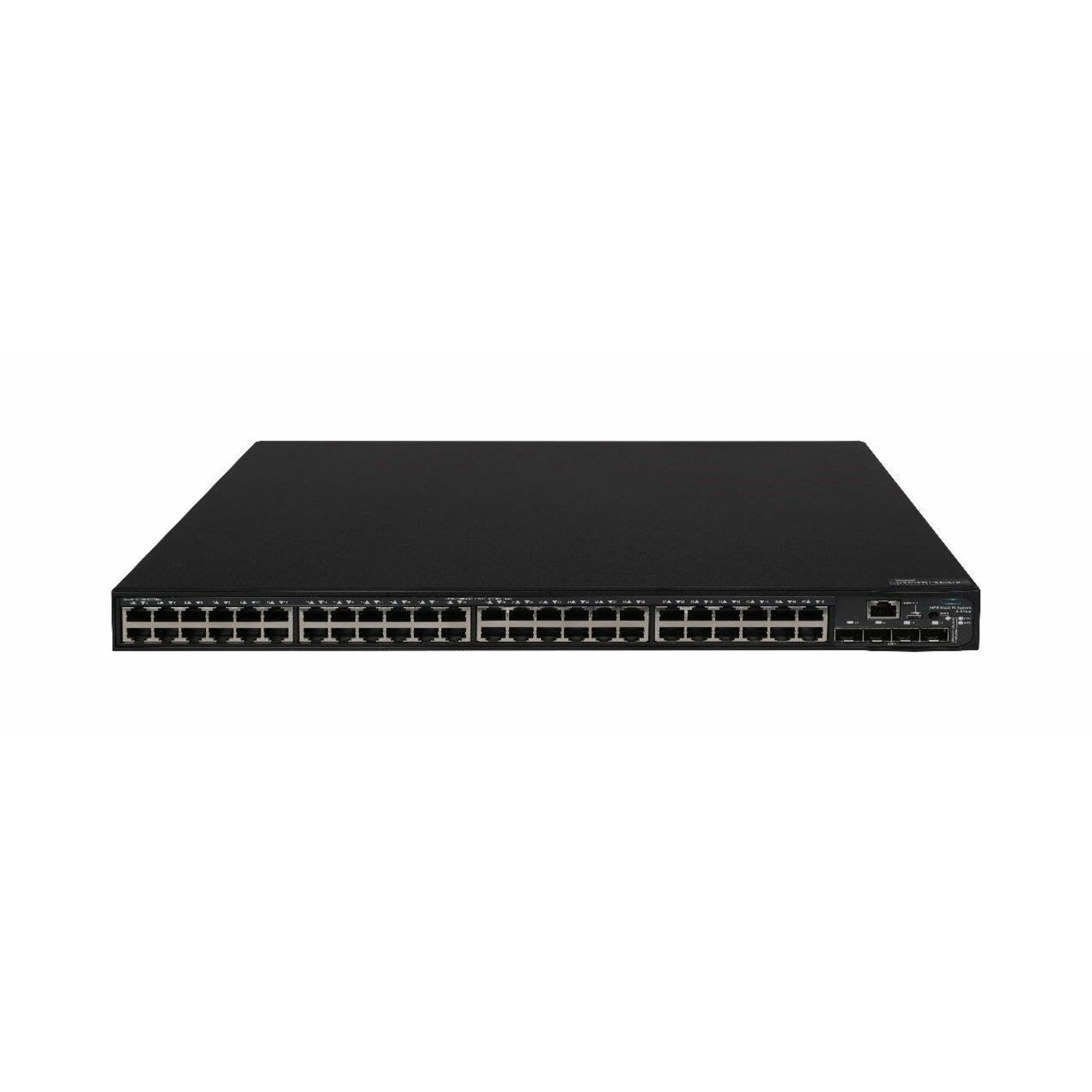

HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch

HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch - 48.0 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty

Mfr #: JL824A#ABA
$9,542Save $2,182.73 (23%)
$7,359.27

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Layer 3 Switch
Manageable
Yes
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Product Family
FlexNetwork 5140 EI
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Total Number of Network Ports
48.0

Overview

HPE FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch - 48.0 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 47 W Power Consumption - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty (part number JL824A#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

• Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wireless • IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices • Embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC) • Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports

Key specifications: Manageable: Yes · Environmentally Friendly: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) · Package Contents: FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch Power Supply Mounting Hardware · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10/100/1000Base-T, 10GBase-X · Network (RJ-45): Yes.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Package Contents
FlexNetwork 5140 48G PoE+ 4SFP+ EI Switch Power Supply Mounting Hardware
Media & Performance
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Media Type Supported
Optical Fiber, Twisted Pair
Network Technology
10/100/1000Base-T, 10GBase-X
Interfaces/Ports
Network (RJ-45)
Yes
Modular
Yes
Uplink Port
Yes
Total Number of Network Ports
48.0
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE+, 4 x 10 Gigabit Ethernet Expansion Slot
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
370 W W
Power Consumption
47 W W
Power Source
Power Supply
Network & Communication
Networking Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3at, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1Q, IEEE 802.11ad, IEEE 802.1ak, IEEE 802.1D, IEEE 802.1s, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z
Layer Supported
3
Warranty
Limited Warranty
Lifetime
I/O Expansions
Number of SFP+ Slots
4
Total Number of Expansion Slots
4.0
Expansion Slot Type
SFP+
Physical Characteristics
Compatible Rack Unit
1U
Height
1.7" mm
Width
17.3" mm
Depth
14.2" mm
Form Factor
Rack-mountable, Cabinet Mount
Weight (Approximate)
17.64 lb g
General Information
Product Type
Layer 3 Switch
Product Series
5140 EI
