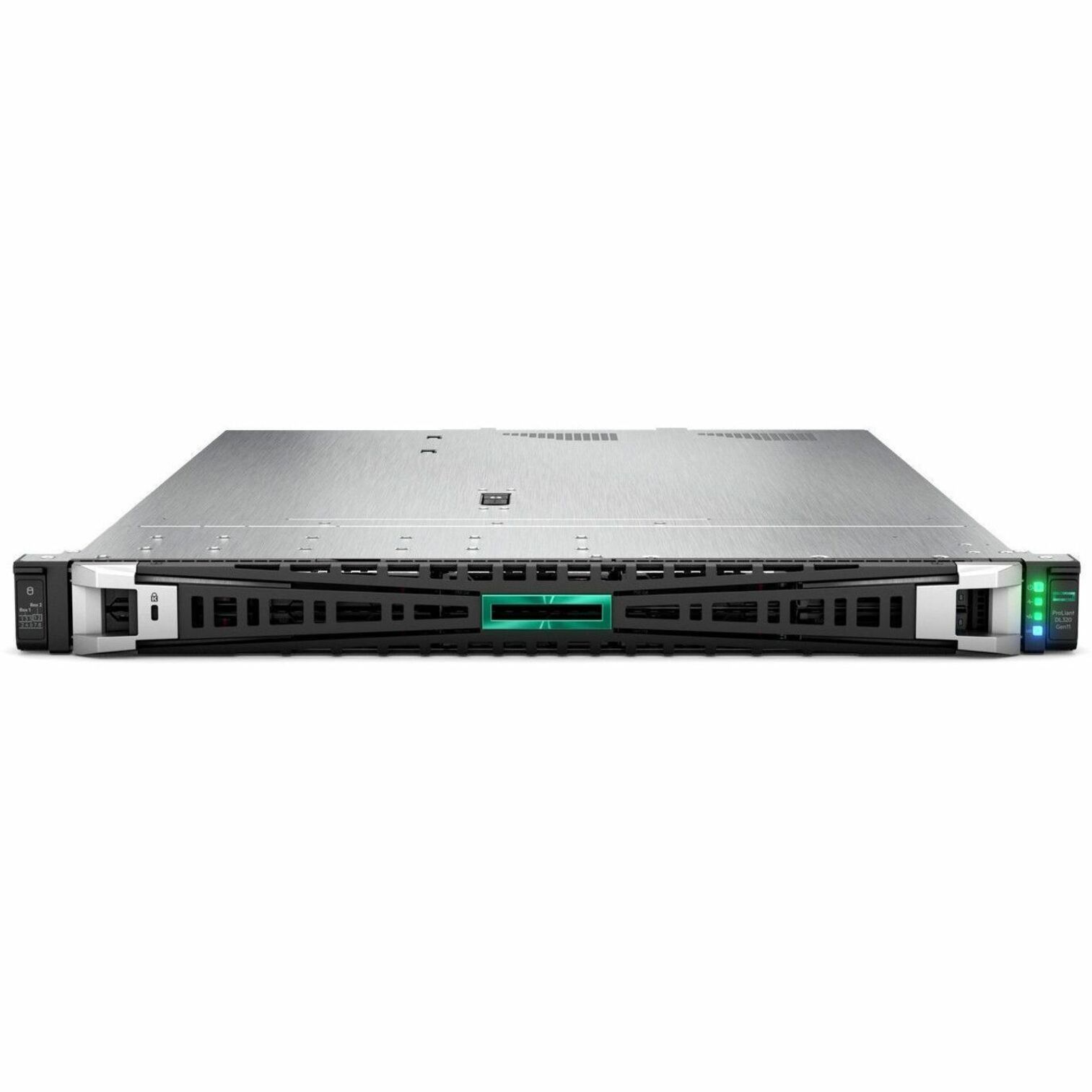

Representative imageHPE SMART CHOICE ProLiant DL320 G11 1U Rack Server
HPE SMART CHOICE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 6530 2.1 GHz - 128 GB RAM - 7.2 TB HDD - (3 x 2.4TB) HDD Configuration - 3.84 TB SSD - (2 x 1.92TB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel C741 Chip - 1 Processor Support - 2.04 TB RAM Support - DDR5 SDRAM - 0, 1, 5, 6, 10, 50, 60 RAID Levels Up to 16 MB Graphic Card - Gigabit Ethernet - 10 x Total Bay(s) - 10 x SFF Bay(s) - Hot Swappable Bays - 2 x 1000 W - Redundant Power Supply
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Server
- Processor Core
- Dotriaconta-core (32 Core)
- Redundant Power Supply
- Yes
- Hard Drive Interface
- 12Gb/s SAS
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Total Hard Drive Capacity
- 7.20 TB
- RAID Supported
- Yes
Overview
HPE SMART CHOICE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 6530 2.1 GHz - 128 GB RAM - 7.2 TB HDD - (3 x 2.4TB) HDD Configuration - 3.84 TB SSD - (2 x 1.92TB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel C741 Chip - 1 Processor Support - 2.04 TB RAM Support - DDR5 SDRAM - 0, 1, 5, 6, 10, 50, 60 RAID Levels Up to 16 MB Graphic Card - Gigabit Ethernet - 10 x Total Bay(s) - 10 x SFF Bay(s) - Hot Swappable Bays - 2 x 1000 W - Redundant Power Supply (part number P78100-005) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 160 MB Byte.
HPE ProLiant DL320 Gen11 Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
• 1 processors supported for faster processing and improved access to data, optimizing performance under heavy loads • With 128 GB memory, users can run multiple programs simultaneously without performance loss, maintaining smooth workflows • 3.84 TB SSD offers generous storage with faster speeds than HDDs, perfect for large files, digital content, and quick access • 2 x 1000 W power supply unit (PSU) included for dependable performance and redundancy in enterprise setups • 7.20 TB HDD gives you enough room for documents and apps, so you can work efficiently without worrying about storage limits
Key specifications: Cache: 160 MB Byte · Processor Speed: 2.10 GHz Hz · Processor Type: Xeon Gold · Processor Core: Dotriaconta-core (32 Core) · Number of Processors Supported: 1 · Number of Processors Installed: 1 · Processor Generation: 5th Gen · Processor Model: 6530.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 160 MB Byte
- Processor Speed
- 2.10 GHz Hz
- Processor Type
- Xeon Gold
- Processor Core
- Dotriaconta-core (32 Core)
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Generation
- 5th Gen
- Processor Model
- 6530
Warranty
- Additional Warranty Information
- Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
- Limited Warranty
- 3 Year Year
Physical Characteristics
- Form Factor
- Rack
- Weight (Approximate)
- 36.84 lb g
- Rack Height
- 1U
Controllers
- RAID Levels
- 0, 1, 5, 6, 10, 50, 60
- RAID Supported
- Yes
- Controller Model
- MR416i-o
- Controller Type
- Serial ATA/600, 12Gb/s SAS
Miscellaneous
- Security Features
- UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China. Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware
- Package Contents
- ProLiant DL320 G11 Server Easy Install Rail 1 Kit 6-foot IEC C-13/C-14 Jumper Cord
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 4.0
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
Memory
- Error Checking
- ECC
- Maximum Memory Supported
- 2.04 TB Byte
- Signal Processing
- Registered (Buffered)
- Standard Memory
- 128 GB Byte
- Number of Occupied Memory Slots
- 2
- Total Number of Memory Slots
- 16
- Memory Technology
- DDR5 SDRAM
Power Description
- Input Voltage
- 120 V AC V AC, 230 V AC V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Redundant Power Supply
- Yes
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 1000 W W
- Plug/Connector Type
- C13/C14
Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
I/O Expansions
- Number of Internal 2.5" Bays
- 10
- Number of Total Expansion Bays
- 10
- Total Number of Expansion Slots
- 2
- Hot Swappable Bays
- Yes
- Number of SFF Bays
- 10
- PCI Express Details
- 1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional
Storage
- Hard Drive Interface
- 12Gb/s SAS
- Hard Drive RPM
- 10000
- Solid State Drive Interface
- Serial ATA/600
- Number of Hard Drives
- 3
- Total Hard Drive Capacity
- 7.20 TB Byte
- Total Solid State Drive Capacity
- 3.84 TB Byte
- Number of Solid State Drives
- 2
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Operating System
- Operating System Supported
- Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, Ubuntu, Oracle Linux, Citrix XenServer, CentOS
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Total Number of USB Ports
- 4
- Remote Management Controller
- HPE iLO6
Display & Graphics
- Graphics Memory Capacity
- 16 MB Byte
General Information
- Product Type
- Server
- Product Series
- DL320 G11
