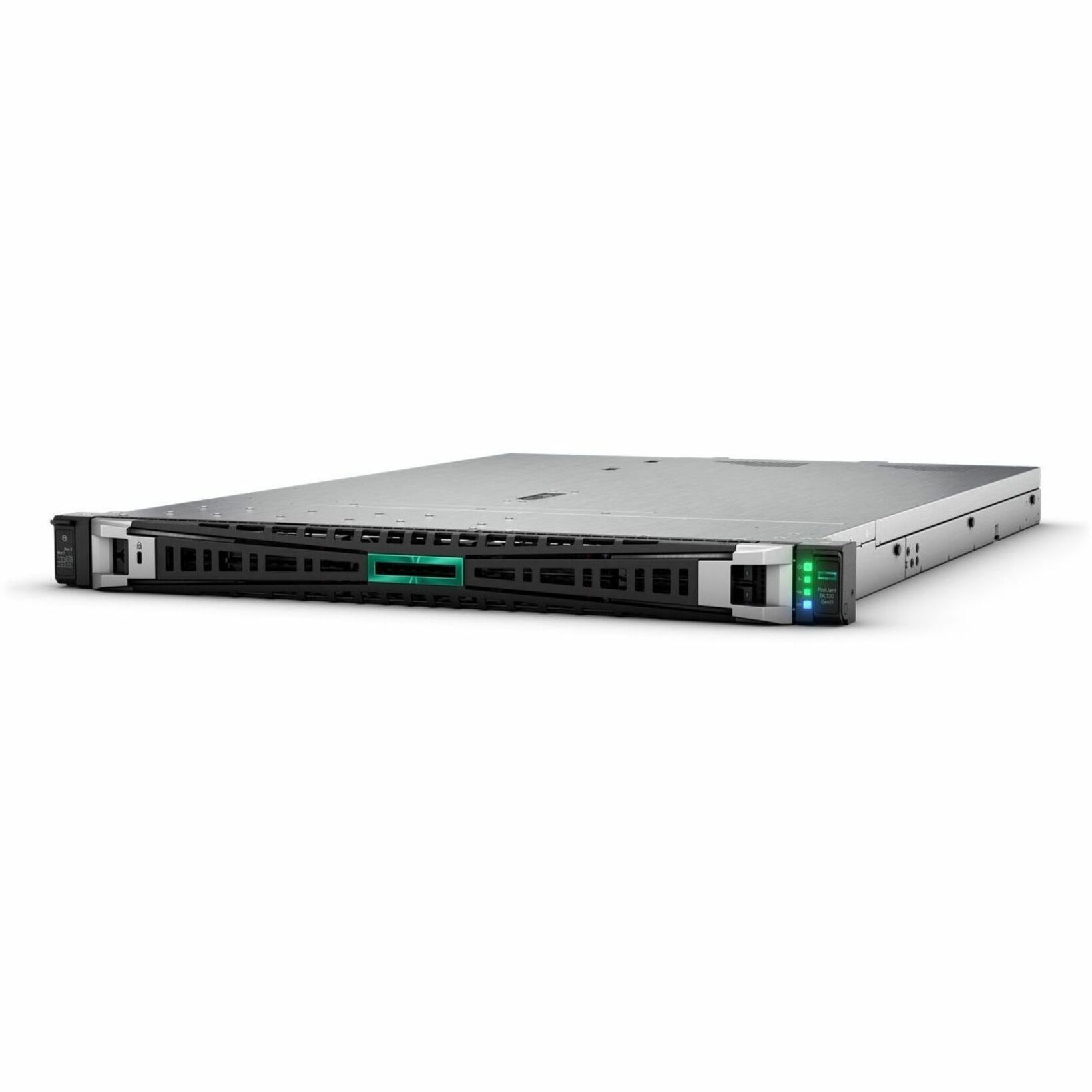

Representative imageHPE ProLiant DL320 G11 1U Rack Server
HPE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 5416S 2 GHz - 64 GB RAM - 7.20 TB HDD - (3 x 2.4TB) HDD Configuration - 3.84 TB SSD - (2 x 1.92TB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel C741 Chip - 1 Processor Support - 2 TB RAM Support - DDR5 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1000 W - Redundant Power Supply
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Server
- Processor Core
- Hexadeca-core (16 Core)
- Processor Manufacturer
- Intel
- Redundant Power Supply
- Yes
- Hard Drive Interface
- 12Gb/s SAS
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Total Hard Drive Capacity
- 7.20 TB
Overview
HPE ProLiant DL320 G11 1U Rack Server - 1 x Intel Xeon Gold 5416S 2 GHz - 64 GB RAM - 7.20 TB HDD - (3 x 2.4TB) HDD Configuration - 3.84 TB SSD - (2 x 1.92TB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel C741 Chip - 1 Processor Support - 2 TB RAM Support - DDR5 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1000 W - Redundant Power Supply (part number P80523-DM5) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 30 MB Byte.
HPE ProLiant DL320 Gen11 Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
• 1 processors supported for optimal performance and maximum reliability in mission-critical server environments • With 64 GB memory, you can multitask between applications seamlessly, keeping productivity high and response times quick • 3.84 TB SSD provides generous storage for all your critical data, supporting fast performance and dependable operations • 1000 W power supply unit (PSU) fulfills system power needs, ensuring smooth operation under heavy workloads • 7.20 TB HDD gives you enough room for documents and apps, so you can work efficiently without worrying about storage limits
Key specifications: Cache: 30 MB Byte · Processor Core: Hexadeca-core (16 Core) · Processor Manufacturer: Intel · Number of Processors Supported: 1 · Number of Processors Installed: 1 · Processor Generation: 4th Gen · Processor Model: 5416S · Processor Speed: 2 GHz Hz.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 30 MB Byte
- Processor Core
- Hexadeca-core (16 Core)
- Processor Manufacturer
- Intel
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Generation
- 4th Gen
- Processor Model
- 5416S
- Processor Speed
- 2 GHz Hz
- Processor Type
- Xeon Gold
Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 2
- Redundant Power Supply
- Yes
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 1000 W W
- Plug/Connector Type
- C13/C14
- Input Voltage
- 120 V AC V AC, 230 V AC V AC
I/O Expansions
- Number of Internal 2.5" Bays
- 8
- Number of Total Expansion Bays
- 8
- Total Number of Expansion Slots
- 2
- Hot Swappable Bays
- Yes
- Number of SFF Bays
- 8
- PCI Express Details
- 1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional
Storage
- Hard Drive Interface
- 12Gb/s SAS
- Hard Drive RPM
- 10000
- Solid State Drive Interface
- Serial ATA/600
- Number of Hard Drives
- 3
- Total Hard Drive Capacity
- 7.20 TB Byte
- Total Solid State Drive Capacity
- 3.84 TB Byte
- Number of Solid State Drives
- 2
Controllers
- RAID Supported
- Yes
- Controller Model
- MR416i-o
- Controller Type
- Serial ATA/600, 12Gb/s SAS
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Miscellaneous
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 4.0
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 9 (ErP Lot 9)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Security Features
- UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China. Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware
- Package Contents
- ProLiant DL320 G11 Server Easy Install Rail 1 Kit 6-foot IEC C-13/C-14 Jumper Cord
Memory
- Number of Occupied Memory Slots
- 2
- Total Number of Memory Slots
- 16
- Memory Technology
- DDR5 SDRAM
- Error Checking
- ECC
- Maximum Memory Supported
- 2 TB Byte
- Signal Processing
- Registered (Buffered)
- Standard Memory
- 64 GB Byte
Physical Characteristics
- Height
- 1.7" mm
- Width
- 17.1" mm
- Depth
- 23.8" mm
- Rack Height
- 1U
- Form Factor
- Rack
- Weight (Approximate)
- 36.84 lb g
Operating System
- Operating System Supported
- Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, Ubuntu, Oracle Linux, Citrix XenServer, CentOS
Warranty
- Limited Warranty
- 3 Year Year
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Total Number of USB Ports
- 4
- Remote Management Controller
- HPE iLO6
Display & Graphics
- Graphics Memory Capacity
- 16 MB Byte
General Information
- Product Type
- Server
- Product Series
- DL320 G11
