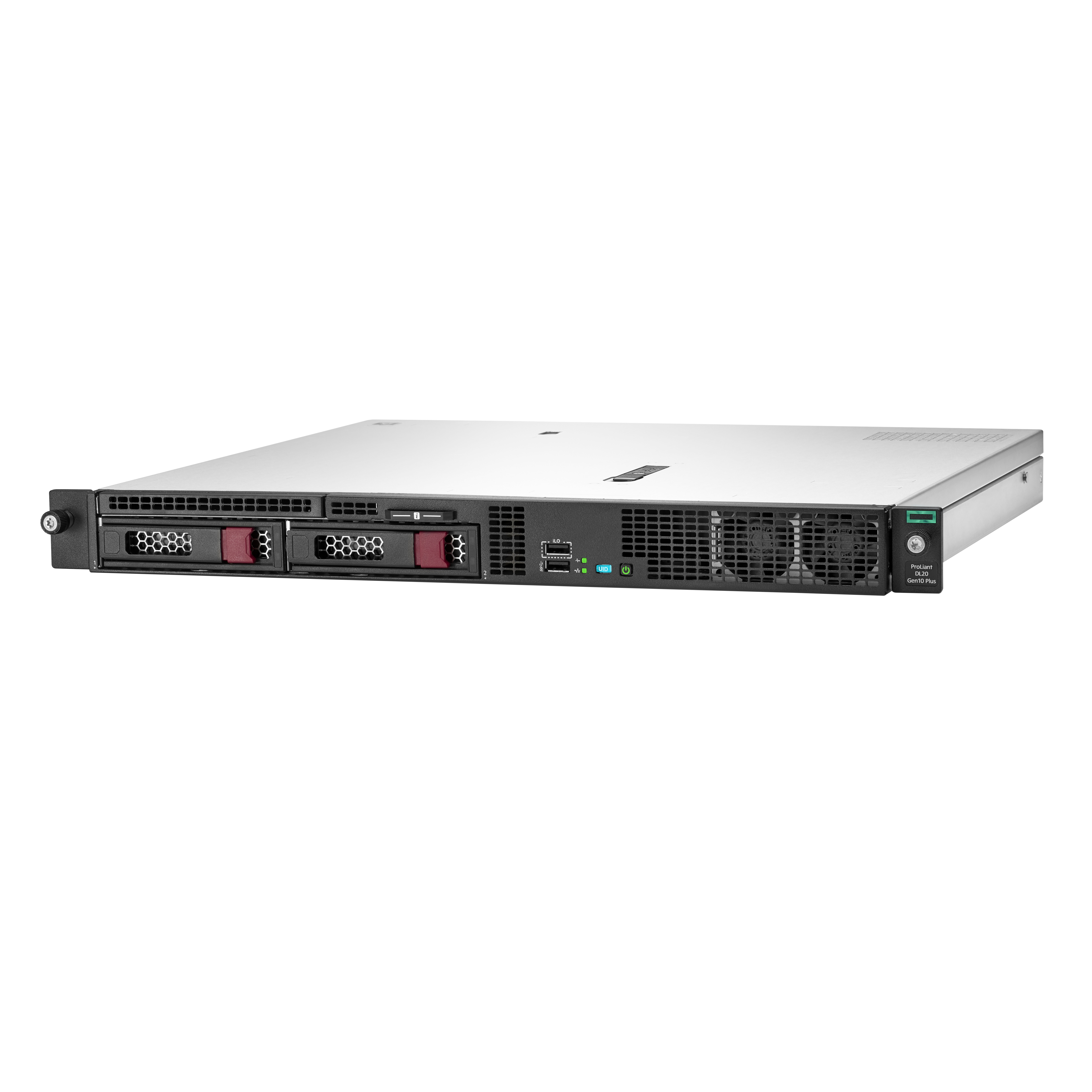

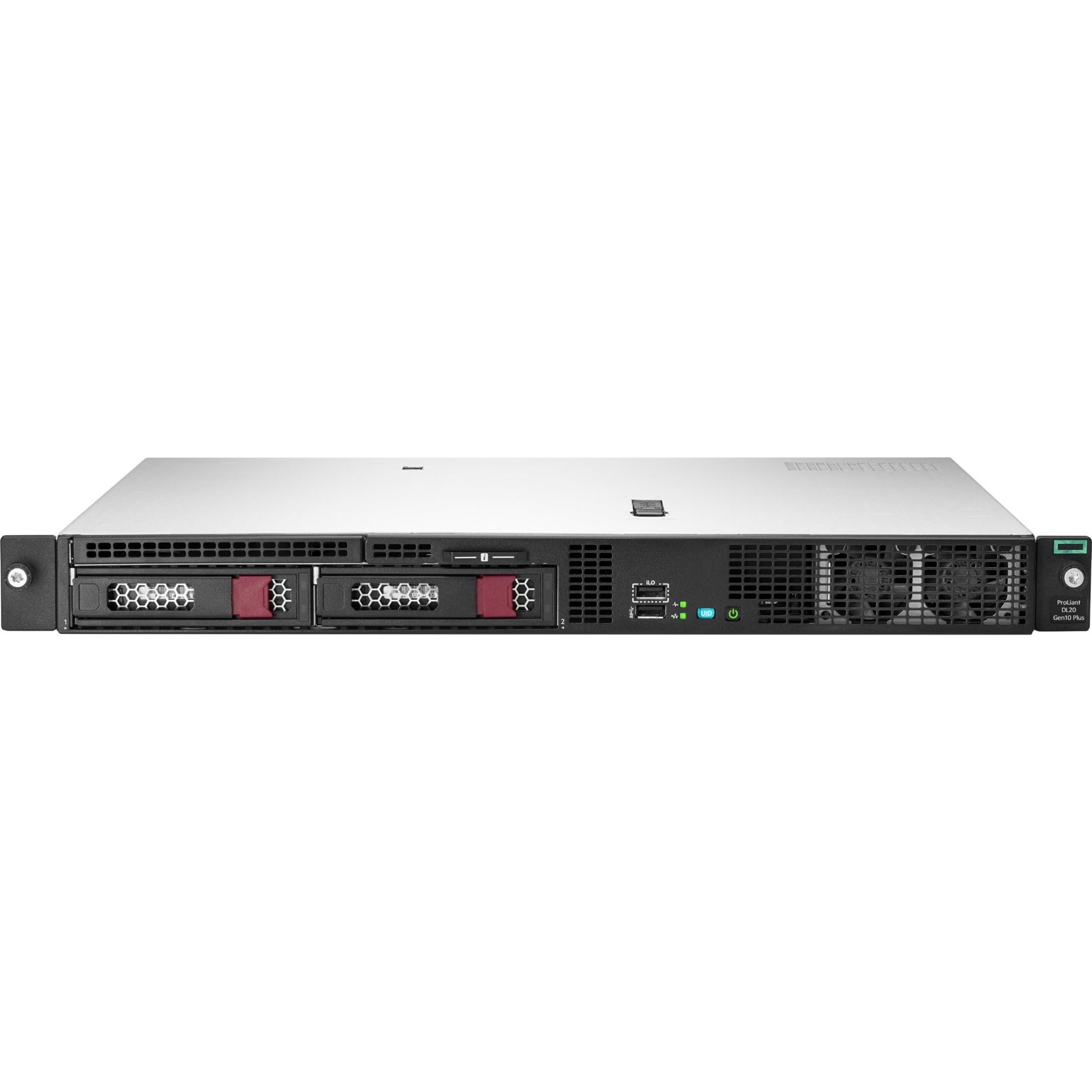

Representative imageHPE ProLiant DL20 G10 Plus 1U Rack Server
HPE ProLiant DL20 G10 Plus 1U Rack Server - 1 Xeon E-2314 2.80 GHz - 8 GB RAM - Serial ATA Controller - Intel C256 Chip - 1 Processor Support - 128 GB RAM Support - DDR4 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 3 x Total Bay(s) - 2 x LFF Bay(s) - 1 x 290 W
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Server
- Processor Core
- Quad-core (4 Core)
- Environmentally Friendly
- Yes
- Redundant Power Supply
- No
- Optical Drive Type
- No
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Ethernet Technology
- Gigabit Ethernet
Overview
HPE ProLiant DL20 G10 Plus 1U Rack Server - 1 Xeon E-2314 2.80 GHz - 8 GB RAM - Serial ATA Controller - Intel C256 Chip - 1 Processor Support - 128 GB RAM Support - DDR4 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 3 x Total Bay(s) - 2 x LFF Bay(s) - 1 x 290 W (part number P44112-B21) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 8 MB Byte.
The dense and compact HPE ProLiant DL20 Gen10 Plus server powered by Intel® Xeon® E and Pentium® Processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.
• 290W non-hot-plug power supply with Platinum power efficiency. • Supports Intel® Xeon® E-2300 series processors, up to 8 cores. • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted. • Dedicated HPE iLO management port as an option kit for faster data transmission with enhanced security. • Two PCIe Gen4 slots for greater I/O bandwidth.
Key specifications: Cache: 8 MB Byte · Processor Core: Quad-core (4 Core) · Number of Processors Supported: 1 · Number of Processors Installed: 1 · Processor Model: E-2314 · Processor Speed: 2.80 GHz Hz · Processor Type: Xeon · Additional Warranty Information: 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 8 MB Byte
- Processor Core
- Quad-core (4 Core)
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Model
- E-2314
- Processor Speed
- 2.80 GHz Hz
- Processor Type
- Xeon
Warranty
- Additional Warranty Information
- 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
- Limited Warranty
- 3 Year Year
Miscellaneous
- Environmentally Friendly
- Yes
- Energy Star
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Security Features
- UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) iLO Security Modes including a New iLO Advanced Premium Security License Granular control over iLO interfaces Smart card (PIV/CAC) and Kerberos based 2-factor Authentication Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised FW Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Gen10 Bezel Locking Kit Intel® Software Guard Extensions (Intel® SGX)
- Package Contents
- ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 8GB-U 2LFF-NHP 290W PS Server Short Friction Rail Kit 6-foot IEC C-13/C-14 Jumper Cord
I/O Expansions
- Number of External 5.25" Bays
- 1
- Number of Total Expansion Bays
- 3
- Number of 3.5" Bays
- 2
- Total Number of Expansion Slots
- 2
- Hot Swappable Bays
- No
- Number of LFF Bays
- 2
- PCI Express Details
- 2 PCIe 4.0 slots
Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C256
Power Description
- Number of Power Supplies Supported
- 1
- Number of Power Supplies Installed
- 1
- Redundant Power Supply
- No
- Hot Swappable Power Supply
- No
- Maximum Power Supply Wattage
- 290 W W
- Plug/Connector Type
- C13/C14
- Input Voltage
- 120 V AC V AC, 230 V AC V AC
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Memory
- Number of Occupied Memory Slots
- 1
- Total Number of Memory Slots
- 4
- Memory Technology
- DDR4 SDRAM
- Error Checking
- ECC
- Maximum Memory Supported
- 128 GB Byte
- Signal Processing
- Unregistered (Unbuffered)
- Standard Memory
- 8 GB Byte
Physical Characteristics
- Height
- 1.7" mm
- Width
- 17.1" mm
- Depth
- 15" mm
- Rack Height
- 1U
- Form Factor
- Rack
- Weight (Approximate)
- 20.86 lb g
Operating System
- Operating System
- No
- Operating System Supported
- Windows Server 2019 Datacenter, Windows Server 2019 Standard, Windows Server 2019 Essentials, Windows Server 2019, Hyper-V, Windows Server 2022, Windows Server 2022 Datacenter, Windows Server 2022 Essentials, Windows Server 2022 Standard, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 12, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP3, SuSE Linux Enterprise Server 15
Controllers
- Controller Type
- Serial ATA
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Total Number of USB Ports
- 5
- Remote Management Controller
- iLO Management (standard), Intelligent Provisioning (standard)
Display & Graphics
- Graphics Memory Capacity
- 16 MB Byte
General Information
- Product Type
- Server
- Product Series
- DL20 G10 Plus
Storage
- Optical Drive Type
- No
