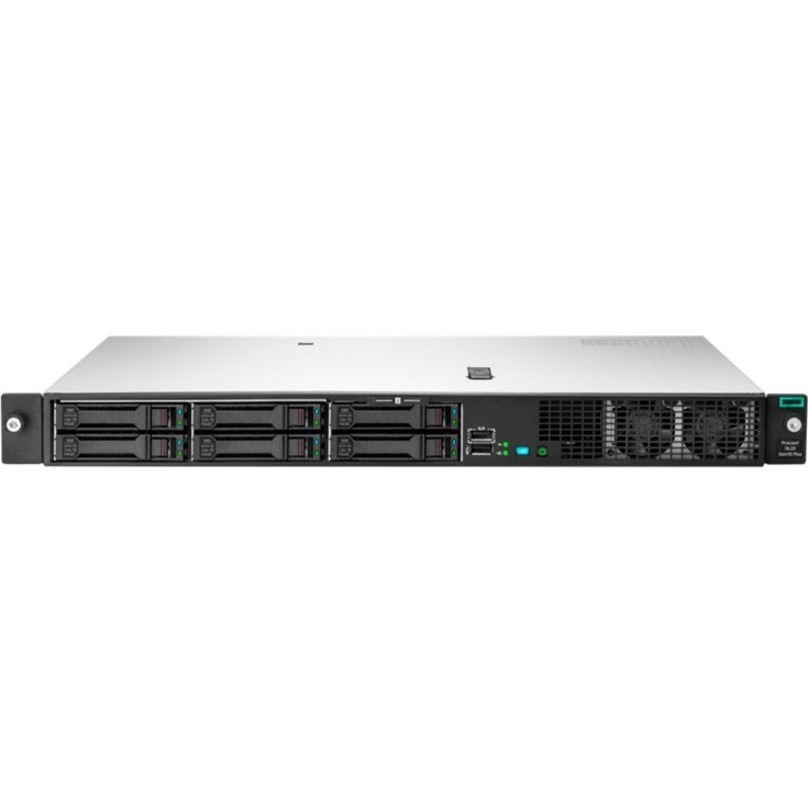

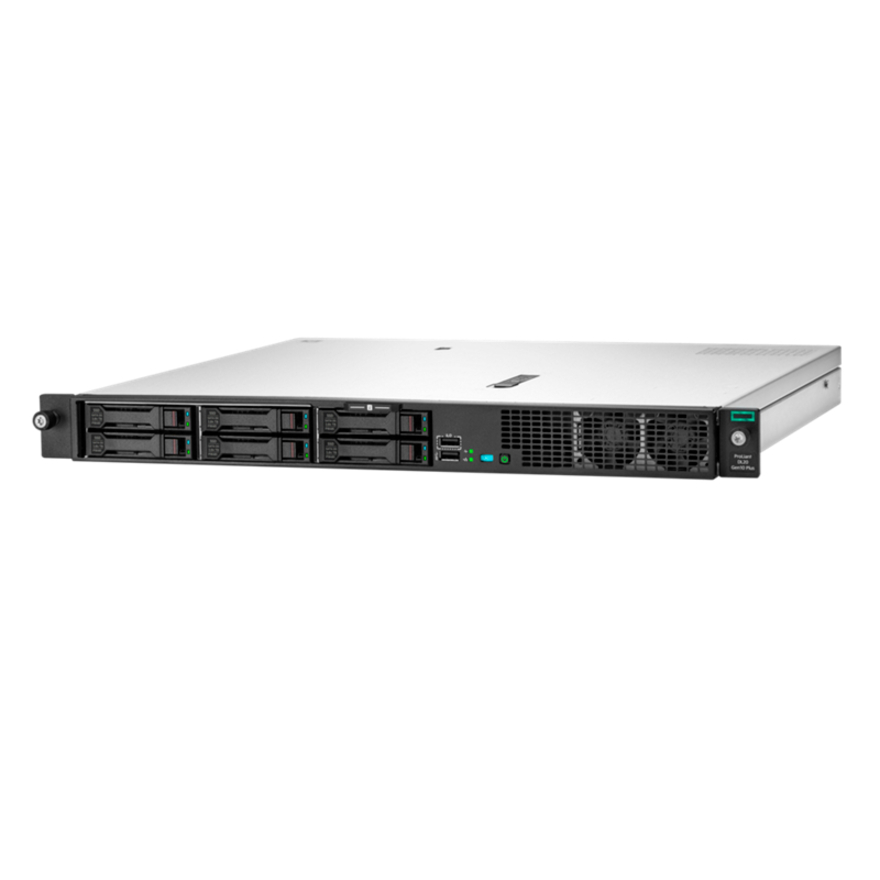

Representative imageHPE ProLiant DL20 G10 Plus 1U Rack Server
HPE ProLiant DL20 G10 Plus 1U Rack Server - 1 Xeon E-2314 2.80 GHz - 16 GB RAM - Serial ATA Controller - Intel C256 Chip - 1 Processor Support - 128 GB RAM Support - DDR4 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 5 x Total Bay(s) - 4 x SFF Bay(s) - Hot Swappable Bays - 1 x 500 W
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Server
- Processor Core
- Quad-core (4 Core)
- Optical Drive Type
- No
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Ethernet Technology
- Gigabit Ethernet
- VGA
- Yes
- Maximum Power Supply Wattage
- 500 W
Overview
HPE ProLiant DL20 G10 Plus 1U Rack Server - 1 Xeon E-2314 2.80 GHz - 16 GB RAM - Serial ATA Controller - Intel C256 Chip - 1 Processor Support - 128 GB RAM Support - DDR4 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 5 x Total Bay(s) - 4 x SFF Bay(s) - Hot Swappable Bays - 1 x 500 W (part number P44114-B21) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 8 MB Byte.
The dense and compact HPE ProLiant DL20 Gen10 Plus server powered by Intel® Xeon® E and Pentium® Processors provides a unique blend of enterprise class capabilities & value. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point. Deploy this dense platform for diverse workloads in space constrained environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE iLO 5.
• 1 processors supported for optimal performance and maximum reliability in mission-critical server environments • With 16 GB memory, users can multitask between applications smoothly, preserving responsiveness and efficiency • 500 W power supply unit (PSU) included for hassle-free deployment and reliable power delivery in server environments • No OS includes all the tools you need to stay productive and creative in your work • Intel Xeon 2.80 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
Key specifications: Cache: 8 MB Byte · Processor Core: Quad-core (4 Core) · Number of Processors Supported: 1 · Number of Processors Installed: 1 · Processor Model: E-2314 · Processor Speed: 2.80 GHz Hz · Processor Type: Xeon · Number of External 5.25" Bays: 1.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 8 MB Byte
- Processor Core
- Quad-core (4 Core)
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Model
- E-2314
- Processor Speed
- 2.80 GHz Hz
- Processor Type
- Xeon
I/O Expansions
- Number of External 5.25" Bays
- 1
- Number of Internal 2.5" Bays
- 4
- Number of Total Expansion Bays
- 5
- Total Number of Expansion Slots
- 2
- Hot Swappable Bays
- Yes
- Number of SFF Bays
- 4
- PCI Express Details
- 2 PCIe 4.0 slots
Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C256
Storage
- Optical Drive Type
- No
- Number of Hard Drives
- No
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Memory
- Number of Occupied Memory Slots
- 1
- Total Number of Memory Slots
- 4
- Memory Technology
- DDR4 SDRAM
- Error Checking
- ECC
- Maximum Memory Supported
- 128 GB Byte
- Signal Processing
- Unregistered (Unbuffered)
- Standard Memory
- 16 GB Byte
Controllers
- Controller Model
- Intel VROC
- Controller Type
- Serial ATA
Physical Characteristics
- Height
- 1.7" mm
- Width
- 17.1" mm
- Depth
- 15" mm
- Rack Height
- 1U
- Form Factor
- Rack
- Weight (Approximate)
- 20.86 lb g
Operating System
- Operating System
- No
- Operating System Supported
- Windows Server 2019 Datacenter, Windows Server 2019 Standard, Windows Server 2019 Essentials, Windows Server 2019, Hyper-V, Windows Server 2022, Windows Server 2022 Datacenter, Windows Server 2022 Essentials, Windows Server 2022 Standard, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 12, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP3, SuSE Linux Enterprise Server 15
Power Description
- Number of Power Supplies Supported
- 1
- Number of Power Supplies Installed
- 1
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 500 W W
- Plug/Connector Type
- C13/C14
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Total Number of USB Ports
- 5
- Remote Management Controller
- iLO Management (standard), Intelligent Provisioning (standard)
Miscellaneous
- Energy Star
- Yes
- Security Features
- UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) iLO Security Modes including a New iLO Advanced Premium Security License Granular control over iLO interfaces Smart card (PIV/CAC) and Kerberos based 2-factor Authentication Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised FW Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Gen10 Bezel Locking Kit Intel® Software Guard Extensions (Intel® SGX)
Display & Graphics
- Graphics Memory Capacity
- 16 MB Byte
General Information
- Product Type
- Server
- Product Series
- DL20 G10 Plus
