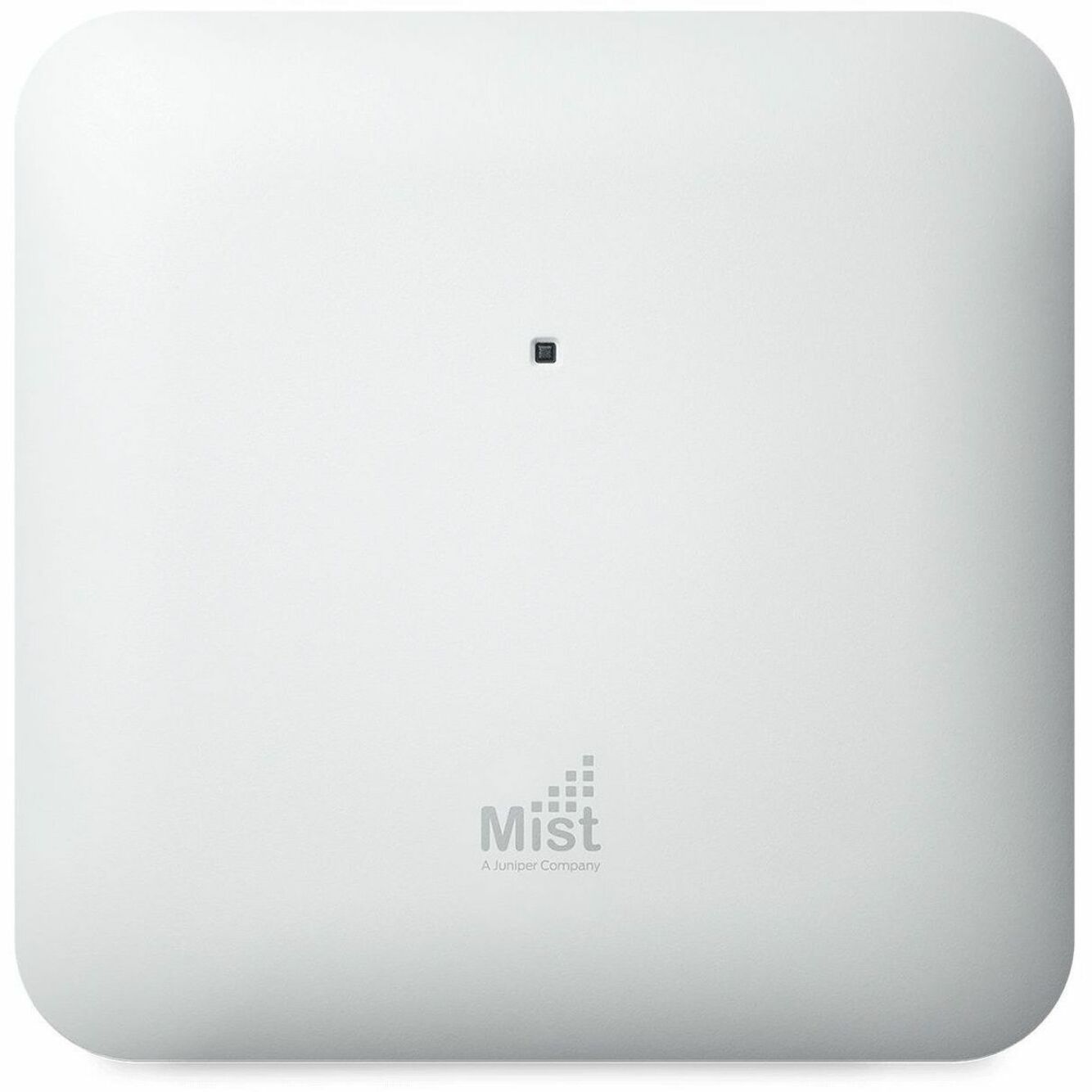

Representative imageMist AP32 Dual Band IEEE 802.11ax 3 Gbit/s Wireless Access Point
Mist AP32 Dual Band IEEE 802.11ax 3 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz - 6 x Internal Antenna(s) - Internal/External - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet, 2.5 Gigabit Ethernet - Bluetooth 5 - T-bar Mount
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Wireless Access Point
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- Frequency Band
- 5 GHz
- Antenna Form Factor
- Internal/External
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth Standard
- Bluetooth 5
- Ethernet Technology
- Gigabit Ethernet
Overview
Mist AP32 Dual Band IEEE 802.11ax 3 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz - 6 x Internal Antenna(s) - Internal/External - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet, 2.5 Gigabit Ethernet - Bluetooth 5 - T-bar Mount (part number B-AP32E-2S-5Y-E) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the Juniper Wireless Access Points/Bridges category. Network Band: Dual Band.
The AP32 series automates network operations and boosts Wi-Fi performance. It delivers an aggregate data rate of up to 3 Gbps concurrently on 2.4GHz and 5GHz radios. Managed by the Juniper Mist? Cloud Architecture, the AP32 series delivers unprecedented user experiences at a lower cost for retail, warehouse, school, clinic, and home office environments. Juniper AI-Driven Network Juniper brings true innovation to the wireless space with the world's first AI-driven wireless LAN (WLAN). The Juniper AI-Driven Enterprise makes Wi-Fi predictable, reliable, and measurable with unprecedented visibility into the user experience through customizable service level expectation (SLE) metrics. Time-consuming manual IT tasks are replaced with AI-driven proactive automation and self-healing, lowering Wi-Fi operational costs and saving substantial time and money. All operations are managed via our open and programmable microservices architecture, which delivers maximum scalability and performance while also bringing DevOps agility to wireless networking and location services. The Juniper Mist Cloud Architecture Mist AI leverages a cloud-native microservices architecture to bring unparalleled agility, scale, and resiliency to your network. It leverages an AI engine to lower OpEx and deliver unprecedented insight by using data science to analyze large amounts of rich metadata collected from Juniper Access Points. Juniper Access Point Family The Juniper enterprise-grade access point family consists of: AP45 and AP34 Series which support Wi-Fi 6E, 802.11ax (Wi-Fi 6), and Bluetooth LE AP43, AP12, AP32, AP33, and AP63 Series, which support 802.11ax (Wi-Fi 6), Bluetooth LE, and IoT AP21, AP41, and AP61 Series, which support 802.11ac Wave 2, Bluetooth LE, and IoT BT11, which supports Bluetooth LE These access points are all built on a real-time microservices platform and are managed by the Juniper Mist cloud.
• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate • 3 Gbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity • IEEE 802.11ax wireless LAN standard ensures trouble-free and convenient connectivity • Gigabit Ethernet port for ultra-fast wired network speeds • Internal/External antenna form factor for convenient, desired usage and placement with maximum productivity
Key specifications: Network Band: Dual Band · Frequency Band: 2.40 GHz Hz, 5 GHz Hz · Wireless LAN Standard: IEEE 802.11ax · Bluetooth Standard: Bluetooth 5 · Total Number of Antennas: 6 · Number of Internal Antennas: 6 · MIMO Technology: Yes · Beamforming Technology: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Technical Information
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz Hz, 5 GHz Hz
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth Standard
- Bluetooth 5
- Total Number of Antennas
- 6
- Number of Internal Antennas
- 6
- MIMO Technology
- Yes
- Beamforming Technology
- Yes
- Indoor/Outdoor
- Indoor
- Wireless Transmission Speed
- 3 Gbit/s Bps

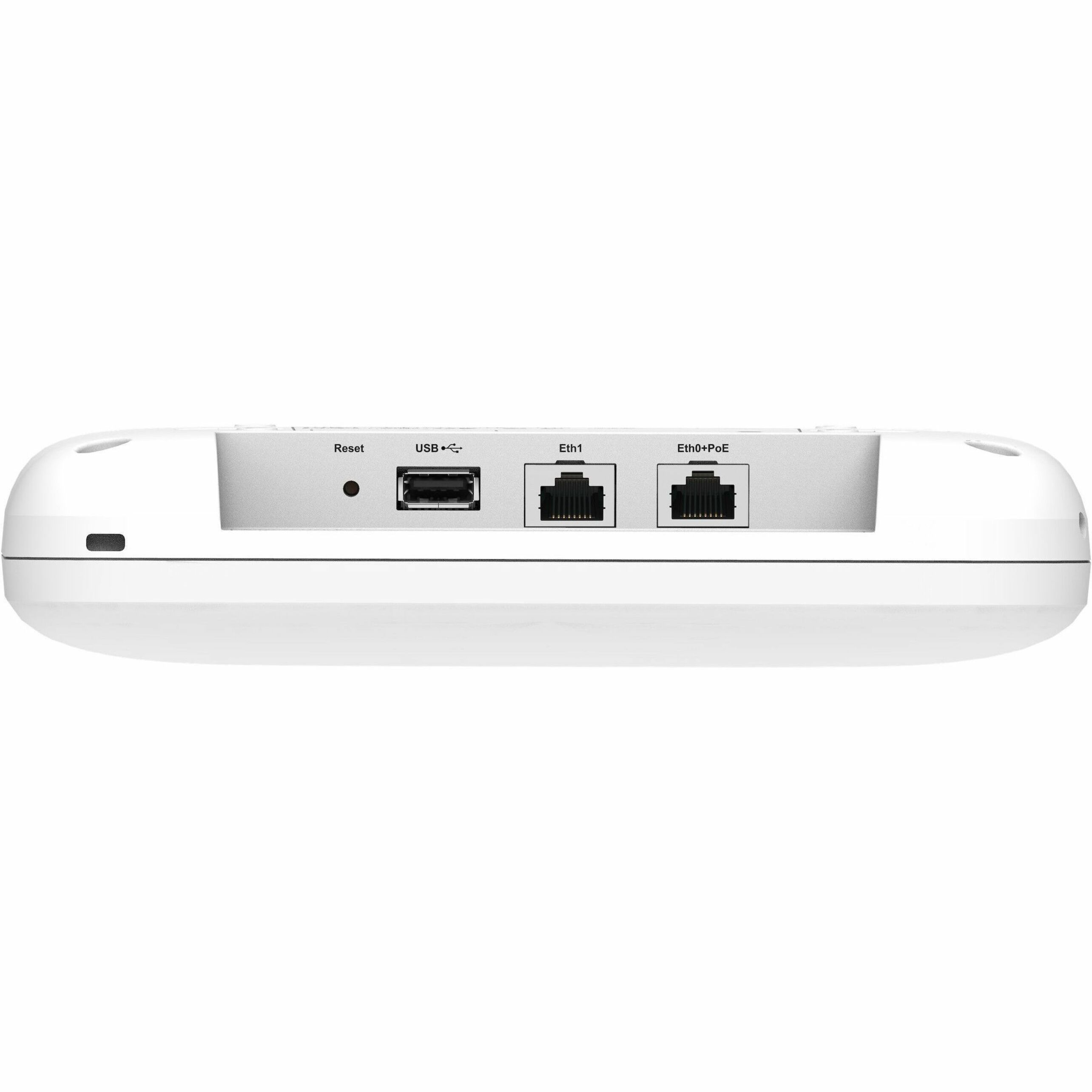

Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- USB
- Yes
- Number of Network (RJ-45) Ports
- 2
- USB Standard
- USB 2.0
- PoE PD Port
- Yes
Miscellaneous
- Package Contents
- AP32 Wireless Access Point 2 x 5 Year Cloud Subscriptions (specify SUB-MAN, SUB-PMA, SUB-AST, SUB-VNA) Universal Mounting Bracket
Physical Characteristics
- Antenna Form Factor
- Internal/External
- Height
- 8" mm
- Width
- 8" mm
- Depth
- 1.7" mm
- Form Factor
- T-bar Mount
- Weight (Approximate)
- 1.83 lb g
General Information
- Product Type
- Wireless Access Point
- Product Model
- AP32
