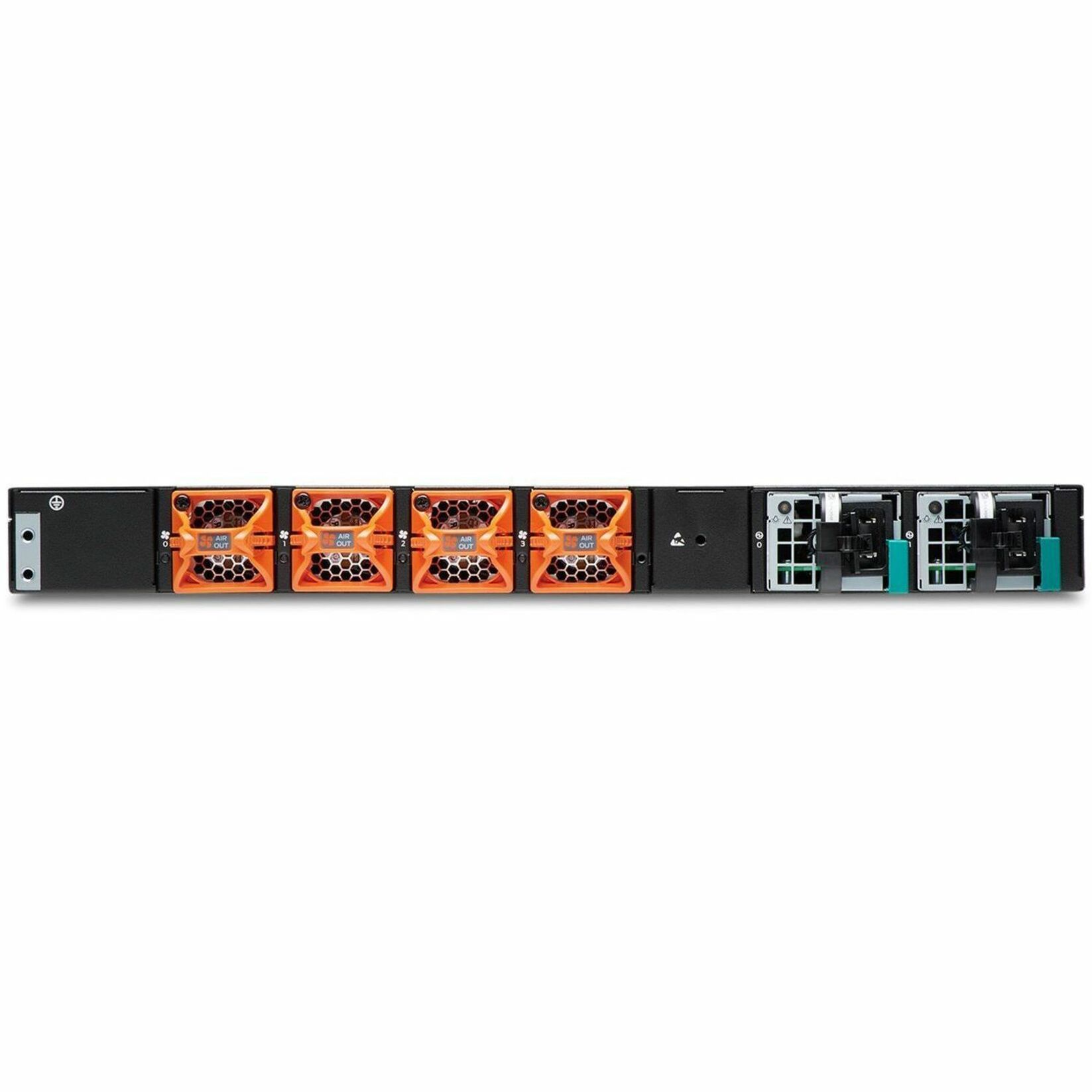

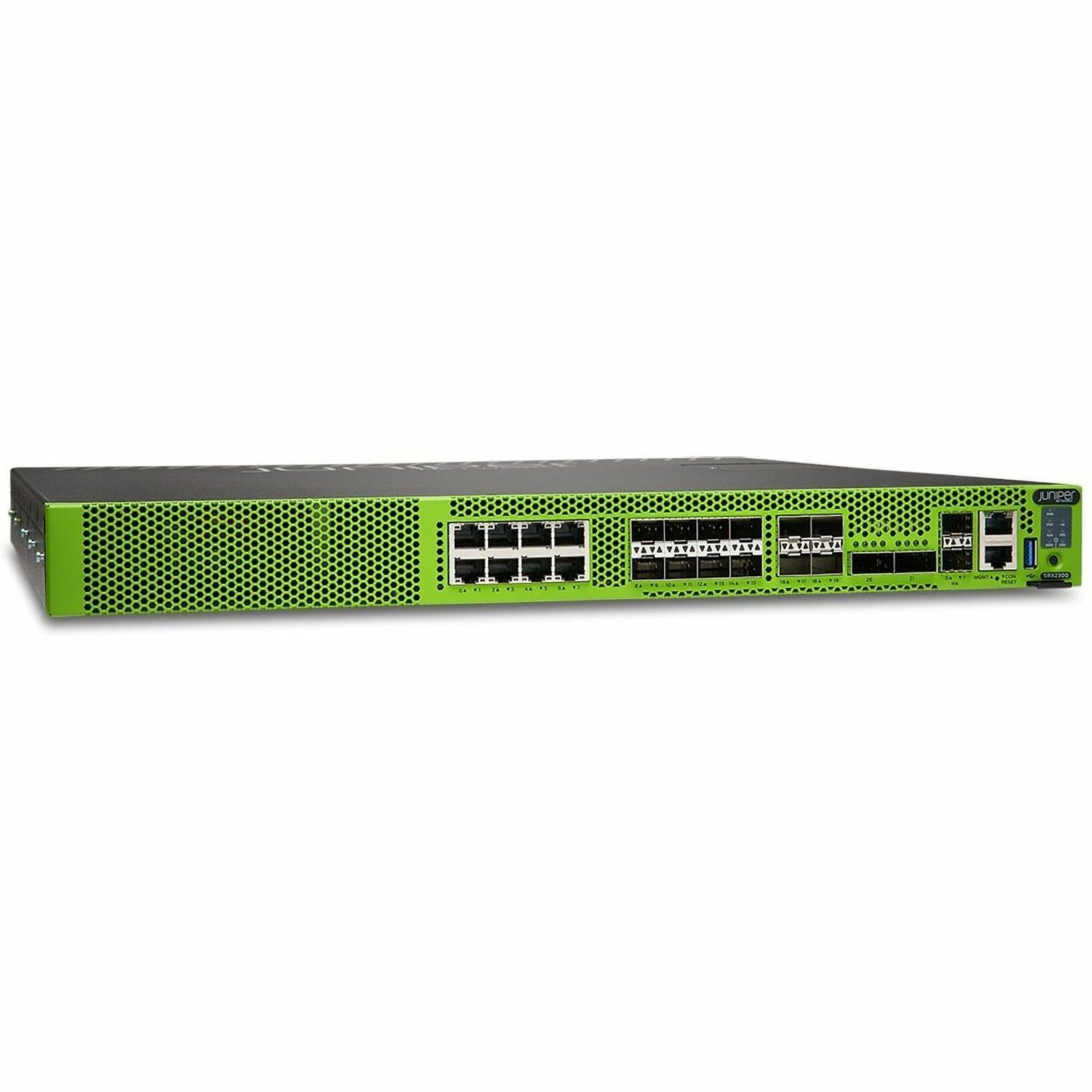

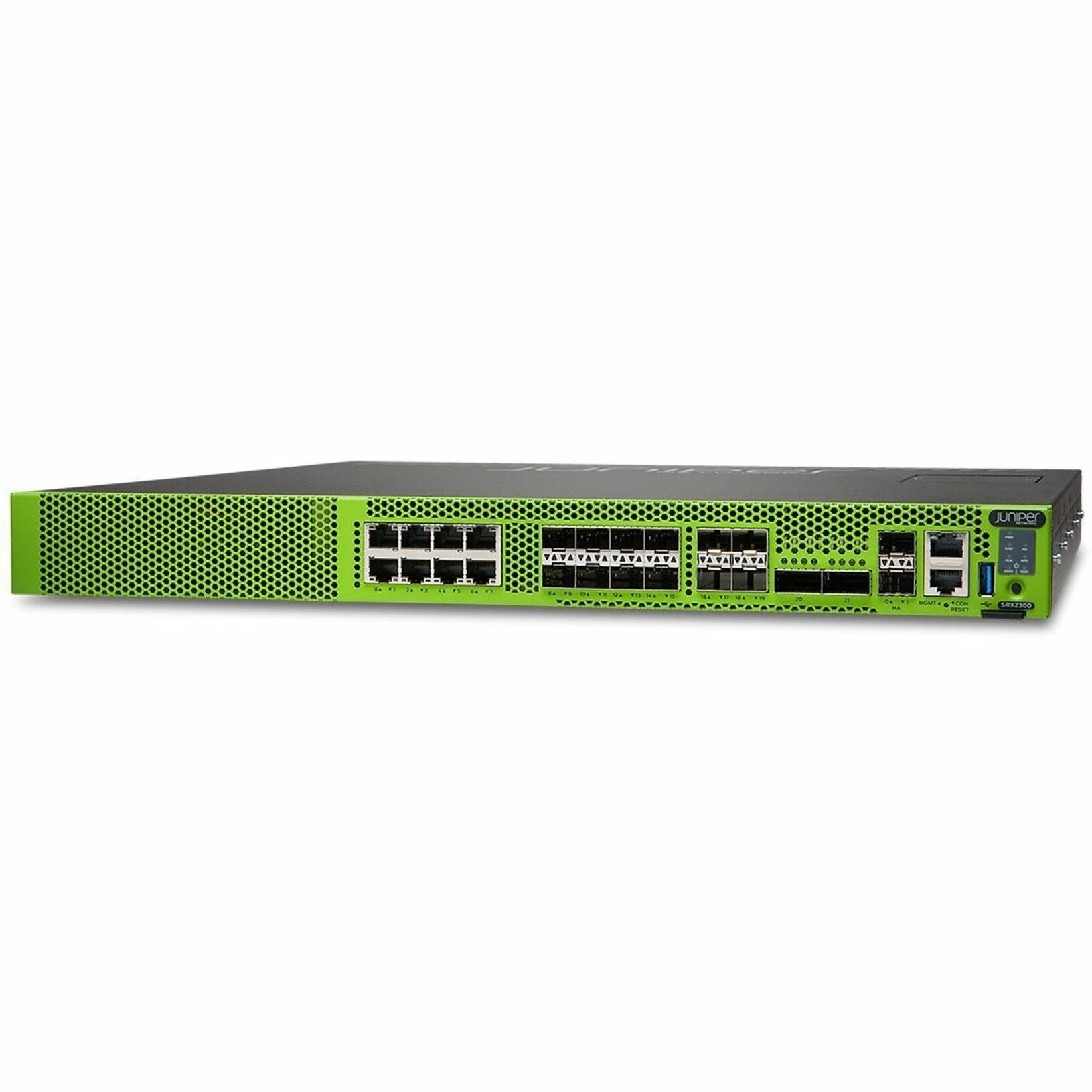

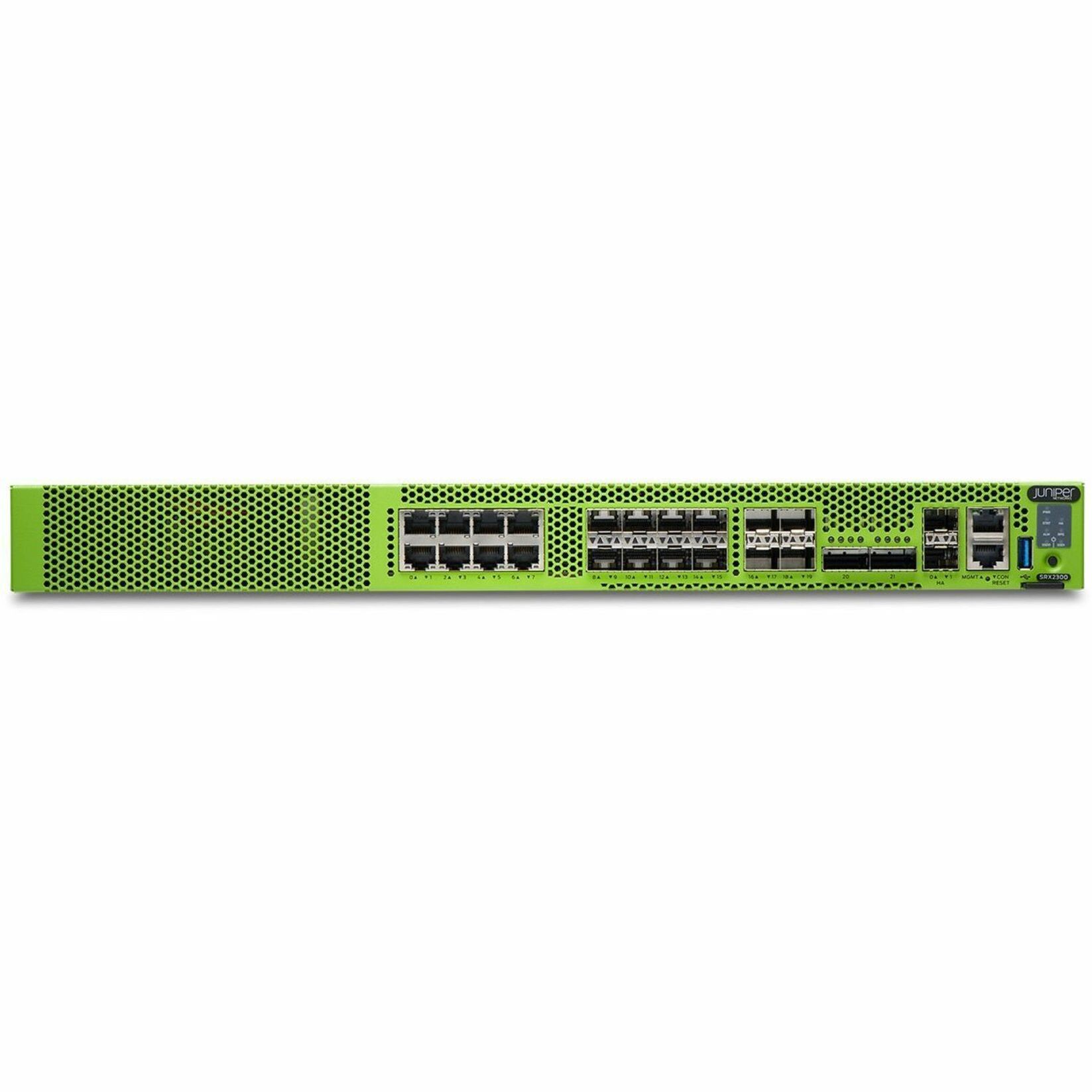

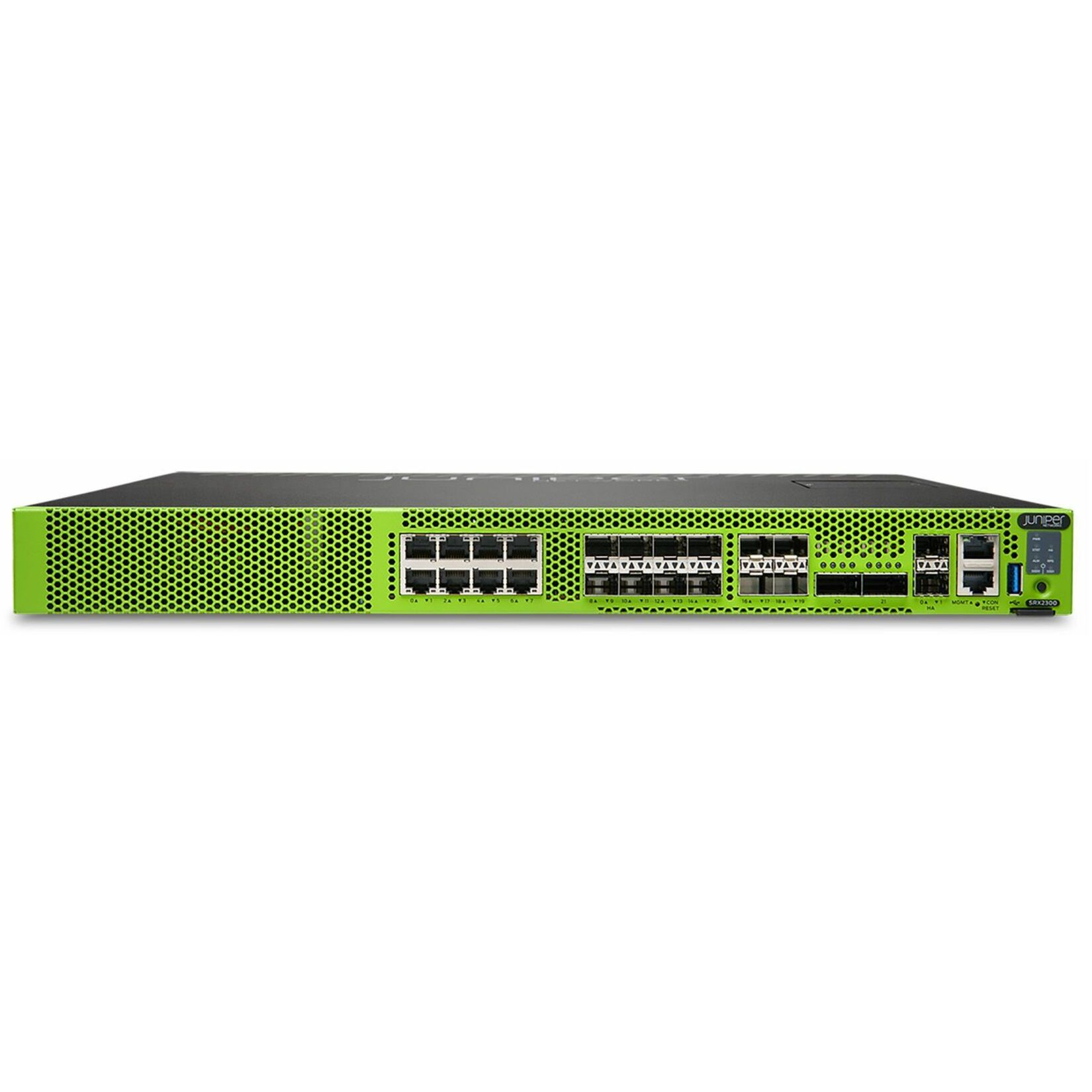

Juniper SRX2300 High Availability Firewall - Centralized Management - 8 Port - 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T - Representative image
Transceivers & Cables

Juniper SRX2300 High Availability Firewall

Juniper SRX2300 High Availability Firewall - Centralized Management - 8 Port - 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet - 39 Gbit/s Firewall Throughput - 3DES-CBC, AEC-CBC, AES-GCM, DES-CBC, SSL - 8 x RJ-45 - 14 Total Expansion Slots - 5 Year - 1U - Rack-mountable, Compact - TAA Compliant

Mfr #: B-SRX2300AC-EPRO5T
$107,060Save $24,623.8 (23%)
$82,436.2

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
High Availability Firewall
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
2.5 Gigabit Ethernet
Ethernet Technology
5 Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Ethernet Technology
25 Gigabit Ethernet
Ethernet Technology
40 Gigabit Ethernet
Ethernet Technology
100 Gigabit Ethernet

Overview

Juniper SRX2300 High Availability Firewall - Centralized Management - 8 Port - 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet - 39 Gbit/s Firewall Throughput - 3DES-CBC, AEC-CBC, AES-GCM, DES-CBC, SSL - 8 x RJ-45 - 14 Total Expansion Slots - 5 Year - 1U - Rack-mountable, Compact - TAA Compliant (part number B-SRX2300AC-EPRO5T) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the Juniper Network Security & Firewalls category. Manageable: Yes.

The Juniper Networks® SRX2300 firewall is a high-performance, next-generation firewall (NGFW) designed to provide reliable network protection for your enterprise campus edge and data center edge. It also supports roaming, SD-WAN large branch, and SD-WAN secure hub use cases. Combining carrier-grade routing with state-of-the-art switching, this platform delivers robust security, effective threat detection, and comprehensive automation and mitigation capabilities. The SRX2300 firewall delivers NGFW features that support the changing needs of cloud-enabled enterprise networks and data centers. Whether rolling out new services within an enterprise campus, connecting to the cloud seamlessly, complying with industry standards, or achieving operational efficiency, the SRX2300 empowers organizations to operationalize Zero Trust principles at scale while realizing their business objectives. The SRX2300 protects critical corporate assets with intrusion prevention system (IPS), follow-the-user and follow-the-application access policies, and Juniper's AI-Predictive Threat Prevention. Furthermore, the SRX2300 works with Juniper cloud security solutions to secure hybrid cloud environments with networkwide visibility and control, providing consistently secure on-premises and cloud environments. As network architectures become more distributed and decentralized, Juniper Networks SRX Series firewalls ensure seamless integration with other Juniper and third-party networking platforms. At the same time, the NGFWs facilitate architectural transformation, taking organizations from on-premises to hybrid cloud environments seamlessly and cost-effectively. SRX Series firewalls are the first to implement industry-standard Ethernet VPN (EVPN) Type 5 and Virtual Extensible LAN (VXLAN) protocols within data center environments, enabling the SRX2300 to act as a secure, fabric-aware leaf in the data center spine-leaf architecture. The SRX2300 participates in the industry-first Connected Security Distributed Services Architecture, enabling organizations to scale horizontally and elastically and simplify the operational management of large-scale firewall networks. With this architecture, several SRX2300 platforms can work together as a single large logical firewall to provide higher performance and scale security. The SRX2300 is powered by Juniper's industry-leading Junos® operating system that underpins and helps secure the world's largest mission-critical enterprise and service provider networks. It is managed by Juniper Security Director Cloud, Juniper's unified management experience that connects the organization's current deployments with future architectural rollouts. Security Director Cloud uses a single policy framework, enabling consistent security policies across any environment and expanding Zero Trust to all parts of the network-from the edge into the data center. This provides unbroken visibility, policy configuration, administration, and collective threat intelligence all in one place. Architecture and Key Components The SRX2300 hardware and software architecture provides cost-effective security in a compact, scalable 1U form factor. Purpose built to protect network environments, the SRX2300 incorporates multiple security services and networking functions on top of Junos OS, providing highly customizable threat protection, automation, and integration capabilities. Best-in-class advanced security capabilities on the SRX2300 are offered in the data center, enterprise campus, and regional headquarters deployments with IMIX traffic patterns.

• Offers reliable firewall synchronization to prevent a single point of failure on your network with maximum productivity • Zero Trust Network Access (ZTNA) firewall protection support for dependable security for your system and data with added productivity • 3DES-CBC encryption standard for enhanced data security and management • Gigabit Ethernet port for ultra-fast network speeds • For securely connecting servers, workstations and storage and enabling secure data transfer, use this 8 ports firewall

Key specifications: Manageable: Yes · Compatible Rack Unit: 1U · Height: 1.7" mm · Width: 17.3" mm · Depth: 18.2" mm · Form Factor: Rack-mountable, Compact · Weight (Approximate): 19 lb g · Encryption Standard: 3DES-CBC, AEC-CBC, AES-GCM, DES-CBC, SSL.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Physical Characteristics
Compatible Rack Unit
1U
Height
1.7" mm
Width
17.3" mm
Depth
18.2" mm
Form Factor
Rack-mountable, Compact
Weight (Approximate)
19 lb g
Technical Information
Encryption Standard
3DES-CBC, AEC-CBC, AES-GCM, DES-CBC, SSL
Firewall Throughput
39 Gbit/s Bps
Functionality
Centralized Management
Data Link Protocols
HTTP
Number of Concurrent Sessions (Max)
5000000
AI-powered
Yes
AI Features
Threat Prevention, Anti-malware
New Connections Per Second
450000
Connectivity Technology
Wired
Firewall Protection Supported
Zero Trust Network Access (ZTNA), VPN Authentication, Threat Protection, Threat Intelligence, Application Control, SSL Decryption, SSL Encrypted Traffic Protection, Web Application Control, SaaS Security, Antivirus, Anti-spam, Integrated Web Filtering, Cloud Sandboxing, Malware Protection, DNS Security, Zero-day Threat Prevention, Secure IPsec VPN Connectivity, Remote Access Authentication, Stateful Firewall Service, Distributed Denial of Service (DDoS), Traffic Anomaly Detection, SSL Inspection, Dead Peer Detection, Intrusion Prevention, URL Filtering, Botnet Detection, Botnet Filtering
Interfaces/Ports
USB
Yes
Number of Network (RJ-45) Ports
8
Total Number of Ports
8
I/O Expansions
Number of SFP+ Slots
8
Total Number of Expansion Slots
14
Expansion Slot Type
SFP+, SFP28, QSFP28
Media & Performance
VPN Throughput
4.50 GB/s Bps
Warranty
Support/Service Duration
5 Year Second
Network & Communication
Network Standard
1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T
Ethernet Technology
Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
General Information
Product Type
High Availability Firewall
Product Series
SRX
Product Model
SRX2300
Miscellaneous
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 6
