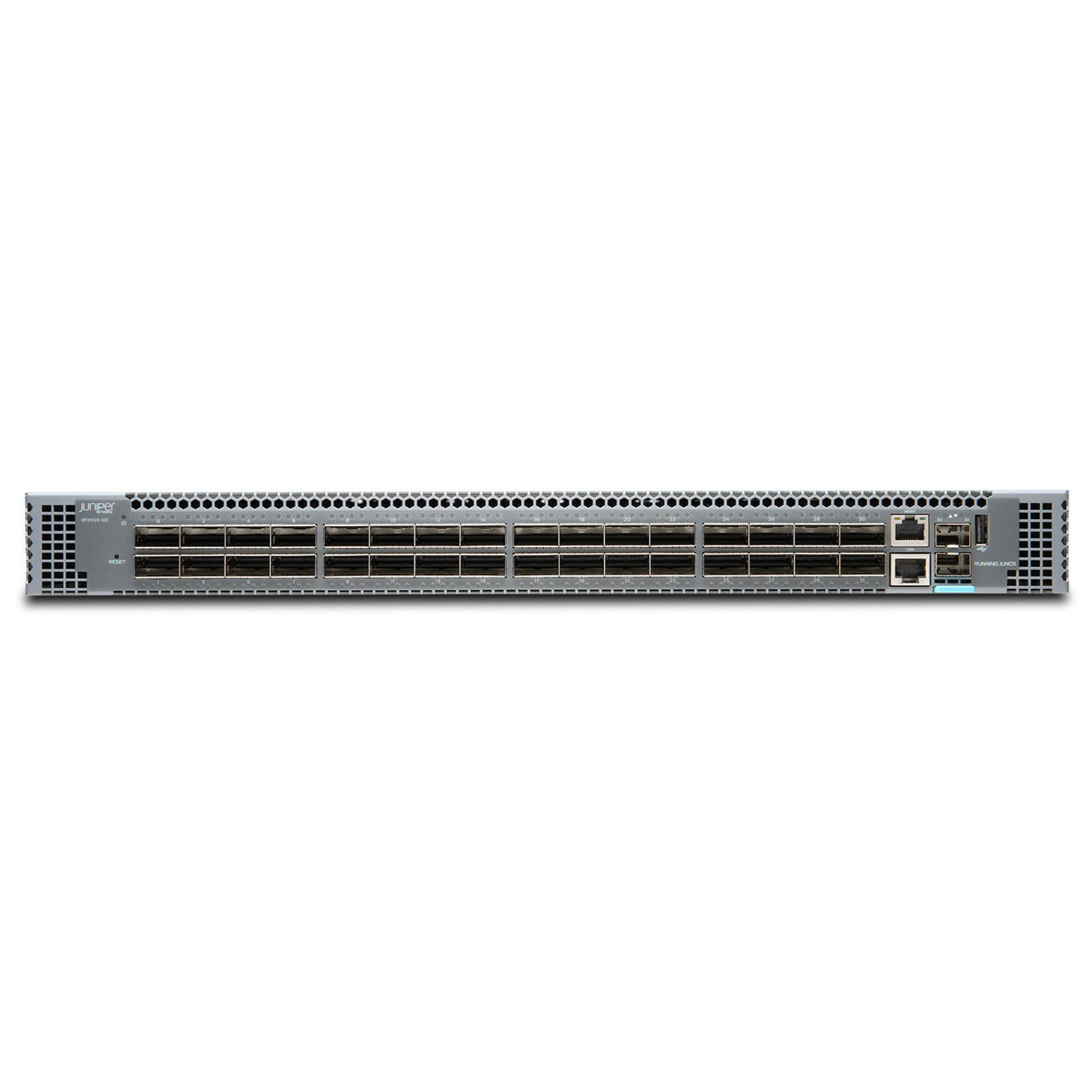

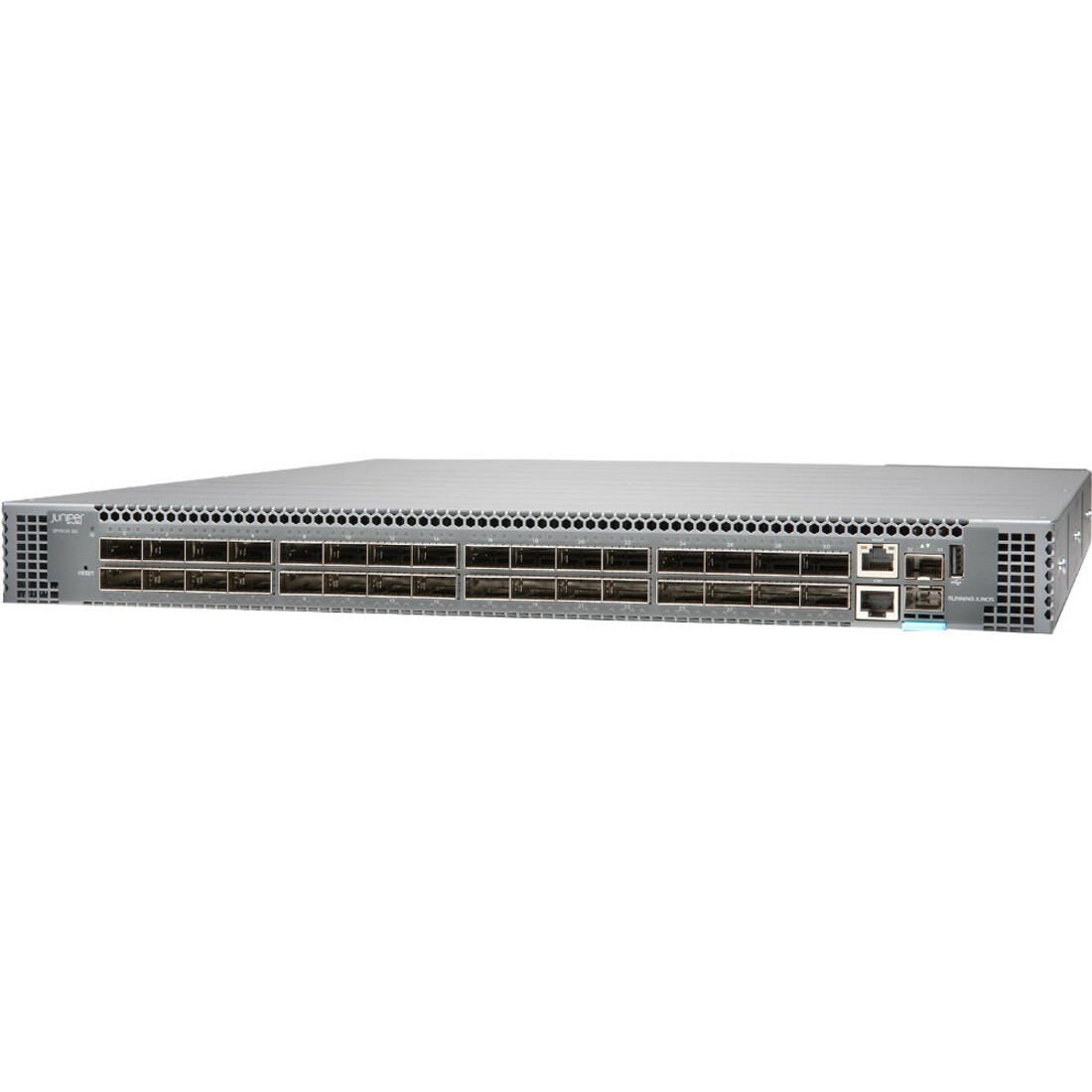

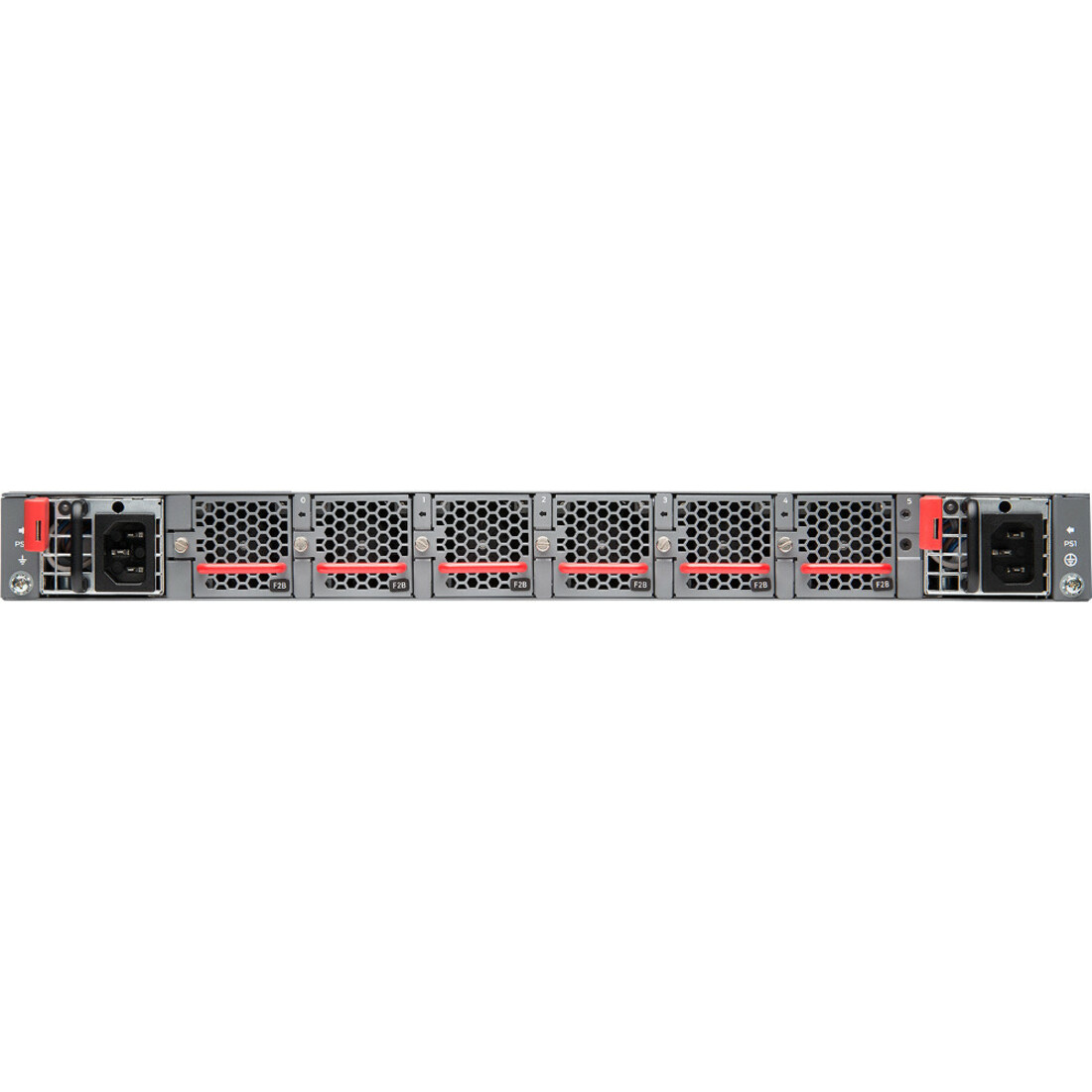

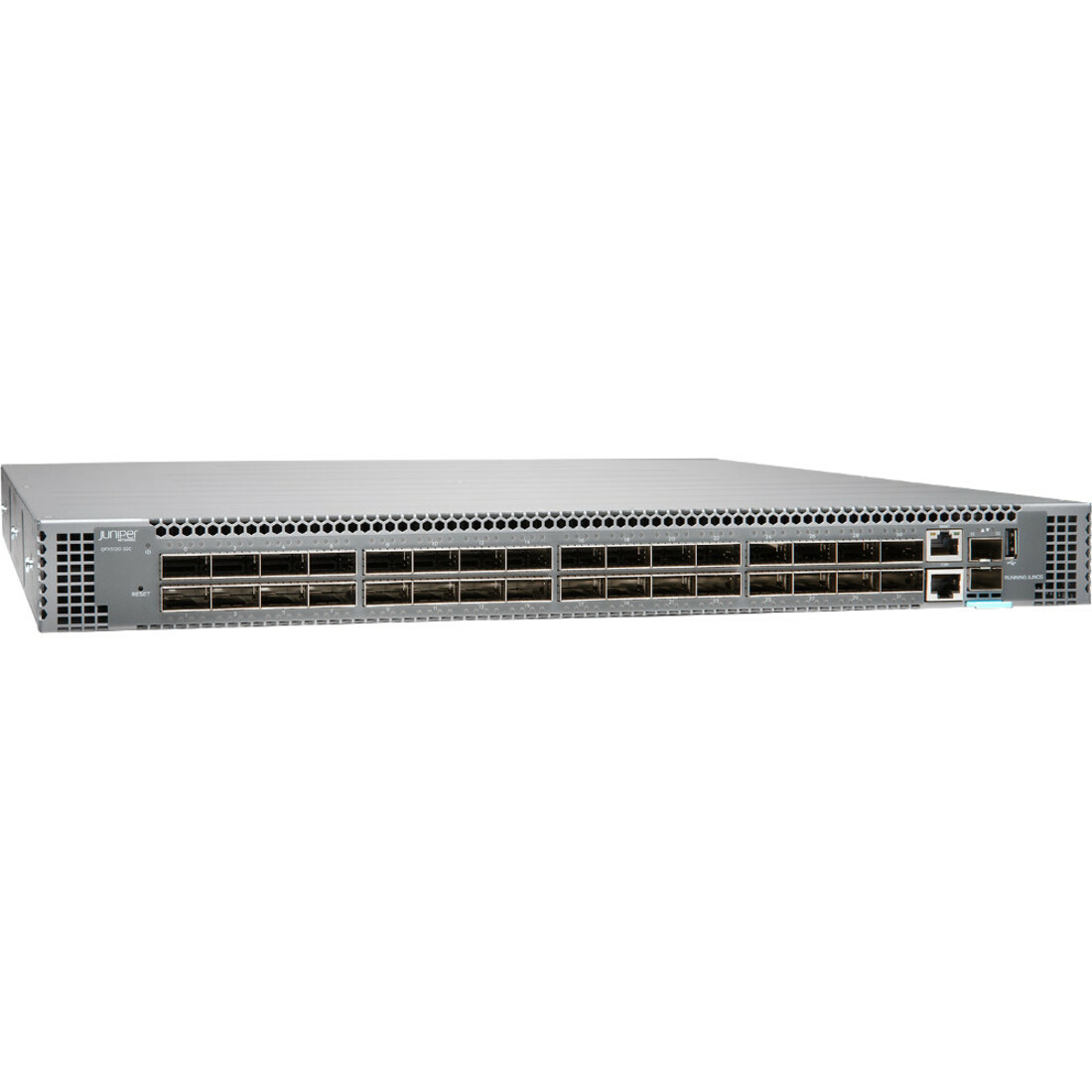

Juniper QFX5120-32C Ethernet Switch

Juniper QFX5120-32C Ethernet Switch - Manageable - 100 Gigabit Ethernet - 100GBase-X - 3 Layer Supported - Modular - 515 W Power Consumption - Optical Fiber - 1U - Rack-mountable - 1 Year Limited Warranty (part number QFX5120-32C-DC-AFO) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the Juniper Switches & Bridges category. Limited Warranty: 1 Year Year.

Featuring Layer 3 gateway capabilities for routing between virtualized and bare-metal servers, the QFX5120 is designed for extremely agile data centers that require support for overlay/underlay network architectures. Native 25GbE with 100GbE uplink ports on the QFX5120-48Y, combined with 32 ports of 100GbE on the QFX5120-32C, make the QFX5120 family ideal for leaf-and-spine network deployments. The high-performance Juniper Networks® QFX5120 Switch fits the bill, providing the foundation for dynamic data centers. Native 25GbE ports on the QFX5120-48Y satisfy the growing demand for server access speeds, while high-density 100GbE ports on the QFX5120-32C satisfy the need for compact, lower power devices in the spine. The QFX5120 is packed with software features that support traditional fabric designs with multichassis link aggregation (MC-LAG) or evolving SDN architectures with Ethernet VPN (EVPN)/Virtual Extensible LAN (VXLAN) on IP fabric underlays. Architecture and Key Components The QFX5120 includes native 25GbE (fiber only) and 100GbE fixed-configuration options with rich L2, L3, EVPN, and MPLS features. The QFX5120 runs the same reliable, high performance Juniper Networks Junos® operating system used by all Juniper Networks QFX Series and EX Series Ethernet Switches, SRX Series Services Gateways, and Juniper Networks routers, ensuring a consistent control plane feature implementation and user experience across the entire Juniper infrastructure. Product Options The QFX5120 switch family includes two compact, 1 U platforms that provide wire-speed packet performance, very low latency, and a rich set of Junos OS features. The QFX5120-48Y is a 25GbE/100GbE data center access switch offering 48 small form-factor pluggable plus (SFP+) transceiver ports and eight quad SFP (QSFP28) ports that can be configured as 8x40GbE or 8x100GbE ports, with an aggregate throughput of 4 Tbps or 2 Bpps per switch. For added flexibility, each QSFP28 port can also be configured as 4x25GbE ports using breakout cables, while each QSFP+ port can be configured as 4x10GbE ports using breakout cables, increasing the number of supported 25GbE and 10GbE ports per switch to 80. The QFX5120-32C is a compact 100GbE data center spine switch offering 32 QSFP28 or 32 quad SFP+ (QSFP+) ports. The 100GbE ports can also be configured as 4x25GbE ports using breakout cables, enabling the QFX5120-32C to be used as a high-density 25GbE top-of-rack switch. In addition to a high-throughput Packet Forwarding Engine (PFE), the performance of the QFX5120 control plane is enhanced by a powerful 2.2 GHz quad-core Intel CPU with 16 GB of memory and 64 GB SSD storage.

• Effectively increases available bandwidth on your network • Can work as layer 3 routing for scalable network design • Rack-mountable form factor for added reliability and dependability • Managed switch provides a reliable foundation for your network • 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone

Key specifications: Limited Warranty: 1 Year Year · Layer Supported: 3 · Networking Standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.3x, IEEE 802.1Qaz · Manageable: Yes · Ethernet Technology: 100 Gigabit Ethernet · Media Type Supported: Optical Fiber · Network Technology: 100GBase-X · Total Number of Expansion Slots: 32.0.
