Juniper ACX2200 Router
Juniper ACX2200 Router - 8 Ports - 8 RJ-45 Port(s) - Management Port - 8 - 10 Gigabit Ethernet - 1U - Rack-mountable - 1 Year
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Router
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- ACX
- Total Number of Ports
- 8
- Total Number of Expansion Slots
- 8
- Redundant Power Supply Supported
- Yes
- Form Factor
- Rack-mountable
- Network Technology
- 10/100/1000Base-T
Overview
Juniper ACX2200 Router - 8 Ports - 8 RJ-45 Port(s) - Management Port - 8 - 10 Gigabit Ethernet - 1U - Rack-mountable - 1 Year (part number ACX2200-AC) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the Juniper Routers & Gateways category. Compatible Rack Unit: 1U.

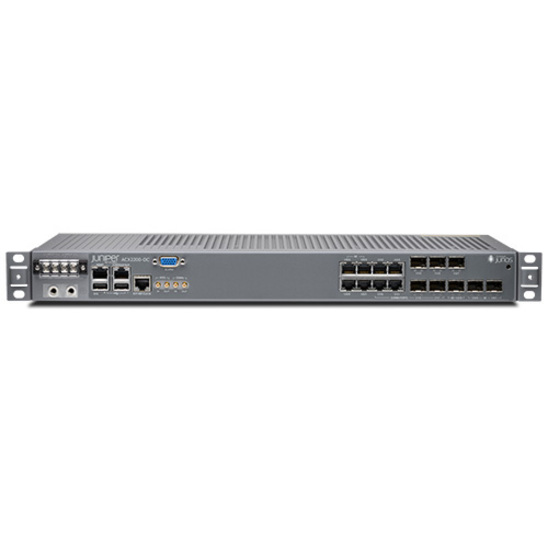

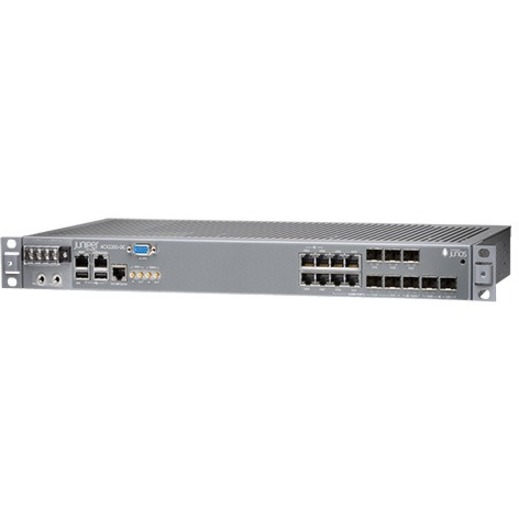

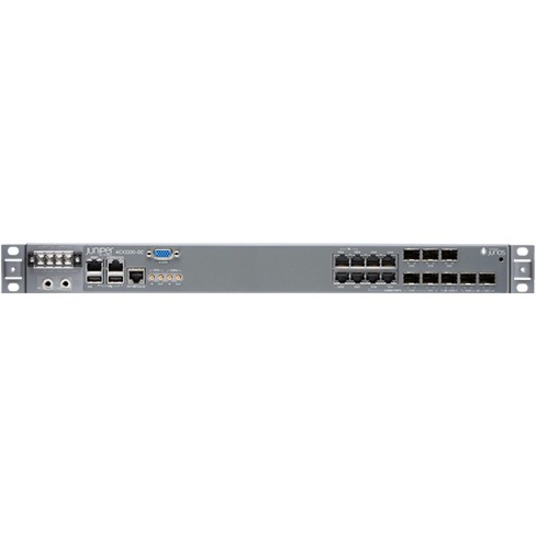

The compact, Ethernet only environmentally-hardened ACX2200 router with fanless passive cooling has a fixed port configuration that includes four copper 10/100/1000Mbps interfaces, four combination copper/fiber GbE ports, two GbE SFP ports, and two 10 GbE SFP+ ports. A built-in service engine makes the ACX2200 fully customizable and future-proof for LTE-A and 5G requirements. The scalability and reliability of the ACX2200 improves customer satisfaction, while lowering the total cost of operating, maintaining, and updating the network infrastructure for service providers and enterprises.
• With 1000Base-X technology, get up to 1000 mbps data transfer rate over supported network cable • Features management port for a reliable networking • Optimize the performance of business networks with the 10 Gigabit Ethernet connectivity • Built-in power supply to ensure all components are being supplied with accurate voltage
Key specifications: Compatible Rack Unit: 1U · Height: 1.8" mm · Width: 17.5" mm · Depth: 9.4" mm · Form Factor: Rack-mountable · Weight (Approximate): 8.30 lb g · Ethernet Technology: 10 Gigabit Ethernet · Network Technology: 10/100/1000Base-T, 1000Base-X, 10GBase-X.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.8" mm
- Width
- 17.5" mm
- Depth
- 9.4" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 8.30 lb g
Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T, 1000Base-X, 10GBase-X
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 8
- Powerline
- No
- Management Port
- Yes
- Total Number of Ports
- 8
Power Description
- PoE (RJ-45) Port
- No
- Redundant Power Supply Supported
- Yes
Warranty
- Limited Warranty
- 1 Year Year
I/O Expansions
- Total Number of Expansion Slots
- 8
- Expansion Slot Type
- SFP, SFP+
Miscellaneous
- Environmentally Friendly
- Yes
General Information
- Product Type
- Router
- Product Series
- ACX
- Product Model
- ACX2200
