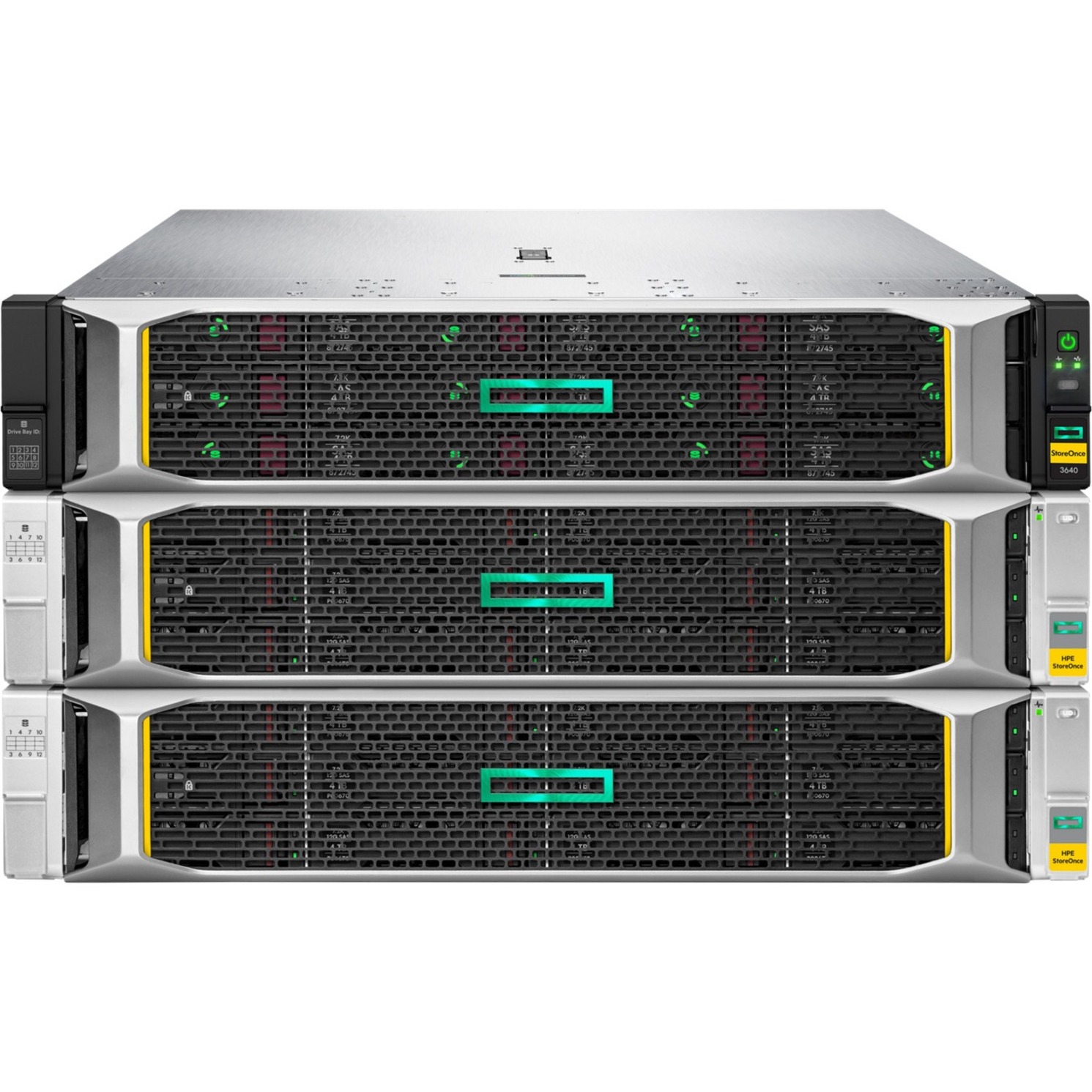

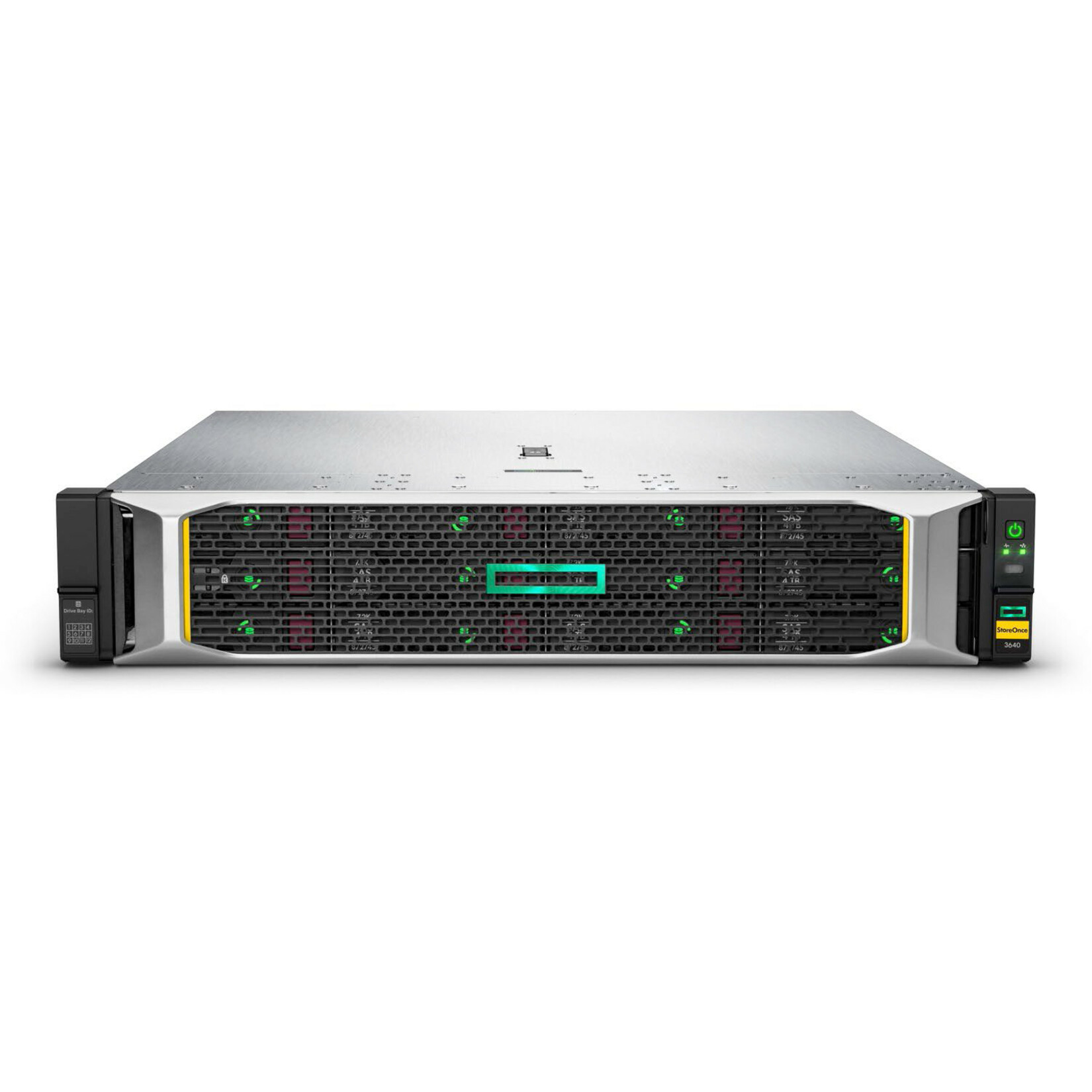

Representative imageHPE StoreOnce 3640 48TB System
HPE StoreOnce 3640 48TB System - 12 x HDD Supported - 144 TB Supported HDD Capacity - 12 x HDD Installed - 48 TB Installed HDD Capacity - Serial Attached SCSI (SAS) Controller - RAID Supported - 6 RAID Levels - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - Network (RJ-45) - 2U - Rack-mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- NAS Storage System
- RAID Supported
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
- Network (RJ-45)
- Yes
- Product Family
- StoreOnce 3000
- Total Hard Drive Capacity Supported
- 144 TB
Overview
HPE StoreOnce 3640 48TB System - 12 x HDD Supported - 144 TB Supported HDD Capacity - 12 x HDD Installed - 48 TB Installed HDD Capacity - Serial Attached SCSI (SAS) Controller - RAID Supported - 6 RAID Levels - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - Network (RJ-45) - 2U - Rack-mountable (part number BB955A) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Storage Arrays & Servers category. Ethernet Technology: Gigabit Ethernet.

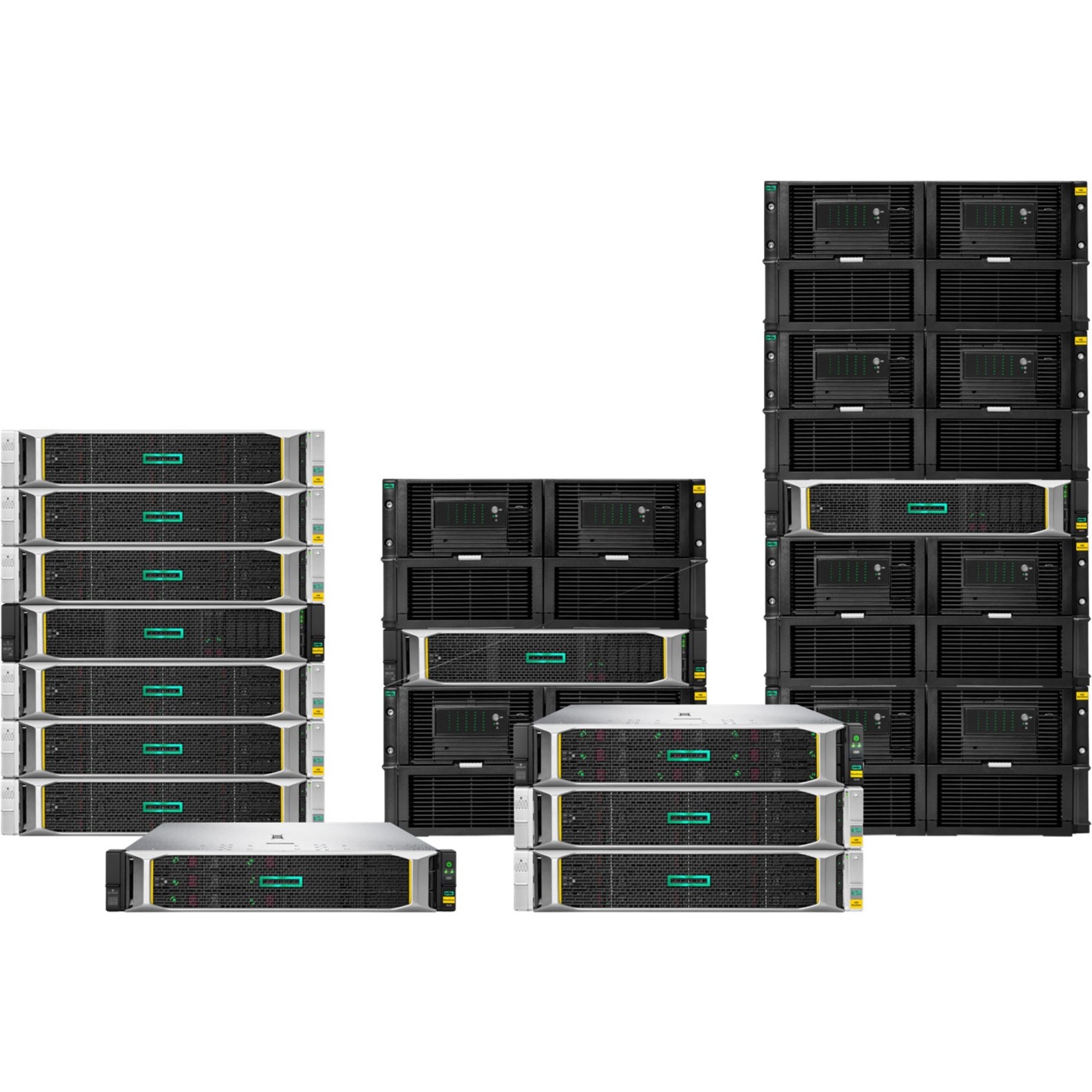

Key Features Industry-leading, Scalable Architecture from Small and Remote Offices to Enterprise Data Centers Scalable architecture allows you to pay as you grow. Choose capacity points available through virtual or dedicated appliances that start small and allow you to add capacity as needed. With a range of capacity points to suit all requirements from small remote offices to enterprise data centers with centralized monitoring and control with Federated Management. For enterprise data centers the HPE StoreOnce 5650 scales from 36 TB to 1.7 PB usable local storage. With Cloud Bank Storage you can scale up to 5.2 PB of total managed usable storage. For mid-size data centers choose HPE StoreOnce 3620, to scale from 16 - 31.5 TB, StoreOnce 3640 to scale from 36-108 TB, StoreOnce 5200 to scale from 36 - 216 TB or StoreOnce 5250 to scale from 36 - 864 TB usable. All HPE StoreOnce Systems can triple their maximum capacity with Cloud Bank Storage. For software defined data protection, choose the HPE StoreOnce VSA, flexibly licensed up to 500 TB and configurable to meet the performance characteristics needed of a variety of environments. Deduplication Across the Enterprise with a Single Deduplication Technology - HPE StoreOnce Deduplicate at the application source, the backup server, the target appliance or directly from HPE 3PAR, HPE Primera, and HPE Nimble via HPE Recovery Manager Central software. HPE StoreOnce delivers a unified solution for data movement across the enterprise under the control of your data protection application. HPE StoreOnce enables direct, application integrated backup of Oracle RMAN, SAP HANA, and Microsoft SQL using no cost Catalyst application plug-ins. Backup within your Window and Meet your Restore SLAs with StoreOnce Industry Leading Performance A broad range of best-in-class price/performance points to meet the challenges of data growth and shrinking backup windows across the enterprise. Up to 47 TB per hour with HPE StoreOnce 5650, or up to 41 TB per hour with HPE StoreOnce 5250 and up to 33 TB per hour with HPE StoreOnce 5200. Up to 18 TB per hour with HPE StoreOnce 3640 and HPE StoreOnce Catalyst or up to 14 TB per hour with HPE StoreOnce 3620. Automated, Efficient Backup and Disaster Recovery Operations with StoreOnce Catalyst Centralized management, alerting, and trending in the GUI via Federated Management, to enable a single point of management for up to 100 StoreOnce systems. Manage backup and Disaster Recovery operations from a single pane of glass with StoreOnce Catalyst, backup and copy is supported over IP and Fibre Channel. Deduplication-optimized copy to Cloud Bank Storage allows disaster recovery solutions that were not previously feasible due to lack of multisite capabilities, cost of bandwidth, and time. Catalyst one-to-many disaster recovery can move backup data from one site to many sites. Cascaded copy can move data from one site to other sites including the cloud, with Cloud Bank Storage.
• NAS Storage System is the single answer to all your desired storage needs • Holds up to 12 HDDs to let you expand limitlessly • Through RAID levels (6), RAID provides data reliability, fault tolerance and improves overall performance • Holds 12 HDDs for up to 144 tb of storage • RAID technology - data reliability, fault tolerance and improved overall performance
Key specifications: Ethernet Technology: Gigabit Ethernet · Number of Total Expansion Bays: 12 · Number of 3.5" Bays: 12 · Number of Network (RJ-45) Ports: 4 · Network (RJ-45): Yes · Drive Interface: Serial Attached SCSI (SAS) · Total Hard Drive Capacity Supported: 144 TB Byte · Total Hard Drive Capacity Installed: 48 TB Byte.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 4
- Network (RJ-45)
- Yes
- Drive Interface
- Serial Attached SCSI (SAS)
Storage
- Total Hard Drive Capacity Supported
- 144 TB Byte
- Total Hard Drive Capacity Installed
- 48 TB Byte
- Number of Hard Drives Supported
- 12
- Number of Hard Drives Installed
- 12
Warranty
- Limited Warranty
- 3 Year Year
Controllers
- RAID Supported
- Yes
- RAID Levels
- 6
- Controller Type
- Serial Attached SCSI (SAS)
Physical Characteristics
- Height
- 3.4" mm
- Width
- 17.5" mm
- Depth
- 28.8" mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 64 lb g
Power Description
- Redundant Power Supply
- Yes
General Information
- Product Type
- NAS Storage System
- Product Series
- 3000
- Product Model
- 3640
