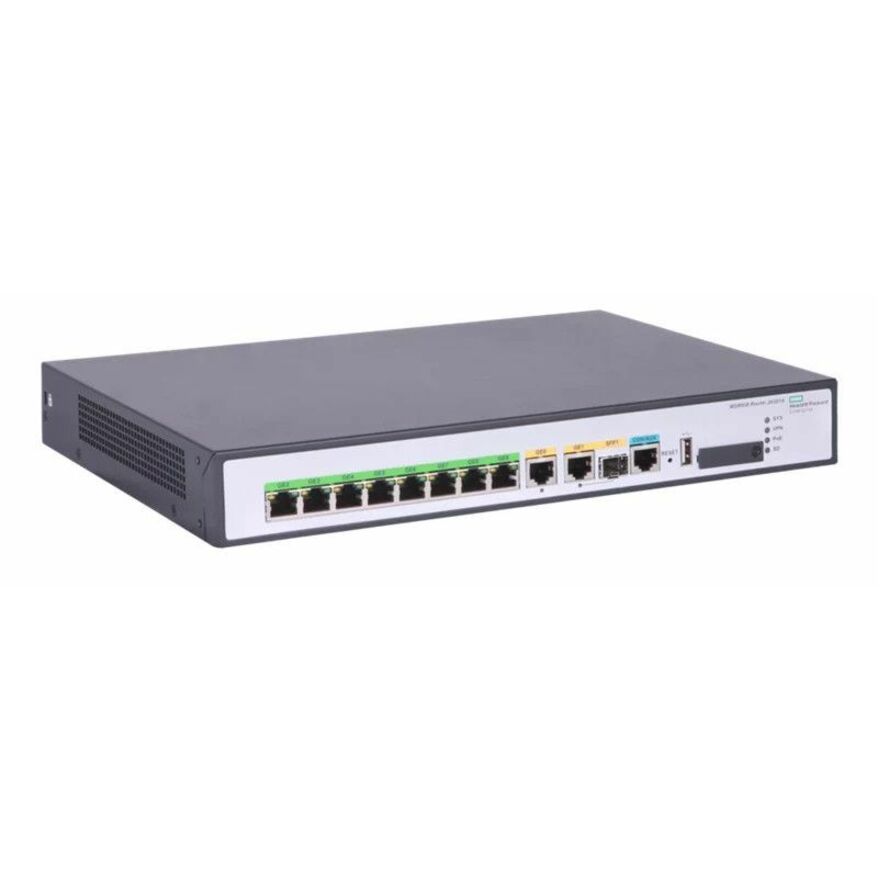

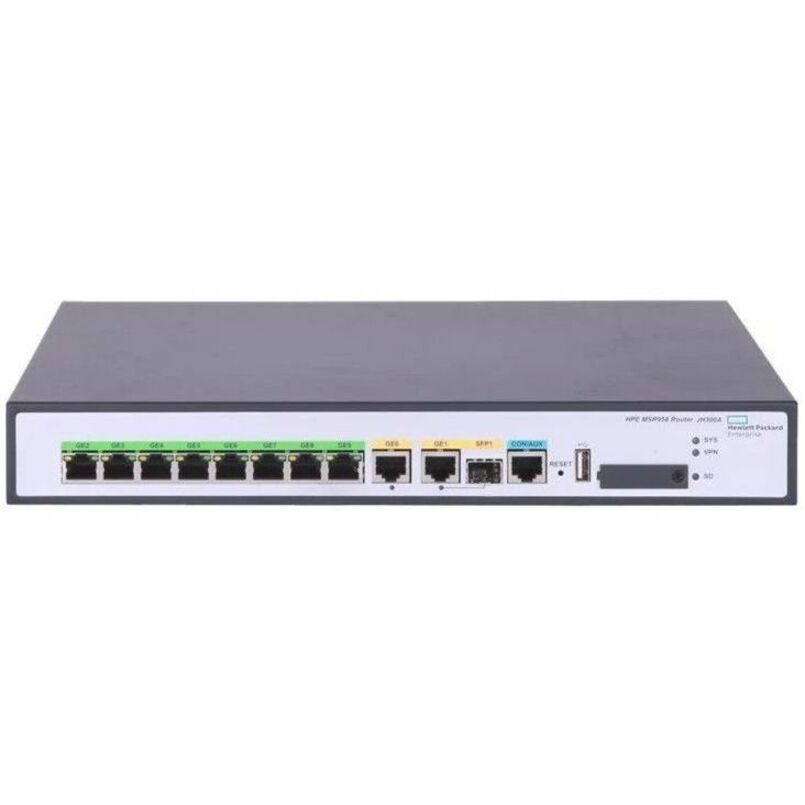

Representative imageHPE MSR958X Router
HPE MSR958X Router - 8 Ports - 6 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - 4 SFP+ Slots - 2 GB - 10 Gigabit Ethernet - IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x - Rack-mountable Lifetime Warranty
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
Free download
Documents
- Product Type
- Router
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- MSR95x
- Total Number of Ports
- 8
- Total Number of Expansion Slots
- 4
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Form Factor
- Rack-mountable
Overview
HPE MSR958X Router - 8 Ports - 6 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - 4 SFP+ Slots - 2 GB - 10 Gigabit Ethernet - IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x - Rack-mountable Lifetime Warranty (part number S0P11A#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Routers & Gateways category. Ethernet Technology: 10 Gigabit Ethernet.
HPE Networking Comware Router Series MSR95x The HPE Networking Comware Router Series MSR95x is a high-performance Comware v7 based small-branch router that delivers integrated routing, 4-port or 8-port switch options, security, SIP, embedded 802.11b/g/n WLAN connectivity, dual 3G/4G LTE, and fiber (SFP) in a single box. The MSR95x Router Series solutions deliver up to 300 Kpps forwarding with comprehensive IPv4 and IPv6 routing, MPLS, QoS, stateful firewall, network address translation (NAT), VPN, switching, voice, and wireless capabilities in a compact, fixed form factor. Moreover, this router series is based on open standards for seamless integration with existing small-branch deployments.
• Converged high-performance fiber routing, switching, security, and 3 Mpps performance • Integrated 1/10GbE WAN and LAN, fiber (SFP) • Embedded encryption, stateful firewall, NAT, ADVPN security features • Unified Comware v7 OS, Comware v7 OS zero-touch solution, and single-pane-of-glass management • The new 958X router supports 10GbE ports with Comware v9 OS
Key specifications: Ethernet Technology: 10 Gigabit Ethernet · Networking Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x · Network Technology: 10/100/1000Base-T, 10GBase-X · Number of Network (RJ-45) Ports: 6 · Management Port: Yes · Total Number of Ports: 8 · Number of WAN Ports: 2 · Limited Warranty: Lifetime.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Networking Standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
- Network Technology
- 10/100/1000Base-T, 10GBase-X
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 6
- Management Port
- Yes
- Total Number of Ports
- 8
- Number of WAN Ports
- 2
Warranty
- Limited Warranty
- Lifetime
Memory
- Standard Memory
- 2 GB Byte
I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
Physical Characteristics
- Height
- 1.7" mm
- Width
- 10.5" mm
- Depth
- 6.3" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 2.65 lb g
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Power Description
- Power Consumption
- 36 W W
General Information
- Product Type
- Router
- Product Series
- MSR95x
