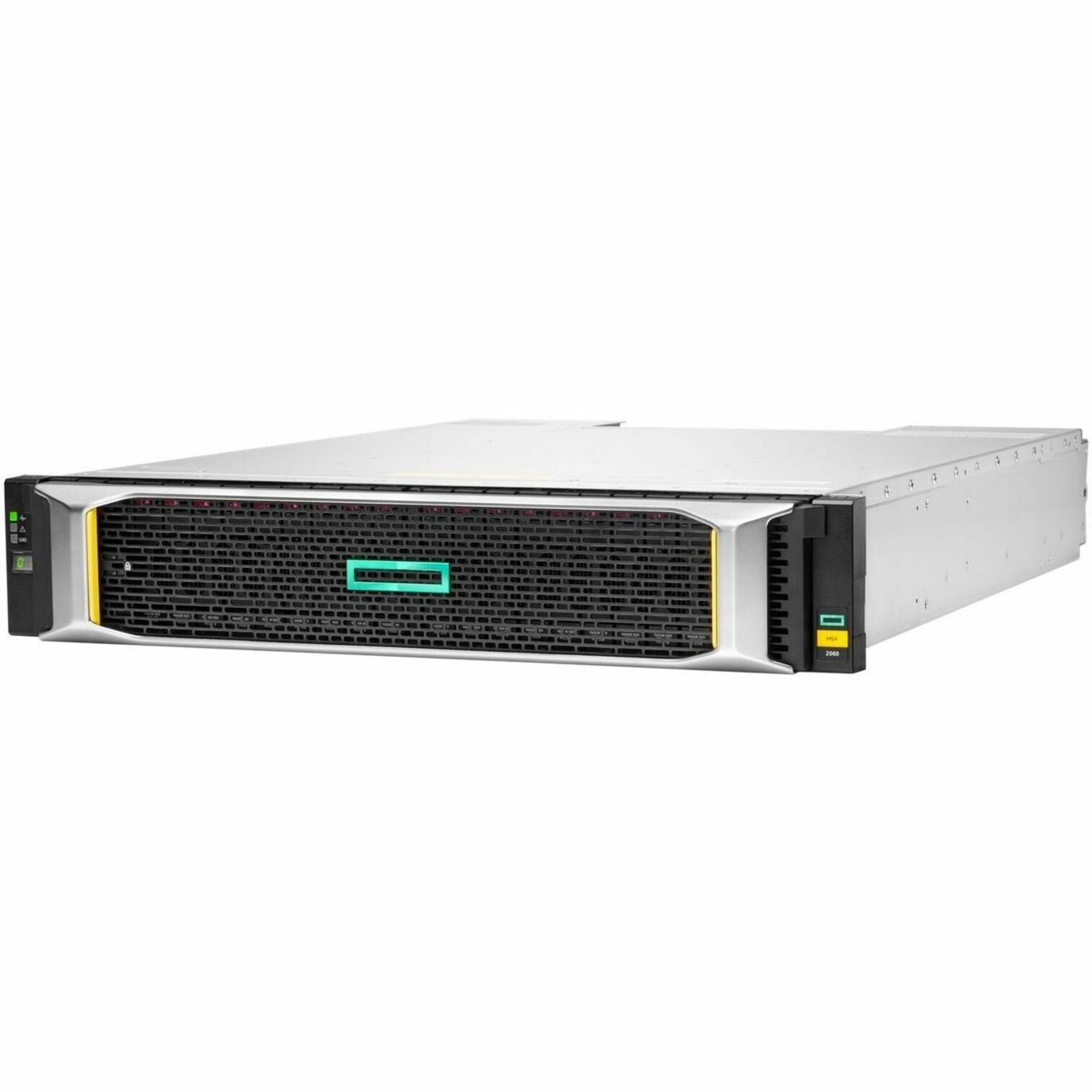

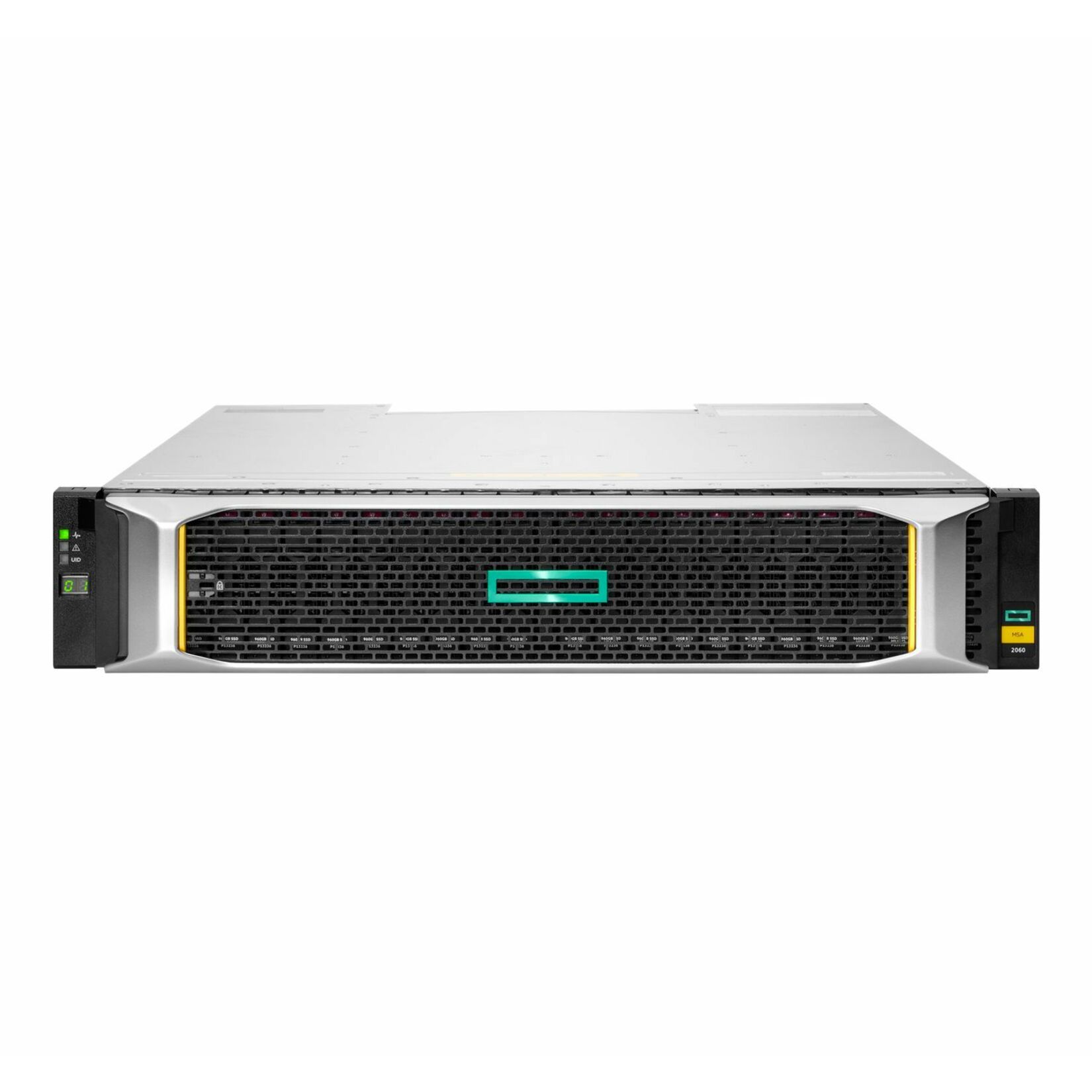

Representative imageHPE MSA 2060 SAN Storage System
HPE MSA 2060 SAN Storage System - 24 x HDD Supported - 1812.48 TB Supported HDD Capacity - 12 x HDD Installed - 28.80 TB Installed HDD Capacity - 12Gb/s SAS - 24 x SSD Supported - 2 x SSD Installed - 3.84 TB Total Installed SSD Capacity - Clustering Supported - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 4 SAS Port(s) External - 2U - Rack-
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
Free download
Documents
- Product Type
- SAN Storage System
- RAID Supported
- Yes
- Ethernet Technology
- 10 Gigabit Ethernet
- Number of Total Expansion Bays
- 24
- Network (RJ-45)
- Yes
- Maximum Power Supply Wattage
- 580 W
- Total Hard Drive Capacity Supported
- 1812.48 TB
- Total Hard Drive Capacity Installed
- 28.80 TB
Overview
HPE MSA 2060 SAN Storage System - 24 x HDD Supported - 1812.48 TB Supported HDD Capacity - 12 x HDD Installed - 28.80 TB Installed HDD Capacity - 12Gb/s SAS - 24 x SSD Supported - 2 x SSD Installed - 3.84 TB Total Installed SSD Capacity - Clustering Supported - 2 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 4 SAS Port(s) External - 2U - Rack- (part number P84172-B25) is supplied by Uniqcli, an authorized HPE partner, in the HPE Storage Arrays & Servers category. Number of Power Supplies Installed: 2.
Looking for seriously simple and affordable flash storage? The HPE MSA 2062 Storage is a flash-enabled system designed for affordable application acceleration for small and remote office deployments. Don't let the low cost fool you. The HPE MSA 2062 gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced storage array. Starting with 3.84 TB of embedded flash capacity, you can scale the system from there with any combination of solid state drives (SSD), high-performance Enterprise SAS HDDs, or lowercost Midline SAS HDDs. Capable of delivering up to 395,000 IOPS, the HPE MSA 2062 saves you up to 26% with an all-inclusive software suite and 3.84 TB of flash capacity included. It's a seriously simple and affordable flash storage to help you achieve high performance yet meet challenging budgets.
• SAN Storage System is the single answer to all your desired storage needs • Robust scalability up to 24 drives to let you expand limitlessly • Through RAID levels (0, 1, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance • Holds 24 HDDs for up to 1812.48 tb of storage • RAID technology - data reliability, fault tolerance and improved overall performance
Key specifications: Number of Power Supplies Installed: 2 · Redundant Power Supply: Yes · Maximum Power Supply Wattage: 580 W W · Plug/Connector Type: C14 · Hard Drive Interface: 12Gb/s SAS · Hard Drive Configuration: 12 x 2.4TB · Total Hard Drive Capacity Supported: 1812.48 TB Byte · Total Hard Drive Capacity Installed: 28.80 TB Byte.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Power Description
- Number of Power Supplies Installed
- 2
- Redundant Power Supply
- Yes
- Maximum Power Supply Wattage
- 580 W W
- Plug/Connector Type
- C14
Storage
- Hard Drive Interface
- 12Gb/s SAS
- Hard Drive Configuration
- 12 x 2.4TB
- Total Hard Drive Capacity Supported
- 1812.48 TB Byte
- Total Hard Drive Capacity Installed
- 28.80 TB Byte
- Total Solid State Drive Capacity Installed
- 3.84 TB Byte
- Number of Hard Drives Supported
- 24
- Number of Hard Drives Installed
- 12
- Number of Solid State Drive Supported
- 24
- Number of Solid State Drive Installed
- 2
- Solid State Drive Configuration
- 2 x 1.92TB
- Clustering Supported
- Yes
Controllers
- RAID Supported
- Yes
- Number of Controllers
- 2
- RAID Levels
- 0, 1, 5, 6, 10
- Controller Type
- 12Gb/s SAS
Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
I/O Expansions
- Number of Total Expansion Bays
- 24
- Number of 2.5" Bays
- 24
Interfaces/Ports
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- Drive Interface
- 12Gb/s SAS
- Number of SAS Ports (External)
- 4
Management & Protocols
- Protocols
- SNMP, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet
Miscellaneous
- Energy Star
- Yes
Physical Characteristics
- Height
- 3.5" mm
- Width
- 17.5" mm
- Depth
- 20" mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 11.02 lb g
Software
- Operating System Supported
- Windows Server 2022, Windows Server 2019, Windows Server 2016, Red Hat Enterprise Linux 8, SuSE Linux Enterprise Server 15
General Information
- Product Type
- SAN Storage System
- Product Model
- MSA 2060
