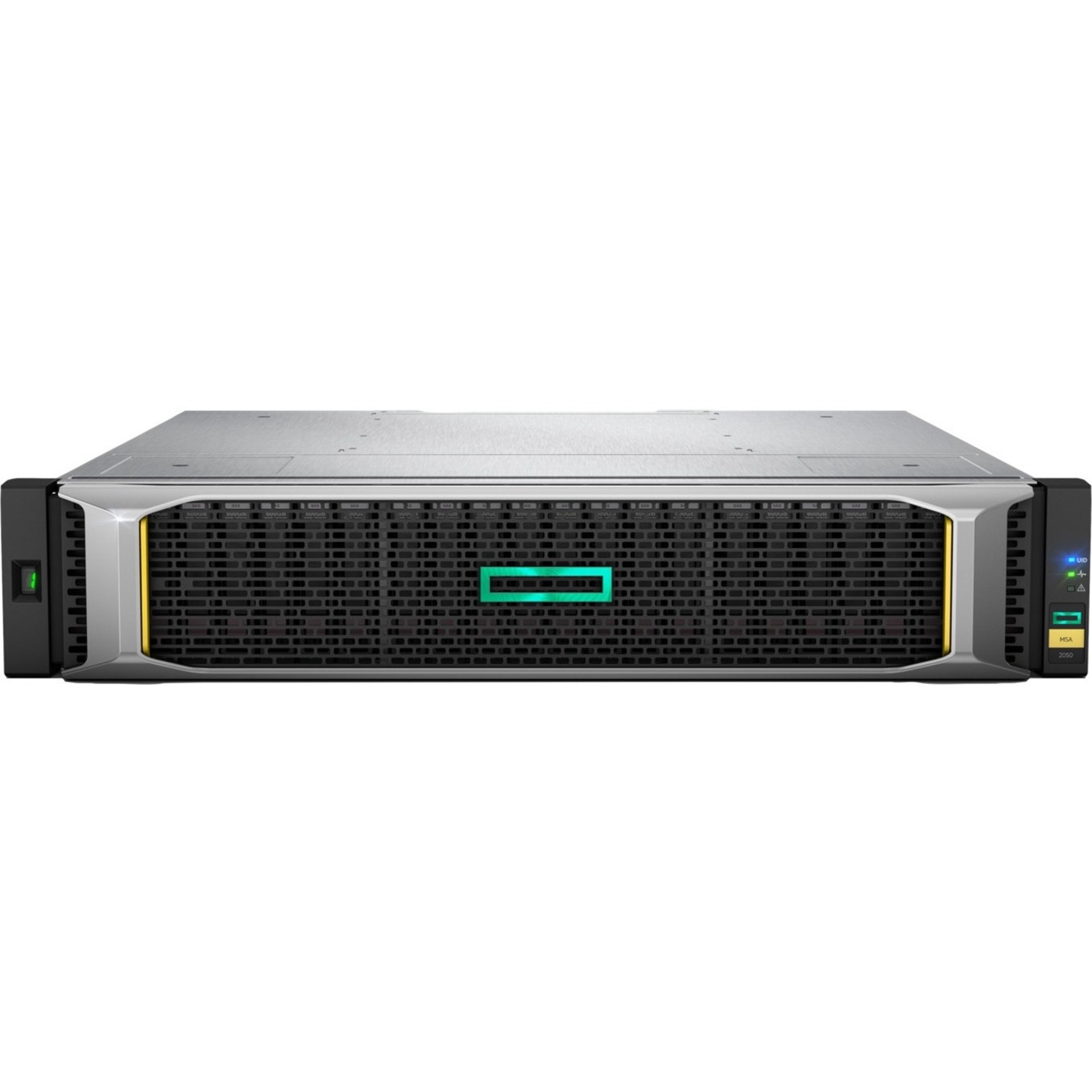

HPE MSA 2052 SAN Dual Controller SFF Storage - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 2 x SSD InstalleRepresentative image
Transceivers & Cables

HPE MSA 2052 SAN Dual Controller SFF Storage

HPE MSA 2052 SAN Dual Controller SFF Storage - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 2 x SSD Installed - 1.60 TB Total Installed SSD Capacity - 2 x 6Gb/s SAS Controller - RAID Supported - 1, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - iSCSI, FCP - 2 SAS Port(s) External - 2U - Rack-mountable

Mfr #: Q1J03B
Request a price

GPC-payable · TAA-compliant configuration on request · usually back within one business day.

Detailed quote

Free download

Documents

Product Type
SAN Storage System
RAID Supported
Yes
Ethernet Technology
10 Gigabit Ethernet
Number of Total Expansion Bays
24
Network (RJ-45)
Yes
Product Family
2000
Total Solid State Drive Capacity Installed
1.60 TB
Number of Hard Drives Supported
24

Overview

HPE MSA 2052 SAN Dual Controller SFF Storage - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 2 x SSD Installed - 1.60 TB Total Installed SSD Capacity - 2 x 6Gb/s SAS Controller - RAID Supported - 1, 5, 6, 10 RAID Levels - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - Network (RJ-45) - iSCSI, FCP - 2 SAS Port(s) External - 2U - Rack-mountable (part number Q1J03B) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Storage Arrays & Servers category. Number of Power Supplies Installed: 2.

Key Features Affordable Application Acceleration The HPE MSA 2052 SAN Storage performs in excess of 200,000 IOPS delivering outstanding application acceleration for small to medium-sized businesses either locally or remotely. Delivers 2x more performance than the previous HPE MSA 2042 SAN Storage generation [2]. Save 40% on HPE MSA 2052 with all-inclusive software and 1.6 TB of Solid State Drive (SSD) capacity included. Advanced Data Services With No Experience Required The HPE MSA 2052 SAN Storage is easy to install, easy to use, easy to maintain, no storage previous expertise required. Automated tiering dynamically responds to workload changes, so you don't have to. Keep Your Business Running with Expanded Data Protection Features The HPE MSA 2052 SAN Storage provides updated virtualized snapshot technology making data protection and instant recovery a snap. Remote replication with Fibre Channel (FC) and iSCSI supports an affordable disaster recovery solution. Grow Flexibly Now and Into the Future The HPE MSA 2052 SAN Storage delivers data-in-place upgrades protecting drive investments and reduces data migrations. Start small and scale as needed with any combination of Solid State Drives (SSDs), enterprise or midline SAS disk drives.

• SAN Storage System offers maximum storage efficiency and convenience • Holds up to 24 HDDs to let you expand limitlessly • Through RAID levels (1, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance • RAID technology - data reliability, fault tolerance and improved overall performance • Rack-mountable san storage system allows easy and convenient usage without any trouble

Key specifications: Number of Power Supplies Installed: 2 · Redundant Power Supply: Yes · RAID Supported: Yes · Number of Controllers: 2 · RAID Levels: 1, 5, 6, 10 · Controller Type: 6Gb/s SAS · Ethernet Technology: 10 Gigabit Ethernet · Number of Total Expansion Bays: 24.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Power Description
Number of Power Supplies Installed
2
Redundant Power Supply
Yes
Controllers
RAID Supported
Yes
Number of Controllers
2
RAID Levels
1, 5, 6, 10
Controller Type
6Gb/s SAS
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
24
Number of 2.5" Bays
24
Interfaces/Ports
Number of Network (RJ-45) Ports
4
Network (RJ-45)
Yes
Drive Interface
6Gb/s SAS
Number of SAS Ports (External)
2
Fibre Channel
Yes
Storage
Total Solid State Drive Capacity Installed
1.60 TB Byte
Number of Hard Drives Supported
24
Number of Hard Drives Installed
0
Number of Solid State Drive Supported
24
Number of Solid State Drive Installed
2
Solid State Drive Configuration
2 x 800GB
Management & Protocols
Protocols
iSCSI, FCP
Miscellaneous
Energy Star
Yes
Physical Characteristics
Height
3.5" mm
Width
19.5" mm
Depth
17.6" mm
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
40.57 lb g
General Information
Product Type
SAN Storage System
Product Series
2000
Product Model
2052
