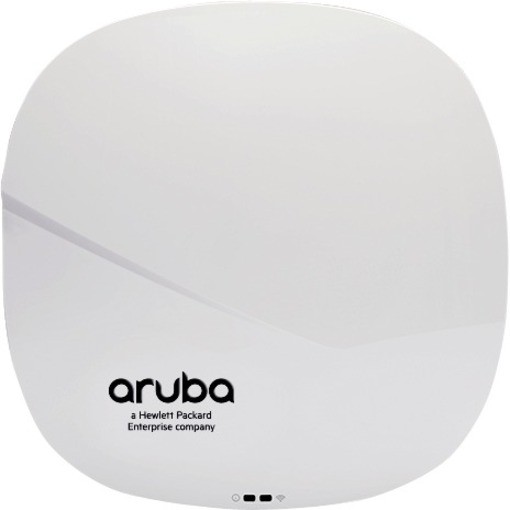

HPE Instant IAP-335 IEEE 802.11ac 2.50 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - 12 x Internal Antenna(s) - MIMO TechnRepresentative image
Transceivers & Cables

HPE Instant IAP-335 IEEE 802.11ac 2.50 Gbit/s Wireless Access Point

HPE Instant IAP-335 IEEE 802.11ac 2.50 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - 12 x Internal Antenna(s) - MIMO Technology - 2 x Network (RJ-45) - Wall Mountable, Ceiling Mountable

Mfr #: JW823AR
Request a price

GPC-payable · TAA-compliant configuration on request · usually back within one business day.

Detailed quote
Product Type
Wireless Access Point
Frequency Band
5 GHz
Frequency Band
2.40 GHz
Wireless LAN Standard
IEEE 802.11ac
Ethernet Technology
Gigabit Ethernet
USB
Yes
Number of Network (RJ-45) Ports
2
Product Family
Instant 330

Overview

HPE Instant IAP-335 IEEE 802.11ac 2.50 Gbit/s Wireless Access Point - 5 GHz, 2.40 GHz - 12 x Internal Antenna(s) - MIMO Technology - 2 x Network (RJ-45) - Wall Mountable, Ceiling Mountable (part number JW823AR) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Wireless Access Points/Bridges category. Frequency Band: 5 GHz Hz, 2.40 GHz Hz.

The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks. Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized - without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency. With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.5Gbps), the 330 Series Access Points deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments. The high performance and high density 802.11ac 330 Series Access Points support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). They provide simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency. The 330 Series Access Points have an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.

• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate • 2.50 Gbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity • This wireless access point uses IEEE 802.11ac technology with steadfast speed of up to 2.50 Gbit/s for optimal wireless signals • Gigabit Ethernet port for ultra-fast wired network speeds • Management port for convenient and more powerful connectivity

Key specifications: Frequency Band: 5 GHz Hz, 2.40 GHz Hz · Wireless LAN Standard: IEEE 802.11ac · Total Number of Antennas: 12 · Number of Internal Antennas: 12 · MIMO Technology: Yes · Beamforming Technology: Yes · Wireless Transmission Speed: 2.50 Gbit/s Bps · Ethernet Technology: Gigabit Ethernet.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Technical Information
Frequency Band
5 GHz Hz, 2.40 GHz Hz
Wireless LAN Standard
IEEE 802.11ac
Total Number of Antennas
12
Number of Internal Antennas
12
MIMO Technology
Yes
Beamforming Technology
Yes
Wireless Transmission Speed
2.50 Gbit/s Bps
Interfaces/Ports
Ethernet Technology
Gigabit Ethernet
USB
Yes
HDMI
No
VGA
No
Number of Network (RJ-45) Ports
2
Powerline
No
Management Port
Yes
PoE (RJ-45) Port
No
PoE PD Port
Yes
Warranty
Limited Warranty
Lifetime
Physical Characteristics
Height
2" mm
Width
8.9" mm
Depth
8.8" mm
Form Factor
Wall Mountable, Ceiling Mountable
Weight (Approximate)
2.54 lb g
General Information
Product Type
Wireless Access Point
Product Condition
Refurbished
Product Series
330
Product Model
IAP-335
