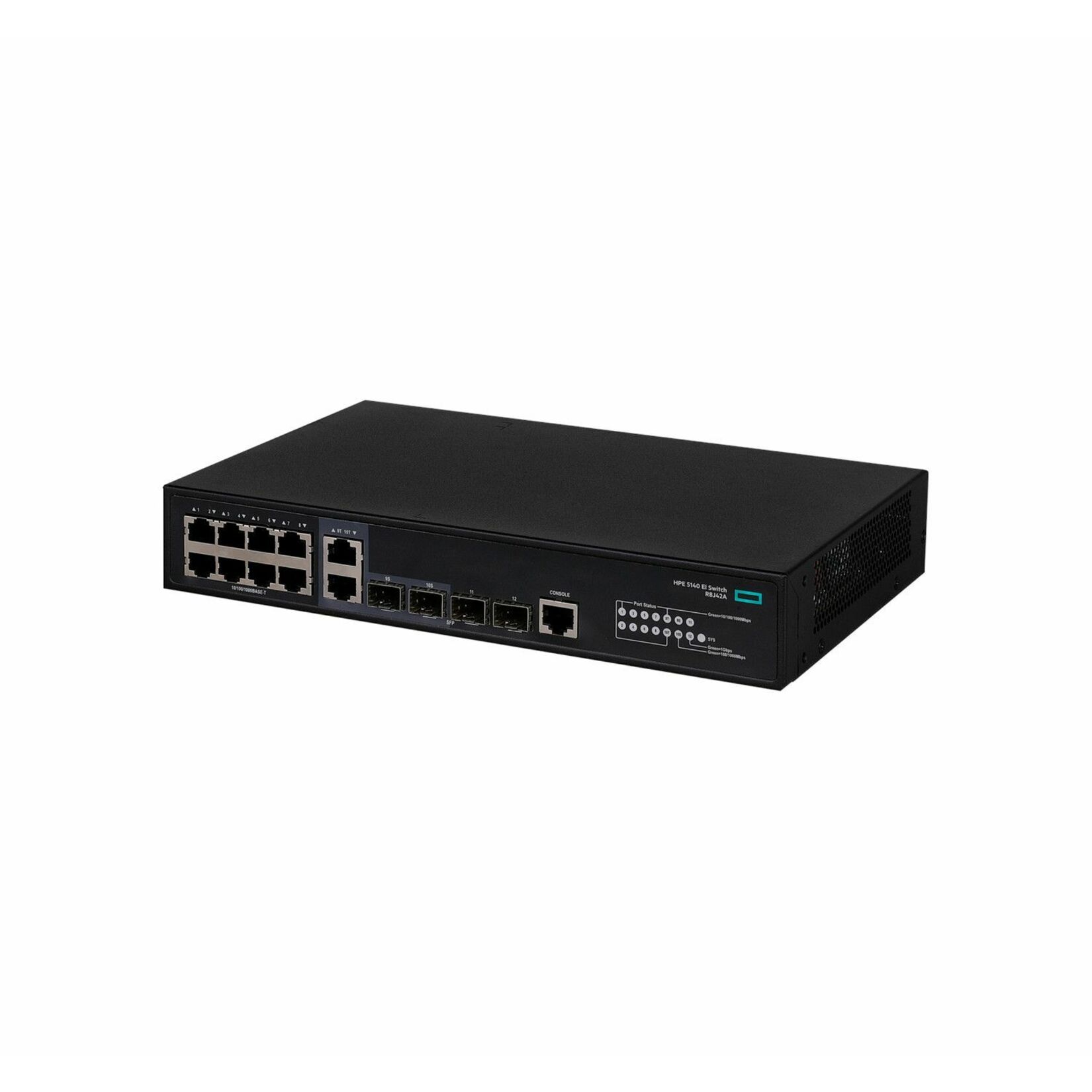

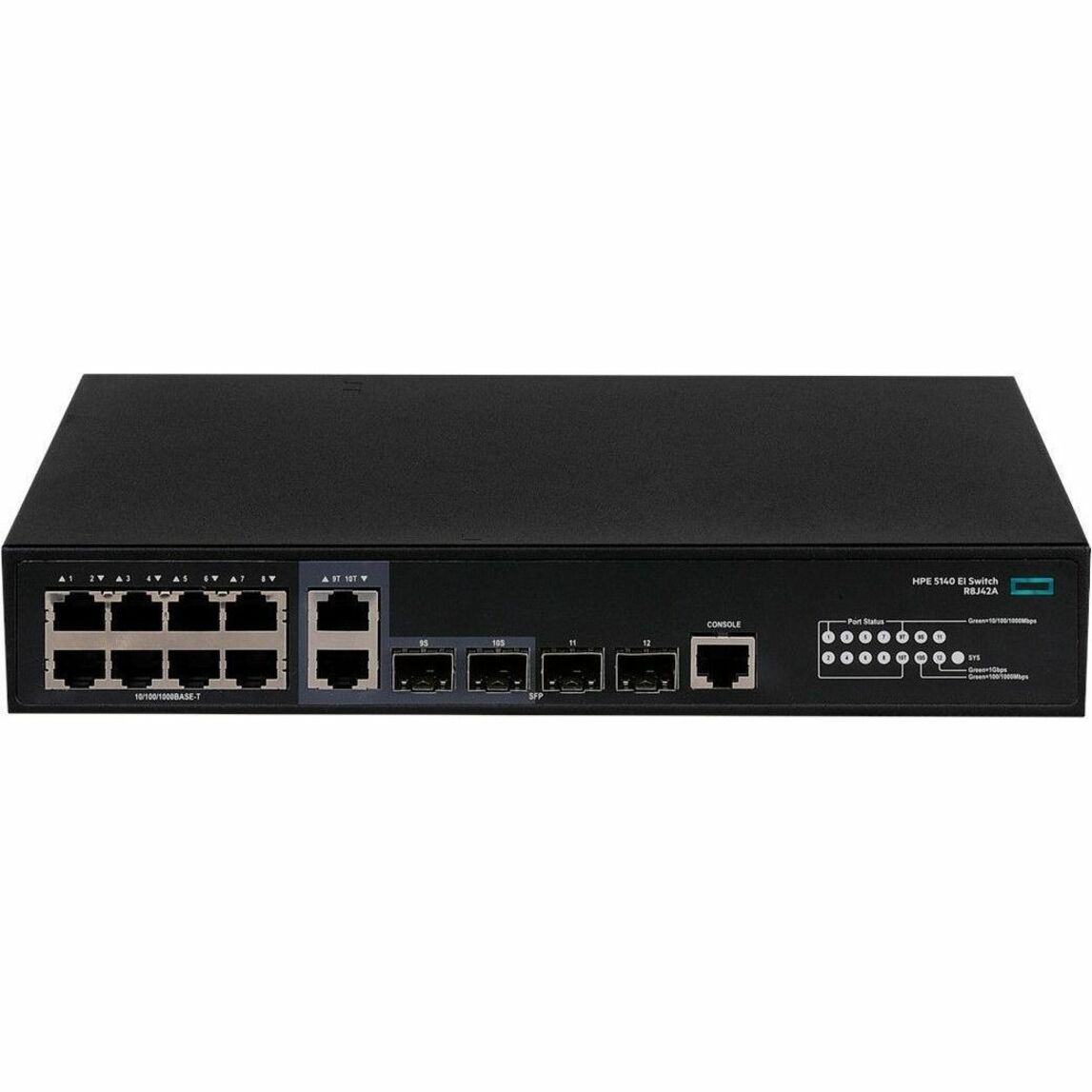

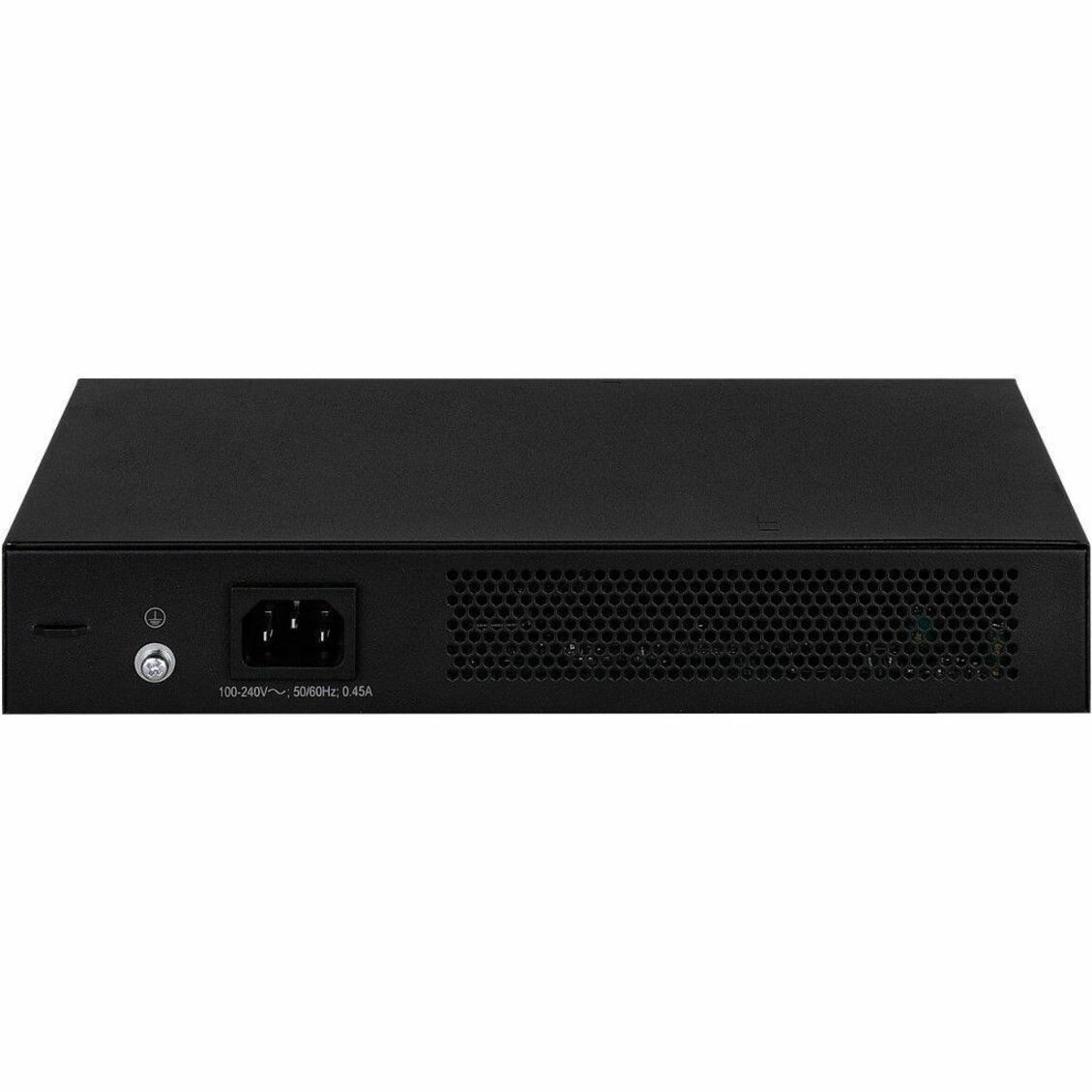

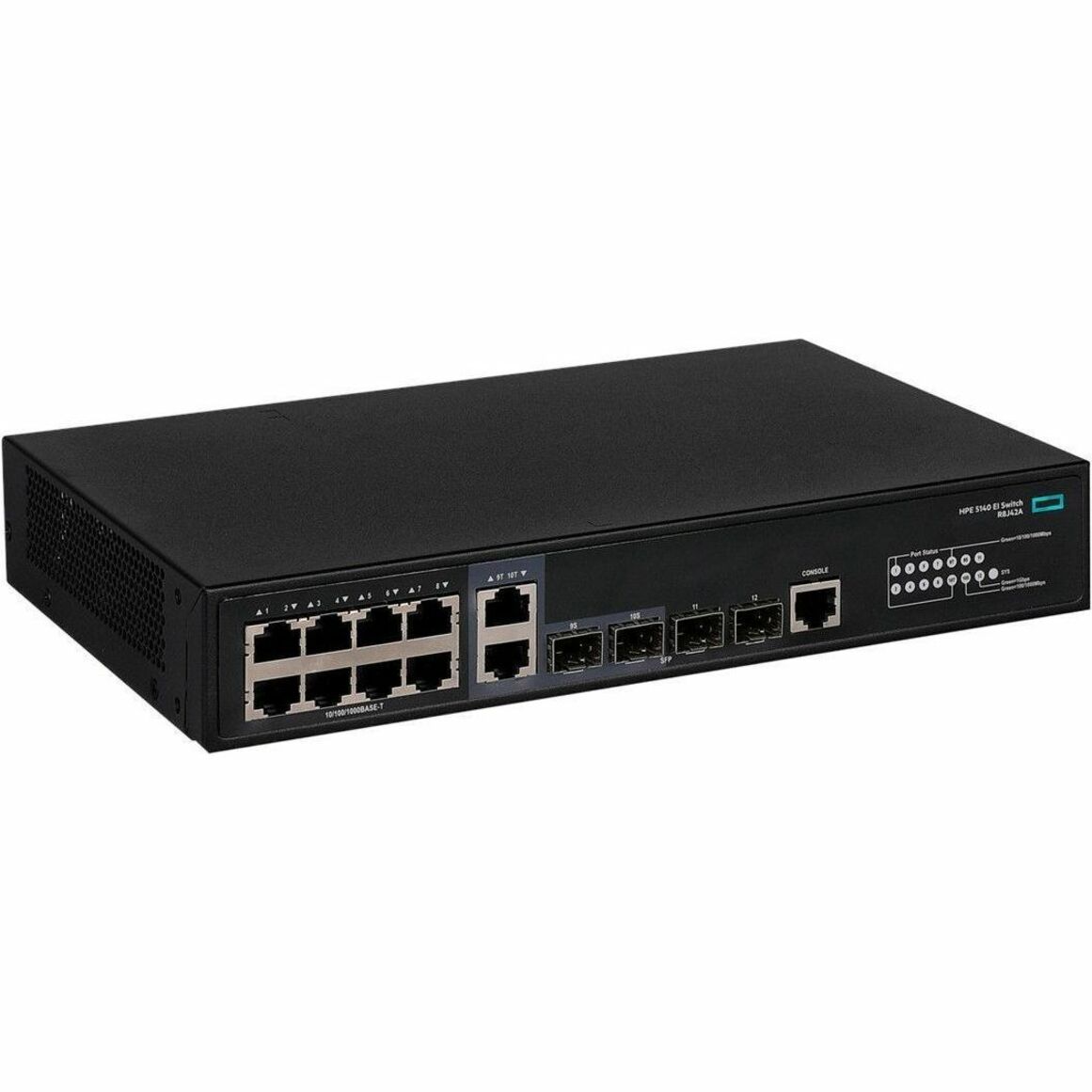

Representative imageHPE FlexNetwork 5140 8G 2SFP 2GT Combo EI Switch
HPE FlexNetwork 5140 8G 2SFP 2GT Combo EI Switch - 10 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 4 SFP Slots - 8 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
Free download
Documents
- Product Type
- Layer 3 Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- FlexNetwork 5140 EI
- Media Type Supported
- Optical Fiber
- Media Type Supported
- Twisted Pair
- Total Number of Network Ports
- 10
Overview
HPE FlexNetwork 5140 8G 2SFP 2GT Combo EI Switch - 10 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 4 SFP Slots - 8 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty (part number R8J42A#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
HPE FlexNetwork 5140 EI Switch Series The HPE FlexNetwork 5140 EI Switch Series comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
• Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection • Cascade to other network devices through the uplink port to expand your local area network • Features 10 networking ports to easily establish a local network or expand your existing one • Can work as layer 3 routing for scalable network design • Rack mounting enables you to organize wires & secure cables for professional installation
Key specifications: Manageable: Yes · Environmentally Friendly: Yes · Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE) · Package Contents: FlexNetwork 5140 8G 2SFP 2GT Combo EI Switch Power Supply Mounting Hardware · Compatible Rack Unit: 1U · Product Color: Black · Height: 1.7" mm · Width: 10.5" mm.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Package Contents
- FlexNetwork 5140 8G 2SFP 2GT Combo EI Switch Power Supply Mounting Hardware
Physical Characteristics
- Compatible Rack Unit
- 1U
- Product Color
- Black
- Height
- 1.7" mm
- Width
- 10.5" mm
- Depth
- 6.3" mm
- Form Factor
- Rack-mountable, Cabinet Mount
- Weight (Approximate)
- 3.30 lb g
Media & Performance
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Optical Fiber, Twisted Pair
- Network Technology
- 10/100/1000Base-T, 10GBase-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Total Number of Network Ports
- 10
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network, 2 x TP/SFP Combo, 2 x 10 Gigabit Ethernet Expansion Slot, 1 x RJ-45
Network & Communication
- Networking Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z
- Layer Supported
- 3
Warranty
- Limited Warranty
- Lifetime
I/O Expansions
- Number of SFP Slots
- 4
- Shared SFP Slot
- Yes
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
Power Description
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 8 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply, AC
General Information
- Product Type
- Layer 3 Switch
- Product Series
- 5140 EI
