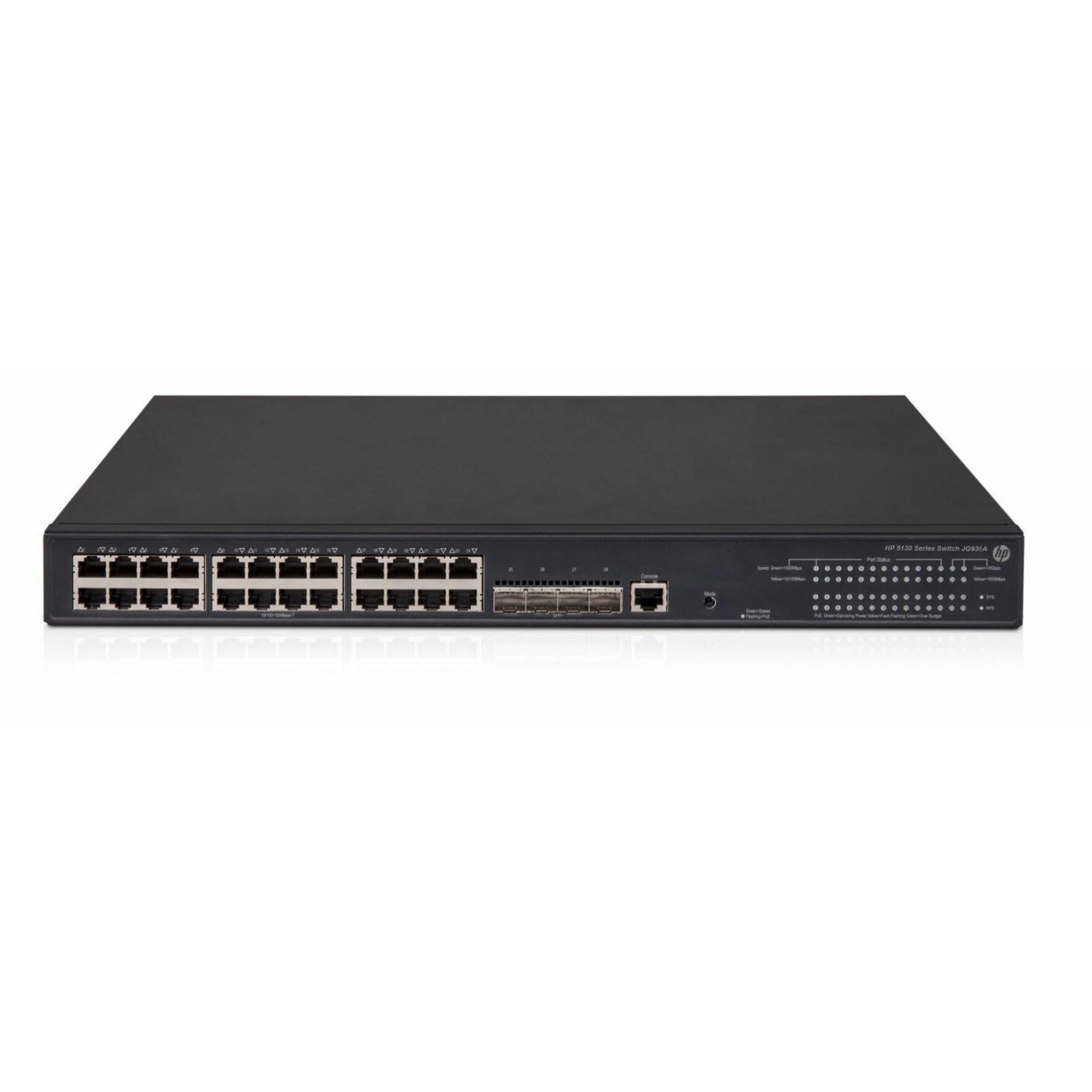

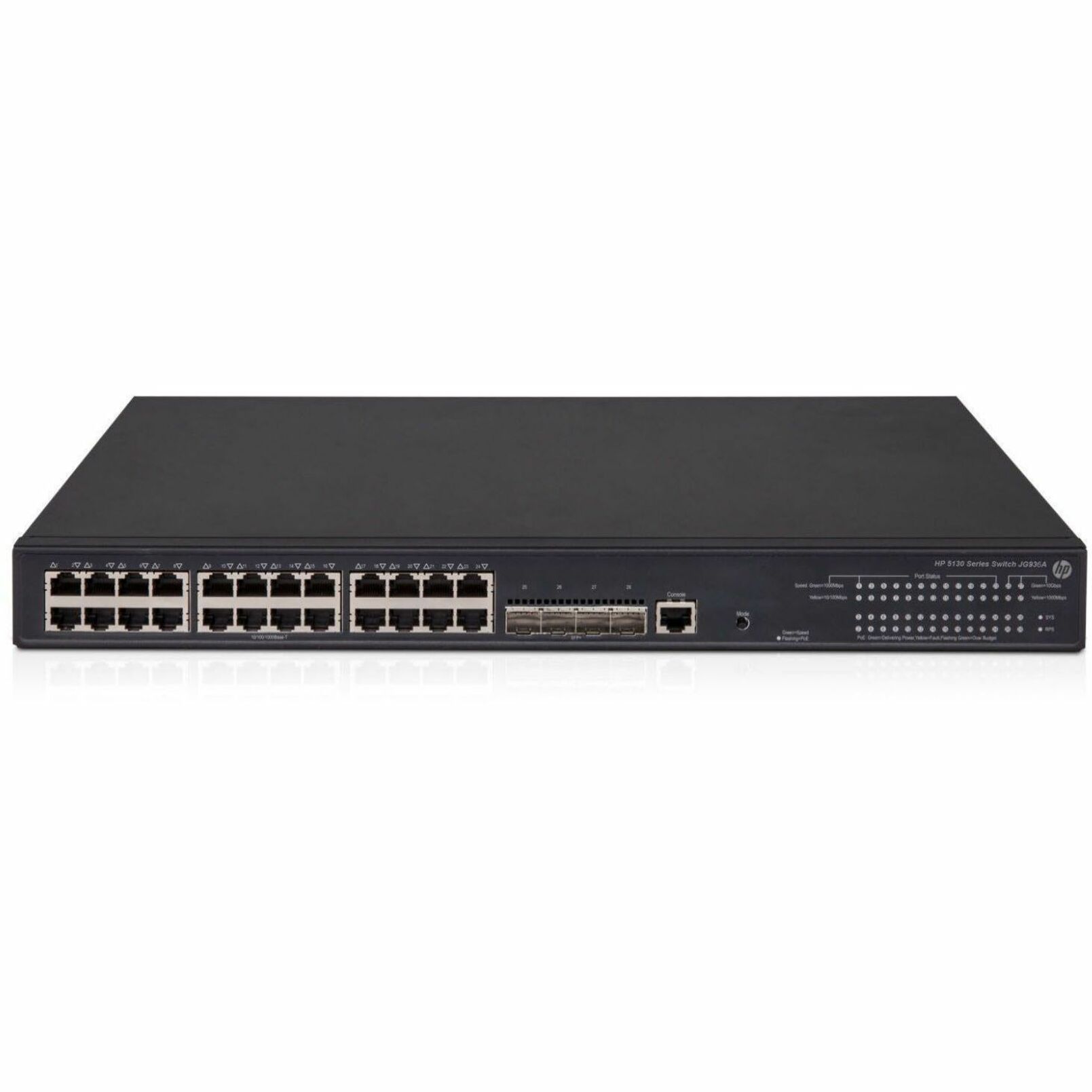

Representative imageHPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Switch
HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10GBase-X - Remanufactured - 3 Layer Supported - 460 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Cabinet Mount, Enclosure
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- FlexNetwork 5130 EI
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
Overview
HPE FlexNetwork 5130 24G PoE+ 4SFP+ (370W) EI Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10GBase-X - Remanufactured - 3 Layer Supported - 460 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Cabinet Mount, Enclosure (part number JG936AR#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
The HPE FlexNetwork 5130 EI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
• Fixed 10GbE ports for high-speed stacking or uplinks • Support for multiple services • Comprehensive security control policies • Diversified quality of service (QoS) policies • Excellent manageability
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 1.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 1000Base-X, 10GBase-X · Network (RJ-45): Yes · Uplink Port: Yes · Stack Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 1.25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 1000Base-X, 10GBase-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+, 4 x 10 Gigabit Ethernet Expansion Slot, 1 x RJ-45 Serial Console Port
Power Description
- PoE (RJ-45) Port
- Yes
- Redundant Power Supply Supported
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 460 W W
- Input Voltage
- 120 V AC, 230 V AC, -54 V DC, -57.5 V DC
- Power Source
- Power Supply, AC/DC
Network & Communication
- Networking Standards
- IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3z, IEEE 802.1r, IEEE 802.3at, IEEE 802.3af
- Layer Supported
- 3
I/O Expansions
- Number of SFP+ Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
Technical Information
- Features
- DHCP Relay, Quality of Service (QoS), Virtual LAN (VLAN), Strict Priority Queuing (SPQ), Remote Monitoring (RMON), Intelligent monitoring, Access Control List, Energy Efficient, Auto Sensing
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.3" mm
- Depth
- 11.8" mm
- Form Factor
- Rack-mountable, Cabinet Mount, Enclosure
- Weight (Approximate)
- 17.64 lb g
General Information
- Product Type
- Ethernet Switch
- Product Condition
- Remanufactured
- Product Series
- 5130 EI
Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Request a quote
We’ll confirm configuration, TAA compliance, and price for this item.
