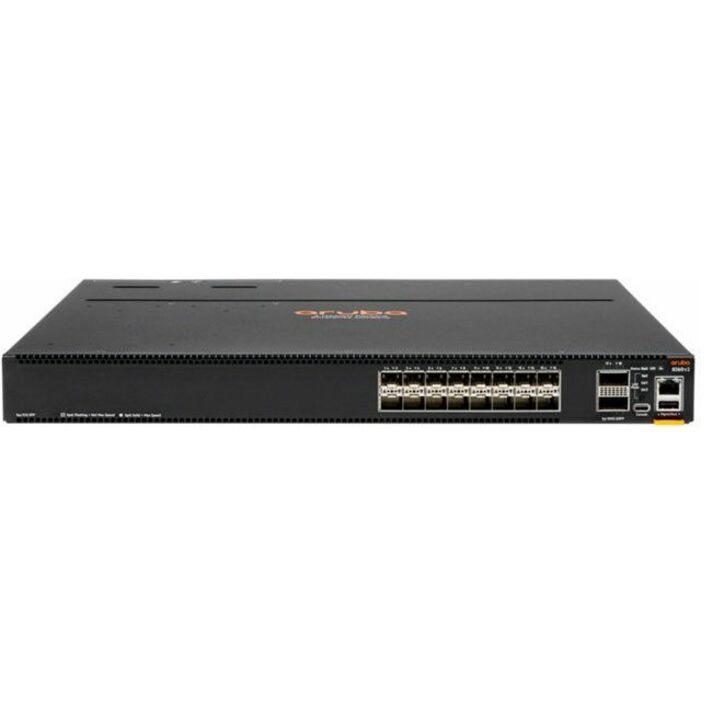

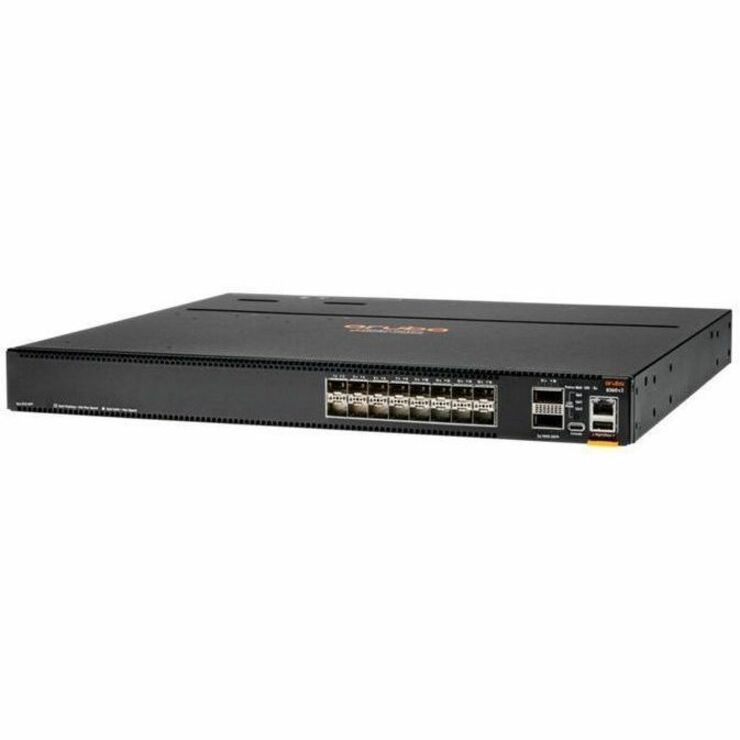

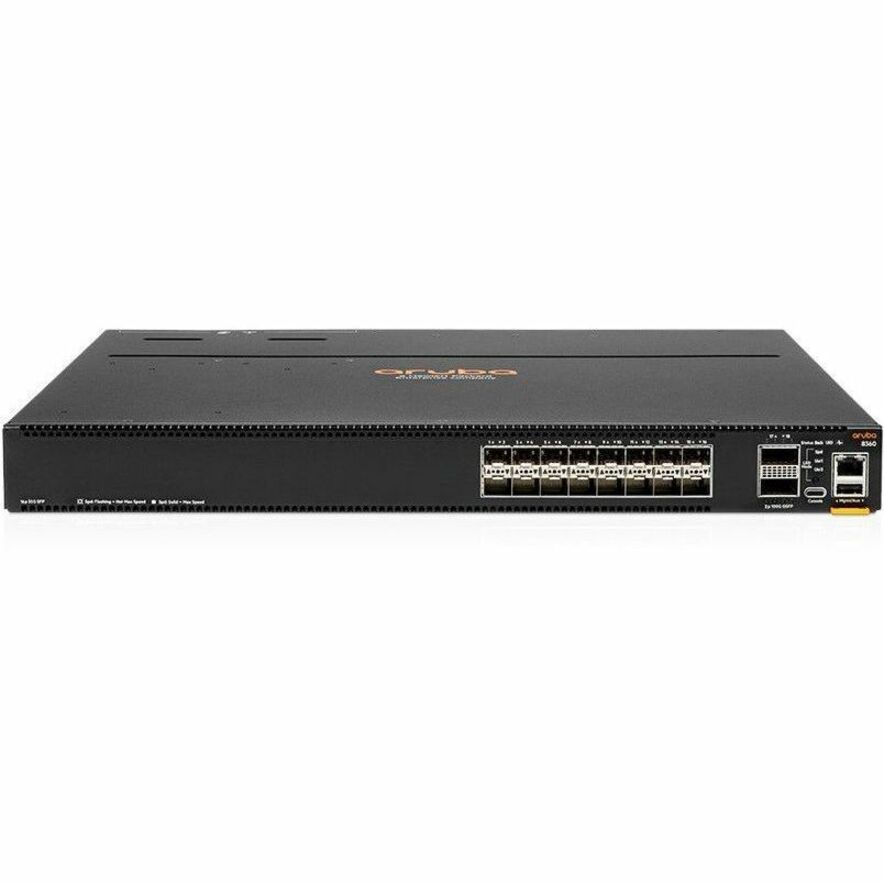

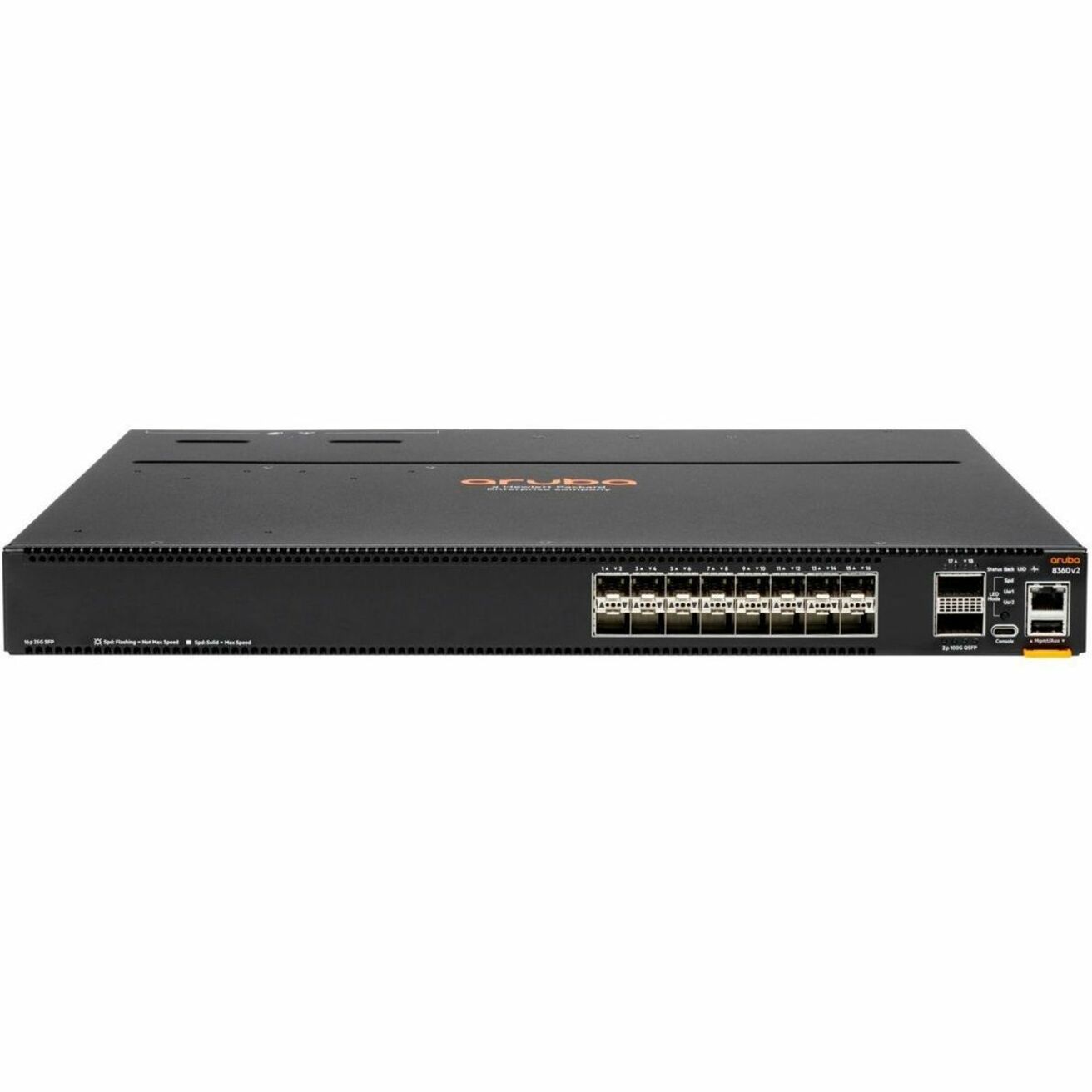

HPE CX 8360v2 8360-16Y2C Ethernet Switch

HPE CX 8360v2 8360-16Y2C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - 3 Layer Supported - Modular - 325 W Power Consumption - Optical Fiber - 1U - Cabinet Mount, Surface Mount, Rack-mountable - Lifetime Limited Warranty - TAA Compliant

Mfr #: JL702C#ABA
$35,554Save $8,382.42 (24%)
$27,171.58

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Ethernet Switch
Manageable
Yes
Ethernet Technology
25 Gigabit Ethernet
Ethernet Technology
100 Gigabit Ethernet
Product Family
CX 8360v2
Media Type Supported
Optical Fiber
Total Number of Expansion Slots
18
Redundant Power Supply Supported
Yes

Overview

HPE CX 8360v2 8360-16Y2C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - 3 Layer Supported - Modular - 325 W Power Consumption - Optical Fiber - 1U - Cabinet Mount, Surface Mount, Rack-mountable - Lifetime Limited Warranty - TAA Compliant (part number JL702C#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

Aruba CX 8360 v2 Switch Series The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps. The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

• Effectively increases available bandwidth on your network • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure • Supports layer 3 switching for enhanced performance and usability • Cabinet Mount form factor allows hassle-free and easy usage with increased efficiency • Management capability allows maximum efficiency and with unrestricted control

Key specifications: Manageable: Yes · Height: 1.7" mm · Width: 17.4" mm · Depth: 16" mm · Form Factor: Cabinet Mount, Surface Mount, Rack-mountable · Weight (Approximate): 17 lb g · Compatible Rack Unit: 1U · Product Color: Black.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Physical Characteristics
Height
1.7" mm
Width
17.4" mm
Depth
16" mm
Form Factor
Cabinet Mount, Surface Mount, Rack-mountable
Weight (Approximate)
17 lb g
Compatible Rack Unit
1U
Product Color
Black
Media & Performance
Network Technology
25GBase-X, 100GBase-X
Ethernet Technology
25 Gigabit Ethernet, 100 Gigabit Ethernet
Media Type Supported
Optical Fiber
Miscellaneous
Package Contents
CX 8360v2 8360-16Y2C Ethernet Switch 3 x Fans 2 x AC Power Supply
Environmentally Friendly
Yes
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
Lifetime
Network & Communication
Layer Supported
3
Networking Standards
IEEE 802.1Qbb, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1ae, IEEE 802.1AEbn, IEEE 802.1AEbw, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3bj, IEEE 802.3cd
I/O Expansions
Expansion Slot Type
SFP28, QSFP28
Total Number of Expansion Slots
18
Power Description
Power Consumption
325 W W
Input Voltage
120 V AC, 230 V AC
Power Source
Power Supply, AC
Number of Power Supplies Supported
2
Redundant Power Supply Supported
Yes
Interfaces/Ports
Modular
Yes
Uplink Port
Yes
Port/Expansion Slot Details
16 x 25 Gigabit Ethernet Expansion Slot, 2 x 100 Gigabit Ethernet Expansion Slot
General Information
Product Type
Ethernet Switch
Product Series
CX 8360v2
Product Model
8360-16Y2C
