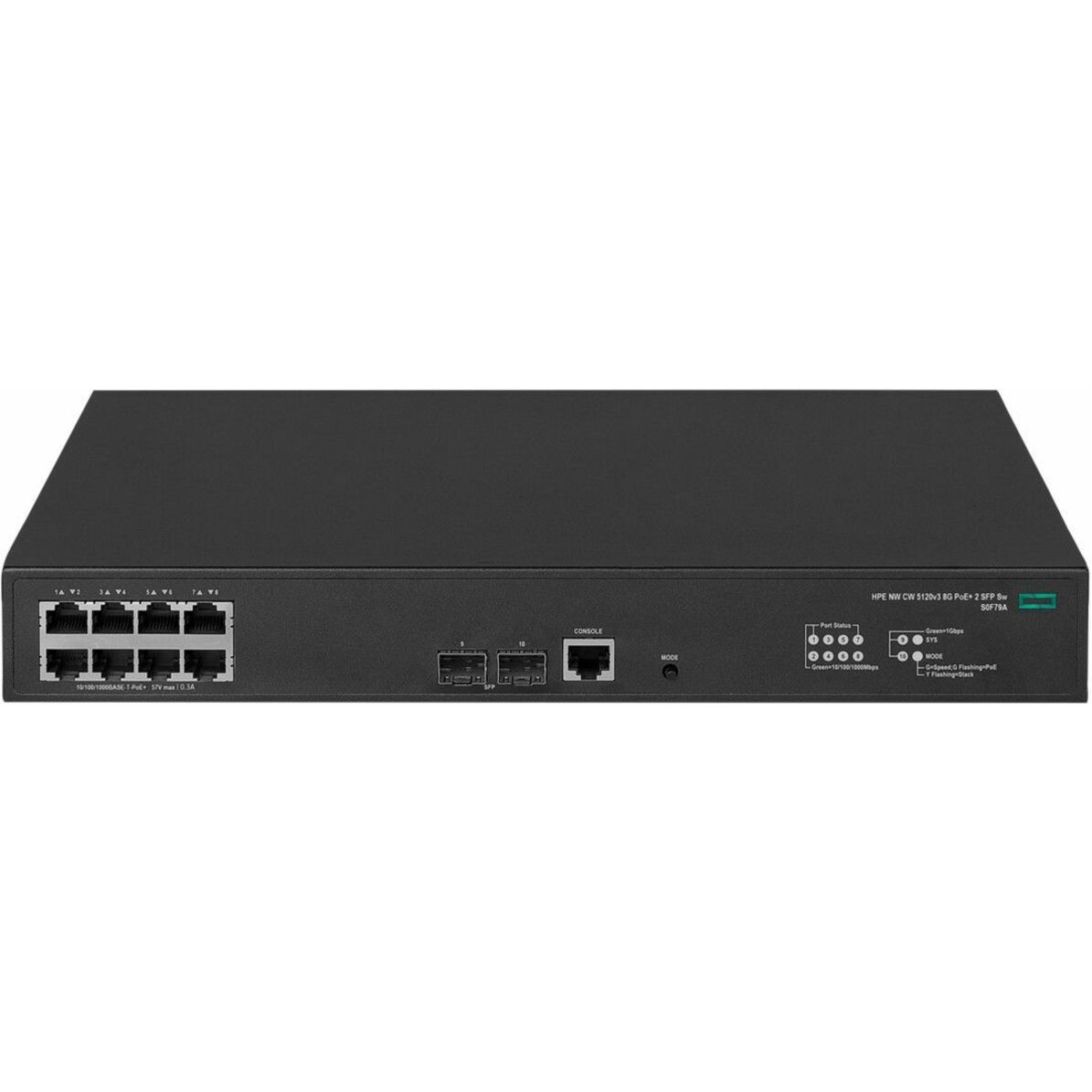

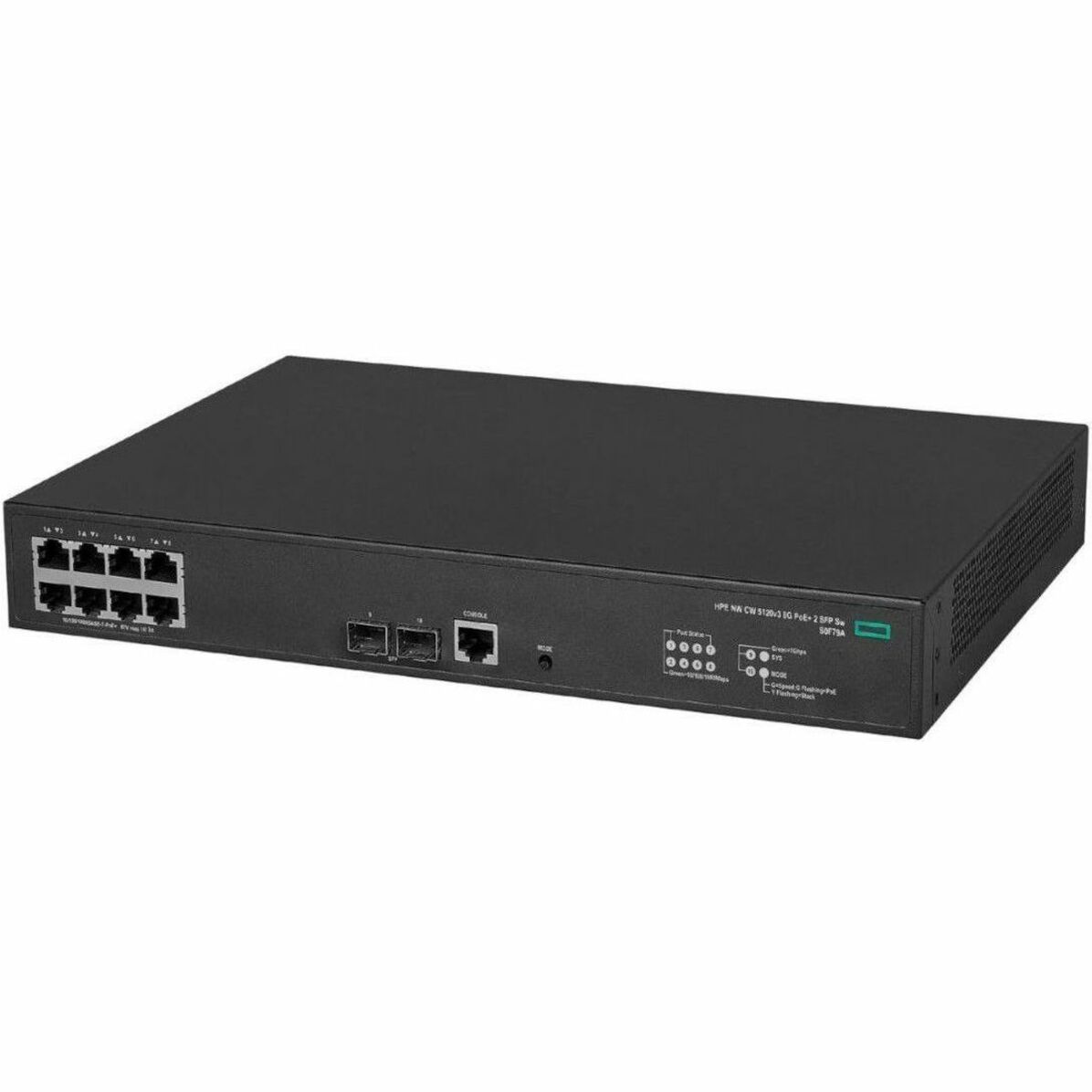

HPE Comware 5120 v3 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer SuppoRepresentative image
Transceivers & Cables

HPE Comware 5120 v3 Ethernet Switch

HPE Comware 5120 v3 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 2 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty

Mfr #: S0F79A#ABA
Request a price

GPC-payable · TAA-compliant configuration on request · usually back within one business day.

Detailed quote

Free download

Documents

Product Type
Ethernet Switch
Manageable
Yes
Ethernet Technology
Gigabit Ethernet
Product Family
Comware 5120 v3
Stack Port
Yes
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Total Number of Network Ports
8

Overview

HPE Comware 5120 v3 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 2 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable, Cabinet Mount - Lifetime Limited Warranty (part number S0F79A#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

HPE Networking Comware 5120 v3 Campus Switch Series HPE Networking Comware 5120v3 Campus Switch Series offers cost-effective high-performance Gigabit Ethernet connectivity tailored for small organizations with limited IT personnel. PoE+ ports seamlessly support voice, video, and wireless applications. Fanless design helps ensures silent operation while the compact size allows flexible placement options. Embedded power supplies help minimize heat dissipation, promoting a cool and reliable networking environment. These switches offer advanced functionalities such as IRF stacking that enables higher redundancy and reliability, while access control lists (ACLs) empower network administrators to enforce security policies, manage traffic, and safeguard network resources. This switch series also includes SmartMC at no additional cost, and when combined with HPE Intelligent Management Center (IMC), it provides both embedded network management and enhanced network visibility.

• Effectively reduces downtime with improved network performance • Increases the stack bandwidth of the stack port further than that of a single port • Features 8 networking ports to easily establish a local network or expand your existing one • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree • Rack mounting enables you to organize wires & secure cables for professional installation

Key specifications: Manageable: Yes · Ethernet Technology: Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 1000Base-X · Stack Port: Yes · Total Number of Network Ports: 8 · Port/Expansion Slot Details: 8 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot · Networking Standards: IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1r.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Media & Performance
Ethernet Technology
Gigabit Ethernet
Media Type Supported
Twisted Pair, Optical Fiber
Network Technology
10/100/1000Base-T, 1000Base-X
Interfaces/Ports
Stack Port
Yes
Total Number of Network Ports
8
Port/Expansion Slot Details
8 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Network & Communication
Networking Standards
IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1r
Layer Supported
2
Warranty
Limited Warranty
Lifetime
I/O Expansions
Number of SFP Slots
2
Total Number of Expansion Slots
2
Expansion Slot Type
SFP
Technical Information
Features
Fanless
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Power Description
Input Voltage
120 V AC, 230 V AC
Power Source
Power Supply, AC
Physical Characteristics
Height
9.1" mm
Width
13" mm
Depth
1.7" mm
Form Factor
Rack-mountable, Cabinet Mount
Weight (Approximate)
6.61 lb g
General Information
Product Type
Ethernet Switch
Product Series
5120 v3
