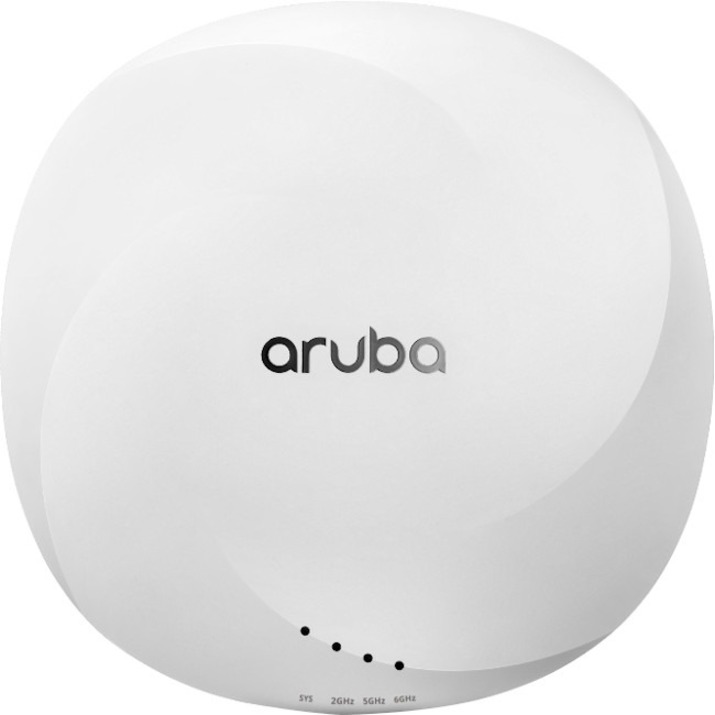

HPE AP-615 Tri Band 802.11ax 3.60 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO TechnologyRepresentative image
Transceivers & Cables

HPE AP-615 Tri Band 802.11ax 3.60 Gbit/s Wireless Access Point

HPE AP-615 Tri Band 802.11ax 3.60 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 2.5 Gigabit Ethernet - Bluetooth 5 - 5.60 W - Ceiling Mountable - 1 / Each

Mfr #: R7J49A
$995Save $227.51 (23%)
$767.49

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Wireless Access Point
Network Band
Tri Band
Frequency Band
2.40 GHz
Frequency Band
5 GHz
Frequency Band
6 GHz
Antenna Form Factor
Internal
Wireless LAN Standard
802.11ax
Bluetooth Standard
Bluetooth 5

Overview

HPE AP-615 Tri Band 802.11ax 3.60 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 2.5 Gigabit Ethernet - Bluetooth 5 - 5.60 W - Ceiling Mountable - 1 / Each (part number R7J49A) is supplied by Uniqcli, an authorized HPE partner, in the HPE Wireless Access Points/Bridges category. Network Band: Tri Band.

For enterprises who need more wireless capacity and/or wider channels, Aruba 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud. Unique to Aruba, the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz). This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs. More capacity and wider channels The Aruba 610 Series APs are designed to take advantage of Wi-Fi 6E and the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation. Advantages of 6 GHz Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices. Device class support The Aruba 610 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs. Global readiness While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching the 6 GHz band differently. The 610 Series APs are set up to automatically update regulatory rules once Wi-Fi 6E regulations have been approved and certified. Extend the benefits of Wi-Fi 6 The Aruba 610 Series APs are based on the 802.11ax (Wi-Fi 6) standard, which means that all its efficiency and security enhancements are also available on the 6 GHz band. Wi-Fi 6 features such as Orthogonal Frequency Division Multiple Access (OFDMA), BSS coloring etc. are fully supported on the Aruba Wi-Fi 6E access points as well.

• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate • 3.60 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability • 802.11ax wireless LAN standard offers a reliable, convenient way of communication • Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity • Management port allows the convenience of establishing a large, efficient network

Key specifications: Network Band: Tri Band · Frequency Band: 2.40 GHz Hz, 5 GHz Hz, 6 GHz Hz · Wireless LAN Standard: 802.11ax · Bluetooth Standard: Bluetooth 5 · Encryption Standard: WPA, WPA3, WPA2-MPSK, WPA2, WPA3-ENT, WPA-ENT · Data Encryption: Yes · MIMO Technology: Yes · Beamforming Technology: Yes.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Technical Information
Network Band
Tri Band
Frequency Band
2.40 GHz Hz, 5 GHz Hz, 6 GHz Hz
Wireless LAN Standard
802.11ax
Bluetooth Standard
Bluetooth 5
Encryption Standard
WPA, WPA3, WPA2-MPSK, WPA2, WPA3-ENT, WPA-ENT
Data Encryption
Yes
MIMO Technology
Yes
Beamforming Technology
Yes
Indoor/Outdoor
Indoor
Wireless Transmission Speed
3.60 Gbit/s Bps
Interfaces/Ports
Ethernet Technology
2.5 Gigabit Ethernet
USB
Yes
Number of Network (RJ-45) Ports
1
USB Standard
USB 2.0
Management Port
Yes
PoE PD Port
Yes
Physical Characteristics
Antenna Form Factor
Internal
Height
1.5" mm
Width
6.3" mm
Depth
6.3" mm
Form Factor
Ceiling Mountable
Weight (Approximate)
1.15 lb g
Power Description
Power Consumption
5.60 W W
General Information
Product Type
Wireless Access Point
Product Series
610
Product Model
AP-615
Packaged Quantity
1 / Each
