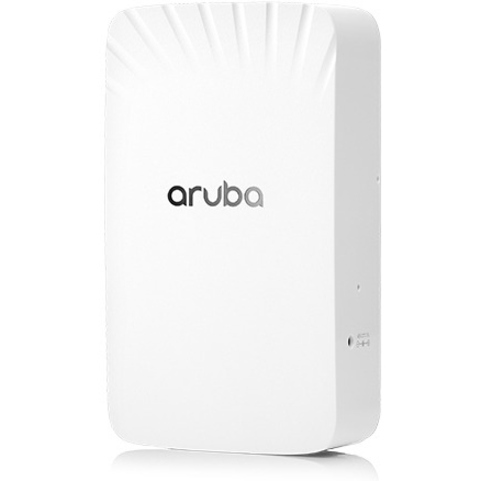

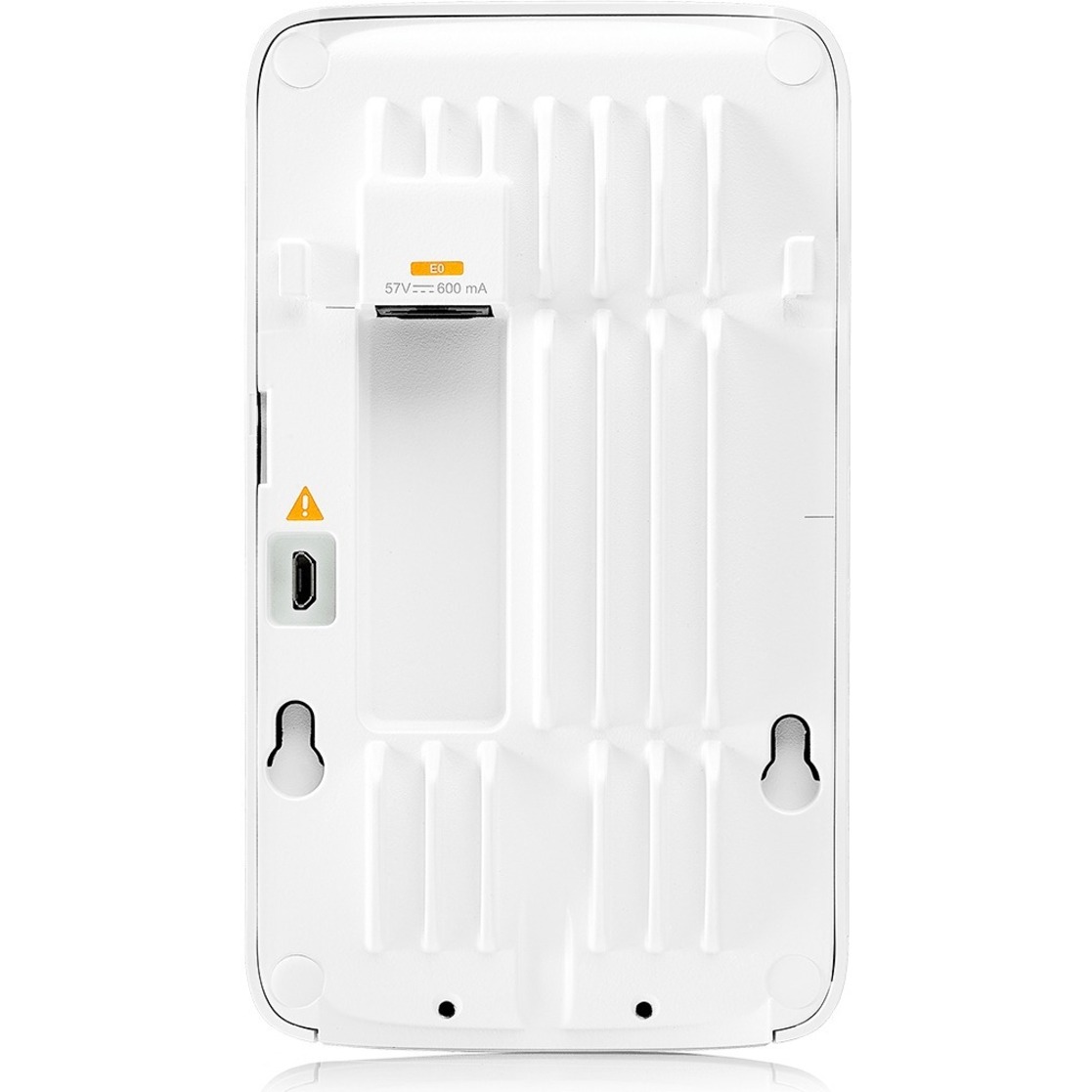

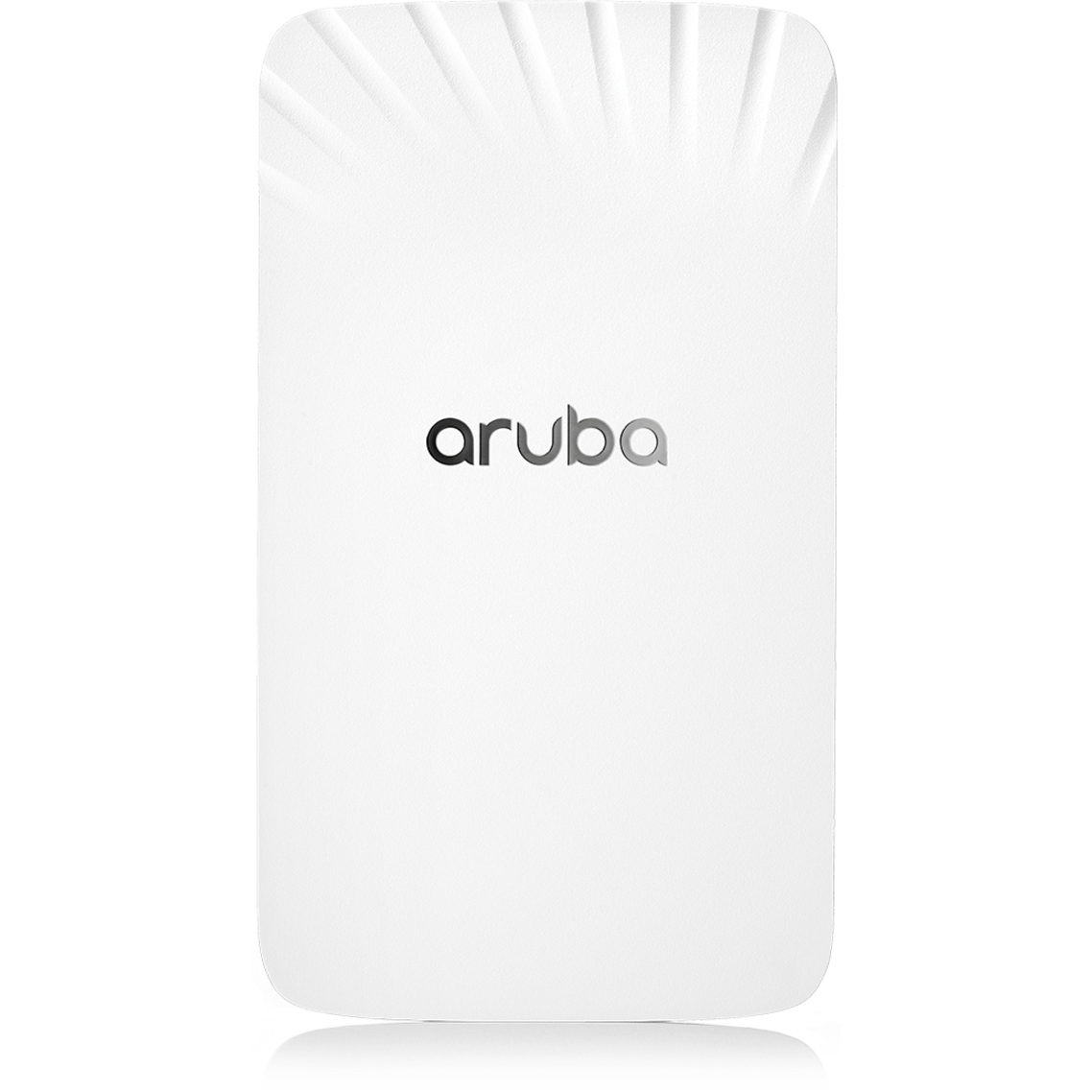

HPE AP-503H Dual Band 802.11ax 1.50 Gbit/s Wireless Access Point

HPE AP-503H Dual Band 802.11ax 1.50 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz - 2 x Internal Antenna(s) - Internal - MIMO Technology - 3 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - Wall Mountable, Desktop

Mfr #: R7G96A
$808Save $184.79 (23%)
$623.21

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Wireless Access Point
Network Band
Dual Band
Frequency Band
2.40 GHz
Frequency Band
5 GHz
Antenna Form Factor
Internal
Wireless LAN Standard
802.11ax
Bluetooth Standard
Bluetooth 5
Ethernet Technology
Gigabit Ethernet

Overview

HPE AP-503H Dual Band 802.11ax 1.50 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz - 2 x Internal Antenna(s) - Internal - MIMO Technology - 3 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - Wall Mountable, Desktop (part number R7G96A) is supplied by Uniqcli, an authorized HPE partner, in the HPE Wireless Access Points/Bridges category. Network Band: Dual Band.

High performance and cost-effective Wi-Fi 6 (802.11ax) for hospitality, branch, and teleworker deployments These economical Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing mobile, cloud and IoT requirements. With a wireless aggregate data rate of up to 1.5 Gbps and gigabit local wired ports, they deliver the range of connectivity options needed for venues such as hotels, residence halls, and remote offices alike. INCREDIBLE EFFICIENCY The 500H Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients. Features include Orthogonal frequency-division multiple access (OFDMA), multi-user MIMO and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth, the 500H Series provides groundbreaking wireless capabilities for budget-conscious deployments.

• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate • 1.50 Gbit/s wireless transmission speed provides better reception, and dependable connectivity with maximum productivity • 802.11ax wireless LAN standard ensures trouble-free and convenient connectivity • Up to 10x faster than standard Ethernet connectivity for your wired network • Data Encryption ensures the safety of your precious data

Key specifications: Network Band: Dual Band · Frequency Band: 2.40 GHz Hz, 5 GHz Hz · Wireless LAN Standard: 802.11ax · Bluetooth Standard: Bluetooth 5 · Encryption Standard: WPA3-ENT, WPA2-MPSK, WPA2-ENT, WPA-ENT · Total Number of Antennas: 2 · Number of Internal Antennas: 2 · Data Encryption: Yes.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Technical Information
Network Band
Dual Band
Frequency Band
2.40 GHz Hz, 5 GHz Hz
Wireless LAN Standard
802.11ax
Bluetooth Standard
Bluetooth 5
Encryption Standard
WPA3-ENT, WPA2-MPSK, WPA2-ENT, WPA-ENT
Total Number of Antennas
2
Number of Internal Antennas
2
Data Encryption
Yes
MIMO Technology
Yes
Beamforming Technology
Yes
Indoor/Outdoor
Indoor
Wireless Transmission Speed
1.50 Gbit/s Bps
Interfaces/Ports
Ethernet Technology
Gigabit Ethernet
USB
Yes
Number of Network (RJ-45) Ports
3
Management Port
Yes
PoE PD Port
Yes
Physical Characteristics
Antenna Form Factor
Internal
Height
5.9" mm
Width
3.4" mm
Depth
1.6" mm
Form Factor
Wall Mountable, Desktop
Weight (Approximate)
10.23 oz g
General Information
Product Type
Wireless Access Point
Product Series
500H
Product Model
AP-503H
