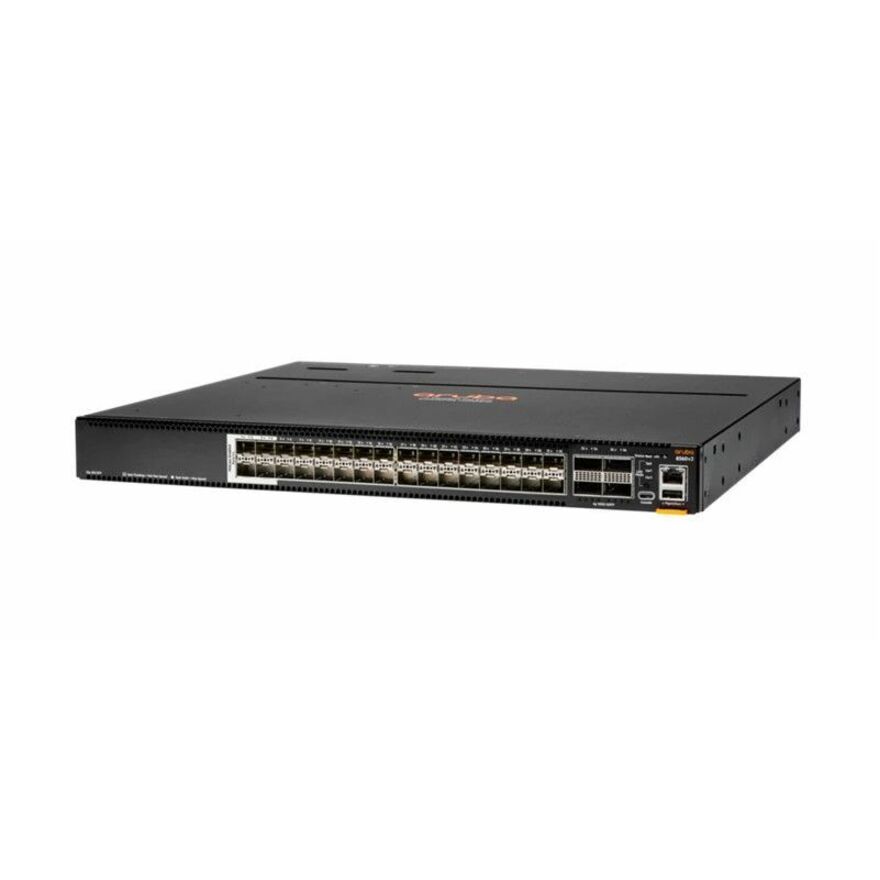

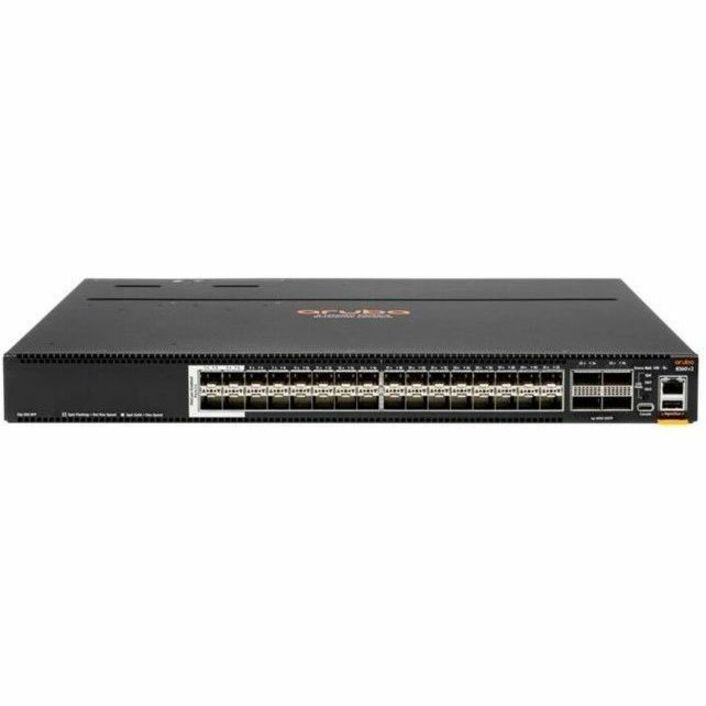

HPE 8360v2- 32Y4C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - 3 Layer Representative image
Transceivers & Cables

HPE 8360v2- 32Y4C Ethernet Switch

HPE 8360v2- 32Y4C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - 3 Layer Supported - Modular - 425 W Power Consumption - Optical Fiber - 1U - Rack-mountable - Lifetime Limited Warranty - TAA Compliant

Mfr #: JL701C#ACF
$44,445Save $10,470.63 (24%)
$33,974.37

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Ethernet Switch
Manageable
Yes
Ethernet Technology
25 Gigabit Ethernet
Ethernet Technology
100 Gigabit Ethernet
Product Family
CX 8360
Media Type Supported
Optical Fiber
Total Number of Expansion Slots
36
Redundant Power Supply Supported
Yes

Overview

HPE 8360v2- 32Y4C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - 3 Layer Supported - Modular - 425 W Power Consumption - Optical Fiber - 1U - Rack-mountable - Lifetime Limited Warranty - TAA Compliant (part number JL701C#ACF) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Switches & Bridges category. Package Contents: 8360v2- 32Y4C Ethernet Switch 2 x PSU 3 x Fans 2 x Post Rack Kit.

Aruba CX 8360 Switch Series The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps. The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

• High-performance 4.8Tbps and 2,678 Mpps • Intelligent monitoring and visibility with Aruba Network Analytics Engine • High availability with industry leading VSX redundancy, and redundant power supplies and fans • Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments • MACsec secured connectivity over untrusted domains

Key specifications: Package Contents: 8360v2- 32Y4C Ethernet Switch 2 x PSU 3 x Fans 2 x Post Rack Kit · Environmentally Friendly: Yes · TAA Compliant: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS) · Limited Warranty: Lifetime · Layer Supported: 3 · Networking Standards: IEEE 802.1Qbb, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1AEbn, IEEE 802.1AEbw, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3z · Network Technology: 25GBase-X, 100GBase-X.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Miscellaneous
Package Contents
8360v2- 32Y4C Ethernet Switch 2 x PSU 3 x Fans 2 x Post Rack Kit
Environmentally Friendly
Yes
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
Lifetime
Network & Communication
Layer Supported
3
Networking Standards
IEEE 802.1Qbb, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1AEbn, IEEE 802.1AEbw, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3z
Media & Performance
Network Technology
25GBase-X, 100GBase-X
Ethernet Technology
25 Gigabit Ethernet, 100 Gigabit Ethernet
Media Type Supported
Optical Fiber
Management & Protocols
Manageable
Yes
I/O Expansions
Expansion Slot Type
QSFP28, SFP28
Total Number of Expansion Slots
36
Power Description
Input Voltage
120 V AC, 230 V AC
Power Source
Power Supply, AC
Power Consumption
425 W W
Number of Power Supplies Supported
2
Redundant Power Supply Supported
Yes
Physical Characteristics
Weight (Approximate)
18.06 lb g
Form Factor
Rack-mountable
Height
1.7" mm
Width
17.4" mm
Depth
16" mm
Compatible Rack Unit
1U
Interfaces/Ports
Modular
Yes
Uplink Port
Yes
Port/Expansion Slot Details
32 x 25 Gigabit Ethernet Expansion Slot, 4 x 100 Gigabit Ethernet Expansion Slot
General Information
Product Type
Ethernet Switch
Product Model
8360v2- 32Y4C
Product Series
CX 8360
