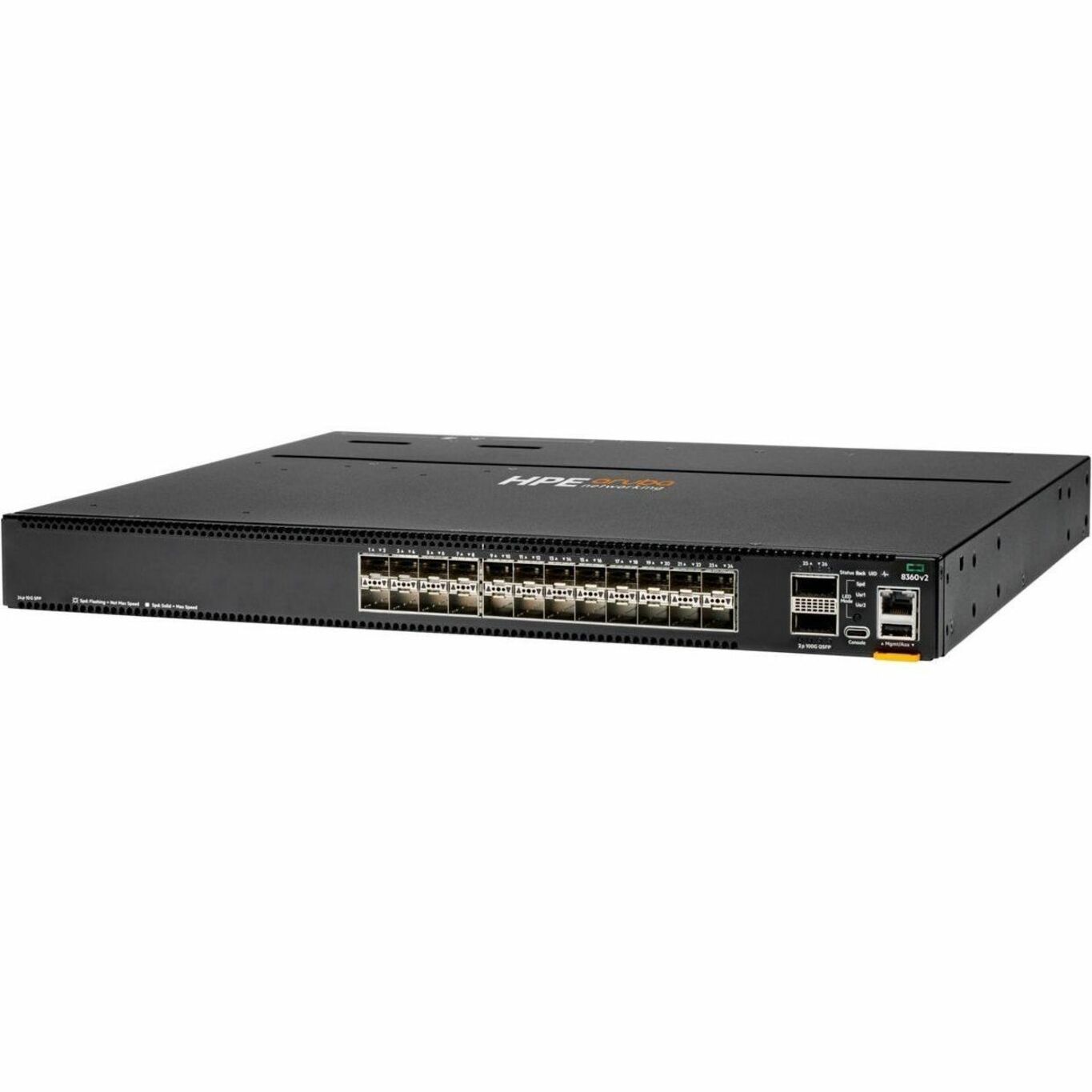

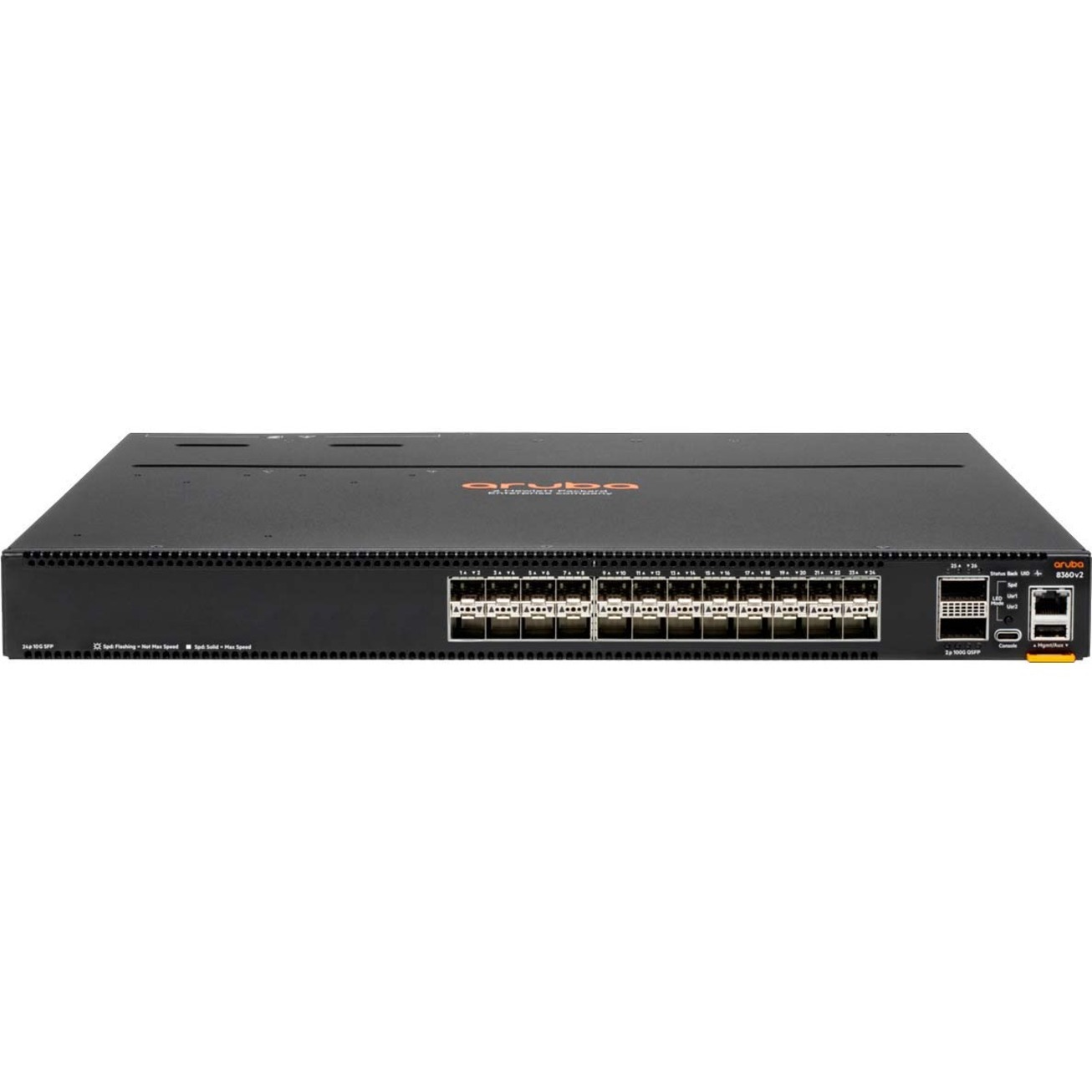

Representative imageHPE 8360v2-24XF2C Ethernet Switch
HPE 8360v2-24XF2C Ethernet Switch - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-X, 100GBase-X - 3 Layer Supported - Modular - 375 W Power Consumption - Optical Fiber - 1U - Rack-mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty - TAA Compliant
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- 10 Gigabit Ethernet
- Ethernet Technology
- 100 Gigabit Ethernet
- Product Family
- CX 8360v2
- Media Type Supported
- Optical Fiber
- Total Number of Expansion Slots
- 26.0
- Redundant Power Supply Supported
- Yes
Overview
HPE 8360v2-24XF2C Ethernet Switch - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 10GBase-X, 100GBase-X - 3 Layer Supported - Modular - 375 W Power Consumption - Optical Fiber - 1U - Rack-mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty - TAA Compliant (part number R9G17A#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
Aruba CX 8360 v2 Switch Series The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains
• High-performance 4.8Tbps and 2,678 Mpps • Intelligent monitoring and visibility with Aruba Network Analytics Engine • High availability with industry leading VSX redundancy, and redundant power supplies and fans • Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments • MACsec secured connectivity over untrusted domains
Key specifications: Manageable: Yes · Environmentally Friendly: Yes · TAA Compliant: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS) · Package Contents: 8360v2-24XF2C Ethernet Switch 2 x Port-to-Power Power Units (R9G19A) 3 x Port-to-Power Fan Trays (R9G20A) 2-post Rack Kit · Compatible Rack Unit: 1U · Product Color: Black · Height: 1.7" mm.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Miscellaneous
- Environmentally Friendly
- Yes
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Package Contents
- 8360v2-24XF2C Ethernet Switch 2 x Port-to-Power Power Units (R9G19A) 3 x Port-to-Power Fan Trays (R9G20A) 2-post Rack Kit
Physical Characteristics
- Compatible Rack Unit
- 1U
- Product Color
- Black
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 16" mm
- Form Factor
- Rack-mountable, Cabinet Mount, Surface Mount
- Weight (Approximate)
- 17.79 lb g
Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet, 100 Gigabit Ethernet
- Media Type Supported
- Optical Fiber
- Network Technology
- 10GBase-X, 100GBase-X
Network & Communication
- Networking Standards
- IEEE 802.1Qbb, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ae, IEEE 802.1AEbn, IEEE 802.1AEbw, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
- Layer Supported
- 3
Warranty
- Limited Warranty
- Lifetime
I/O Expansions
- Number of SFP+ Slots
- 24
- Total Number of Expansion Slots
- 26.0
- Expansion Slot Type
- SFP, SFP+, QSFP+, QSFP28
Power Description
- Number of Power Supplies Supported
- 2
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 375 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply
Interfaces/Ports
- Modular
- Yes
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 24 x 10 Gigabit Ethernet Expansion Slot, 2 x 100 Gigabit Ethernet Expansion Slot
General Information
- Product Type
- Ethernet Switch
- Product Series
- CX 8360v2
- Product Model
- 8360v2-24XF2C
