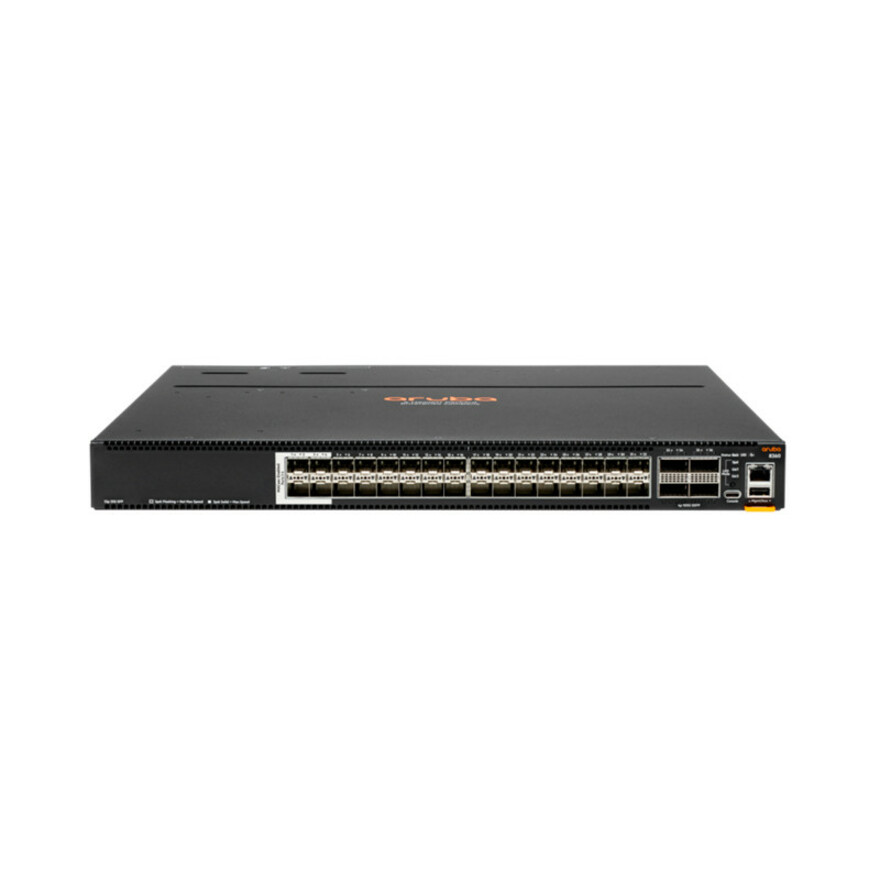

Representative imageHPE 8360-32Y4C Ethernet Switch
HPE 8360-32Y4C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - Refurbished - 3 Layer Supported - Modular - 425 W Power Consumption - Optical Fiber - 1U - Rack-mountable, Surface Mount - TAA Compliant
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- 25 Gigabit Ethernet
- Ethernet Technology
- 100 Gigabit Ethernet
- Product Family
- CX 8360
- Media Type Supported
- Optical Fiber
- Total Number of Expansion Slots
- 36
- Redundant Power Supply Supported
- Yes
Overview
HPE 8360-32Y4C Ethernet Switch - Manageable - 25 Gigabit Ethernet, 100 Gigabit Ethernet - 25GBase-X, 100GBase-X - Refurbished - 3 Layer Supported - Modular - 425 W Power Consumption - Optical Fiber - 1U - Rack-mountable, Surface Mount - TAA Compliant (part number JL700AR) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

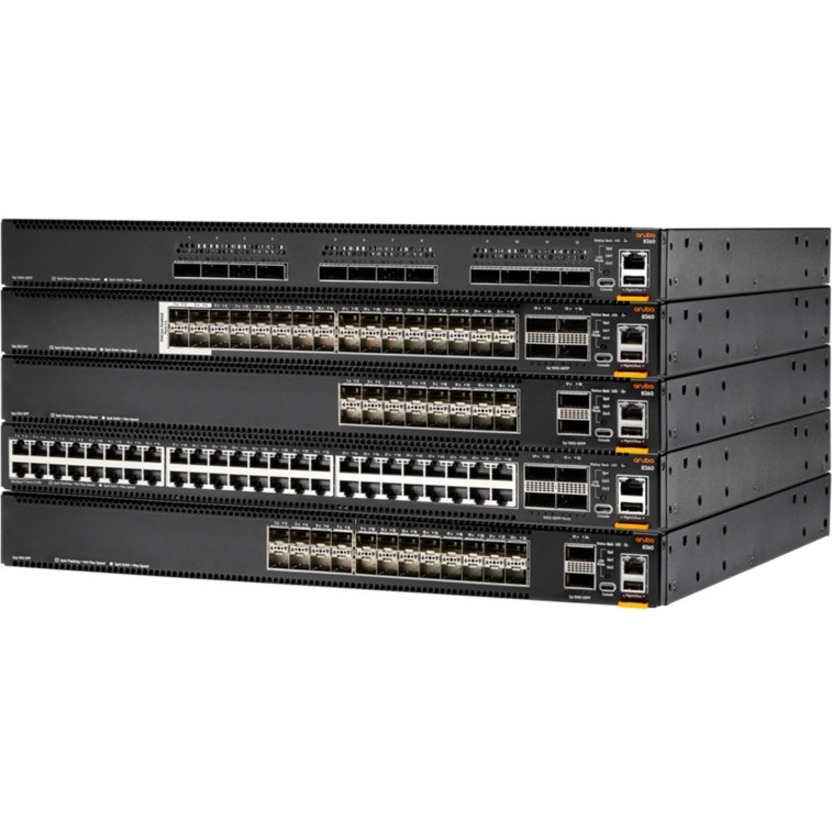

Aruba CX 8360 Switch Series | High Performance Enterprise Campus and Data Center Switch The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps. The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports. In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.
• Effectively increases available bandwidth on your network • Cascade to other network devices through the uplink port to expand your local area network • Can work as layer 3 routing for scalable network design • Rack mounting enables you to organize wires & secure cables for professional installation • Management capability allows maximum efficiency and with unrestricted control
Key specifications: Manageable: Yes · Ethernet Technology: 25 Gigabit Ethernet, 100 Gigabit Ethernet · Media Type Supported: Optical Fiber · Network Technology: 25GBase-X, 100GBase-X · Networking Standards: IEEE 802.1Qbb, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1AEbn, IEEE 802.1AEbw, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z · Layer Supported: 3 · Total Number of Expansion Slots: 36 · Expansion Slot Type: QSFP28, SFP28.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Ethernet Technology
- 25 Gigabit Ethernet, 100 Gigabit Ethernet
- Media Type Supported
- Optical Fiber
- Network Technology
- 25GBase-X, 100GBase-X
Network & Communication
- Networking Standards
- IEEE 802.1Qbb, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1AEbn, IEEE 802.1AEbw, IEEE 802.1ak, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1t, IEEE 802.1v, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3cc, IEEE 802.3x, IEEE 802.3z
- Layer Supported
- 3
I/O Expansions
- Total Number of Expansion Slots
- 36
- Expansion Slot Type
- QSFP28, SFP28
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 16" mm
- Form Factor
- Rack-mountable, Surface Mount
Interfaces/Ports
- Modular
- Yes
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 32 x 25 Gigabit Ethernet Expansion Slot, 4 x 100 Gigabit Ethernet Expansion Slot
Power Description
- Number of Power Supplies Supported
- 2
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 425 W W
- Power Source
- Power Supply
General Information
- Product Type
- Ethernet Switch
- Product Condition
- Refurbished
- Product Series
- CX 8360
- Product Model
- 8360-32Y4C
Miscellaneous
- TAA Compliant
- Yes
Request a quote
We’ll confirm configuration, TAA compliance, and price for this item.
