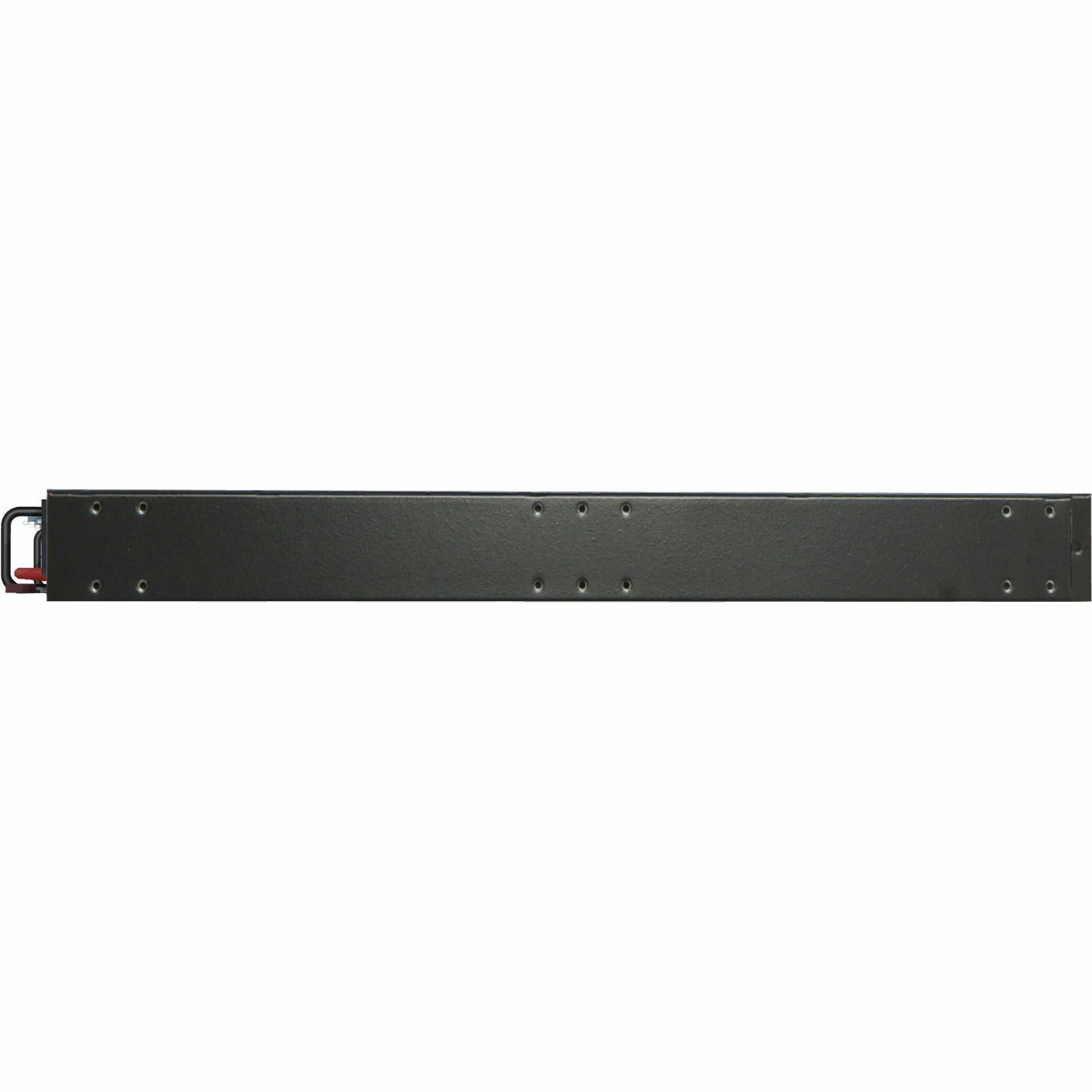

HPE 8320 Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 40 Gigabit Ethernet - 10GBase-T, 40GBase-X - 3 Layer Representative image
Transceivers & Cables

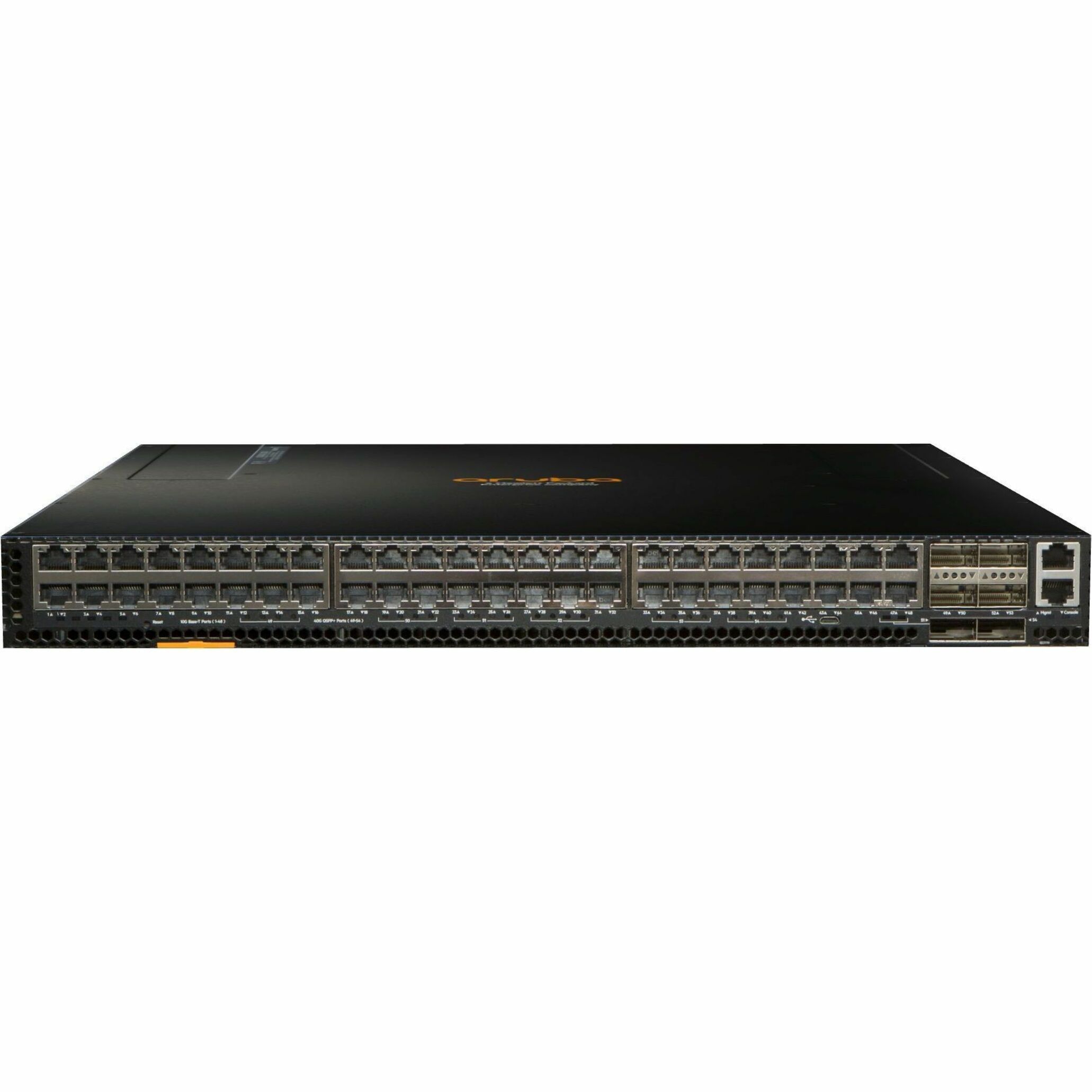

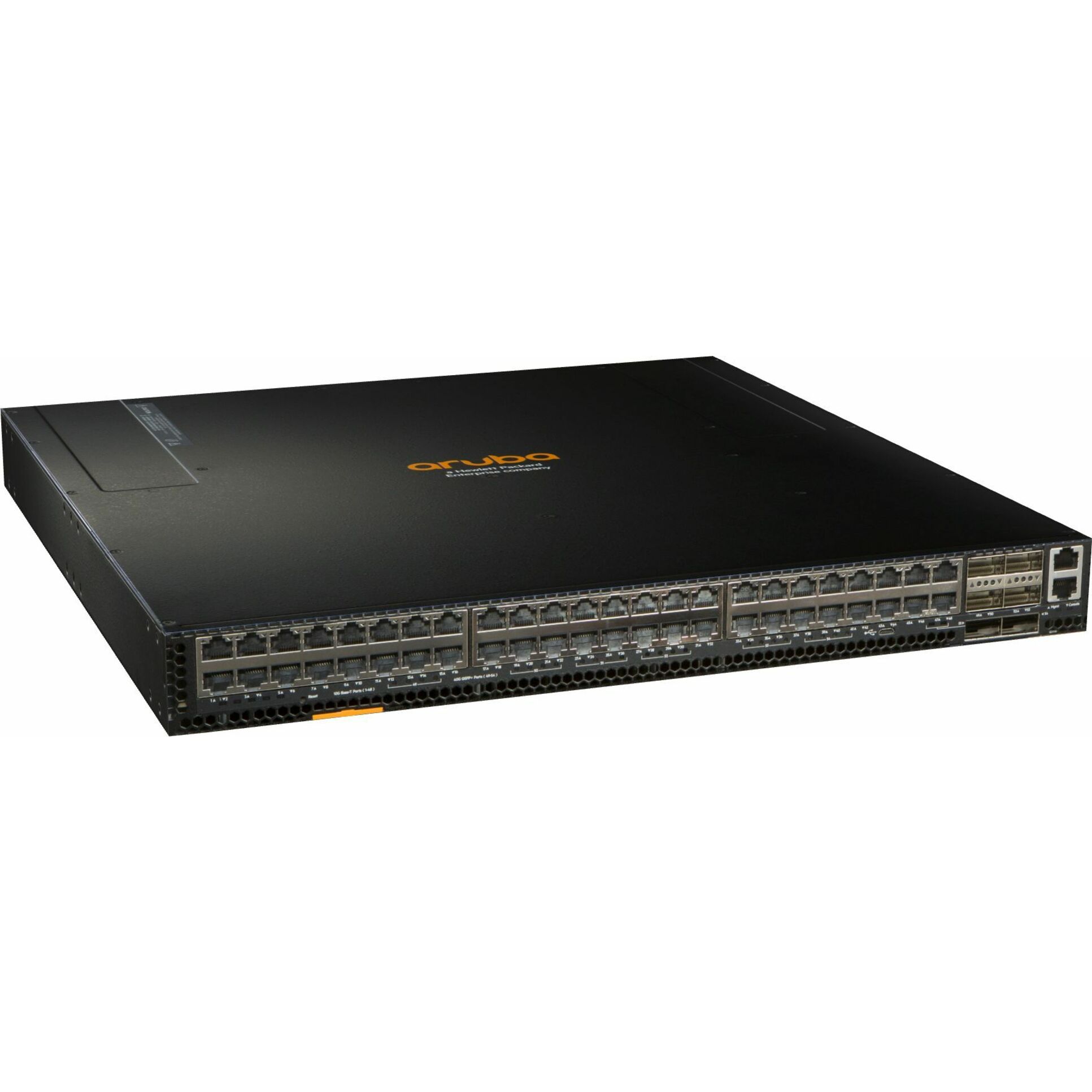

HPE 8320 Ethernet Switch

HPE 8320 Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 40 Gigabit Ethernet - 10GBase-T, 40GBase-X - 3 Layer Supported - Modular - 348 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty

Mfr #: JL581A#B2B
$56,136Save $13,235.61 (24%)
$42,900.39

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Ethernet Switch
Manageable
Yes
Ethernet Technology
10 Gigabit Ethernet
Ethernet Technology
40 Gigabit Ethernet
Product Family
8320
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Total Number of Network Ports
48

Overview

HPE 8320 Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 40 Gigabit Ethernet - 10GBase-T, 40GBase-X - 3 Layer Supported - Modular - 348 W Power Consumption - Optical Fiber, Twisted Pair - 1U - Rack-mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty (part number JL581A#B2B) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Switches & Bridges category. Manageable: Yes.

Aruba 8320 Switch Series The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba CX 8320 campus core and aggregation switch is a game-changing solution offering a flexible and innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba CX 8320 also serves as a top of rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine. The CX 8320 provides industry-leading line rate 1/10GbE (SFP/SFP+ and 10GBASE-T) and 40GbE connectivity in a compact 1U form factor. Together with the modular Aruba CX 8400 chassis and the Aruba CX 8325 series,, the CX 8320 rounds out Aruba's switching portfolio with an enterprise core and aggregation solution that ensures higher performance and higher uptime.

• High performance 2.5Tbps with 1,905 mpps • High availability with Aruba Virtual Switching Extension (VSX), and redundant, hot-swappable power supplies and fans • AOS-CX enables automation and programmability using built-in REST APIs and Python scripts • Intelligent monitoring, visibility, and remediation with Aruba Network Analytics Engine • One touch deployment with the Aruba CX Mobile App

Key specifications: Manageable: Yes · Environmentally Friendly: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) · Package Contents: 8320 Ethernet Switch 2 x Power Supplies With No Open PS Slots 5 X Fan Tray Bundles With No Open FT Slots 1 x 2-Post Rack Kit Hardware · Ethernet Technology: 10 Gigabit Ethernet, 40 Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10GBase-T, 40GBase-X · Network (RJ-45): Yes.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Package Contents
8320 Ethernet Switch 2 x Power Supplies With No Open PS Slots 5 X Fan Tray Bundles With No Open FT Slots 1 x 2-Post Rack Kit Hardware
Media & Performance
Ethernet Technology
10 Gigabit Ethernet, 40 Gigabit Ethernet
Media Type Supported
Optical Fiber, Twisted Pair
Network Technology
10GBase-T, 40GBase-X
Interfaces/Ports
Network (RJ-45)
Yes
Modular
Yes
Total Number of Network Ports
48
Port/Expansion Slot Details
48 x 10 Gigabit Ethernet Network, 6 x 40 Gigabit Ethernet Expansion Slot
Network & Communication
Networking Standards
IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1t, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3ba
Layer Supported
3
Warranty
Limited Warranty
Lifetime
I/O Expansions
Total Number of Expansion Slots
6
Expansion Slot Type
QSFP+
Physical Characteristics
Compatible Rack Unit
1U
Height
1.7" mm
Width
18.6" mm
Depth
17.4" mm
Form Factor
Rack-mountable, Cabinet Mount, Surface Mount
Weight (Approximate)
20.94 lb g
Power Description
Number of Power Supplies Supported
2
Redundant Power Supply Supported
Yes
Power Consumption
348 W W
Input Voltage
120 V AC, 230 V AC
Power Source
Power Supply
General Information
Product Type
Ethernet Switch
Product Series
8320
