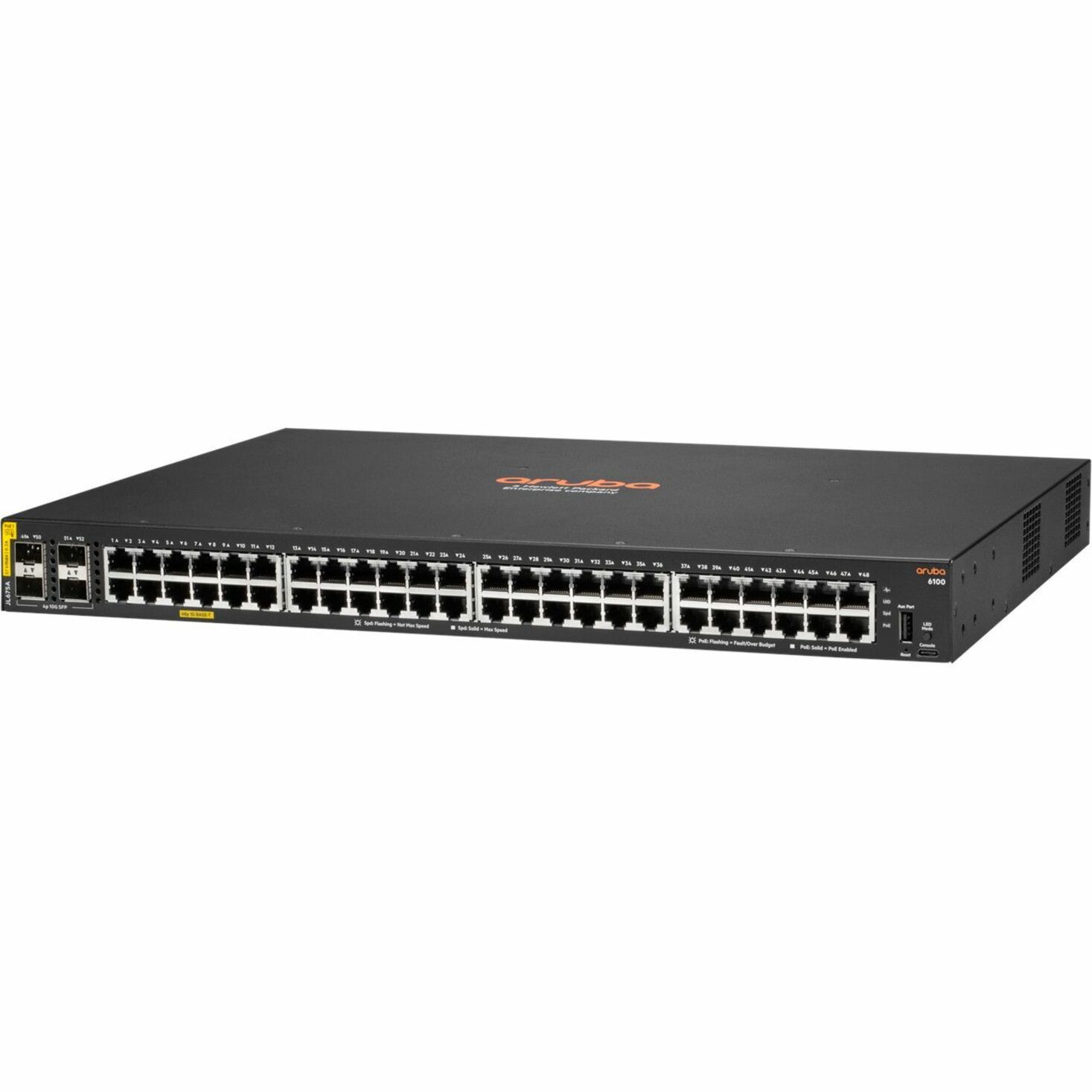

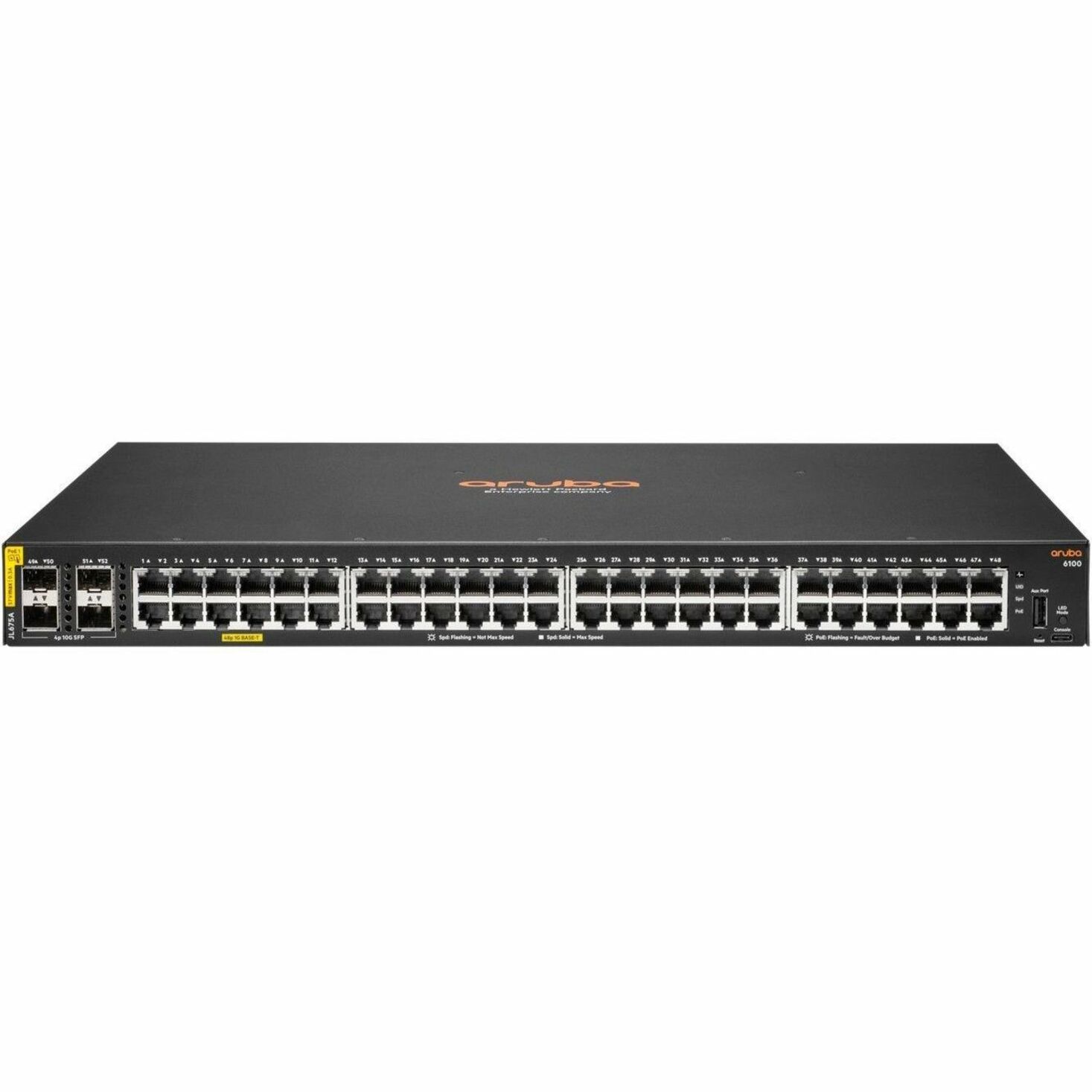

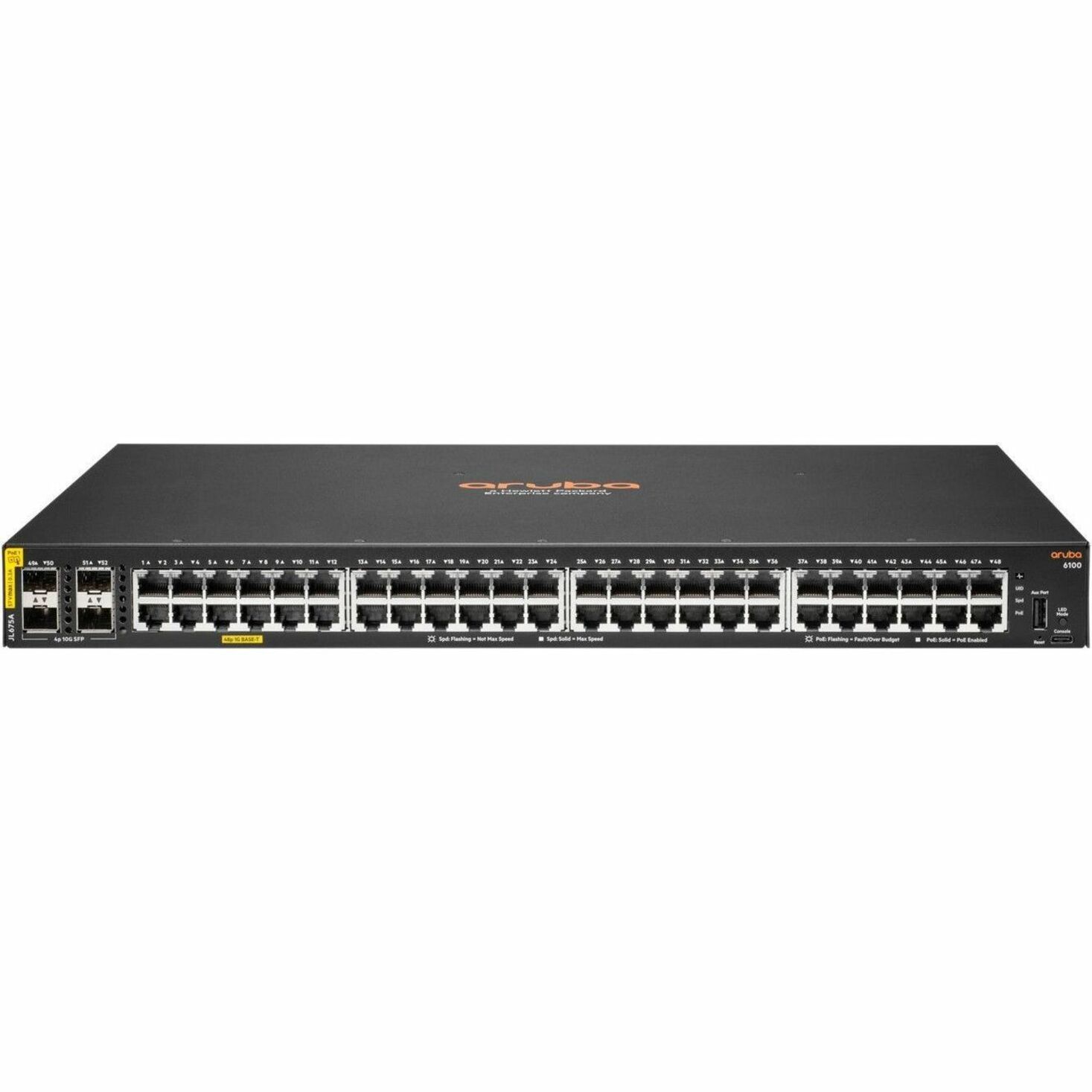

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-TRepresentative image
Transceivers & Cables

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Surface Mount - Lifetime Limited Warranty

Mfr #: JL675A#ACF
$6,598Save $3,128.84 (47%)
$3,469.16

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Ethernet Switch
Manageable
Yes
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Product Family
6100
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Total Number of Network Ports
48

Overview

HPE 6100 48G Class4 PoE 4SFP+ 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 30.60 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Surface Mount - Lifetime Limited Warranty (part number JL675A#ACF) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Input Voltage: 120 V AC, 230 V AC.

Aruba 6100 Switch Series The Aruba CX 6100 Switch Series is modern family of entrylevel access switches ideal for enterprise branch offices andSMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications. The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes acompact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..

• Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing • Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices • Compact and fanless 12 port model for quiet deployment • Automated configuration and verification with Aruba NetEdit • Software defined ready with REST APIs

Key specifications: Input Voltage: 120 V AC, 230 V AC · Number of Power Supplies Supported: 1 · Number of Power Supplies Installed: 1 · PoE (RJ-45) Port: Yes · PoE Budget: 370 W W · Power Consumption: 30.60 W W · Power Source: Power Supply, AC · Package Contents: 6100 48G Class4 PoE 4SFP+ 370W Switch Mounting Brackets.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Power Description
Input Voltage
120 V AC, 230 V AC
Number of Power Supplies Supported
1
Number of Power Supplies Installed
1
PoE (RJ-45) Port
Yes
PoE Budget
370 W W
Power Consumption
30.60 W W
Power Source
Power Supply, AC
Miscellaneous
Package Contents
6100 48G Class4 PoE 4SFP+ 370W Switch Mounting Brackets
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Management & Protocols
Manageable
Yes
Physical Characteristics
Compatible Rack Unit
1U
Product Color
Black
Height
1.7" mm
Width
17.4" mm
Depth
12" mm
Form Factor
Rack-mountable, Wall Mountable, Surface Mount
Weight (Approximate)
11.07 lb g
Media & Performance
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Media Type Supported
Twisted Pair, Optical Fiber
Network Technology
10/100/1000Base-T, 10GBase-X
Interfaces/Ports
Network (RJ-45)
Yes
Modular
Yes
Uplink Port
Yes
Total Number of Network Ports
48
Port/Expansion Slot Details
48 x Gigabit Ethernet PoE, 4 x 10 Gigabit Ethernet Expansion Slot
Network & Communication
Networking Standards
IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Layer Supported
3
Warranty
Limited Warranty
Lifetime
I/O Expansions
Number of SFP+ Slots
4
Total Number of Expansion Slots
4
Expansion Slot Type
SFP+, SFP
General Information
Product Type
Ethernet Switch
Product Series
6100
