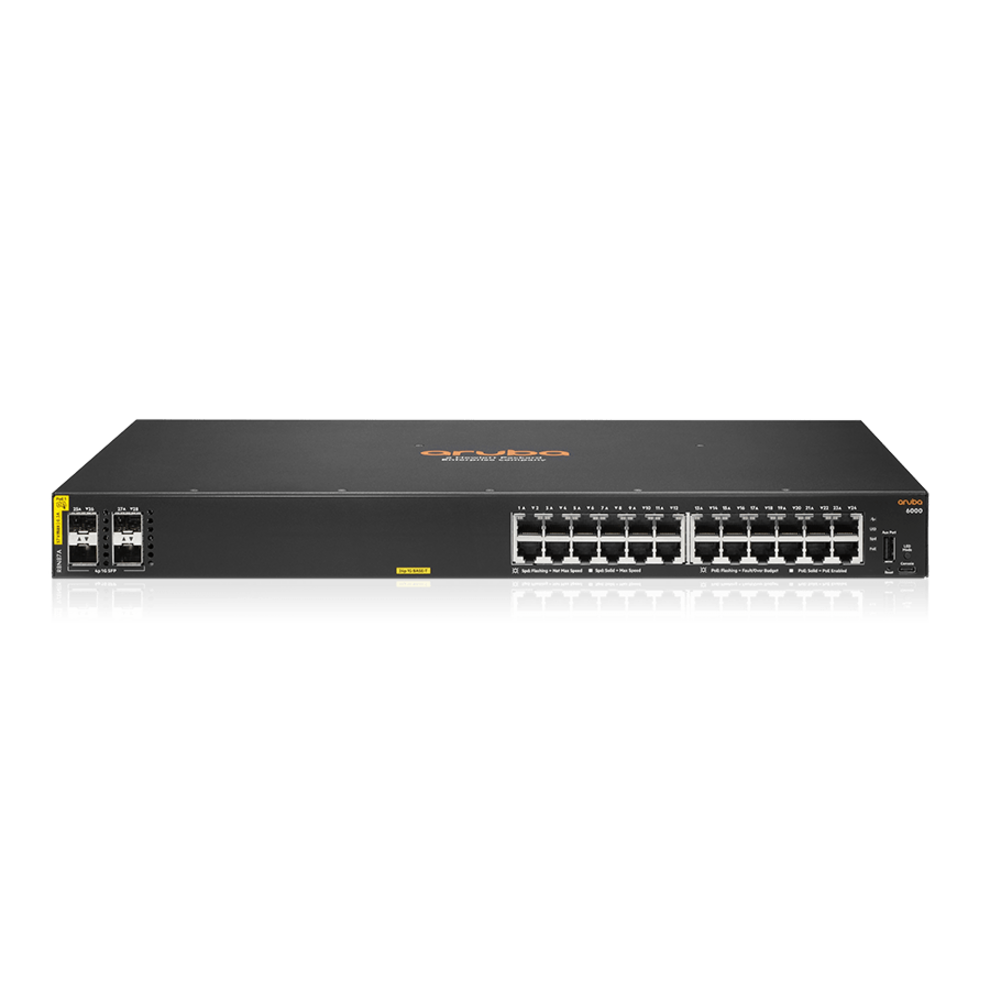

HPE 6000 24G Class4 PoE 4SFP 370W Switch
HPE 6000 24G Class4 PoE 4SFP 370W Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - 32.70 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable - Lifetime Limited Warranty
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Product Family
- CX 6000
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
- Total Number of Network Ports
- 24
- PoE (RJ-45) Port
- Yes
Overview
HPE 6000 24G Class4 PoE 4SFP 370W Switch - 24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - 32.70 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable - Lifetime Limited Warranty (part number R8N87A#AC3) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty. PRODUCT DIFFERENTIATORS | AOS-CX - a modern software system The Aruba CX 6000 Switch Series is based on AOSCX, a modern, database-driven operating system that is built on a modular Linux architecture. With the CX 6000 series, the benefits of the AOS-CX architecture is extended to small enterprise deployments providing the following unique capabilities: Easy access to all network configuration state information REST APIs for fine-grained programmability of network tasks A micro-services architecture that enables full integration with other workflow systems and services All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency Aruba ASICs - programmable innovation Based on over 30 years of continuous investment, Aruba's ASICs create the basis for innovative and agile software feature advancements, unparalleled performance and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The Aruba CX 6000 is based on the Aruba ASIC architecture. Access layer performance The Aruba CX 6000 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following: Up to 104 Gbps in non-blocking bandwidth and up to 77.3 Mpps for forwarding
• Effectively increases available bandwidth on your network • Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency • Features 24 networking ports to establish large network • Supports layer 3 switching for enhanced performance and usability • Rack mounting enables you to organize wires & secure cables for professional installation
Key specifications: Manageable: Yes · Compatible Rack Unit: 1U · Product Color: Black · Height: 1.7" mm · Width: 17.4" mm · Depth: 10.6" mm · Form Factor: Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable · Weight (Approximate): 9.24 lb g.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Physical Characteristics
- Compatible Rack Unit
- 1U
- Product Color
- Black
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 10.6" mm
- Form Factor
- Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable
- Weight (Approximate)
- 9.24 lb g
Media & Performance
- Ethernet Technology
- Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 1000Base-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Total Number of Network Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE, 4 x Gigabit Ethernet Expansion Slot
Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 32.70 W W
- Power Source
- Power Supply
Network & Communication
- Networking Standards
- IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ab
- Layer Supported
- 3
Warranty
- Limited Warranty
- Lifetime
I/O Expansions
- Number of SFP Slots
- 2
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP (mini-GBIC)
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
General Information
- Product Type
- Ethernet Switch
- Product Series
- CX 6000
