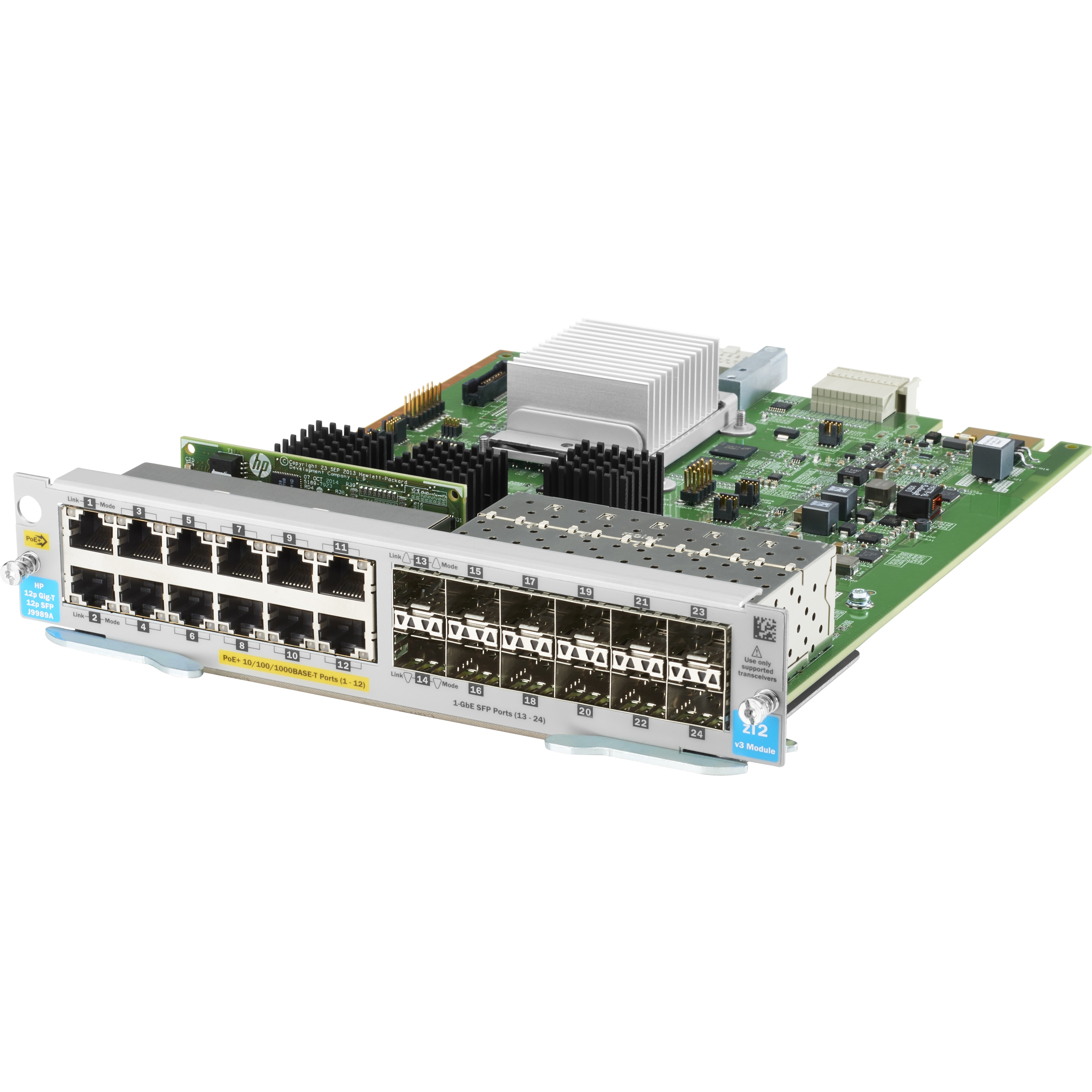

HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module
HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module - For Data Networking, Optical Network - 12 x RJ-45 1000Base-T LAN - Twisted Pair, Optical FiberGigabit Ethernet - 1000Base-T, 1000Base-X - 1 Gbit/s - 12 x Expansion Slots - SFP - 1
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
- Product Type
- Expansion Module
- Maximum Data Transfer Rate
- 1 Gbit/s
- Ethernet Technology
- Gigabit Ethernet
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
- Total Number of Ports
- 12
- Network Technology
- 1000Base-T
- Network Technology
- 1000Base-X
Overview
HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module - For Data Networking, Optical Network - 12 x RJ-45 1000Base-T LAN - Twisted Pair, Optical FiberGigabit Ethernet - 1000Base-T, 1000Base-X - 1 Gbit/s - 12 x Expansion Slots - SFP - 1 (part number J9989A) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Modules category. Maximum Data Transfer Rate: 1 Gbit/s Bps.
HP 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module for the 5400R zl2 Series Switch.
• Expansion Module is the single answer to all your desired and specified application execution and expansion needs • With 1000Base-T technology, get up to 1000Mbps data transfer rate over supported network cable • Up to 10x faster than standard Ethernet connection and provides high-performance • Twisted Pair media support for a dependable and productive connectivity • Expansion Module with data networking application/usage for reliability and maximum efficiency
Key specifications: Maximum Data Transfer Rate: 1 Gbit/s Bps · Ethernet Technology: Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 1000Base-T, 1000Base-X · Total Number of Ports: 12 · Connector Type: RJ-45 · Interfaces/Ports Details: 12 x RJ-45 1000Base-T LAN · Application/Usage: Data Networking, Optical Network.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Media & Performance
- Maximum Data Transfer Rate
- 1 Gbit/s Bps
- Ethernet Technology
- Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 1000Base-T, 1000Base-X
Interfaces/Ports
- Total Number of Ports
- 12
- Connector Type
- RJ-45
- Interfaces/Ports Details
- 12 x RJ-45 1000Base-T LAN
Technical Information
- Application/Usage
- Data Networking, Optical Network
Miscellaneous
- Environmentally Friendly
- Yes
- Compatibility
- HP 5400R zl2 Series Switch
I/O Expansions
- Total Number of Expansion Slots
- 12
- Expansion Slot Type
- SFP
Physical Characteristics
- Height
- 1.8" mm
- Width
- 10.3" mm
- Depth
- 8.1" mm
- Weight (Approximate)
- 2.07 lb g
General Information
- Product Type
- Expansion Module
- Packaged Quantity
- 1
Similar products

J9989A#B8X
HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module
$5,304.79

J9989AR
HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module

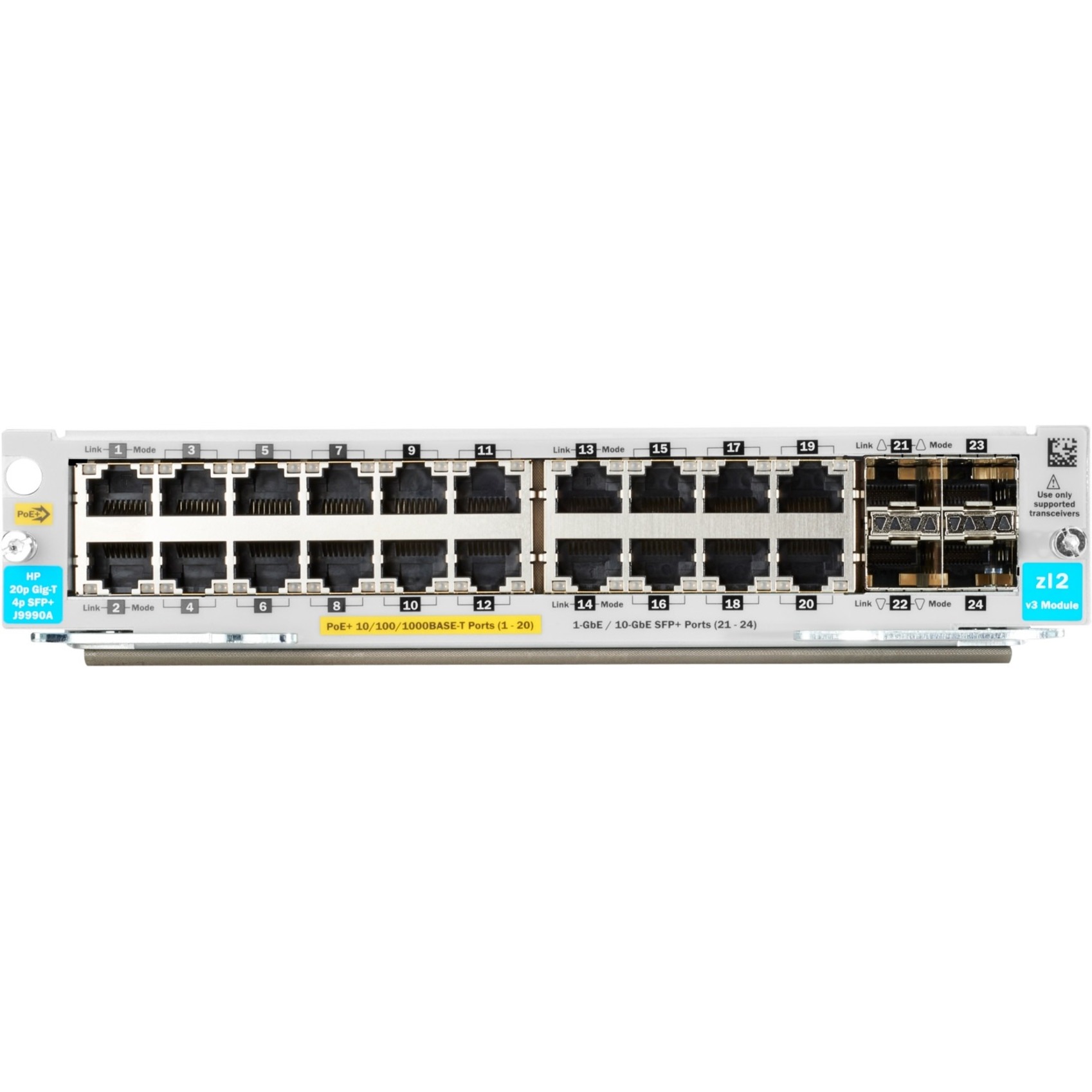

J9990A
