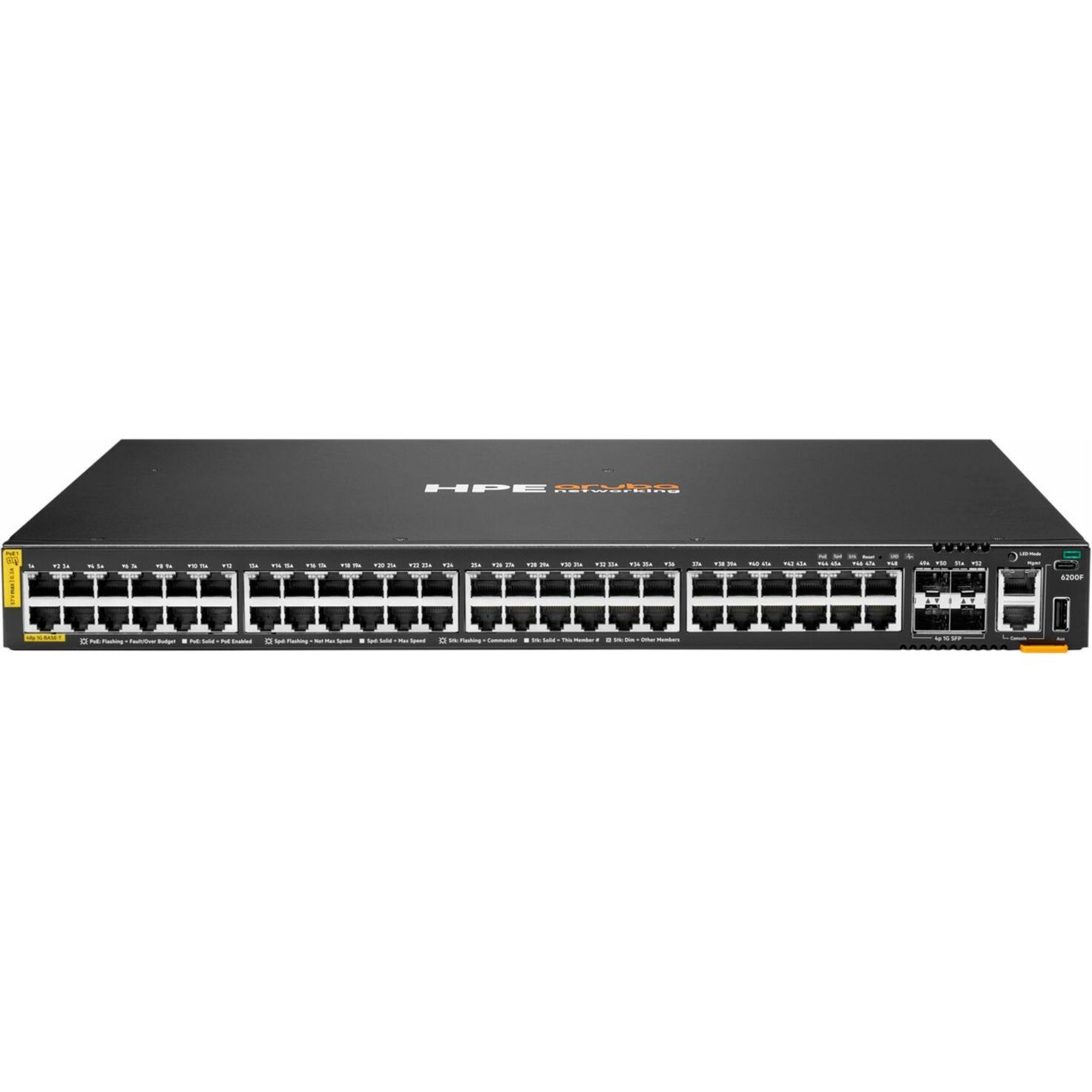

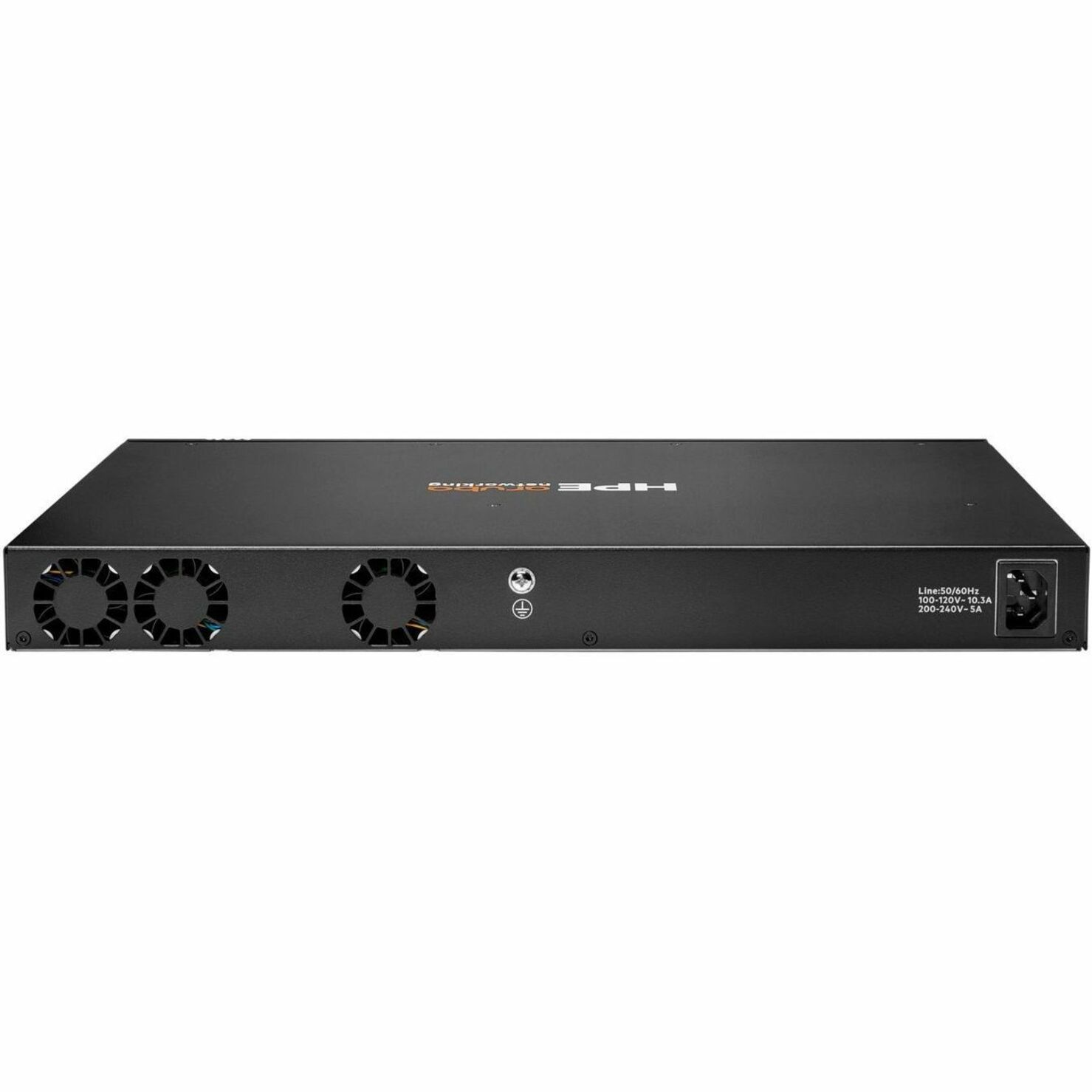

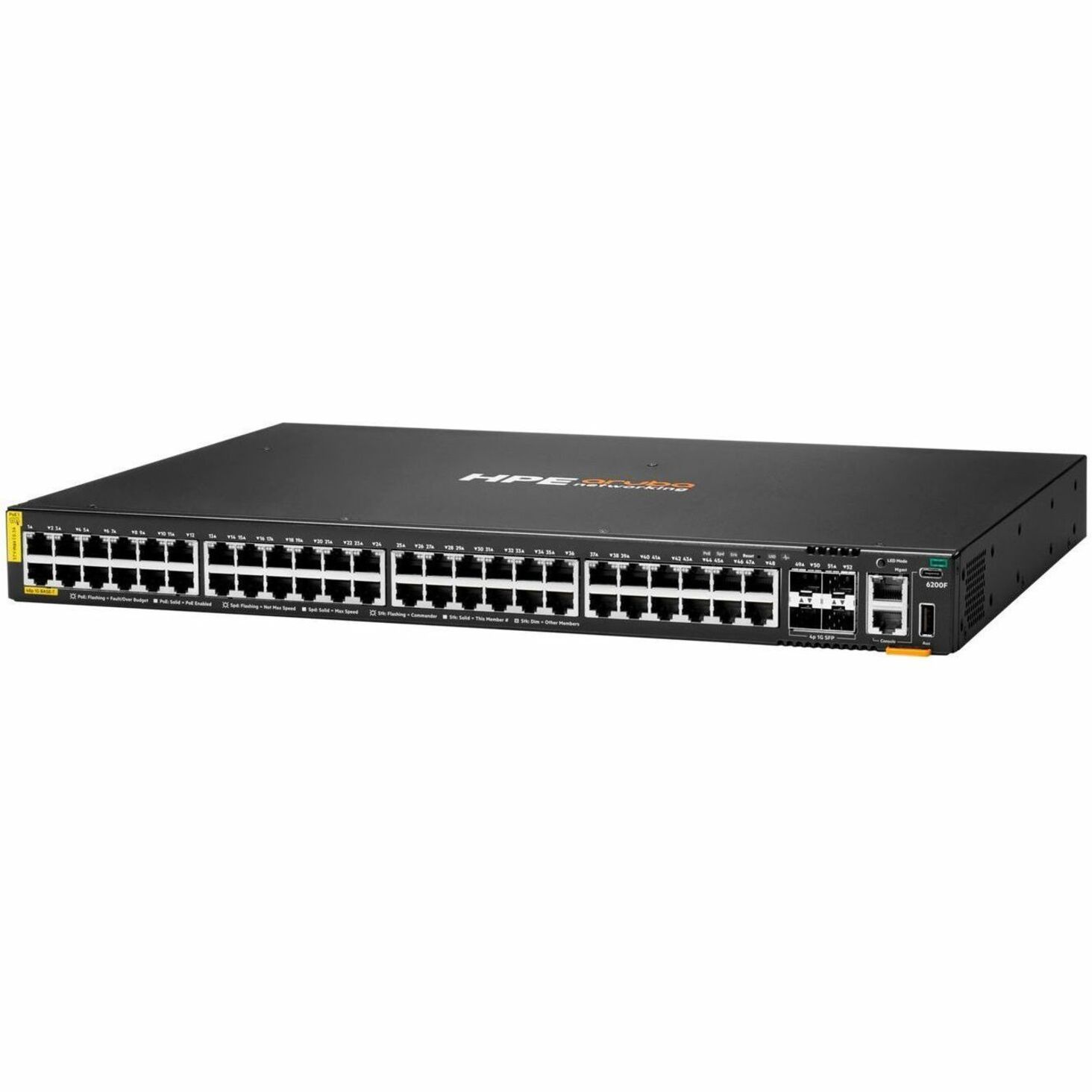

Representative imageAruba Networking CX 6200F 48G Class-4 PoE 4SFP 740W Switch
Aruba Networking CX 6200F 48G Class-4 PoE 4SFP 740W Switch - 48 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 4 SFP Slots - 76 W Power Consumption - 740 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- Fast Ethernet
- Product Family
- CX 6200
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
Overview
Aruba Networking CX 6200F 48G Class-4 PoE 4SFP 740W Switch - 48 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 4 SFP Slots - 76 W Power Consumption - 740 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable (part number S0M85A#ACC) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Features | Maximize your HPE Aruba Networking CX 6200 Switch Series | What's New Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing. Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app. Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port. Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification. Dynamic Segmentation enables secure access for users and IoT. Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
• Effectively increases available bandwidth on your network • Stack port provides an easy and hassle-free way to extend your office network • Features 48 networking ports to meet the requirements of the most demanding workgroups • Can work as layer 3 routing for scalable network design • Rack mounting enables you to organize wires & secure cables for professional installation
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 128 MB/s Bps · Ethernet Technology: Gigabit Ethernet, Fast Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 1000Base-X · Network (RJ-45): Yes · Modular: Yes · Stack Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 128 MB/s Bps
- Ethernet Technology
- Gigabit Ethernet, Fast Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 1000Base-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 48
- Port/Expansion Slot Details
- 48 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port, 4 x Gigabit Ethernet SFP Expansion Slot, 1 x USB-C Console Port, 1 x RJ-45 Console Port, 1 x OOBM Port, 1 x USB Type-A Host port
Power Description
- PoE (RJ-45) Port
- Yes
- Redundant Power Supply Supported
- Yes
- PoE Budget
- 740 W W
- Power Consumption
- 76 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply, AC, PoE
Network & Communication
- Networking Standards
- IEEE 802.3af, IEEE 802.3at
- Layer Supported
- 3
I/O Expansions
- Number of SFP Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
Technical Information
- Features
- Hot-swappable, VSF Stacking, Intelligent monitoring
Physical Characteristics
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 12.9" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 11.24 lb g
General Information
- Product Type
- Ethernet Switch
- Product Series
- CX 6200
