Aruba EdgeConnect SD-WAN 10104 - 4 Ports - 2 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - Gigabit Ethernet - IEEE 802.3iRepresentative image
Transceivers & Cables

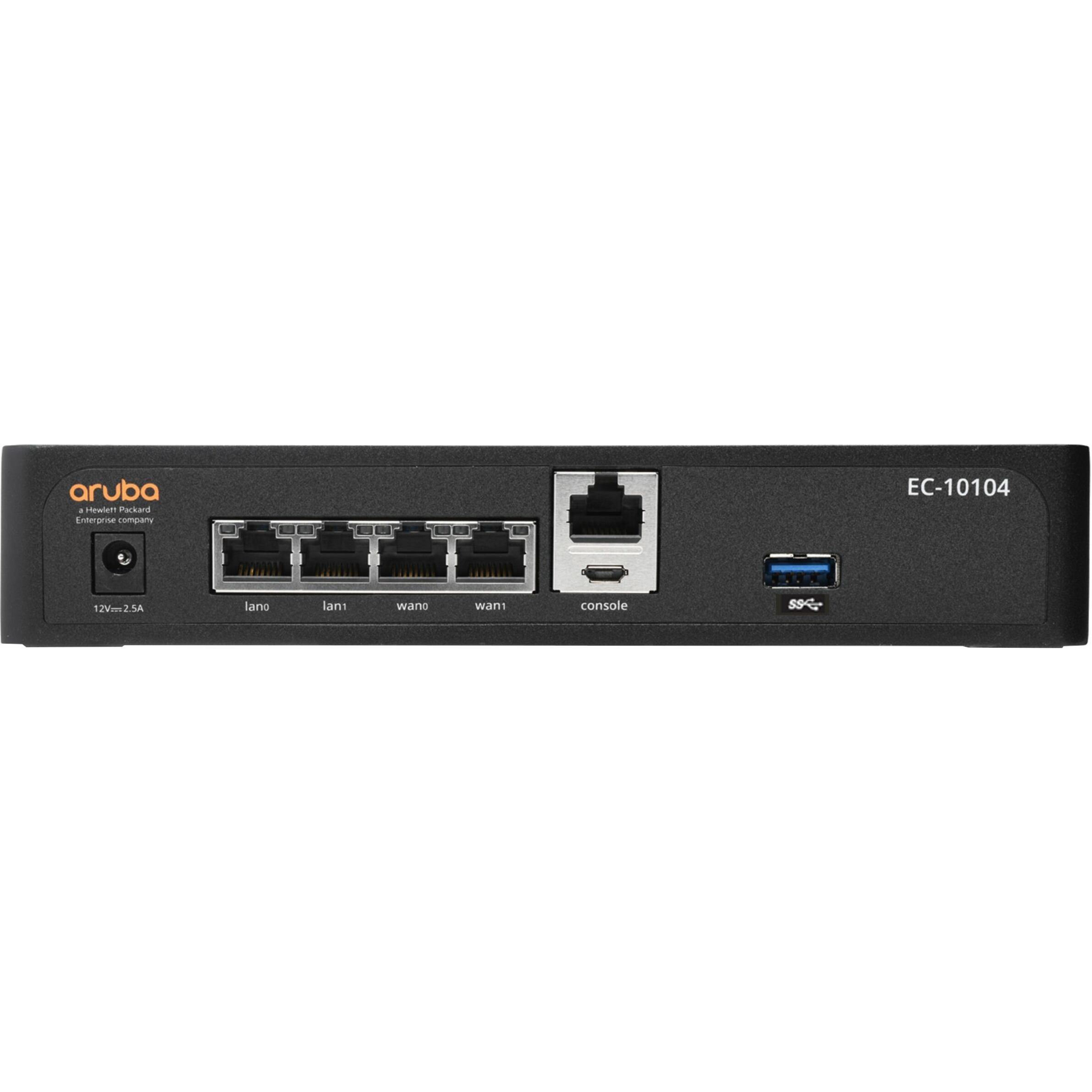

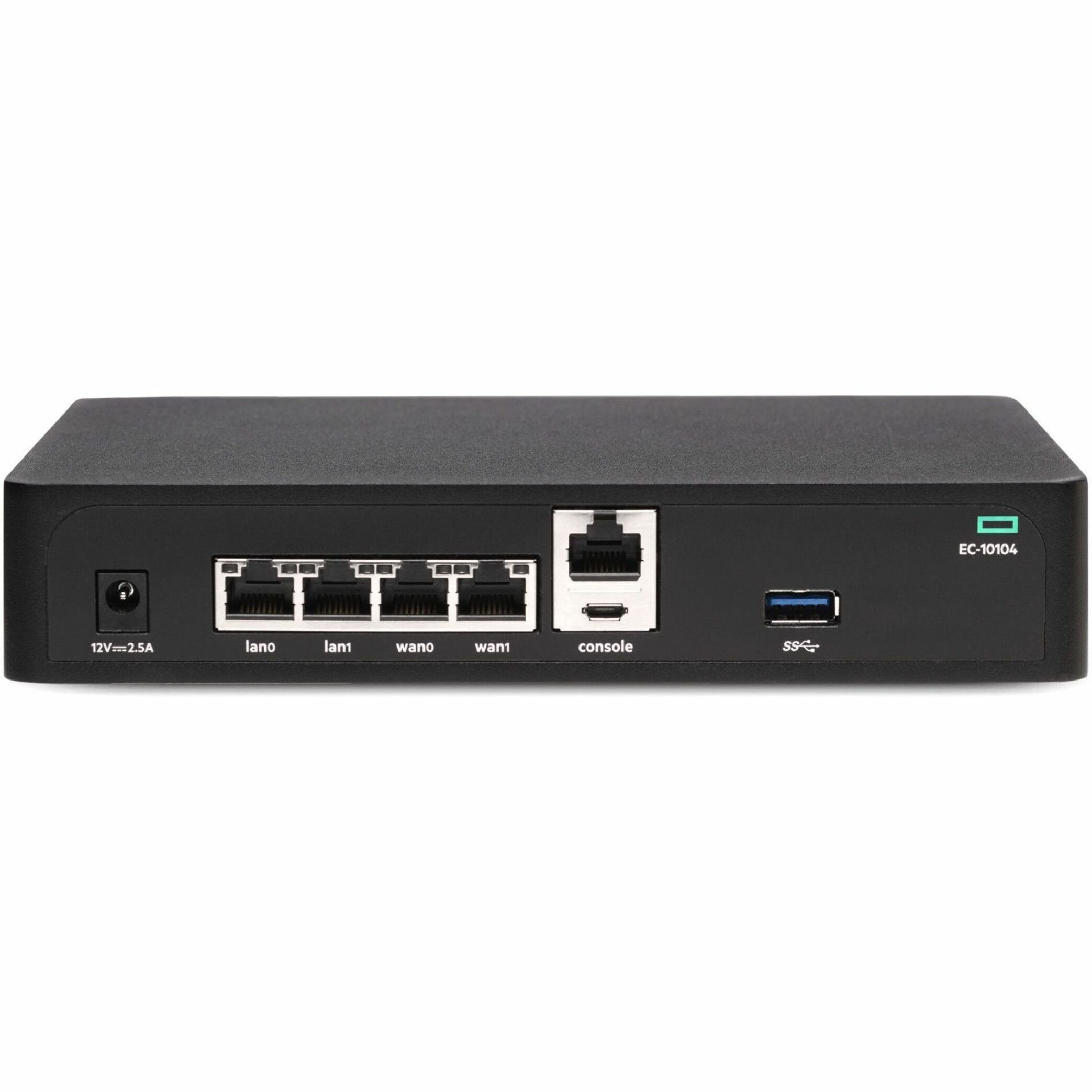

Aruba EdgeConnect SD-WAN 10104

Aruba EdgeConnect SD-WAN 10104 - 4 Ports - 2 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - Gigabit Ethernet - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q - 1U - Desktop, Wall Mountable

Mfr #: S3N69A
$1,640.58

● Ships on backorderFree US shipping3-day delivery30-day returns

GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Router
Ethernet Technology
Gigabit Ethernet
Product Family
EdgeConnect
Total Number of Ports
4
Form Factor
Desktop
Form Factor
Wall Mountable
Network Technology
10/100/1000Base-T

Overview

Aruba EdgeConnect SD-WAN 10104 - 4 Ports - 2 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - Gigabit Ethernet - IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q - 1U - Desktop, Wall Mountable (part number S3N69A) is supplied by Uniqcli, an authorized HPE partner, in the HPE Routers & Gateways category. Compatible Rack Unit: 1U.

The HPE Aruba Networking EdgeConnect SD-WAN 10104 is a small form factor, thin edge SD-WAN gateway appliance that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/5G/LTE and internet-based hybrid WAN transport services and a control plane that is automated and secured by the HPE Aruba Networking WAN Orchestrator centralized management software, providing policy-based virtual network segmentation and acceleration of on-premise and SaaS cloud applications. A key feature of HPE Aruba Networking EdgeConnect SD-WAN 10104 is silent, fanless operation, making it an ideal platform for small branch and home office environments with typical WAN bandwidth from 1 to 500 Mbps (bidirectional).

• Create a wired network with all the PCs connected with this router and share your Internet connection as well as files while checking emails • With 10/100/1000Base-T technology, get up to 1000 mbps data transfer rate over twisted pair cable • Features management port for a reliable networking • Gigabit Ethernet port for ultra-fast network speeds • Can be placed on desktop surfaces for standalone installation

Key specifications: Compatible Rack Unit: 1U · Height: 1.5" mm · Width: 7.8" mm · Depth: 6" mm · Form Factor: Desktop, Wall Mountable · Weight (Approximate): 2.52 lb g · Ethernet Technology: Gigabit Ethernet · Networking Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Physical Characteristics
Compatible Rack Unit
1U
Height
1.5" mm
Width
7.8" mm
Depth
6" mm
Form Factor
Desktop, Wall Mountable
Weight (Approximate)
2.52 lb g
Network & Communication
Ethernet Technology
Gigabit Ethernet
Networking Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q
Network Technology
10/100/1000Base-T
Interfaces/Ports
Number of Network (RJ-45) Ports
2
USB Standard
USB 3.0
Management Port
Yes
Total Number of Ports
4
Number of WAN Ports
2
Power Description
Power Consumption
48 W W
General Information
Product Type
Router
Product Model
EC-10104

Step up

HPE SFP28 Module - For Data Networking, Optical Network - 1 x 25GBase-X Network - Optical Fiber25 Gigabit Ethernet - 25GBase-X - 25 Gbit/s - Plug-in Module - 4

S0K91A

HPE SFP28 Module

$1,647.81

Aruba AP-735 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 9.30 Gbit/s Wireless Access Point - Indoor - TAA Compliant - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - Single User/Multi User MIMO - 2 x Network (RJ-45) - 5 Gigabit Ethernet, Ethernet - Bluetooth 6 - 8 W

S1G46A

Aruba AP-735 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 9.30 Gbit/s Wireless…

$1,661.18

Aruba AP-735 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 9.30 Gbit/s Wireless Access Point - Indoor/Outdoor - TAA Compliant - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - Multi User MIMO - 2 x Network (RJ-45) - 5 Gigabit Ethernet, Ethernet - Bluetooth 6 - 8 W

S1G47A

Aruba AP-735 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 9.30 Gbit/s Wireless…

$1,661.18

Aruba AP-735 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 9.30 Gbit/s Wireless Access Point - Indoor/Outdoor - TAA Compliant - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - Multi User MIMO - 2 x Network (RJ-45) - 5 Gigabit Ethernet, Ethernet - Bluetooth 6 - 8 W

S1G45A

Aruba AP-735 Tri Band Wi-Fi 7 IEEE 802.11 a/b/g/n/ac/ax/be 9.30 Gbit/s Wireless…

$1,661.18

Similar products

Aruba EdgeConnect SD-WAN 10104 - 4 Ports - 2 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - Gigabit Ethernet - IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab - 1U - Rack-mountable, Desktop, Wall Mountable

500661-004

Aruba EdgeConnect SD-WAN 10104

Aruba EdgeConnect EC-10104-NFR Router - 4 Ports - 2 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - Gigabit Ethernet - IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.1ab - 1U - Rack-mountable, Desktop

R9Y07A#ABA

Aruba EdgeConnect EC-10104-NFR Router

$1,505.16

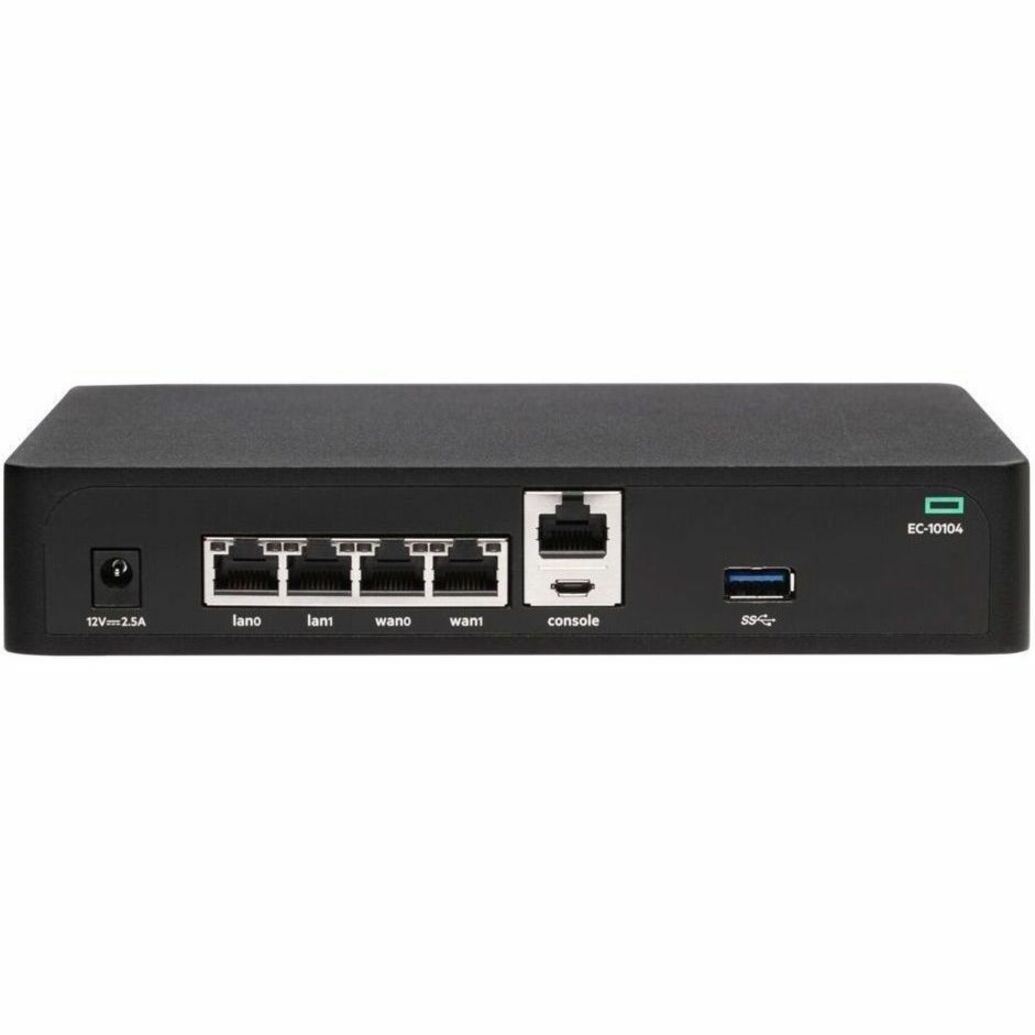

Aruba EdgeConnect 10104 Router - 4 Ports - 2 RJ-45 Port(s) - 2 WAN Port(s) - Management Port - Gigabit Ethernet - IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab - 1U - Tabletop, Wall Mountable, Rack-mountable - TAA Compliant
