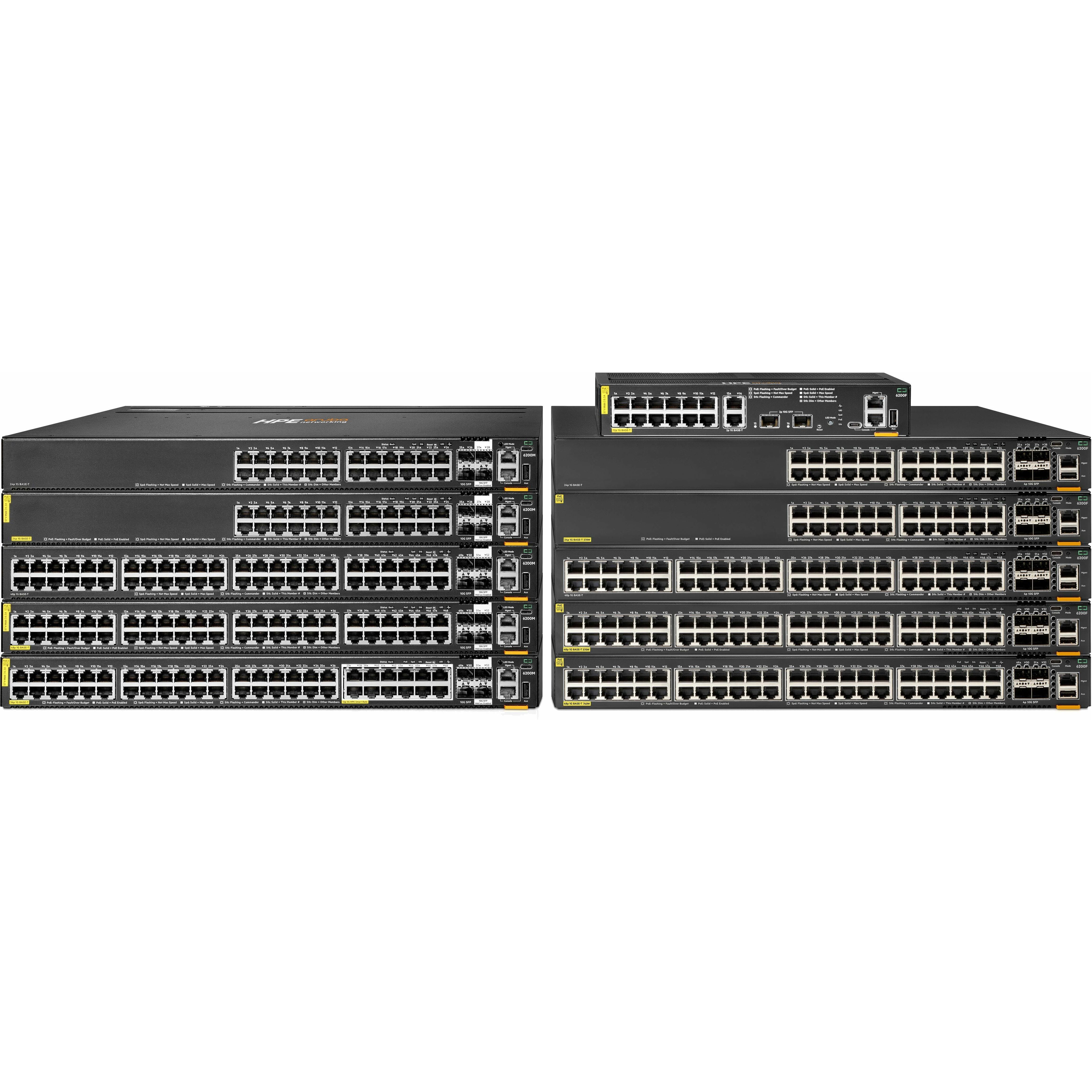

Representative imageAruba CX 6200F 24G Class 4 PoE 4SFP+ 370W TAA-Compliant Switch
Aruba CX 6200F 24G Class 4 PoE 4SFP+ 370W TAA-Compliant Switch - 24 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 3 Layer Supported - 500 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Gray - 1U - Rack-mountable - TAA Compliant
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Product Family
- CX 6200
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
- Total Number of Network Ports
- 24
Overview
Aruba CX 6200F 24G Class 4 PoE 4SFP+ 370W TAA-Compliant Switch - 24 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 3 Layer Supported - 500 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Gray - 1U - Rack-mountable - TAA Compliant (part number S0M87A#A1X) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
The HPE Aruba Networking CX 6200F Switch Series is a family of edge networking stackable switches, ideal for enterprise network access. They provide the foundation for high-performance networks supporting IoT, mobile, and cloud applications. These switches are intended for indoor use only. They are for use in commercial applications. A typical installation is in an environmentally controlled location. The end use environment may or may not be a restricted access location. A tool is required to remove the top cover; however, the product is not considered serviceable by an operator. | Power cords HPE Aruba Networking includes the power cord intended for use with your HPE Aruba Networking switch. Different countries/regions may require different power cords. For a list of the power cords that apply to your switch, see the section that lists power cords in the latest edition of the Installation and Getting Started Guide for your switch
• Effectively increases available bandwidth on your network • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure • Increases the stack bandwidth of the stack port further than that of a single port • Features 24 networking ports to meet the requirements of the most demanding workgroups • Supports layer 3 switching for enhanced performance and usability
Key specifications: Manageable: Yes · Compatible Rack Unit: 1U · Product Color: Gray · Height: 1.7" mm · Width: 17.4" mm · Depth: 12" mm · Form Factor: Rack-mountable · Weight (Approximate): 9.68 lb g.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Physical Characteristics
- Compatible Rack Unit
- 1U
- Product Color
- Gray
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 12" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 9.68 lb g
Media & Performance
- Maximum Data Transfer Rate
- 128 MB/s Bps
- Ethernet Technology
- Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 1000Base-T, 1000Base-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE+ Network Port, 4 x Gigabit Ethernet Expansion Slot
Power Description
- PoE (RJ-45) Port
- Yes
- Redundant Power Supply Supported
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 500 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply, AC
Network & Communication
- Networking Standards
- IEEE 802.3ab, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX
- Layer Supported
- 3
I/O Expansions
- Number of SFP+ Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
Technical Information
- Features
- VSF Stacking, Quality of Service (QoS), Access Control List, Intelligent monitoring, Virtual Extensible LAN (VXLAN), Remote Monitoring (RMON)
General Information
- Product Type
- Ethernet Switch
- Product Series
- CX 6200
- Product Model
- S0M87A
- Packaged Quantity
- 1
Miscellaneous
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
