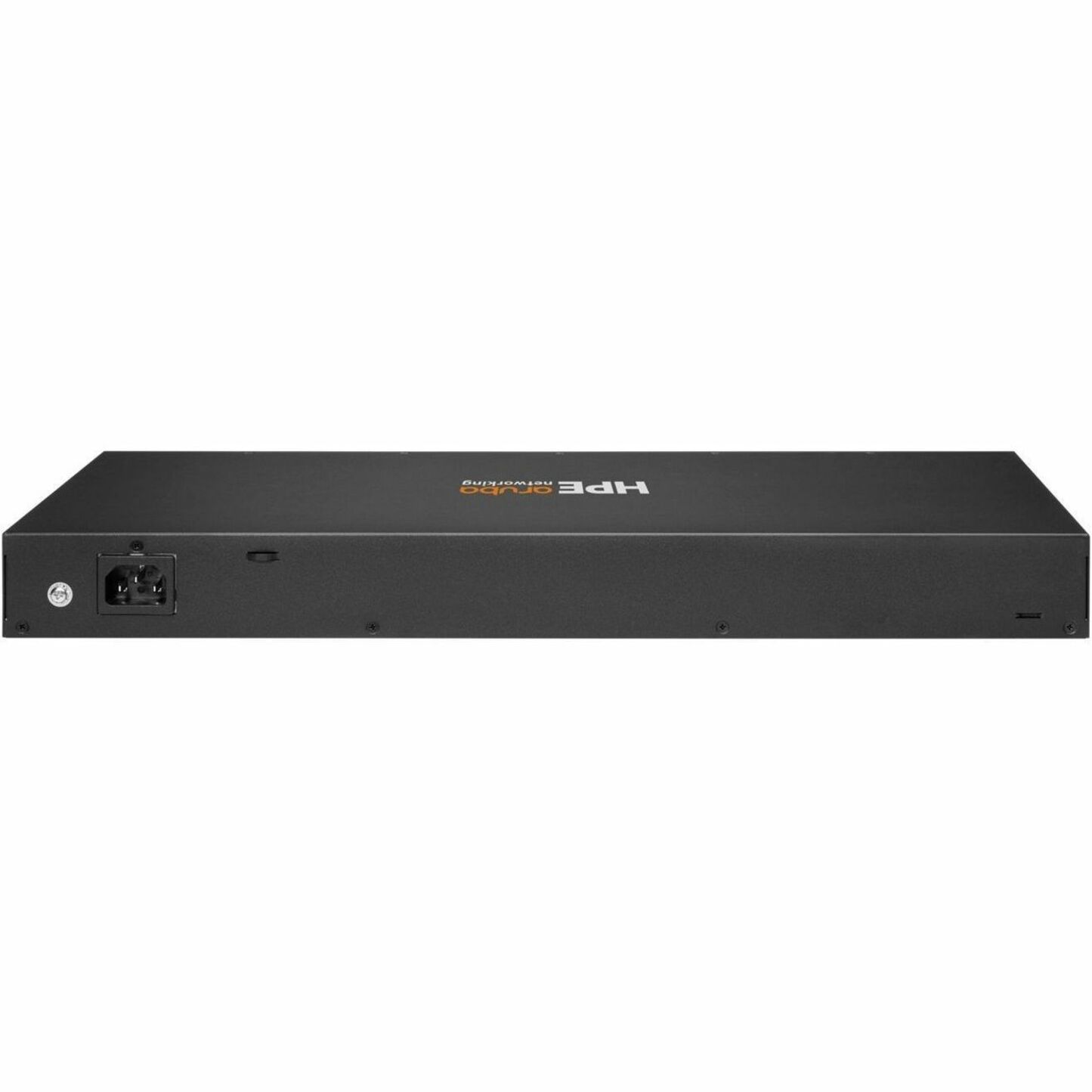

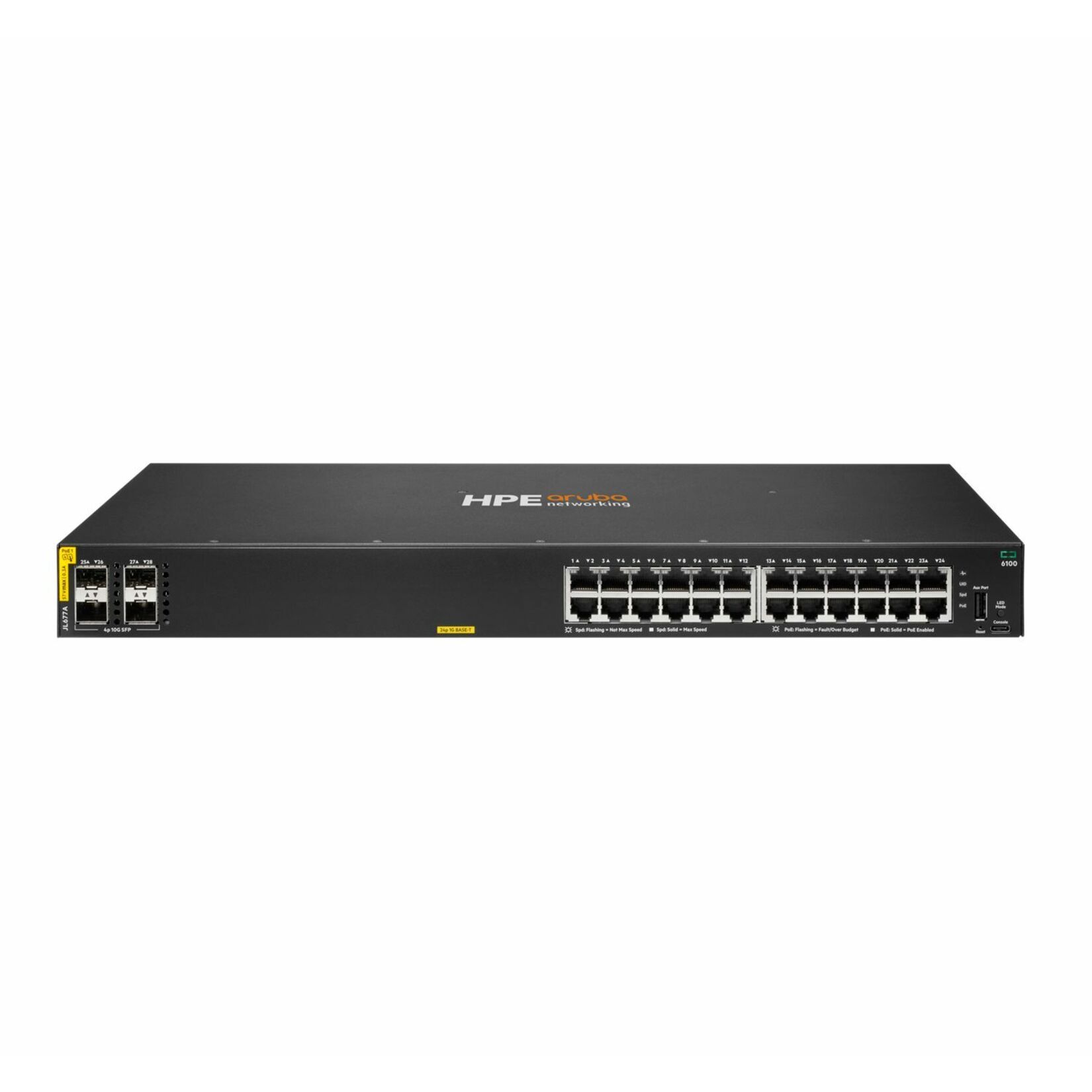

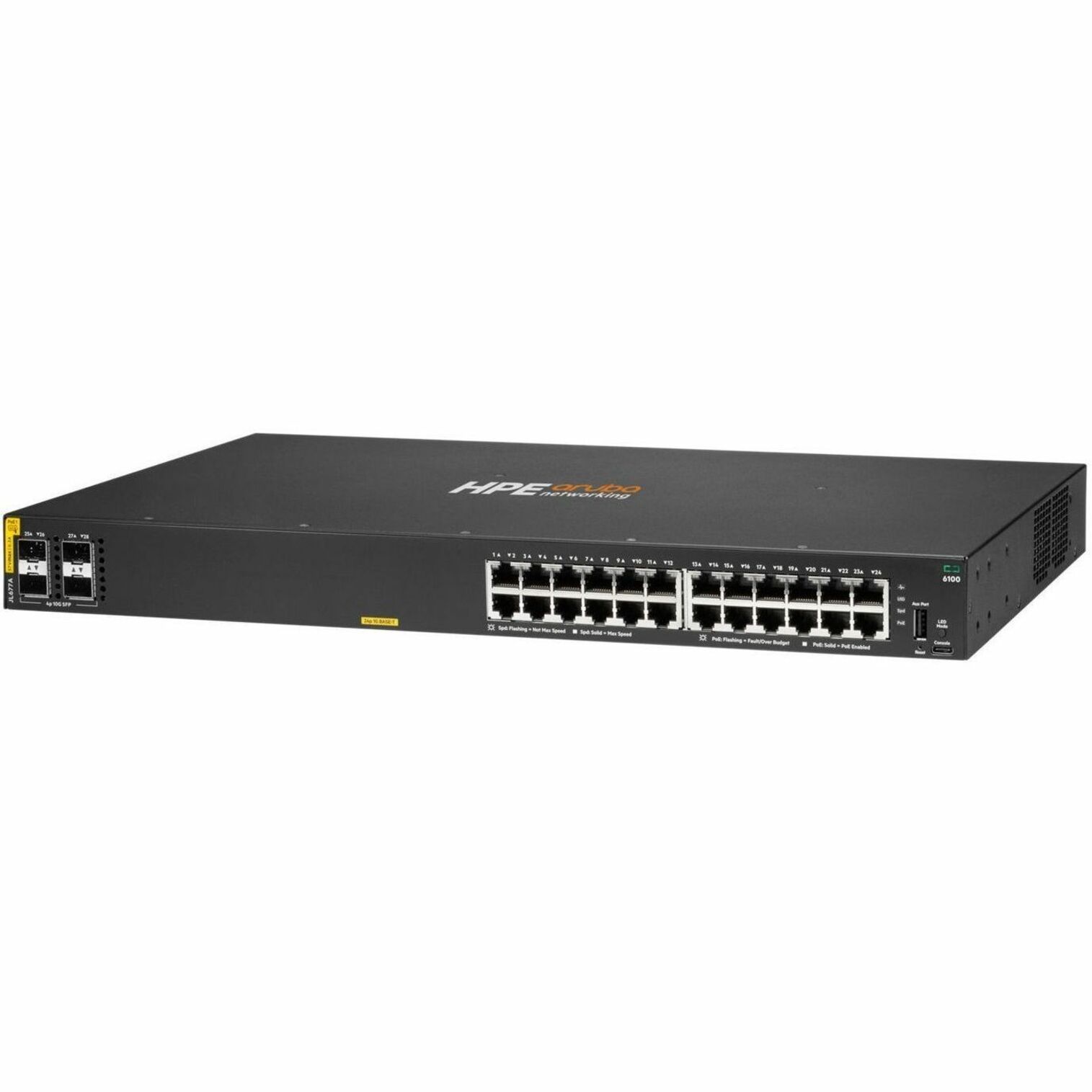

Representative imageAruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch
Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 455 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Cabinet Mount, Surface Mount, Compact - Lifetime Limited Warranty
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- CX 6100
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
Overview
Aruba CX 6100 24G Class4 PoE 4SFP+ 370W Switch - 24 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 455 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Cabinet Mount, Surface Mount, Compact - Lifetime Limited Warranty (part number JL677A#B2C) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
Aruba 6100 Switch Series The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications. The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
• Effectively reduces downtime with improved network performance • Cascade to other network devices through the uplink port to expand your local area network • Provides efficient communication with other ethernet switch in the stack to ensure maximum productivity • Features 24 networking ports to establish large network • Supports layer 3 switching for enhanced performance and usability
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 1.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 10GBase-X · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 1.25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 10GBase-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet PoE, 4 x 10 Gigabit Ethernet Expansion Slot
Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 455 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply, AC
Network & Communication
- Networking Standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
- Layer Supported
- 3
Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
- Package Contents
- CX 6100 24G Class4 PoE 4SFP+ 370W Switch Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame Mounting Brackets
Warranty
- Limited Warranty
- Lifetime
I/O Expansions
- Number of SFP+ Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
Technical Information
- Features
- Fanless
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 10.6" mm
- Form Factor
- Rack-mountable, Wall Mountable, Cabinet Mount, Surface Mount, Compact
- Weight (Approximate)
- 9.24 lb g
General Information
- Product Type
- Ethernet Switch
- Product Series
- CX 6100
