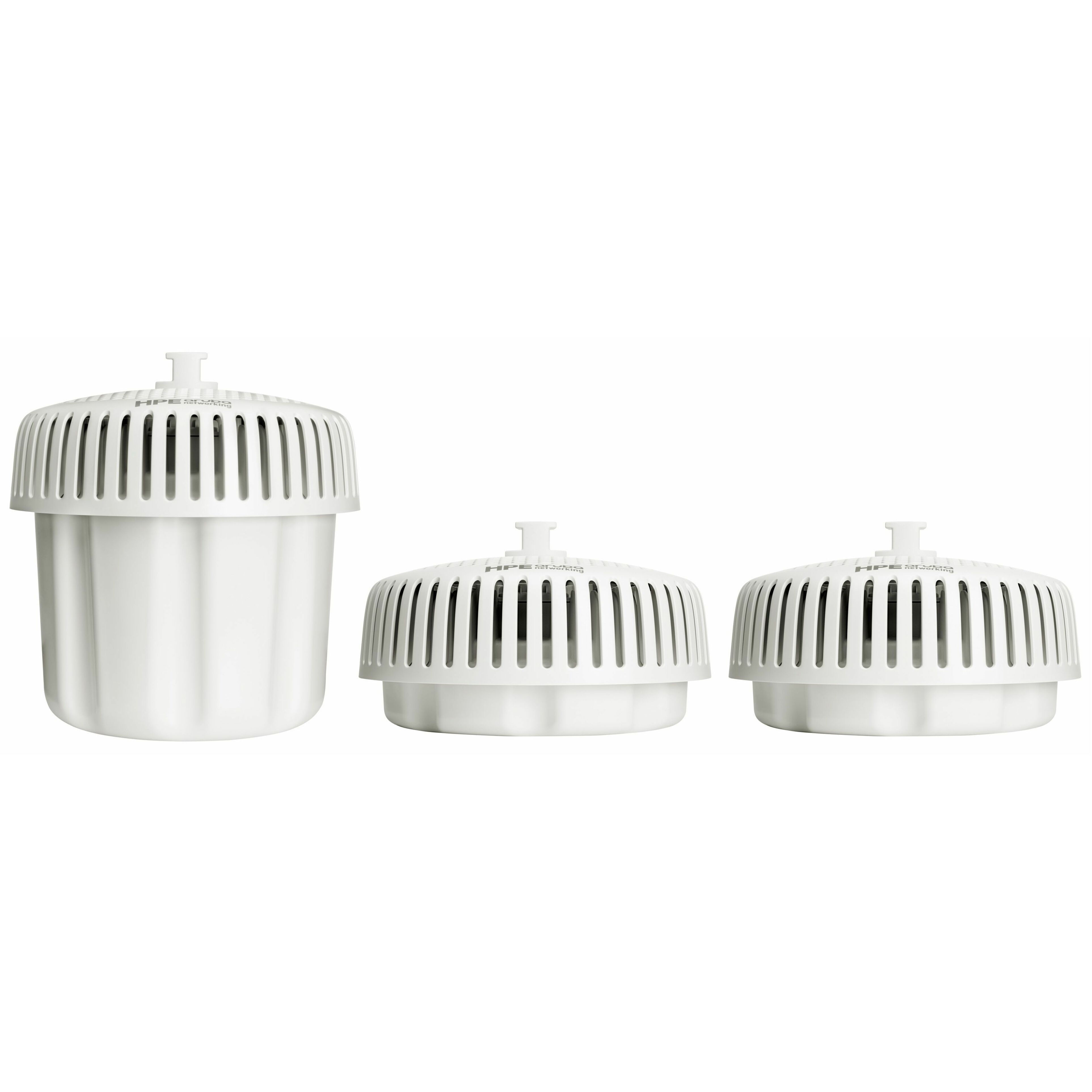

Aruba AP-677 Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax 3.90 Gbit/s Wireless Access Point - Outdoor - 2.40 GHz, 5 GHz, 6 GHzRepresentative image
Transceivers & Cables

Aruba AP-677 Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax 3.90 Gbit/s Wireless…

Aruba AP-677 Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax 3.90 Gbit/s Wireless Access Point - Outdoor - 2.40 GHz, 5 GHz, 6 GHz - 2 x Internal Antenna(s) - Internal - MIMO Technology - Single User/Multi User MIMO - 2 x Network (RJ-45) - 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet - Bluetooth 5 - Pole-mountable, Wall Mountable, Ceiling Mountable - IP66/67

Mfr #: S5E10A
Request a price

GPC-payable · TAA-compliant configuration on request · usually back within one business day.

Detailed quote

Free download

Documents

Product Type
Wireless Access Point
Network Band
Tri Band
Frequency Band
2.40 GHz
Frequency Band
5 GHz
Frequency Band
6 GHz
Antenna Form Factor
Internal
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard
Bluetooth 5

Overview

Aruba AP-677 Tri Band Wi-Fi 6E IEEE 802.11 a/b/g/n/ac/ax 3.90 Gbit/s Wireless Access Point - Outdoor - 2.40 GHz, 5 GHz, 6 GHz - 2 x Internal Antenna(s) - Internal - MIMO Technology - Single User/Multi User MIMO - 2 x Network (RJ-45) - 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet - Bluetooth 5 - Pole-mountable, Wall Mountable, Ceiling Mountable - IP66/67 (part number S5E10A) is supplied by Uniqcli, an authorized HPE partner, in the HPE Wireless Access Points/Bridges category. Network Band: Tri Band.

Weatherproof, temperature hardened, and ready for hazardous environments, the HPE Aruba Networking 670 Series Outdoor APs bring high performance Wi-Fi 6E to outdoor and environmentally challenging locations. The 670 Series delivers more wireless capacity and wider channels taking advantage of Wi-Fi 6E and the 6 GHz band to more than double capacity to meet the speed and reliability needed by enterprise and industrial IoT environments. With integrated high-power Bluetooth and Zigbee radios, fast wired connectivity, and a limited lifetime warranty, the 670 Series provides high-performance outdoor connectivity you can depend on, delivering up to 3.9Gbps maximum aggregate data rates with a Tri-radio 2x2:2 MIMO AP. For the most extreme conditions, the 670 Series includes 670EX models that are Hazardous Location (HazLoc) compliant, making them ideal for environments such as oil rigs, industrial manufacturing, and transportation sites. Ruggedized and outdoor ready Purpose-built to survive harsh outdoor environments and deliver maximum wireless capacity and range, the 670 Series APs withstand exposure to extreme high and low temperatures, persistent moisture, and precipitation. They are fully sealed to keep out airborne contaminants and all electrical interfaces include industrial-strength surge protection. Available with choice of internal antenna (omni, directional, or point-to-point) to optimize wireless coverage, the 670 Series also includes EX models for additional protection for hazardous locations and harsh outdoor environments, and TAA models.

• Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate • 3.90 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability • IEEE 802.11 a/b/g/n/ac/ax wireless LAN standard offers a reliable, convenient way of communication • 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity • Management port allows the convenience of establishing a large, efficient network

Key specifications: Network Band: Tri Band · Frequency Band: 2.40 GHz Hz, 5 GHz Hz, 6 GHz Hz · Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax · Bluetooth Standard: Bluetooth 5 · Encryption Standard: WPA3, WPA2-MPSK, WPA2 · Total Number of Antennas: 2 · Number of Internal Antennas: 2 · Data Encryption: Yes.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Technical Information
Network Band
Tri Band
Frequency Band
2.40 GHz Hz, 5 GHz Hz, 6 GHz Hz
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard
Bluetooth 5
Encryption Standard
WPA3, WPA2-MPSK, WPA2
Total Number of Antennas
2
Number of Internal Antennas
2
Data Encryption
Yes
MIMO Technology
Yes
Beamforming Technology
Yes
Indoor/Outdoor
Outdoor
MIMO Type
Single User/Multi User MIMO
Ingress Protection (IP) Rating
IP66/67
AI-powered
Yes
Wireless Transmission Speed
3.90 Gbit/s Bps
Interfaces/Ports
Ethernet Technology
2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
USB
Yes
Number of Network (RJ-45) Ports
2
USB Standard
USB 2.0
Management Port
Yes
PoE PD Port
Yes
Network & Communication
Wi-Fi Generation
Wi-Fi 6E
Physical Characteristics
Antenna Form Factor
Internal
Height
6.7" mm
Width
11.4" mm
Depth
11.3" mm
Form Factor
Pole-mountable, Wall Mountable, Ceiling Mountable
Weight (Approximate)
7.94 lb g
Miscellaneous
Application/Usage
Office
General Information
Product Type
Wireless Access Point
Product Series
670
Product Model
AP-677
