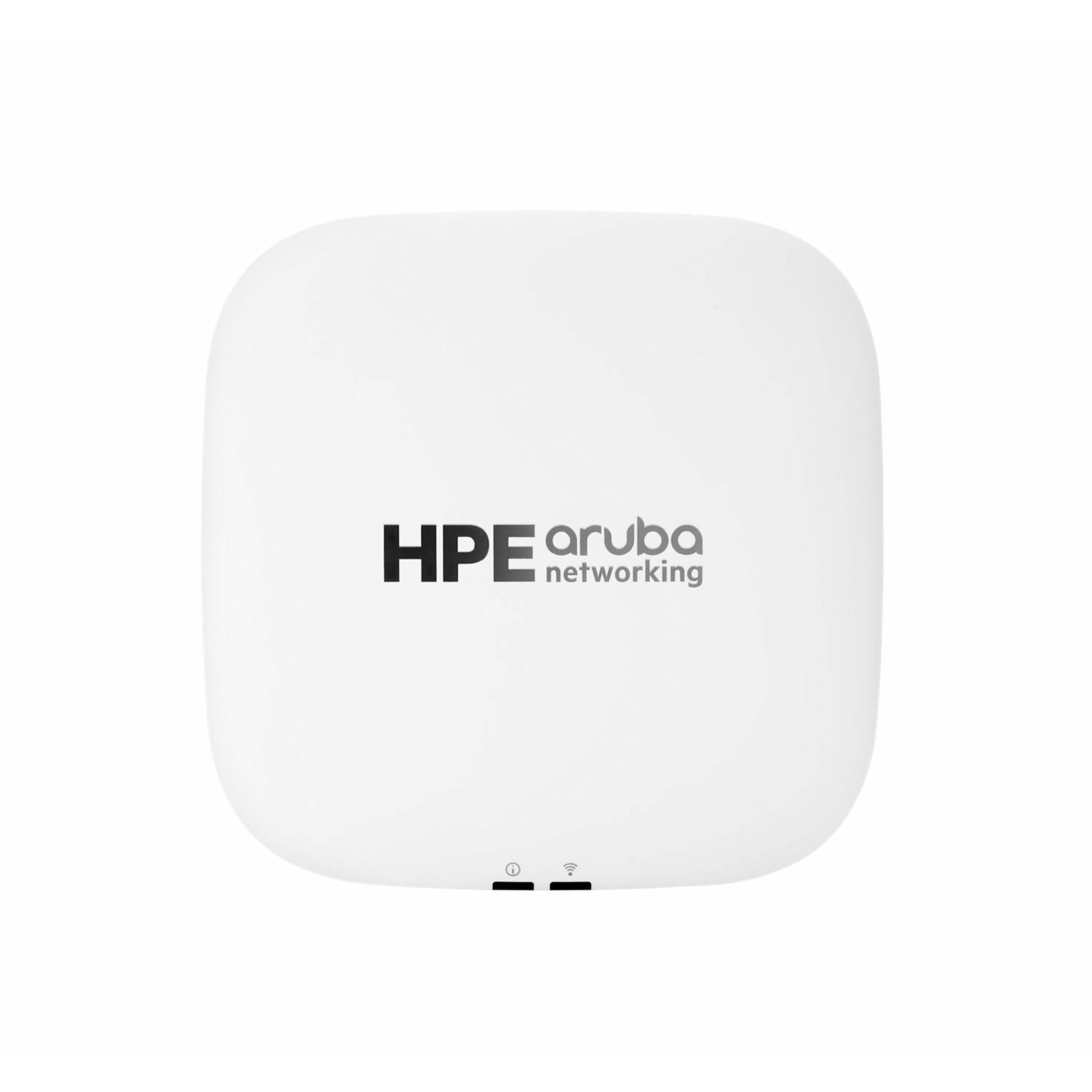

Representative imageAruba AP-503R Dual Band Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 1.49 Gbit/s Wireless…
Aruba AP-503R Dual Band Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 1.49 Gbit/s Wireless Access Point - Indoor - Yes - 2.40 GHz, 5 GHz - Internal - MIMO Technology - Single User/Multi User MIMO - 3 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - 4 W - Desktop, Wall Mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Wireless Access Point
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- Frequency Band
- 5 GHz
- Antenna Form Factor
- Internal
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth Standard
- Bluetooth 5
- Ethernet Technology
- Gigabit Ethernet
Overview
Aruba AP-503R Dual Band Wi-Fi 6 IEEE 802.11 a/b/g/n/ac/ax 1.49 Gbit/s Wireless Access Point - Indoor - Yes - 2.40 GHz, 5 GHz - Internal - MIMO Technology - Single User/Multi User MIMO - 3 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - 4 W - Desktop, Wall Mountable (part number S2Q91AR#ABA) is supplied by Uniqcli, an authorized HPE partner, in the HPE Wireless Access Points/Bridges category. Network Band: Dual Band.
2.40 GHz, 5 GHz - Internal - MIMO Technology - Single User/Multi User MIMO - 3 x Network (RJ-45) - Gigabit Ethernet - Bluetooth 5 - 4 W - Desktop, Wall Mountable
• Desktop form factor with support for Wi-Fi 6 (802.11ax) and 1.49 Gbps maximum real-world speed (HE80/HE20) • Zero touch provisioning, optional USB LTE modem, and two wired ports make it easier to extend the workplace experience anywhere that has an internet or cellular connection • Microbranch capabilities to extend the WAN to home offices, small offices, and even temporary locations with SD-WAN, cloudbased management, and SASE integration capabilities - without requiring an on-premises gateway • Wired and wireless connections that include encryption and user authentication to protect the remote network • Wi-Fi CERTIFIED? with OFDMA support for enhanced multi-user efficiency
Key specifications: Network Band: Dual Band · Frequency Band: 2.40 GHz Hz, 5 GHz Hz · Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax · Bluetooth Standard: Bluetooth 5 · Encryption Standard: WPA3, WPA2, WPA, WPA3-ENT, WPA3-SAE, WPA2-MPSK · Data Encryption: Yes · MIMO Technology: Yes · Beamforming Technology: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Technical Information
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz Hz, 5 GHz Hz
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth Standard
- Bluetooth 5
- Encryption Standard
- WPA3, WPA2, WPA, WPA3-ENT, WPA3-SAE, WPA2-MPSK
- Data Encryption
- Yes
- MIMO Technology
- Yes
- Beamforming Technology
- Yes
- ZigBee
- Yes
- Indoor/Outdoor
- Indoor
- MIMO Type
- Single User/Multi User MIMO
- AI-powered
- Yes
- Wireless Transmission Speed
- 1.49 Gbit/s Bps
Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet
- USB
- Yes
- Number of Network (RJ-45) Ports
- 3
- USB Standard
- USB 2.0 Type A
- Management Port
- Yes
Network & Communication
- Wi-Fi Generation
- Wi-Fi 6
Physical Characteristics
- Antenna Form Factor
- Internal
- Height
- 1.5" mm
- Width
- 5.9" mm
- Depth
- 5.9" mm
- Form Factor
- Desktop, Wall Mountable
- Weight (Approximate)
- 11.29 oz g
Miscellaneous
- Application/Usage
- Office, Campus
Power Description
- Power Consumption
- 4 W W
General Information
- Product Type
- Wireless Access Point
- Product Condition
- Refurbished
- Product Series
- 500R
- Product Model
- AP-503R
