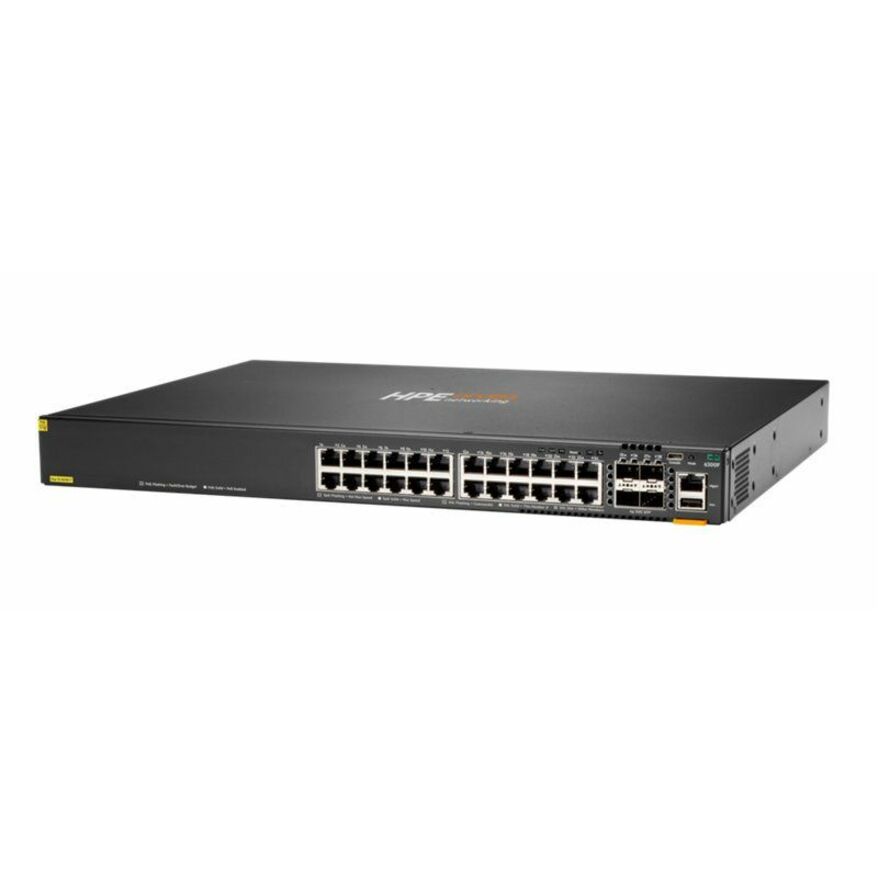

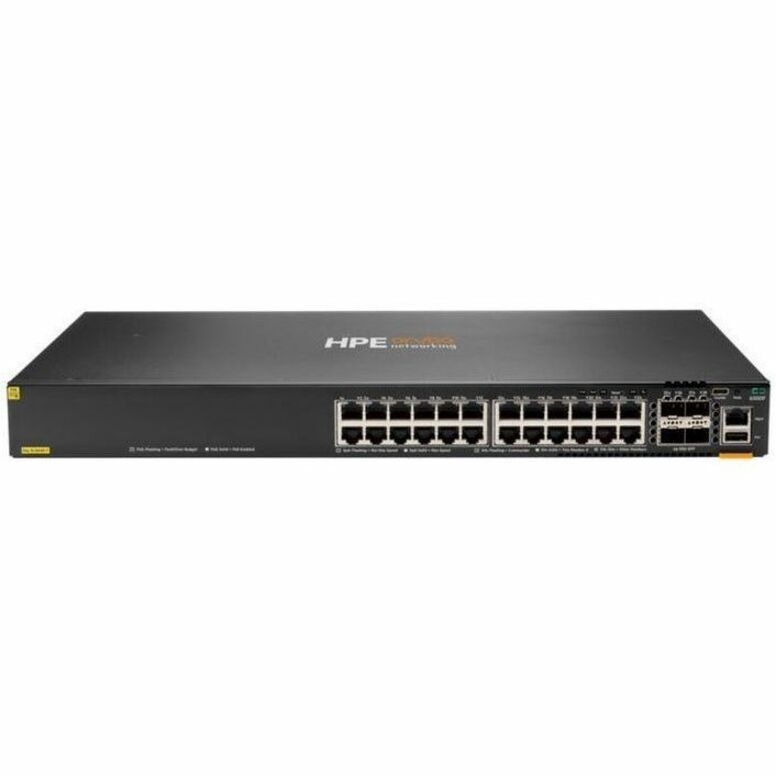

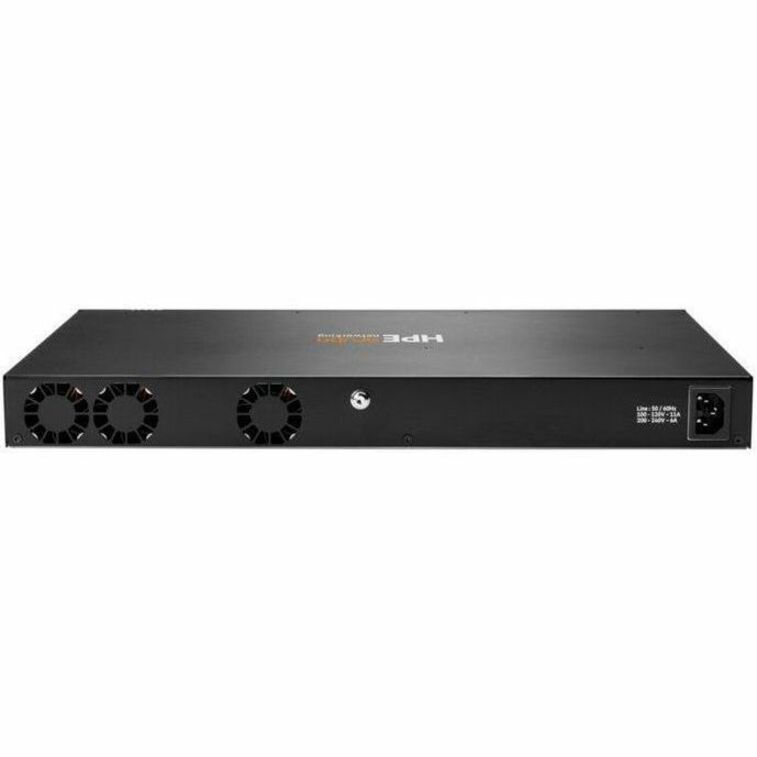

Representative imageAruba 6300F 24-port 1GbE and 4 port SFP56 Switch
Aruba 6300F 24-port 1GbE and 4 port SFP56 Switch - 24 Ports - Manageable - Gigabit Ethernet, 50 Gigabit Ethernet - 10/100/1000Base-T, 50GBase-X - Refurbished - 3 Layer Supported - Modular - 63 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 50 Gigabit Ethernet
- Product Family
- CX 6300
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
Overview
Aruba 6300F 24-port 1GbE and 4 port SFP56 Switch - 24 Ports - Manageable - Gigabit Ethernet, 50 Gigabit Ethernet - 10/100/1000Base-T, 50GBase-X - Refurbished - 3 Layer Supported - Modular - 63 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable (part number JL668AR) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation and core. Created for game- changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications. Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer. A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization. Modular power supplies and field replaceable fans are also supported. Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
• Effectively reduces downtime with improved network performance • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure • Stack port provides an easy and hassle-free way to extend your office network • Features 24 networking ports to meet the requirements of the most demanding workgroups • Can work as layer 3 routing for scalable network design
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 6.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 50 Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 50GBase-X · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 6.25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 50 Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 50GBase-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 24
- Port/Expansion Slot Details
- 24 x Gigabit Ethernet Network, 4 x 50 Gigabit Ethernet Uplink
Network & Communication
- Layer Supported
- 3
I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP56
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 12.9" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 9.61 lb g
Power Description
- Power Consumption
- 63 W W
- Power Source
- Power Supply
General Information
- Product Type
- Ethernet Switch
- Product Condition
- Refurbished
- Product Series
- CX 6300
- Product Model
- 6300F
Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
