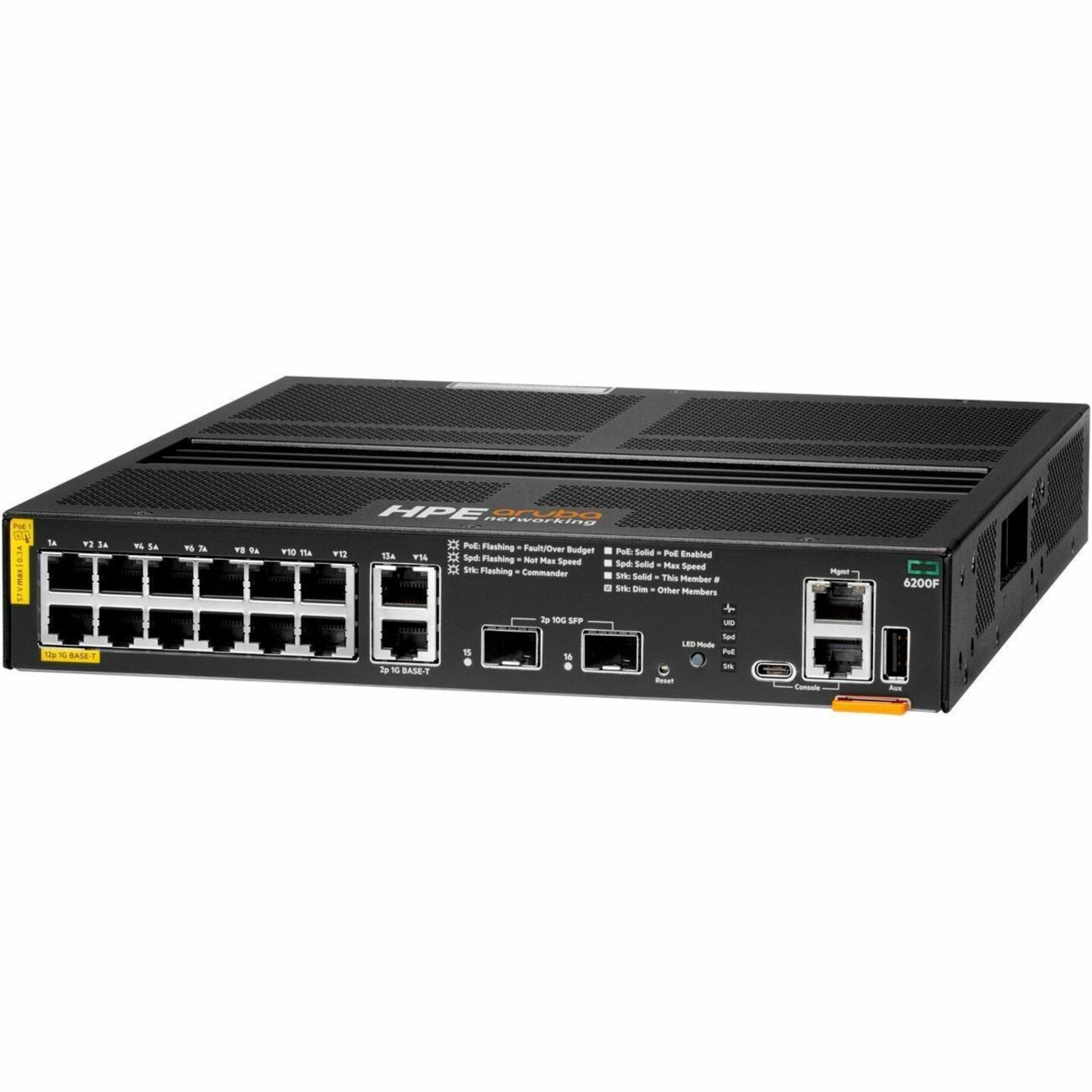

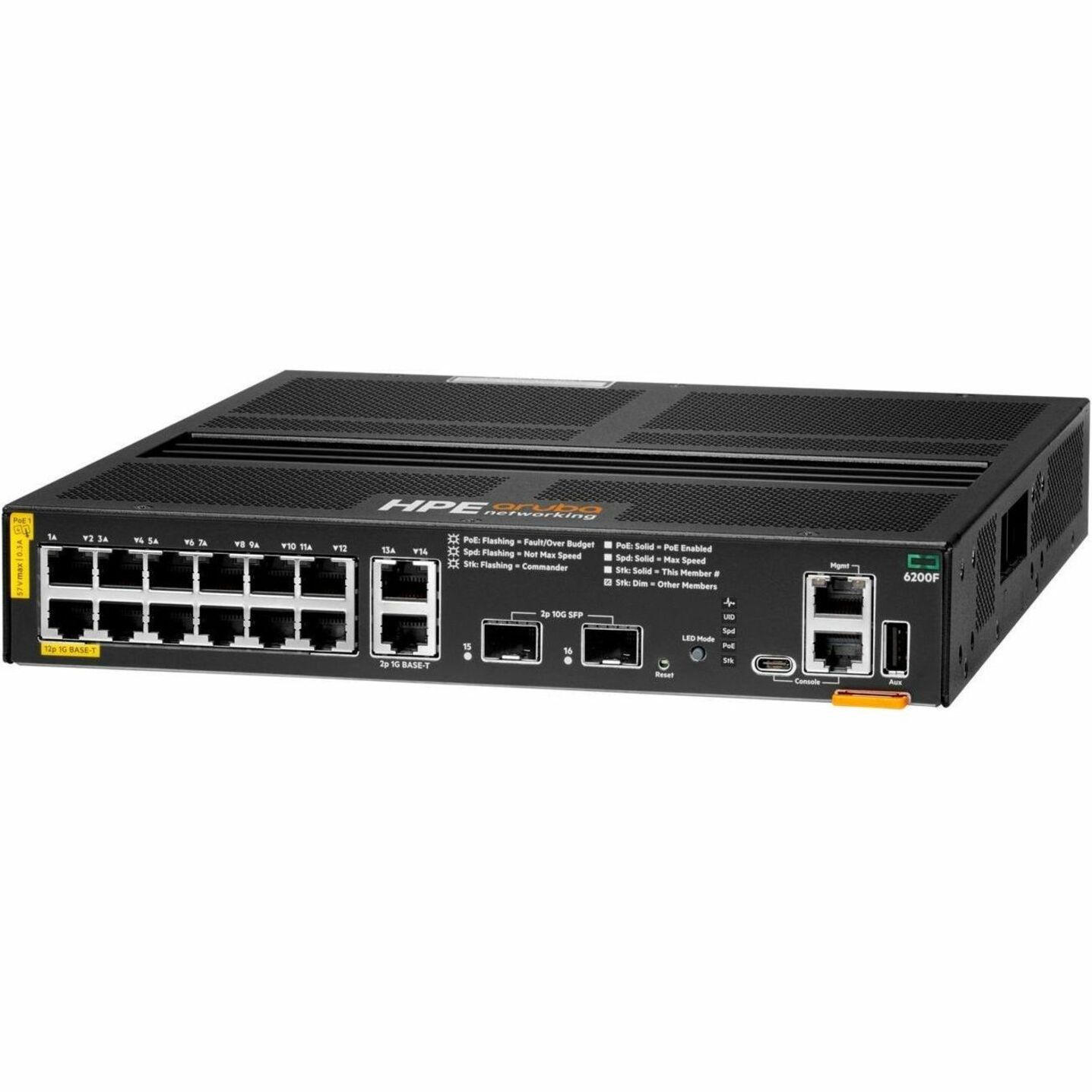

Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Representative image
Transceivers & Cables

Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch

Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 23 W Power Consumption - 139 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty

Mfr #: R8Q72A#B2E
Request a price

GPC-payable · TAA-compliant configuration on request · usually back within one business day.

Detailed quote

Free download

Documents

Product Type
Ethernet Switch
Manageable
Yes
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
10 Gigabit Ethernet
Product Family
CX 6200
Stack Port
Yes
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber

Overview

Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch - 12 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 23 W Power Consumption - 139 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Wall Mountable, Cabinet Mount, Surface Mount - Lifetime Limited Warranty (part number R8Q72A#B2E) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.

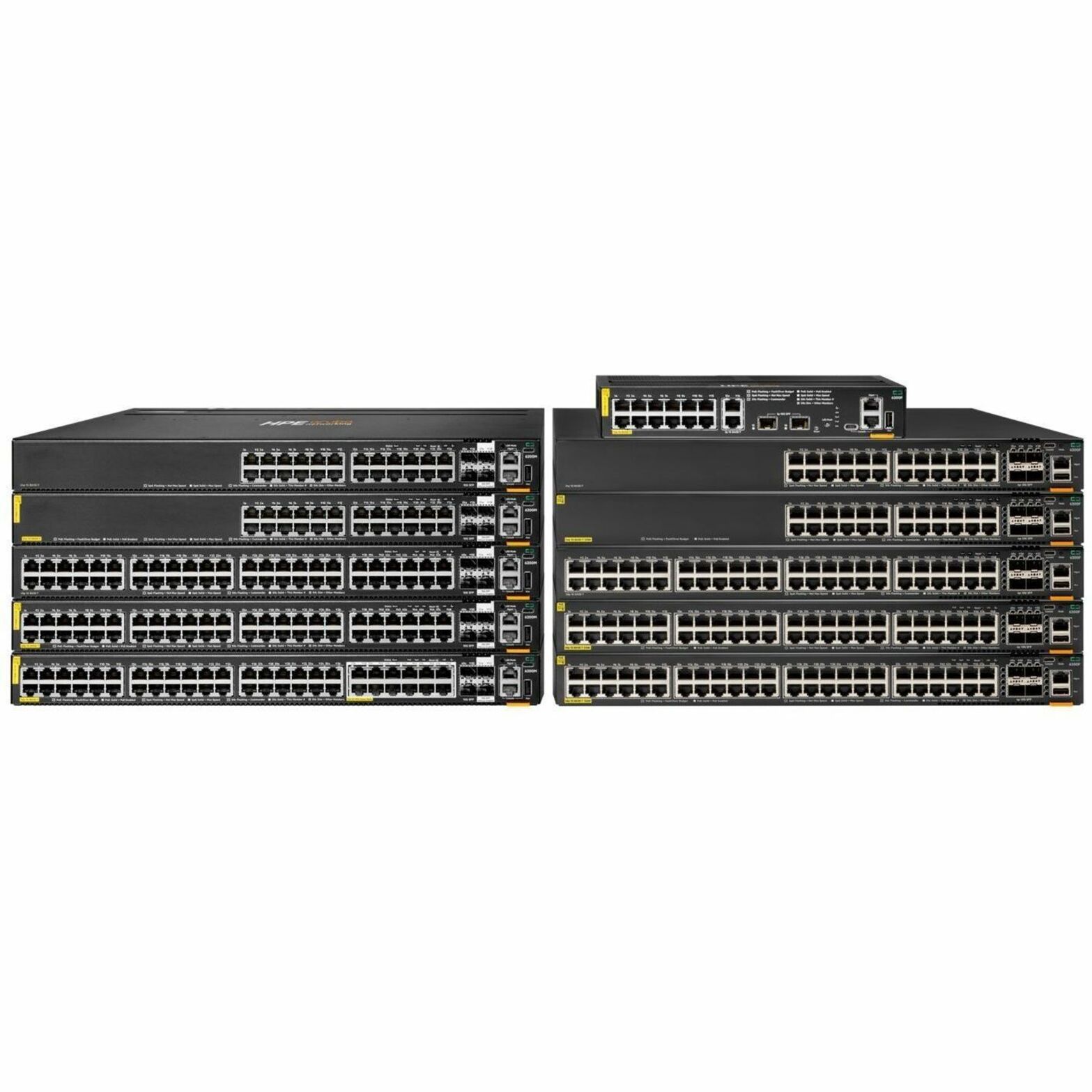

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. Created for game-changing operational efficiency with built-in analytics and automation, the CX 6200 switches provide an enterprise-class access layer solution that's simple and secure. Built from the ground up with a combination of cuttingedge hardware, software and analytics and automation tools, the stackable CX 6200 switches are part of the Aruba CX switching portfolio. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the CX 6200 brings industry leading monitoring and troubleshooting capabilities to the access layer. A powerful Aruba Gen7 ASIC architecture delivers reliable performance and enterprise-class feature support with flexible programmability for tomorrow's applications. The CX 6200 is designed for simple deployment using the intuitive Aruba CX Mobile App that speeds install, configuration and stacking of up to 8 switches. The CX 6200 switch series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks. Fixed switches support up to 30W of PoE per port. Flexible, modular switches offer hotswappable power supplies and fans for enhanced resiliency and redundancy, and up to 60W of PoE per port to power the latest IoT devices, security cameras, and wireless APs. Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.

• Effectively reduces downtime with improved network performance • Cascade to other network devices through the uplink port to expand your local area network • Increases the stack bandwidth of the stack port further than that of a single port • Expand your network capacity with the help of 12 networking ports and transfer your data quickly and easily • Can work as layer 3 routing for scalable network design

Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 1.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 10GBase-X · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Management & Protocols
Manageable
Yes
Media & Performance
Maximum Data Transfer Rate
1.25 GB/s Bps
Ethernet Technology
Gigabit Ethernet, 10 Gigabit Ethernet
Media Type Supported
Twisted Pair, Optical Fiber
Network Technology
10/100/1000Base-T, 10GBase-X
Interfaces/Ports
Network (RJ-45)
Yes
Modular
Yes
Uplink Port
Yes
Stack Port
Yes
Total Number of Network Ports
12
Port/Expansion Slot Details
12 x Gigabit Ethernet PoE, 2 x 10 Gigabit Ethernet Expansion Slot
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
139 W W
Power Consumption
23 W W
Input Voltage
120 V AC, 230 V AC
Power Source
Power Supply, AC, PoE
Network & Communication
Networking Standards
IEEE 802.3, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1x, IEEE 802.1ae, IEEE 802.3af
Layer Supported
3
Miscellaneous
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Package Contents
6200F 12G Class4 PoE 2G/2SFP+ 139W Switch Rack Mounting Kit
Warranty
Limited Warranty
Lifetime
I/O Expansions
Number of SFP+ Slots
2
Total Number of Expansion Slots
2
Expansion Slot Type
SFP+
Technical Information
Features
Fanless
Physical Characteristics
Compatible Rack Unit
1U
Height
1.7" mm
Width
10" mm
Depth
12" mm
Form Factor
Rack-mountable, Wall Mountable, Cabinet Mount, Surface Mount
Weight (Approximate)
7.14 lb g
General Information
Product Type
Ethernet Switch
Product Series
CX 6200
Product Model
R8Q72A
