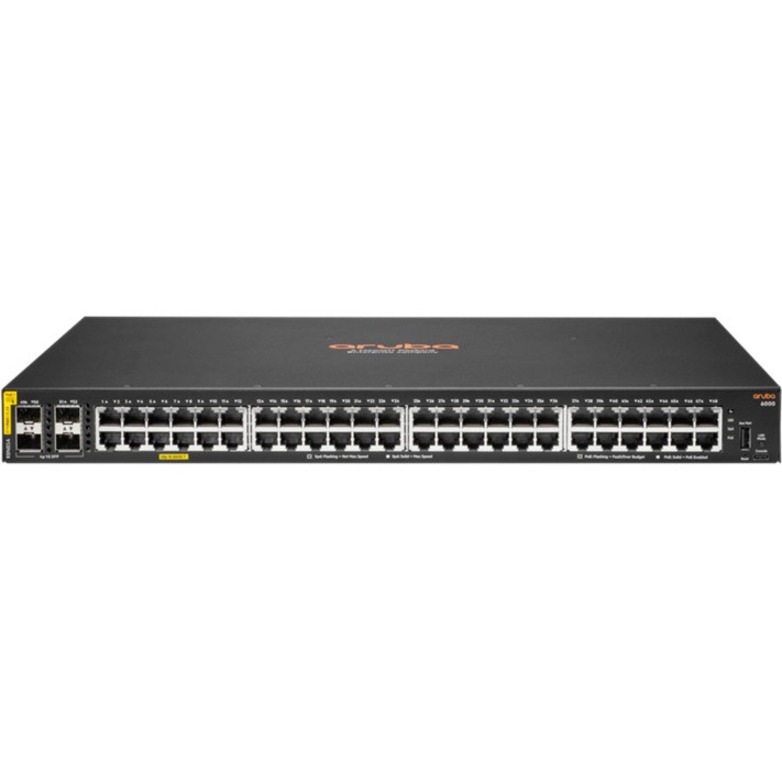

Representative imageAruba 6000 48G Class4 PoE 4SFP 370W Switch
Aruba 6000 48G Class4 PoE 4SFP 370W Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - Refurbished - 3 Layer Supported - Modular - 4 SFP Slots - 45 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Product Family
- CX 6000
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
- Total Number of Network Ports
- 48
- PoE (RJ-45) Port
- Yes
Overview
Aruba 6000 48G Class4 PoE 4SFP 370W Switch - 48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - Refurbished - 3 Layer Supported - Modular - 4 SFP Slots - 45 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable (part number R8N85AR#ABG) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment. Features Entry-level Layer 2 access switches The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks. The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System used across HPE Aruba Networking CX switching platforms. It has fully-managed enterprise-class switches switches deliver Layer 2 capabilities with support static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow®, and IPv6. The CX 6000 series provides right-size deployment with choice of 8, 12, 24, and 48-port 1U models with convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE. It simplifies ownership with no switch software licensing or subscriptions required. AI-ready erformance and power The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and optimized power consumption ideal for AI, Wi-Fi 7, and IoT requirements. It supports up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port to enable full deployments of wireless access points and IoT devices. It has up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect. Simplified configuration and management The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industrystandard CLI. HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA). The CX 6000 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.
• Effectively increases available bandwidth on your network • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure • Features 48 networking ports to meet the requirements of the most demanding workgroups • Can work as layer 3 routing for scalable network design • Rack mounting enables you to organize wires & secure cables for professional installation
Key specifications: Manageable: Yes · Number of Power Supplies Installed: 1 · PoE (RJ-45) Port: Yes · PoE Budget: 370 W W · Power Consumption: 45 W W · Power Source: AC · Ethernet Technology: Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Power Description
- Number of Power Supplies Installed
- 1
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 45 W W
- Power Source
- AC
Media & Performance
- Ethernet Technology
- Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 100/1000Base-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Total Number of Network Ports
- 48
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet PoE+, 4 x Gigabit Ethernet Expansion Slot
Network & Communication
- Networking Standards
- IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ab
- Layer Supported
- 3
I/O Expansions
- Number of SFP Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 12" mm
- Form Factor
- Rack-mountable, Cabinet Mount, Surface Mount, Wall Mountable
- Weight (Approximate)
- 11.07 lb g
General Information
- Product Type
- Ethernet Switch
- Product Condition
- Refurbished
- Product Series
- CX 6000
