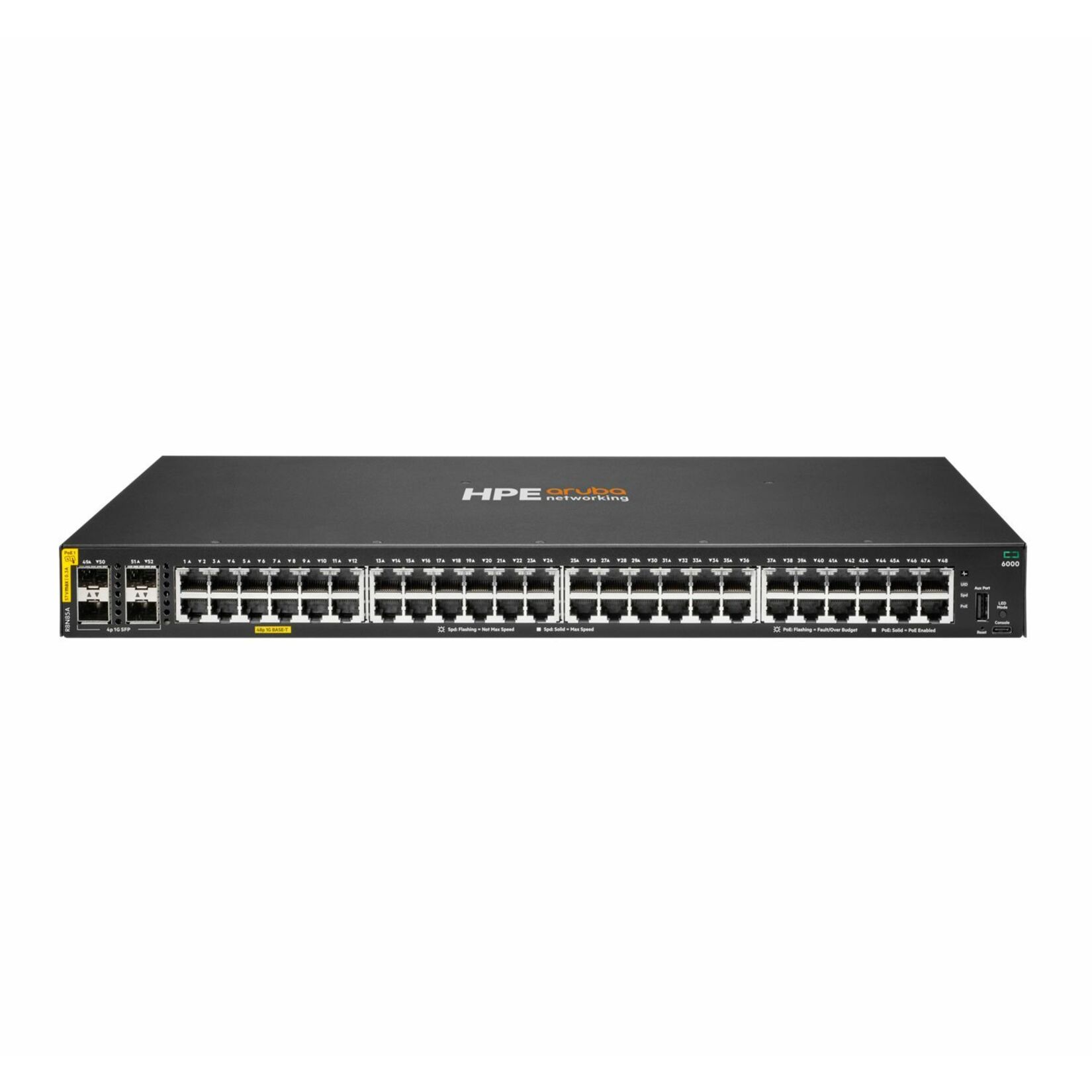

Representative imageAruba 6000 48G Class4 PoE 4SFP 370W Switch
Aruba 6000 48G Class4 PoE 4SFP 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 4 SFP Slots - 480 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Surface Mount, Wall Mountable, Rack-mountable, Cabinet Mount, Compact - Lifetime Limited Warranty
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- Gigabit Ethernet
- Ethernet Technology
- 10 Gigabit Ethernet
- Product Family
- CX 6000
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Media Type Supported
- Optical Fiber
Overview
Aruba 6000 48G Class4 PoE 4SFP 370W Switch - 48 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 4 SFP Slots - 480 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Surface Mount, Wall Mountable, Rack-mountable, Cabinet Mount, Compact - Lifetime Limited Warranty (part number R8N85A#B2E) is supplied by Uniqcli, an authorized HPE partner, in the HPE Switches & Bridges category. Manageable: Yes.
Aruba CX 6000 Switch Series Aruba CX 6000 Switch Series The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and onpremise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.
• Effectively reduces downtime with improved network performance • Cascade to other network devices through the uplink port to expand your local area network • Increases the stack bandwidth of the stack port further than that of a single port • Features 48 networking ports to meet the requirements of the most demanding workgroups • Can work as layer 3 routing for scalable network design
Key specifications: Manageable: Yes · Maximum Data Transfer Rate: 1.25 GB/s Bps · Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet · Media Type Supported: Twisted Pair, Optical Fiber · Network Technology: 10/100/1000Base-T, 10GBase-X · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Management & Protocols
- Manageable
- Yes
Media & Performance
- Maximum Data Transfer Rate
- 1.25 GB/s Bps
- Ethernet Technology
- Gigabit Ethernet, 10 Gigabit Ethernet
- Media Type Supported
- Twisted Pair, Optical Fiber
- Network Technology
- 10/100/1000Base-T, 10GBase-X
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 48
- Port/Expansion Slot Details
- 48 x Gigabit Ethernet Class 4 PoE, 4 x 10 Gigabit Ethernet Network
Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 370 W W
- Power Consumption
- 480 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply, AC, PoE+
Network & Communication
- Networking Standards
- IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ab
- Layer Supported
- 3
Warranty
- Limited Warranty
- Lifetime
I/O Expansions
- Number of SFP Slots
- 4
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP
Technical Information
- Features
- Zero-Touch Provisioning (ZTP), Energy Efficient, DHCP Snooping, Remote Monitoring (RMON), Strict Priority Queuing (SPQ), Built-in Fan
Physical Characteristics
- Compatible Rack Unit
- 1U
- Height
- 1.7" mm
- Width
- 17.4" mm
- Depth
- 12" mm
- Form Factor
- Surface Mount, Wall Mountable, Rack-mountable, Cabinet Mount, Compact
- Weight (Approximate)
- 11.07 lb g
General Information
- Product Type
- Ethernet Switch
- Product Series
- CX 6000
Miscellaneous
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
