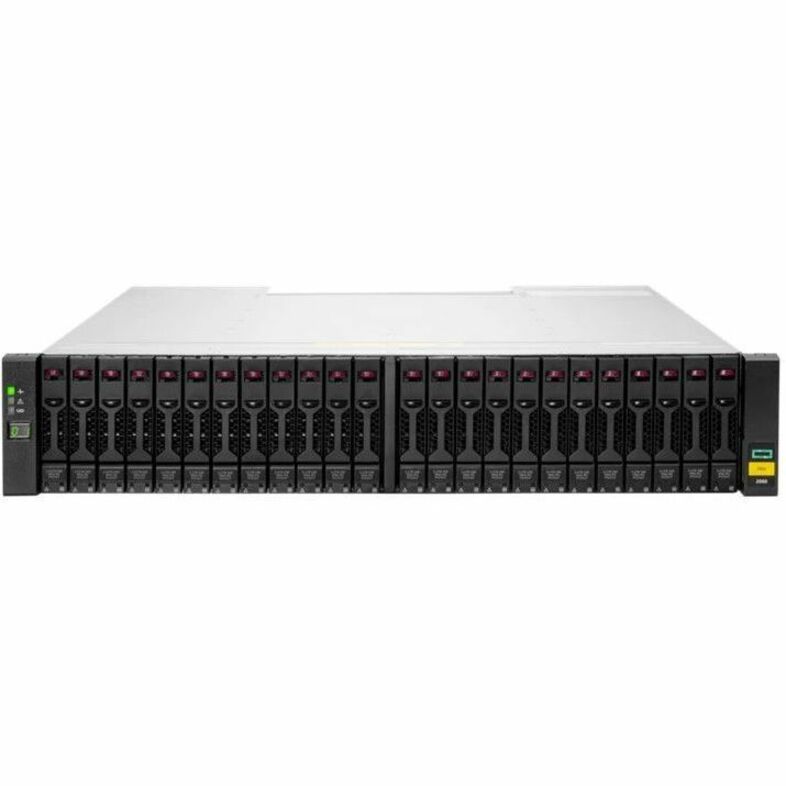

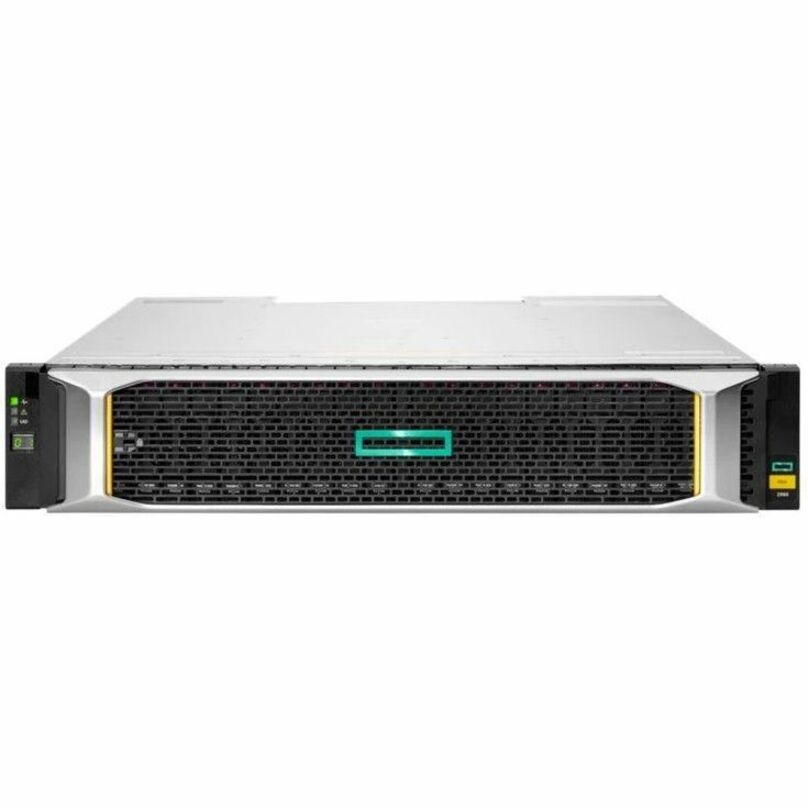

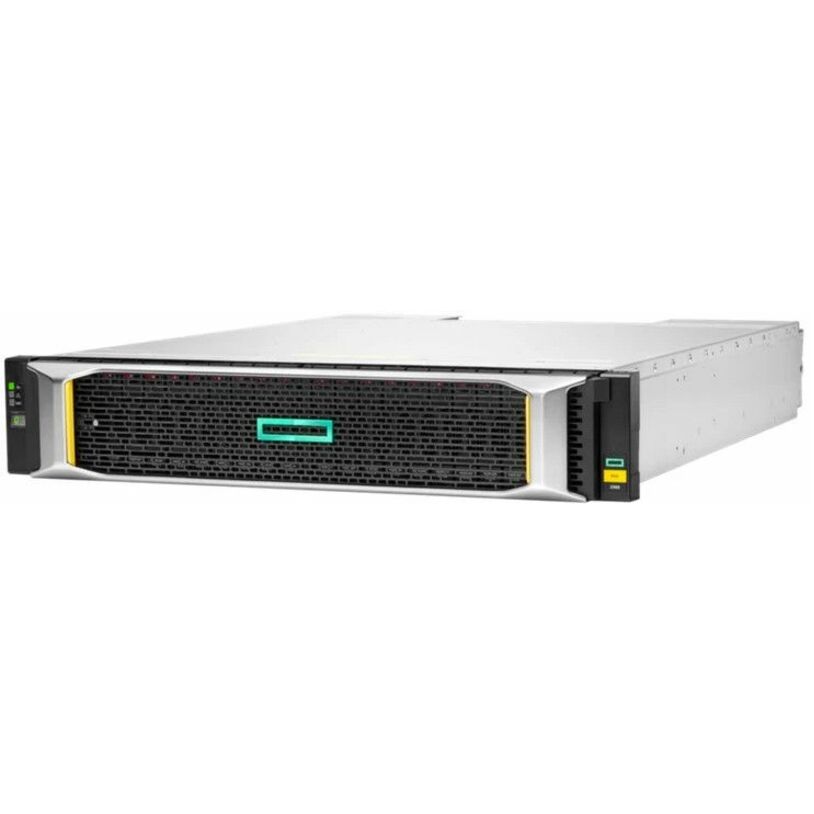

Representative imageHPE MSA 2060 16Gb Fibre Channel SFF 23TB Flash Bundle
HPE MSA 2060 16Gb Fibre Channel SFF 23TB Flash Bundle - 24 x HDD Supported - 1843.20 TB Supported HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - 1843.20 TB Supported SSD Capacity - 12 x SSD Installed - 23 TB Total Installed SSD Capacity - 2 x Fibre Channel Controller - RAID Supported - 12 x Total Bays - 12 x 3.5" Bay - SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 2U - Rack-mountable - TAA Compliant
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
Free download
Documents
- Product Type
- SAN/NAS Storage System
- Maximum Data Transfer Rate
- 16 Gbit/s
- RAID Supported
- Yes
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
- Total Hard Drive Capacity Supported
- 1843.20 TB
- Total Solid State Drive Capacity Supported
- 1843.20 TB
- Total Solid State Drive Capacity Installed
- 23 TB
Overview
HPE MSA 2060 16Gb Fibre Channel SFF 23TB Flash Bundle - 24 x HDD Supported - 1843.20 TB Supported HDD Capacity - 12Gb/s SAS - 12 x SSD Supported - 1843.20 TB Supported SSD Capacity - 12 x SSD Installed - 23 TB Total Installed SSD Capacity - 2 x Fibre Channel Controller - RAID Supported - 12 x Total Bays - 12 x 3.5" Bay - SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet - 2U - Rack-mountable - TAA Compliant (part number S2E39B) is supplied by Uniqcli, an authorized HPE partner, in the HPE Storage Arrays & Servers category. Number of Controllers: 2.
What's New Maximize the performance and value of entry-level, flash-based SAN storage solutions with new HPE MSA Gen6 Flash Bundle storage arrays. Add cost-effective flash storage capacity expansion to MSA Gen6 Flash Bundle storage arrays with new HPE MSA Gen6 SSD 6-Pack drive options. Key Features | Accelerate Applications Affordably The HPE MSA 2060 is capable of delivering up to 395,000 IOPS for affordable application acceleration for small to medium-sized businesses. The HPE MSA 2060 allows users to define and deploy hybrid or flash storage configurations day one and grow as their needs change. HPE MSA's 'Set It And Forget IT' Data Services Does Not Require a Dedicated Storage Administrator The HPE MSA 2060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the HPE MSA 2060's new Storage Management Utility intuitive and easy to navigate. HPE MSA's automated tiering engine dynamically responds to workload changes so you don't have to, ensuring the hottest data will be moved to the fastest media automatically and in real-time. Leverage Data Protection Features to Keep Your Business Running in the Event of a Disaster The HPE MSA 2060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap. Remote replication via Fibre Channel (FC) or iSCSI facilitates a affordable disaster recovery solution. Encrypted SSDs and HDDs with local key management can be deployed to deliver a secure, encrypted hybrid flash array. Flexible, Modular Architecture That Facilitates Growth Into the Future The HPE MSA 2060 Storage solution supports a mixture of 3.5 inch LFF and 2.5 inch SFF expansion enclosures for a maximum of 9 enclosures (10 total including the array). Start small and scale as needed with any combination of SSDs, Enterprise SAS or MidLine SAS HDDs.
• SAN/NAS Storage System offers maximum storage efficiency and convenience • Tested to support 12 SSD, and provide a total of 1843.20 tb SSD capacity • Up to 1843.20 tb Data Storage Capacity - great for demanding organizational needs • 1843.20 TB total solid state drive capacity support for spacious storage with much faster data transfer speed than standard hard drives • RAID technology - data reliability, fault tolerance and improved overall performance
Key specifications: Number of Controllers: 2 · Controller Type: Fibre Channel · RAID Supported: Yes · Fibre Channel: Yes · Host Interface: 12Gb/s SAS · Drive Interface: 12Gb/s SAS · Protocols: SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet · Hard Drive Interface: 12Gb/s SAS.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Controllers
- Number of Controllers
- 2
- Controller Type
- Fibre Channel
- RAID Supported
- Yes
Interfaces/Ports
- Fibre Channel
- Yes
- Host Interface
- 12Gb/s SAS
- Drive Interface
- 12Gb/s SAS
Management & Protocols
- Protocols
- SNMP, SMI-S, SSH, SMTP, FTP, SFTP, HTTP, HTTPS, Telnet
Storage
- Hard Drive Interface
- 12Gb/s SAS
- Maximum Data Transfer Rate
- 16 Gbit/s Bps
- Total Hard Drive Capacity Supported
- 1843.20 TB Byte
- Total Solid State Drive Capacity Supported
- 1843.20 TB Byte
- Total Solid State Drive Capacity Installed
- 23 TB Byte
- Number of Hard Drives Supported
- 24
- Number of Solid State Drive Supported
- 12
- Number of Solid State Drive Installed
- 12
- Solid State Drive Configuration
- 12 x 1.92TB
I/O Expansions
- Number of Total Expansion Bays
- 12
- Number of 3.5" Bays
- 12
Physical Characteristics
- Height
- 3.5" mm
- Width
- 19" mm
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Depth
- 26.4" mm
Miscellaneous
- TAA Compliant
- Yes
- Energy Star
- Yes
General Information
- Product Type
- SAN/NAS Storage System
- Product Model
- 2060
