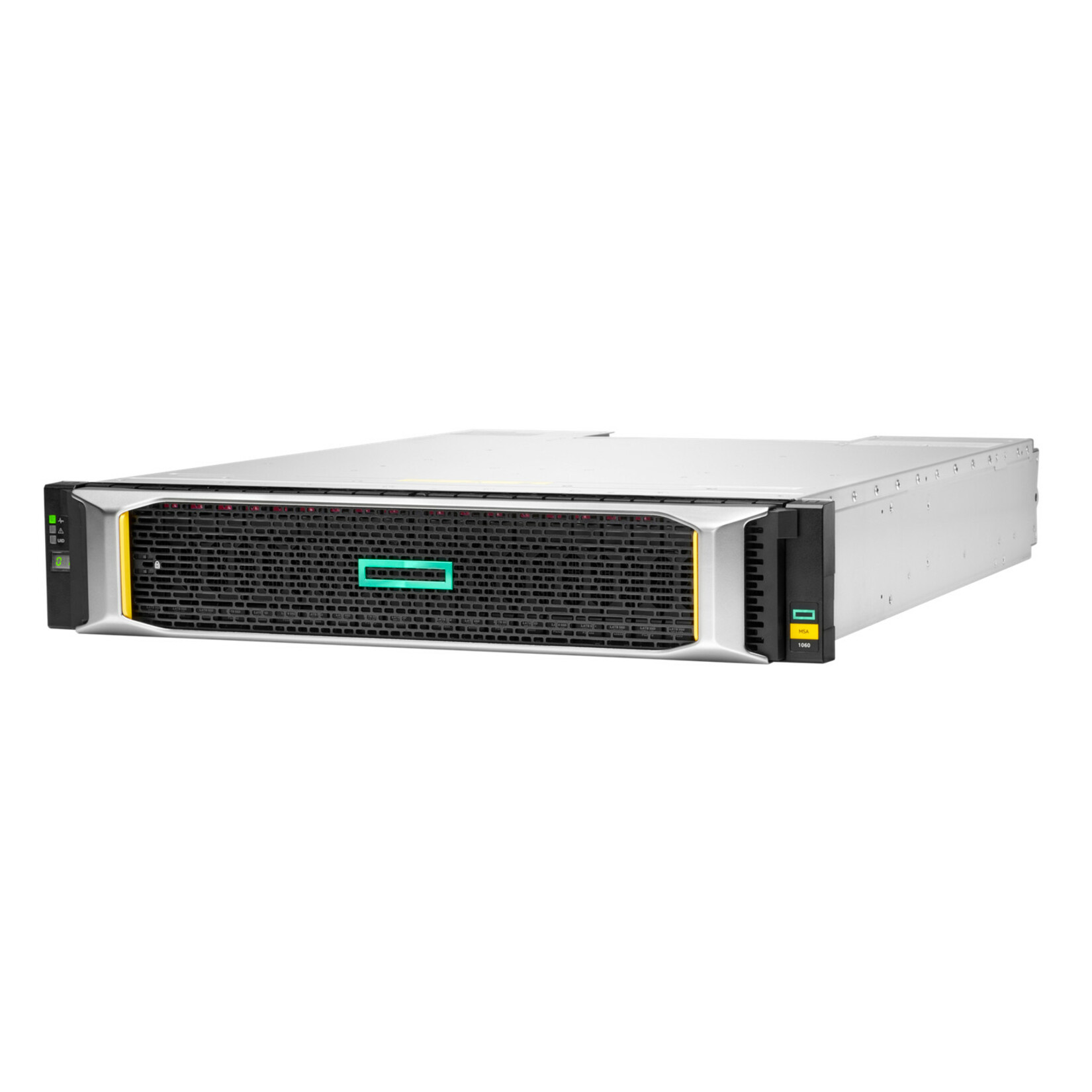

Representative imageHPE MSA 1060 16Gb Fibre Channel SFF Storage
HPE MSA 1060 16Gb Fibre Channel SFF Storage - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - Clustering Supported - 2 x Serial Attached SCSI (SAS) Controller - RAID Supported - 24 x Total Bays - 24 x 2.5" Bay - FCP - 2U - Rack-mountable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- SAN Storage System
- RAID Supported
- Yes
- Number of Total Expansion Bays
- 24
- Product Family
- 1000
- Number of Hard Drives Supported
- 24
- Number of Hard Drives Installed
- 0
- Number of 2.5" Bays
- 24
- Energy Star
- Yes
Overview
HPE MSA 1060 16Gb Fibre Channel SFF Storage - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - Clustering Supported - 2 x Serial Attached SCSI (SAS) Controller - RAID Supported - 24 x Total Bays - 24 x 2.5" Bay - FCP - 2U - Rack-mountable (part number R0Q85A) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE Storage Arrays & Servers category. RAID Supported: Yes.
What's New New 6th Gen MSA storage architecture with new HW and SW features including Tiering 2.0, RAID protection scheme (MSA DP+), a new web interface, and data management through a new RESTful interface. Improved array performance that provides more IOPS, more bandwidth and expanded backend connectivity. Up to 55% increase on IOPS, and up to 100% improvement on sequential throughput vs MSA Gen5 (depending on host protocol). New disk group type (MSA DP+) that increases availability, dramatically decreases RAID rebuild times, improves performance, simplifies setup and provides more granular expansion of disk pools. Key Features Accelerate Applications Affordably The HPE MSA 1060 Storage is capable of delivering over 150,000 IOPS for affordable application acceleration for small to medium-sized businesses and deployments. The MSA 1060 platform delivers allows users to define and deploy hybrid or flash configurations from day one and grow as needs change. MSA's 'Set and Forget' Data Services does not Require a Dedicated Storage Administrator to Manage The HPE MSA 1060 Storage is easy to install, easy to use, easy to maintain, even for an IT generalist. Administrators will find the MSA 1060's new Storage Management Utility intuitive and easy to navigate. HPE MSA's automated tiering engine dynamically responds to workload changes so you don't have to, insuring the hottest data will be moved to the fastest media automatically and in real-time. Leverage Data Protection Features to Keep your Business Running in the Event of a Disaster The HPE MSA 1060 Storage delivers virtualized snapshot technology making data protection and instant recovery a snap. Remote replication via Fibre Channel (FC) or iSCSI facilitates affordable disaster recovery solution. Flexible, Modular Architecture that Facilitates Growth into the Future The HPE MSA1060 Storage supports a combination of 3.5 inch LFF and 2.5 inch SFF base enclosures to a maximum of 3 (4 including base system) enclosures. Start small and scale as needed with any combination of SSDs, Enterprise SAS HDDs or Midline SAS HDDs.
• SAN Storage System is the single answer to all your desired storage needs • Robust scalability up to 24 drives to let you expand limitlessly • RAID technology - data reliability, fault tolerance and improved overall performance • Rack-mountable form factor for your convenience and simplicity of usage
Key specifications: RAID Supported: Yes · Number of Controllers: 2 · Controller Type: Serial Attached SCSI (SAS) · Protocols: FCP · Number of Total Expansion Bays: 24 · Number of 2.5" Bays: 24 · Number of Hard Drives Supported: 24 · Number of Hard Drives Installed: 0.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Controllers
- RAID Supported
- Yes
- Number of Controllers
- 2
- Controller Type
- Serial Attached SCSI (SAS)
Management & Protocols
- Protocols
- FCP
I/O Expansions
- Number of Total Expansion Bays
- 24
- Number of 2.5" Bays
- 24
Storage
- Number of Hard Drives Supported
- 24
- Number of Hard Drives Installed
- 0
- Number of Solid State Drive Supported
- 24
- Number of Solid State Drive Installed
- 0
- Clustering Supported
- Yes
Miscellaneous
- Energy Star
- Yes
Physical Characteristics
- Rack Height
- 2U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 11 lb g
General Information
- Product Type
- SAN Storage System
- Product Series
- 1000
- Product Model
- 1060
Interfaces/Ports
- Fibre Channel
- Yes
