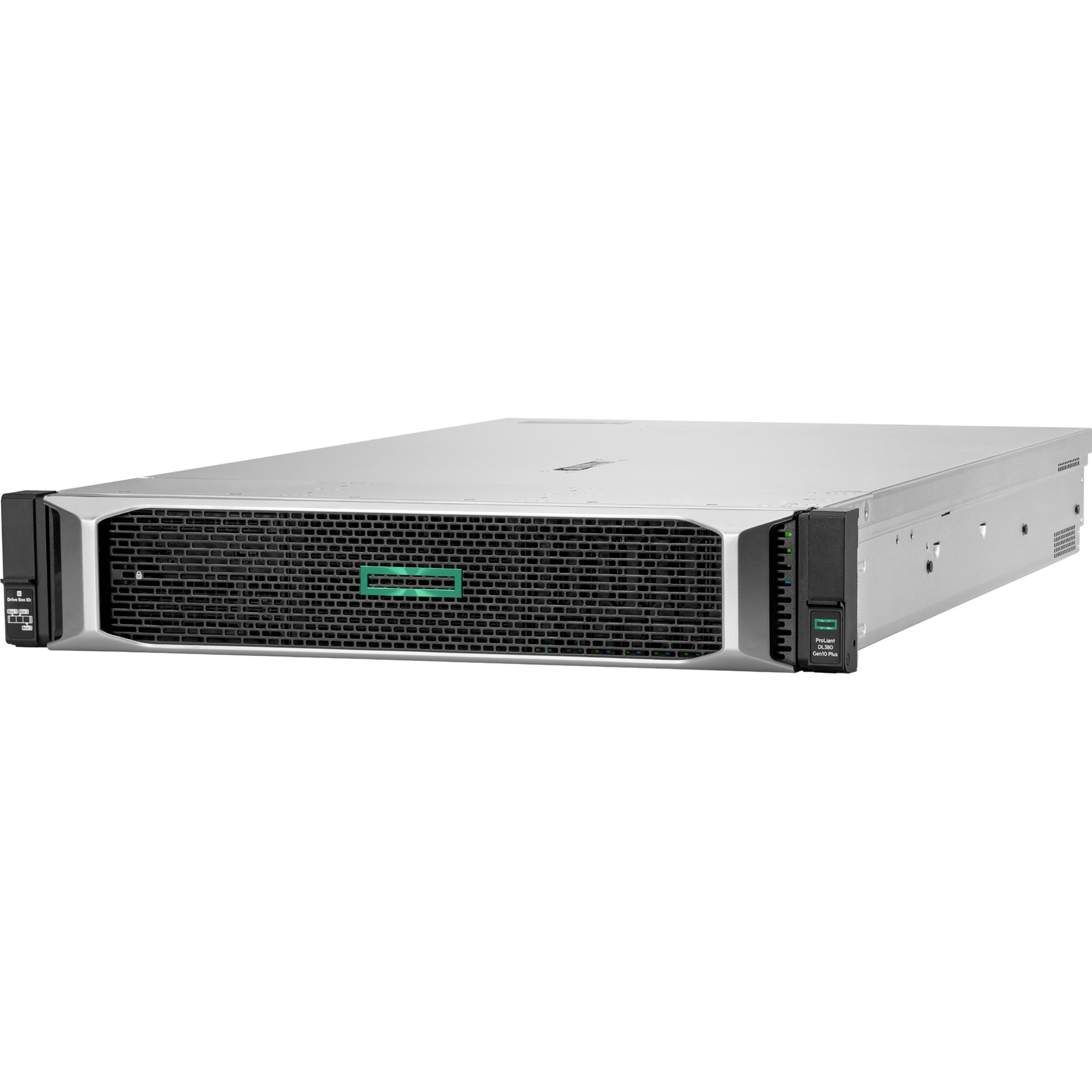

Representative imageHPE ProLiant DL380 G10 Plus 2U Rack Server
HPE ProLiant DL380 G10 Plus 2U Rack Server - 1 Xeon Silver 4314 2.40 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C621A Chip - 2 Processor Support - 2 TB RAM Support - DDR4 SDRAM Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Server
- Processor Core
- Hexadeca-core (16 Core)
- Environmentally Friendly
- Yes
- Optical Drive Type
- No
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- RAID Supported
- Yes
- Ethernet Technology
- 10 Gigabit Ethernet
Overview
HPE ProLiant DL380 G10 Plus 2U Rack Server - 1 Xeon Silver 4314 2.40 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C621A Chip - 2 Processor Support - 2 TB RAM Support - DDR4 SDRAM Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W (part number P43358-B21) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 24 MB Byte.
Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 Plus delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.
• 2 processors supported for faster processing and improved access to data, optimizing performance under heavy loads • With 32 GB memory, improve system performance and reduce processing delays • 1 x 800 W power supply unit (PSU) meets system power demands for stable and uninterrupted operations • No OS includes all the tools you need to stay productive and creative in your work • Xeon Silver processor ensures timely, efficient performance for demanding applications
Key specifications: Cache: 24 MB Byte · Processor Core: Hexadeca-core (16 Core) · Number of Processors Supported: 2 · Number of Processors Installed: 1 · Processor Generation: 3rd Gen · Processor Model: 4314 · Processor Speed: 2.40 GHz Hz · Processor Type: Xeon Silver.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 24 MB Byte
- Processor Core
- Hexadeca-core (16 Core)
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Generation
- 3rd Gen
- Processor Model
- 4314
- Processor Speed
- 2.40 GHz Hz
- Processor Type
- Xeon Silver
Warranty
- Additional Warranty Information
- 3-year parts, 3-year labor, 3-year onsite support with next business day response.
- Limited Warranty
- 3 Year Year
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Security Features
- UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification TPM (Trusted Platform Module) 1.2 option Configurable for PCI DSS compliance TPM (Trusted Platform Module) 2.0 option Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
- Package Contents
- ProLiant DL380 G10 Plus Server 6-foot IEC C-13/C-14 Jumper Cord
Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A
Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 800 W W
- Plug/Connector Type
- C13/C14
- Input Voltage
- 120 V AC V AC, 230 V AC V AC
I/O Expansions
- Number of Internal 2.5" Bays
- 8
- Number of Total Expansion Bays
- 8
- Total Number of Expansion Slots
- 3
- Hot Swappable Bays
- Yes
- PCI Express x16 (Gen 3.x) Slots
- 1
- PCI Express x8 (Gen 3.x) Slots
- 2
- Number of SFF Bays
- 8
- PCI Express Details
- PCI-Express 4.0 Slots 3-slots (x8, x16, x8) as standard
Storage
- Optical Drive Type
- No
- Number of Hard Drives
- No
Controllers
- RAID Supported
- Yes
- Controller Model
- Smart Array P408i-a
- Controller Type
- 12Gb/s SAS
Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
Memory
- Number of Occupied Memory Slots
- 1
- Memory Clock Speed
- 3.20 GHz Hz
- Total Number of Memory Slots
- 32
- Memory Technology
- DDR4 SDRAM
- Maximum Memory Supported
- 2 TB Byte
- Signal Processing
- Registered (Buffered)
- Standard Memory
- 32 GB Byte
Physical Characteristics
- Height
- 3.4" mm
- Width
- 17.5" mm
- Depth
- 28" mm
- Rack Height
- 2U
- Form Factor
- Rack
- Weight (Approximate)
- 63.43 lb g
Operating System
- Operating System
- No
- Operating System Supported
- Windows Server 2016, Windows Server 2019, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, Ubuntu 20.04 LTS
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Network (RJ-45)
- Yes
- DisplayPort
- Yes
- Remote Management
- Yes
- Total Number of USB Ports
- 5
- Number of USB 3.0 Ports
- 3
- Remote Management Controller
- HPE iLO Remote Management Network Port
Display & Graphics
- Graphics Memory Capacity
- 16 MB Byte
General Information
- Product Type
- Server
- Product Series
- DL380 G10 Plus
