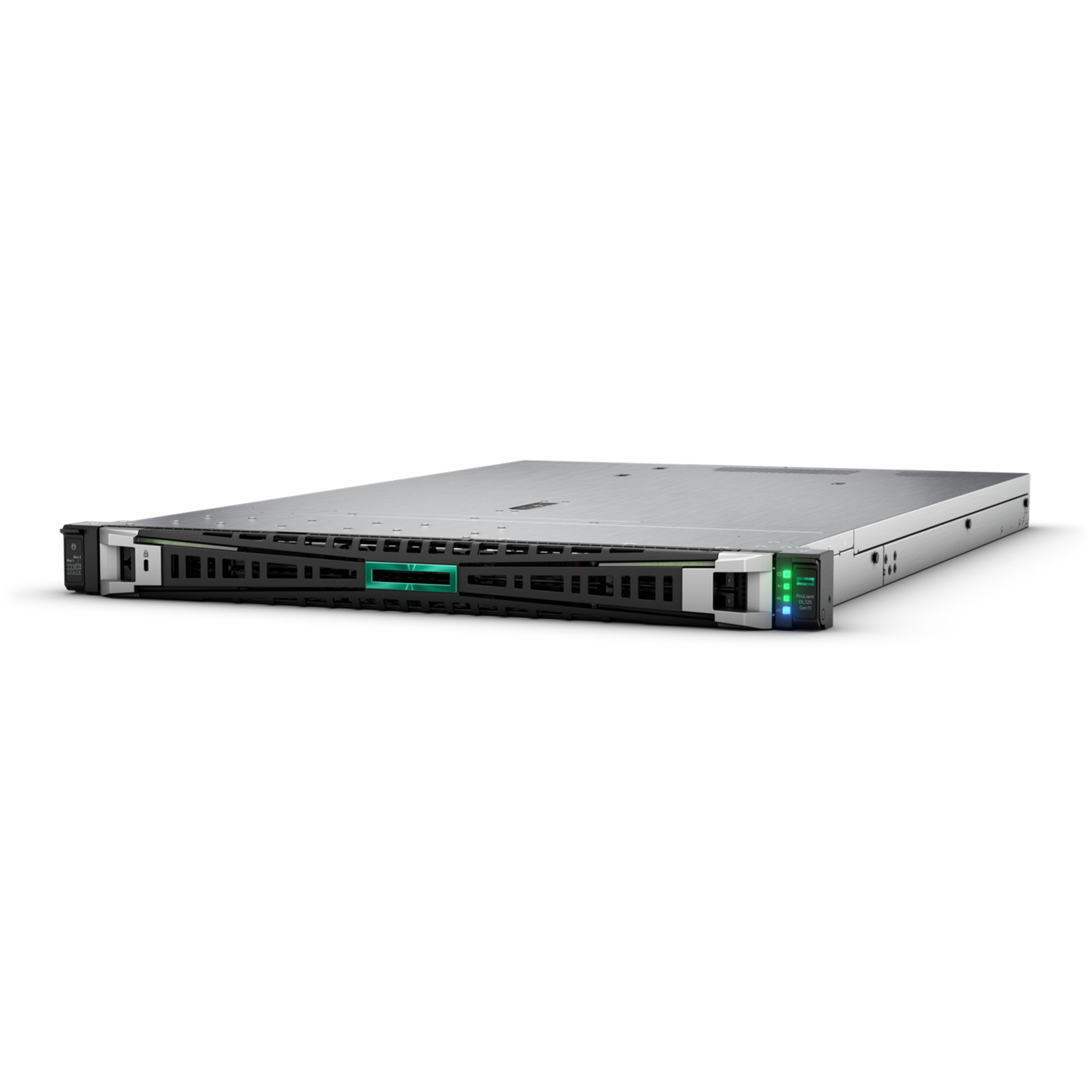

Representative imageHPE ProLiant DL325 G11 1U Rack Server
HPE ProLiant DL325 G11 1U Rack Server - 1 EPYC 9124 2.70 GHz - 32 GB RAM - 12Gb/s SAS Controller - AMD Chip - 1 Processor Support - 3 TB RAM Support - DDR5 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 1000 W
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Server
- Processor Core
- Hexadeca-core (16 Core)
- Optical Drive Type
- No
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- RAID Supported
- Yes
- Ethernet Technology
- Gigabit Ethernet
- VGA
- Yes
Overview
HPE ProLiant DL325 G11 1U Rack Server - 1 EPYC 9124 2.70 GHz - 32 GB RAM - 12Gb/s SAS Controller - AMD Chip - 1 Processor Support - 3 TB RAM Support - DDR5 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 1000 W (part number P58690-421) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 64 MB Byte.
Overview | HPE ProLiant DL325 Gen11 Are you looking for a scalable, low-cost performance server solution for your virtualized and software-defined compute workloads? The HPE ProLiant DL325 Gen11 server is a low-cost 1U 1P solution that delivers exceptional value balancing compute, memory and network bandwidth at 1P economics. Powered by 4th Generation AMD EPYC? Processors with up to 96 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to 2 GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads. The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server will boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.
• 1 processors supported for faster processing and improved access to data, optimizing performance under heavy loads • With 32 GB memory, improve system performance to execute complex applications smoothly and shorten processing time • 1000 W power supply unit (PSU) included for hassle-free deployment and reliable power delivery in server environments • No OS includes all the tools you need to stay productive and creative in your work • EPYC 2.70 GHz processor handles computing tasks effectively for better productivity
Key specifications: Cache: 64 MB Byte · Processor Core: Hexadeca-core (16 Core) · Number of Processors Supported: 1 · Number of Processors Installed: 1 · Processor Generation: 4th Gen · Processor Model: 9124 · Processor Speed: 2.70 GHz Hz · Processor Type: EPYC.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Processor
- Cache
- 64 MB Byte
- Processor Core
- Hexadeca-core (16 Core)
- Number of Processors Supported
- 1
- Number of Processors Installed
- 1
- Processor Generation
- 4th Gen
- Processor Model
- 9124
- Processor Speed
- 2.70 GHz Hz
- Processor Type
- EPYC
Chipset
- Chipset Manufacturer
- AMD
I/O Expansions
- Number of Internal 2.5" Bays
- 8
- Number of Total Expansion Bays
- 8
- Total Number of Expansion Slots
- 1
- Hot Swappable Bays
- Yes
- Number of SFF Bays
- 8
- PCI Express Details
- 1 PCIe 5.0 x16 Full-height, Full-length slot
- Riser Card
- 1 PCIe x16 Primary Riser
Storage
- Optical Drive Type
- No
- Number of Hard Drives
- No
Controllers
- RAID Supported
- Yes
- Controller Model
- MR408i-o
- Controller Type
- 12Gb/s SAS
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
Memory
- Number of Occupied Memory Slots
- 1
- Total Number of Memory Slots
- 12
- Memory Technology
- DDR5 SDRAM
- Error Checking
- ECC
- Maximum Memory Supported
- 3 TB Byte
- Signal Processing
- Registered (Buffered)
- Standard Memory
- 32 GB Byte
Physical Characteristics
- Height
- 1.7" mm
- Width
- 17.1" mm
- Depth
- 25.6" mm
- Rack Height
- 1U
- Form Factor
- Rack
- Weight (Approximate)
- 34.26 lb g
Operating System
- Operating System
- No
- Operating System Supported
- Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4
Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Hot Swappable Power Supply
- Yes
- Maximum Power Supply Wattage
- 1000 W W
- Plug/Connector Type
- C13/C14
Interfaces/Ports
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 4
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Total Number of USB Ports
- 5
- Remote Management Controller
- HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download)
Miscellaneous
- Energy Star
- Yes
- Security Features
- UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data
Display & Graphics
- Graphics Memory Capacity
- 16 MB Byte
General Information
- Product Type
- Server
- Product Series
- DL325 G11
