HPE ProLiant Compute DL320 Gen12 1U Rack Server - 1 x Intel Xeon 6 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Representative image
Servers & Compute

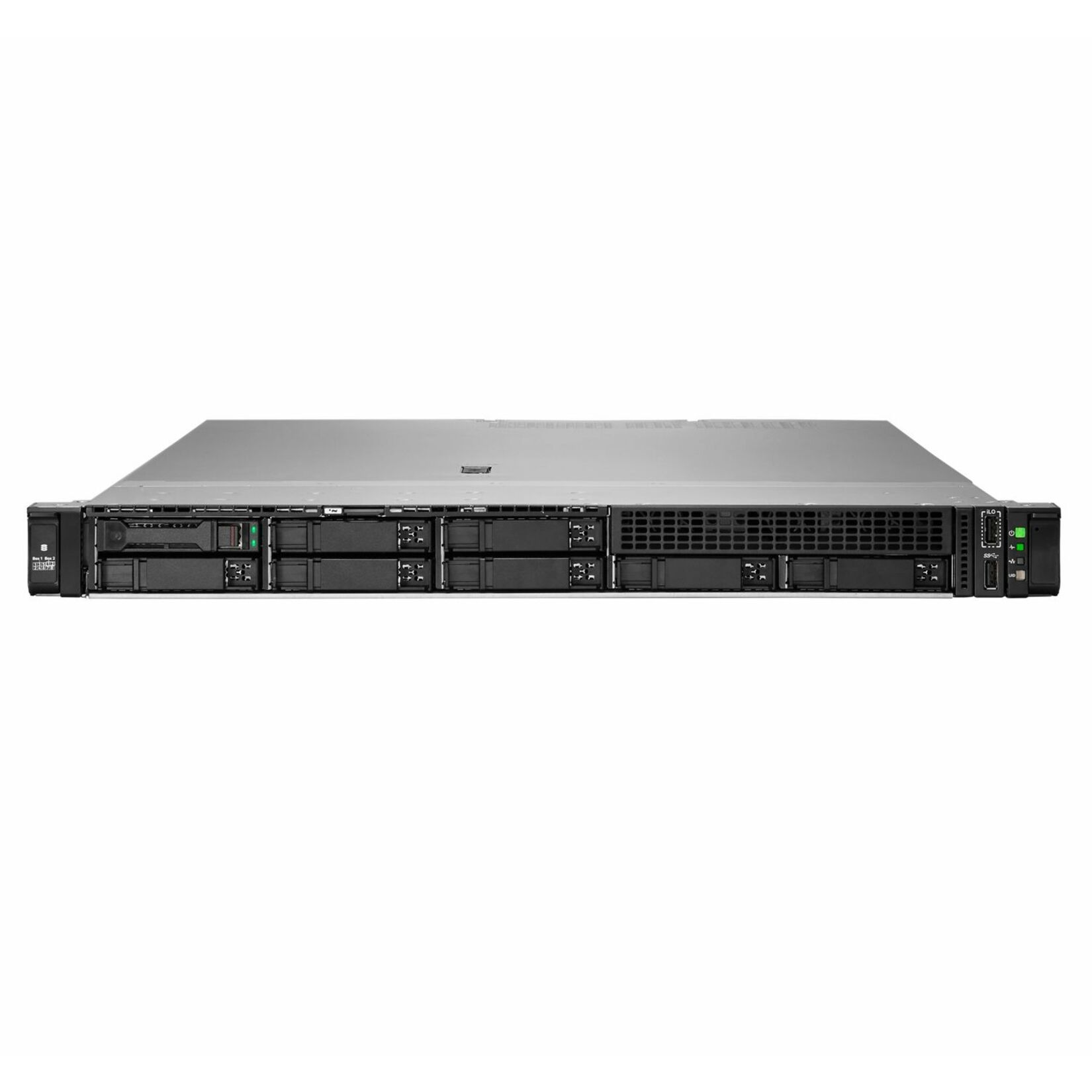

HPE ProLiant Compute DL320 Gen12 1U Rack Server

HPE ProLiant Compute DL320 Gen12 1U Rack Server - 1 x Intel Xeon 6 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel Chip - 1 Processor Support - 4 TB RAM Support - DDR5 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1000 W - Redundant Power Supply

Mfr #: P87790-005
$10,907Save $1,409.86 (13%)
$9,497.14

● Ships on backorderFree US shipping3-day delivery30-day returns

Advertised price · GPC-payable · TAA-compliant configurations available.

Free download

Documents

Product Type
Server
Processor Core
Dodeca-core (12 Core)
Processor Manufacturer
Intel
Redundant Power Supply
Yes
Number of Processors Supported
1
Number of Processors Installed
1
RAID Supported
Yes
Ethernet Technology
Gigabit Ethernet

Overview

HPE ProLiant Compute DL320 Gen12 1U Rack Server - 1 x Intel Xeon 6 6505P 2.20 GHz - 64 GB RAM - 960 GB SSD - (2 x 480GB) SSD Configuration - Serial ATA/600, 12Gb/s SAS Controller - Intel Chip - 1 Processor Support - 4 TB RAM Support - DDR5 SDRAM Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - Hot Swappable Bays - 2 x 1000 W - Redundant Power Supply (part number P87790-005) is supplied by Uniqcli, an authorized HPE partner, in the HPE Servers category. Cache: 48 MB Byte.

HPE ProLiant Compute DL320 Gen12 Based on industry-standard modular server design, the HPE ProLiant Compute DL320 Gen12 provides a right-sized, efficient compute solution. It is a 1U 1P server that provides best-in-class performance, with maximum I/O capabilities for cloud-native, Infrastructure-as-a-Service (IaaS), and general purpose workloads while consuming considerably less energy than 2P systems. The HPE ProLiant Compute DL320 Gen12 is purpose-built for edge computing, delivering exceptional performance and optimized economics and is an excellent choice for both virtualized and containerized workloads. The HPE ProLiant Compute DL320 Gen12 is powered Intel® Xeon® 6 Processors with up to 144 cores - including Intel Rich I/O options, increased memory capability (up to 4 TB 6400 MT/s), and high-speed PCIe Gen5. It supports up to four single-wide GPUs (or two double-wide) with front or rear-facing I/O, and capacity for up to 20 EDSFF drives. The HPE ProLiant Gen12 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

• 1 processors supported for faster processing and improved access to data, optimizing performance under heavy loads • With 64 GB memory, improve system performance and reduce processing delays • 960 GB SSD provides room for essential documents, favorite songs, movies, and pictures, ensuring smooth entertainment and work • 1000 W power supply unit (PSU) included for hassle-free deployment and reliable power delivery in server environments • Xeon 6 processor provides choices that favor either lower power use or stronger performance, making it easier to support varying workload styles

Key specifications: Cache: 48 MB Byte · Processor Core: Dodeca-core (12 Core) · Processor Manufacturer: Intel · Number of Processors Supported: 1 · Number of Processors Installed: 1 · Processor Model: 6505P · Processor Speed: 2.20 GHz Hz · Processor Type: Xeon 6.

GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.

Tech specs

Processor
Cache
48 MB Byte
Processor Core
Dodeca-core (12 Core)
Processor Manufacturer
Intel
Number of Processors Supported
1
Number of Processors Installed
1
Processor Model
6505P
Processor Speed
2.20 GHz Hz
Processor Type
Xeon 6
Warranty
Additional Warranty Information
Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response.
Limited Warranty
3 Year Year
Chipset
Chipset Manufacturer
Intel
Power Description
Number of Power Supplies Supported
2
Number of Power Supplies Installed
2
Redundant Power Supply
Yes
Hot Swappable Power Supply
Yes
Maximum Power Supply Wattage
1000 W W
Input Voltage
120 V AC V AC, 230 V AC V AC
I/O Expansions
Number of Internal 2.5" Bays
8
Number of Total Expansion Bays
8
Total Number of Expansion Slots
2
Hot Swappable Bays
Yes
Number of SFF Bays
8
PCI Express Details
1 PCIe 5.0 x16 FHHL (Primary Riser optional), 1 PCIe 5.0 x16 FHHL (Secondary Riser optional)
Controllers
RAID Supported
Yes
Controller Model
MR408i-o Gen11
Controller Type
Serial ATA/600, 12Gb/s SAS
Network & Communication
Ethernet Technology
Gigabit Ethernet
Miscellaneous
Energy Star
Yes
Energy Efficiency Compliance
Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
Security Features
UEFI Secure Boot and Secure Start support Secure Enclave - Silicon Root of Trust 2.0 Quantum resistant (PQC) readiness for signing firmware - CNSA 2.0 FIPS 140-3 validation (Planned) Common Criteria certification (Planned) USGv6 ready (Section 508 - VPAT) Secure Standard Mode - default security mode (equivalent of higher security mode in Gen 11) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND Front bezel key-lock feature - standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard Chassis Intrusion detection option TPM (Trusted Platform Module) 1x HPE Bezel Lock Kit 1x HPE ProLiant Gen11 1U Common Bezel Kit 1x HPE ProLiant DL320 Gen11 Intrusion Detection Cable Kit
Package Contents
ProLiant Compute DL320 Gen12 Server Easy Install Rail 1 Kit
Memory
Number of Occupied Memory Slots
1
Total Number of Memory Slots
16
Memory Technology
DDR5 SDRAM
Error Checking
ECC
Maximum Memory Supported
4 TB Byte
Signal Processing
Registered (Buffered)
Standard Memory
64 GB Byte
Physical Characteristics
Height
1.7" mm
Width
17.1" mm
Depth
23.9" mm
Rack Height
1U
Form Factor
Rack
Weight (Approximate)
38.03 lb g
Interfaces/Ports
VGA
Yes
Number of Network (RJ-45) Ports
4
Network (RJ-45)
Yes
Remote Management
Yes
Total Number of USB Ports
4
Remote Management Controller
HPE iLO6
Display & Graphics
Graphics Memory Capacity
16 MB Byte
General Information
Product Type
Server
Product Series
DL320 Gen12
Storage
Solid State Drive Interface
Serial ATA/600
Total Solid State Drive Capacity
960 GB Byte
Number of Solid State Drives
2
