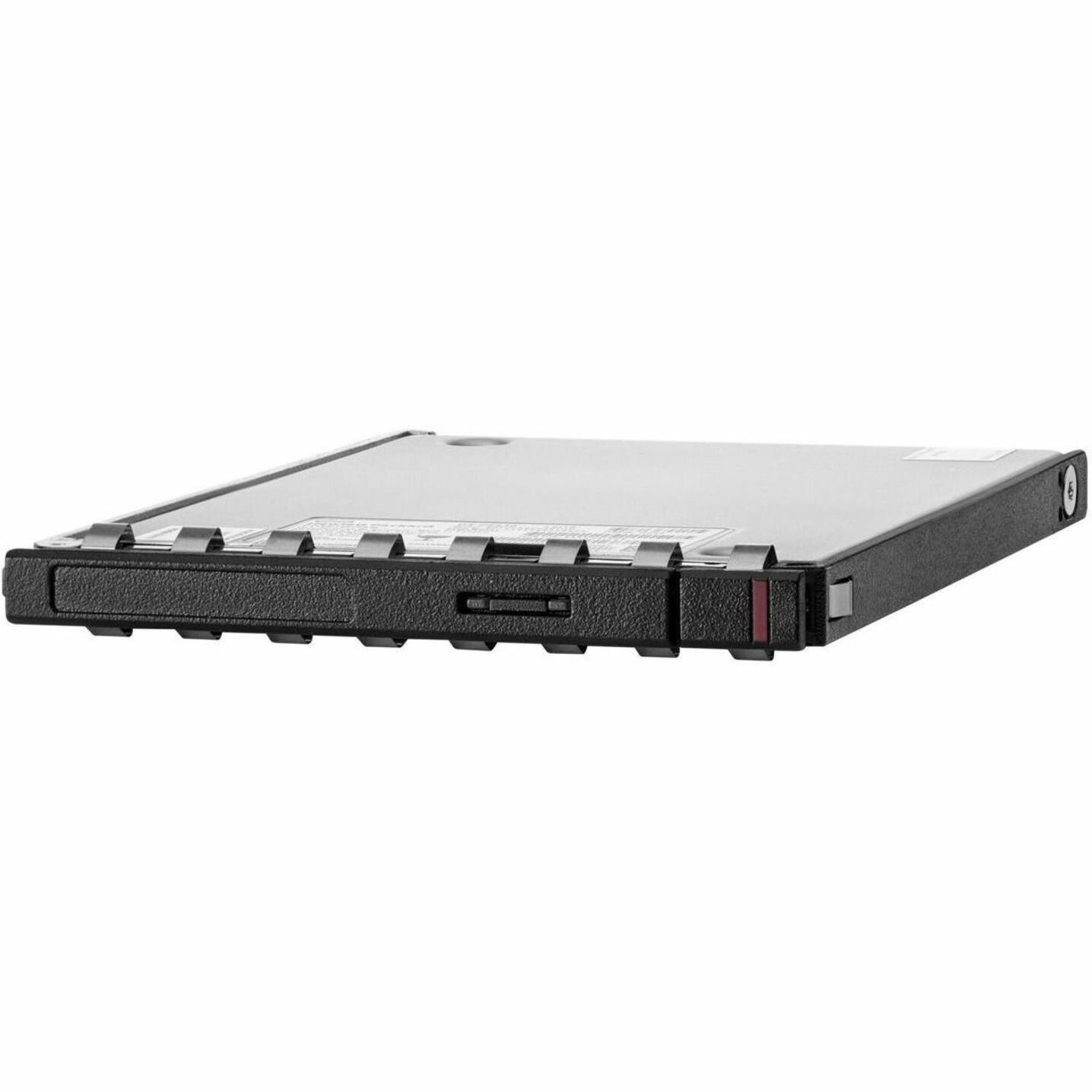

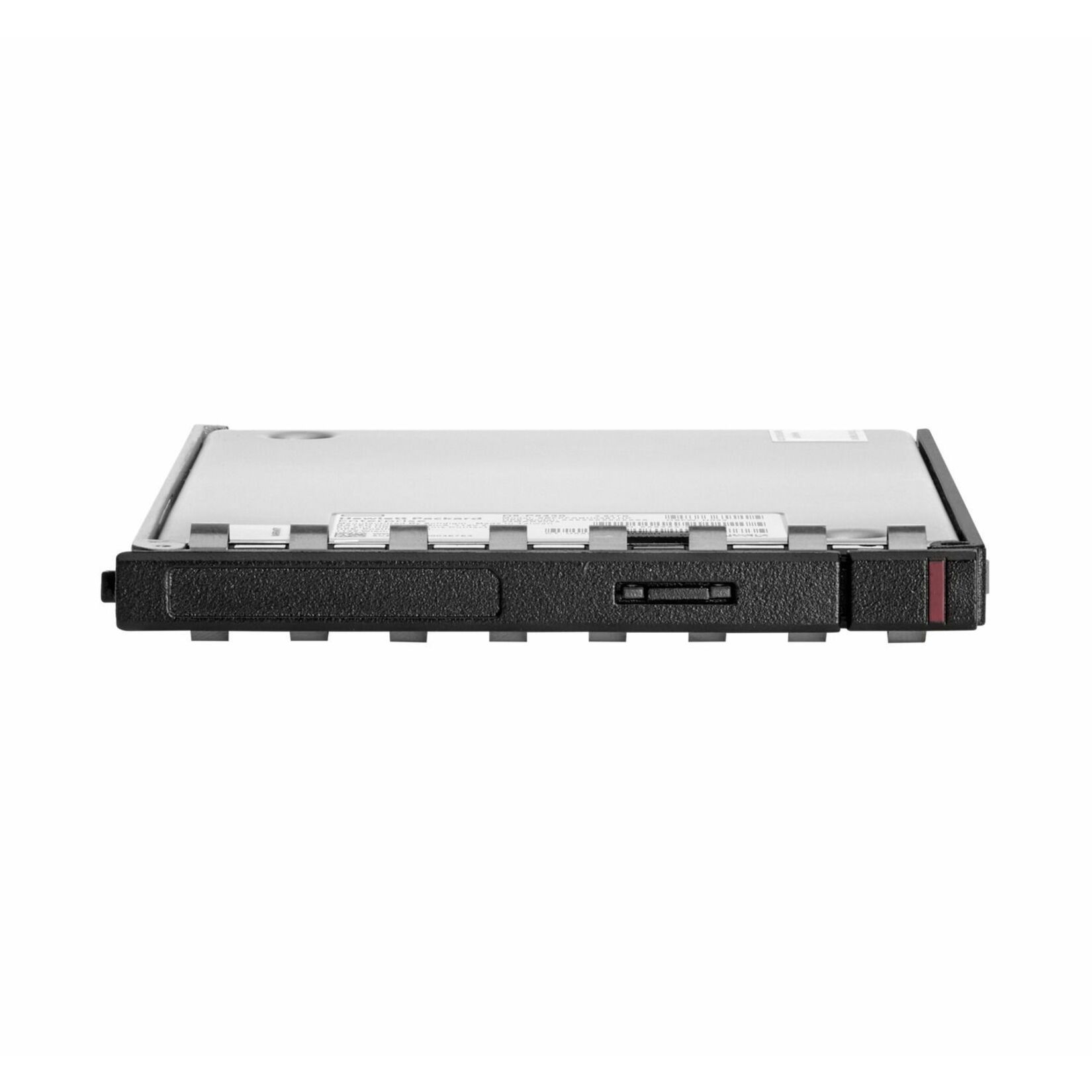

Representative imageHPE 3.84 TB Solid State Drive
HPE 3.84 TB Solid State Drive - E3.S Internal - PCI Express NVMe (PCI Express NVMe 5.0) - Read Intensive - Data Center, Server Device Supported - 1.35 DWPD - Hot Pluggable
GPC-payable · TAA-compliant configuration on request · usually back within one business day.
Free download
Documents
- Product Type
- Solid State Drive
- Drive Interface
- PCI Express NVMe
- Drive Interface Standard
- PCI Express NVMe 5.0
- Endurance Type
- Read Intensive
- Drive Type
- Internal
- Form Factor
- E3.S
- Device Supported
- Data Center
- Device Supported
- Server
Overview
HPE 3.84 TB Solid State Drive - E3.S Internal - PCI Express NVMe (PCI Express NVMe 5.0) - Read Intensive - Data Center, Server Device Supported - 1.35 DWPD - Hot Pluggable (part number P70392-B21) is supplied by Uniqcli, an authorized HPE partner, in the HPE Hard Drives/Solid State Drives category. Storage Capacity: 3.84 TB Byte.
Do you need to accelerate the performance of your mixed use applications? HPE NVMe High Performance Read Intensive (RI) Enterprise and Datacenter Standard Form Factor (EDSFF) E3.S Solid State Drives (SSDs) are best suited for applications requiring a strong blend of high read IOPS, low latency, and high endurance at a strong price point. NVMe SSDs communicate directly to applications via the PCIe Gen 5 bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance RI EDSFF E3.S SSDs replace the traditional 2.5 inch small form factor SSD while supporting greater density of NVMe drives. It provides high-performance data transfers at rates faster than SAS or SATA SSDs. Designed to utilize the high bandwidth of PCIe Gen 5 on servers with workloads high in reads such as read caching, web servers, and boot/swap. Features High Performance, Exceptional Reliability, and Efficiency for Faster Business Results HPE NVMe Mainstream Performance Mixed Use Enterprise and Datacenter Standard Form Factor (EDSFF) E3.S Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications and virtualization. Achieve higher IOPS to enhance the performance of your enterprise servers while maintaining data accuracy with full data-path error detection. Improved thermals, power, and scalability provide better system efficiency for high I/O applications. Faster PCIe Gen 5 technology is available with EDSFF E3.S SSDs. Improved Design and Efficiency for Increased Performance on Gen 11 Servers Dramatically increase density with a 1U server that can fit 20 E3.S or 10 E3.S 2T drives, or a 2U server that can fit 36 E3.S or 18 E3.S 2T drives. Improve power management and density while utilizing less power.
• Offer 3.84 TB, 7.68 TB, and 15.36 TB storage capacities for our next gen EDSFF E3.S SSDs • Offer better protection with support for Security Protocol and Data Model (SPDM). • Offer Self-Encrypting Drive (SED) Federal Information Processing Standards (FIPS 140-3) specific E3.S SSDs.
Key specifications: Storage Capacity: 3.84 TB Byte · Drive Interface: PCI Express NVMe · Drive Interface Standard: PCI Express NVMe 5.0 · Compatibility: HPE Gen 11 Servers · Device Supported: Data Center, Server · Random 4KB Read: 1220136IOPS IOPS · Random 4KB Write: 320418IOPS IOPS · Endurance (DWPD): 1.35.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Technical Information
- Storage Capacity
- 3.84 TB Byte
Interfaces/Ports
- Drive Interface
- PCI Express NVMe
- Drive Interface Standard
- PCI Express NVMe 5.0
Miscellaneous
- Compatibility
- HPE Gen 11 Servers
- Device Supported
- Data Center, Server
Drive Performance
- Random 4KB Read
- 1220136IOPS IOPS
- Random 4KB Write
- 320418IOPS IOPS
- Endurance (DWPD)
- 1.35
- Endurance Type
- Read Intensive
Physical Characteristics
- Hot Pluggable
- Yes
- Height
- 4.6" mm
- Width
- 7.9" mm
- Depth
- 10" mm
- Drive Type
- Internal
- Form Factor
- E3.S
- Weight (Approximate)
- 1.19 lb g
General Information
- Product Type
- Solid State Drive
