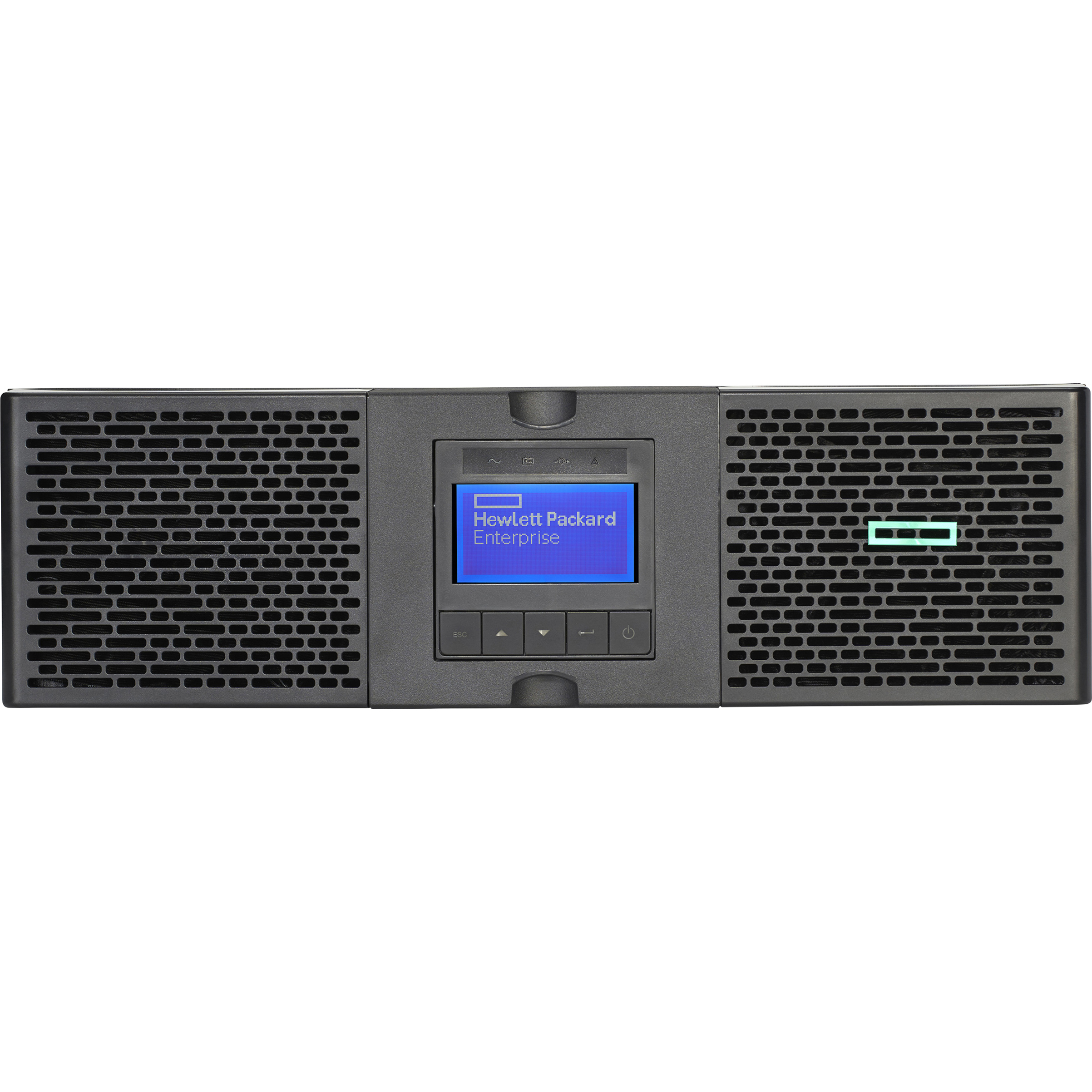

Representative imageHPE R5000 5kVA Rack-mountable UPS
HPE R5000 5kVA Rack-mountable UPS - 3U Rack-mountable - 3.20 Minute Stand-by - Single Phase - Serial Port
● Ships on backorderFree US shipping3-day delivery30-day returns
Advertised price · GPC-payable · TAA-compliant configurations available.
Free download
Documents
- Product Type
- Double Conversion Online UPS
- Phase
- Single Phase
- Backup/Run Time (Half Load)
- 11 Minute
- Backup/Run Time (Full Load)
- 3.20 Minute
- Load Capacity (VA)
- 5000 VA
- Load Capacity (Watt)
- 4500 W
- Replaceable Battery
- Yes
- Rack Height
- 3U
Overview
HPE R5000 5kVA Rack-mountable UPS - 3U Rack-mountable - 3.20 Minute Stand-by - Single Phase - Serial Port (part number Q7G09A) is supplied by Uniqcli, an authorized HPE & Juniper partner, in the HPE General Purpose UPS category. Input Frequency: 60 Hz Hz.
Does your IT workload require high availability power protection? HPE Online Double Conversion Rackmount Uninterruptible Power System enables high system availability by eliminating transfer time to battery power for all connected IT equipment. HPE Enhanced Battery Management technology improves battery service life by up to 50% while monitoring battery health and providing advanced notice when replacement is required. Scale system runtime from minutes to hours by adding up to four Extended Runtime Modules. HPE Online Double Conversion UPS includes a 1GbE Network Management Module that provides access to the UPS and its embedded web-based user interface, allowing you to monitor and manage individual UPS systems. With Eaton® Intelligent Power Manager software, users can centralize remote monitoring and management of multiple HPE UPS systems and seamlessly integrate them into virtualization platforms, such as HPE SimpliVity, to manage virtual machines and extend battery runtime. What's new Brings Online Double-Conversion technology to the Hewlett Packard Enterprise single-phase UPS portfolio. Supports the HPE 1GbE Network Management Module as a standard feature. Provides virtualization-ready support for HPE SimpliVity when using the Eaton Intelligent Power Manager software (free download). Adds a UPS model for North America and Japan (NA/JPN) specifically targeting backup power for larger network switches. Adds an R6000 international (INTL) model that provides 20% more power than current R5000 INTL model. Supports greater flexibility by adding hardwired power input for 30A/32A models (R8000). Features Improve the Availability of Your IT Systems The HPE Online Double Conversion Rackmount Uninterruptible Power System utilizes a power topology that offers one of the highest levels of power protection by helping eliminate transfer time to battery power for all connected server, storage, and networking equipment. HPE Enhanced Battery Management technology increases battery service life by up to 50% through an advanced, three-stage charging technique that closely monitors battery health and provides advanced notice when batteries need replacement. Scale UPS runtime from minutes to hours by adding up to four Extended Runtime Modules to your UPS. Monitor and Manage your HPE UPS from Across the Network The HPE Online Double Conversion Rackmount Uninterruptible Power System includes the new 1GbE Network Management Module that supports easy integration into most IT networks and access to the embedded web-based user interface for managing individual UPS systems. Eaton Intelligent Power Manager (IPM) software, available via free download, enables remote monitoring and management of multiple Hewlett Packard Enterprise UPS systems across the network from a single interface. Eaton IPM also supports seamless integration of Hewlett Packard Enterprise UPS systems into industry-leading virtualization platforms, such as HPE SimpliVity, allowing you to manage critical and non-critical virtual machines to extend battery runtime.
• Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments • Keep your sensitive devices powered with a backup of up to 3.20 minute at full load • Prevent critical data loss by staying powered during a blackout with up to 4500 W load capacity • 5000 VA load capacity provides sufficient backup during power failures • Replaceable battery for maximum feasibility and better usability
Key specifications: Input Frequency: 60 Hz Hz · Load Capacity (VA): 5000 VA W · Load Capacity (Watt): 4500 W W · Input Voltage Range: 200 V AC - 250 V AC · Waveform Type: Sinusoidal · Serial Port: Yes · USB (HID Compliant) Port: Yes · Backup/Run Time (Half Load): 11 Minute Second.
GPC-payable, with SAP, FAR-based purchase orders, and GSA eBuy support. Ask us about TAA-compliant configurations, current pricing, stock, and lead time.
Tech specs
Power Description
- Input Frequency
- 60 Hz Hz
- Load Capacity (VA)
- 5000 VA W
- Load Capacity (Watt)
- 4500 W W
- Input Voltage Range
- 200 V AC - 250 V AC
- Waveform Type
- Sinusoidal
Interfaces/Ports
- Serial Port
- Yes
- USB (HID Compliant) Port
- Yes
Battery Information
- Backup/Run Time (Half Load)
- 11 Minute Second
- Backup/Run Time (Full Load)
- 3.20 Minute Second
- Battery Characteristics
- Maintenance-free, Sealed, Valve-regulated
- Replaceable Battery
- Yes
- DC System Voltage
- 180 V DC V DC
- Battery Chemistry
- Lead Acid
Environmental Conditions
- Maximum Operating Temperature
- 104°F (40°C) °F
- Maximum Operating Elevation
- 4921.26 ft mm
- Operating Humidity
- 0% - 95% %
- Storage Relative Humidity
- 5% - 90% %
- Sound Emission
- 45 dB dB
Physical Characteristics
- Height
- 5.10" mm
- Width
- 17.30" mm
- Depth
- 28.40" mm
- Rack Height
- 3U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 108.47 lb g
General Information
- Product Type
- Double Conversion Online UPS
- Product Model
- R5000
Technical Information
- Phase
- Single Phase
- Application/Usage
- IT System
